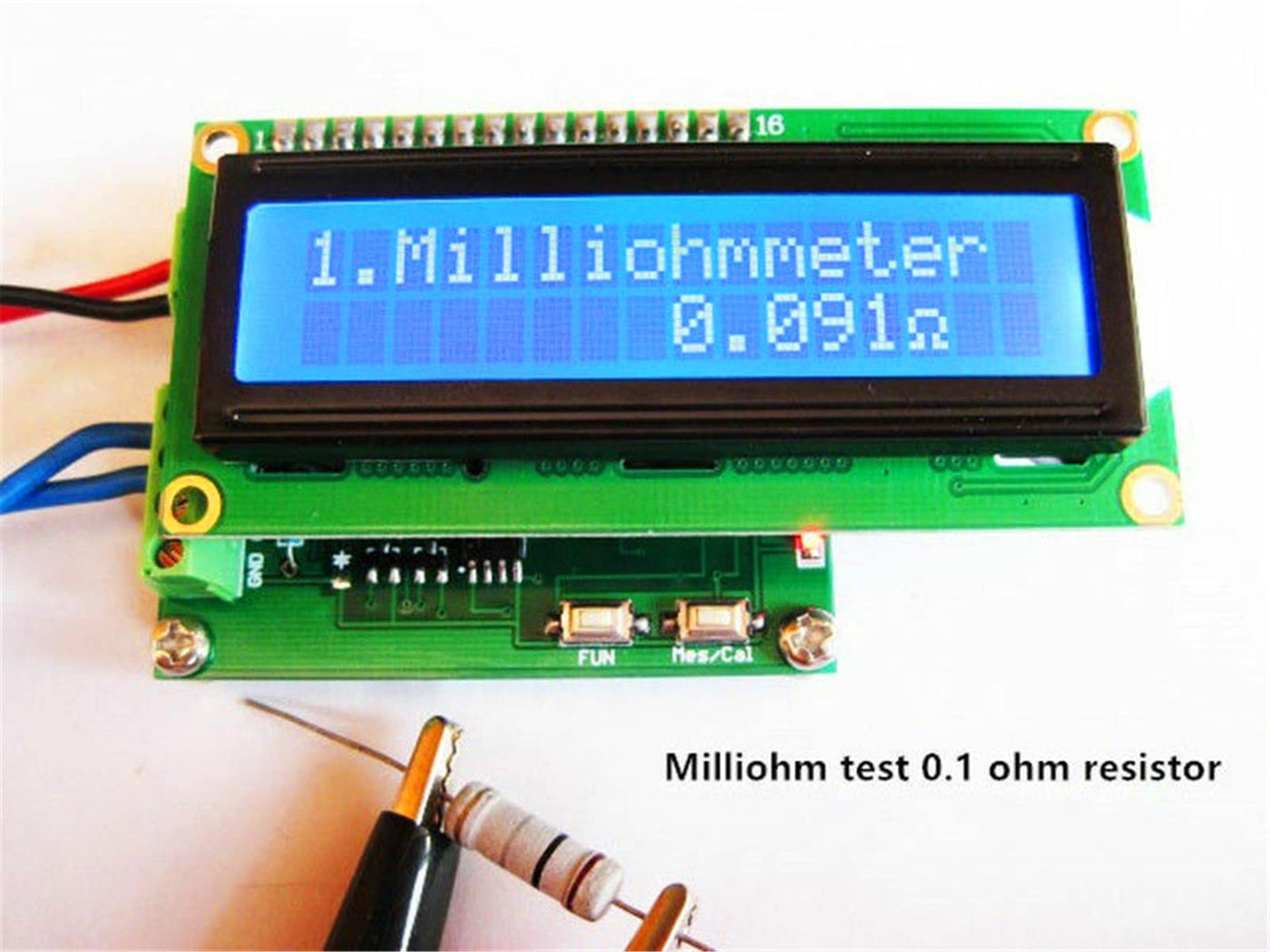

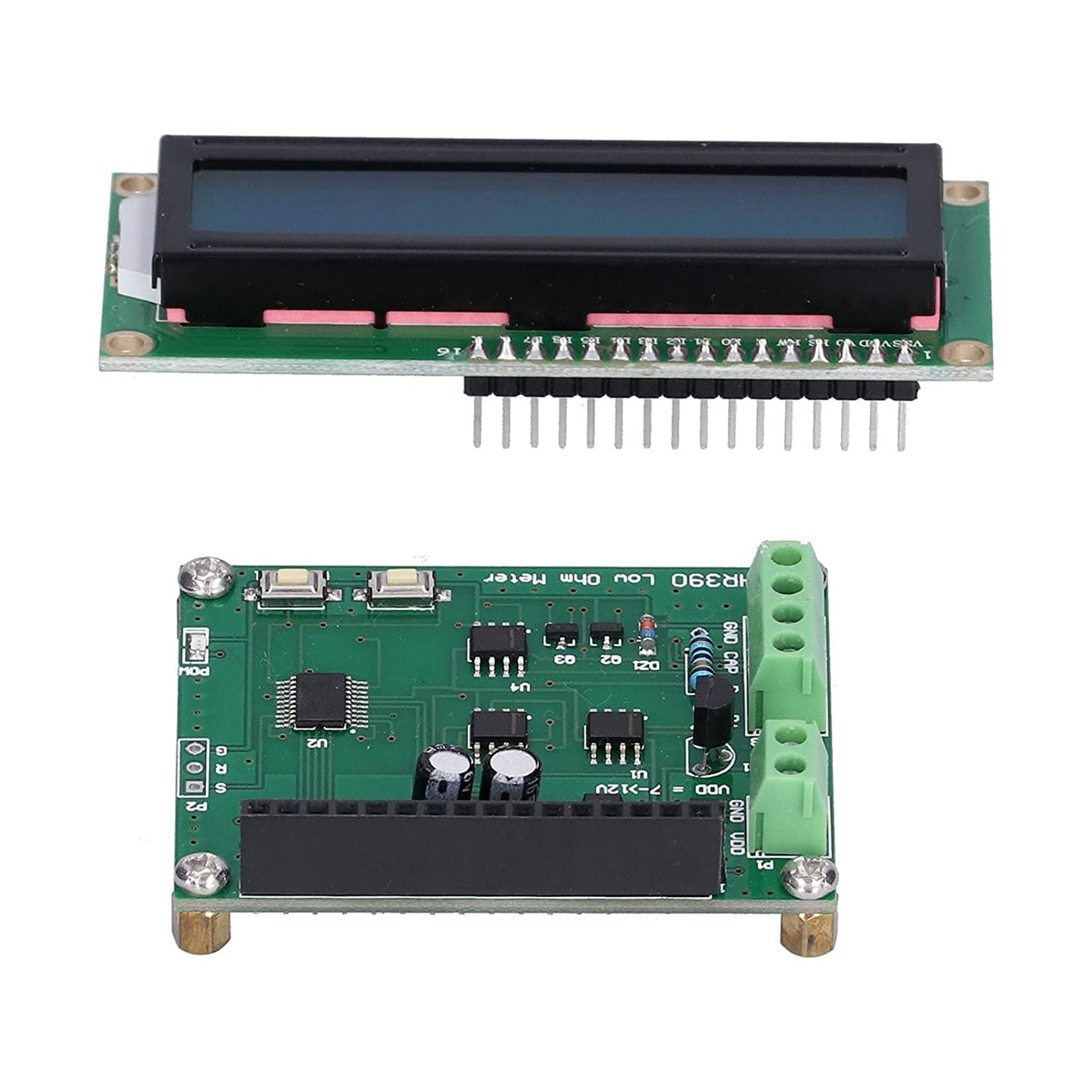

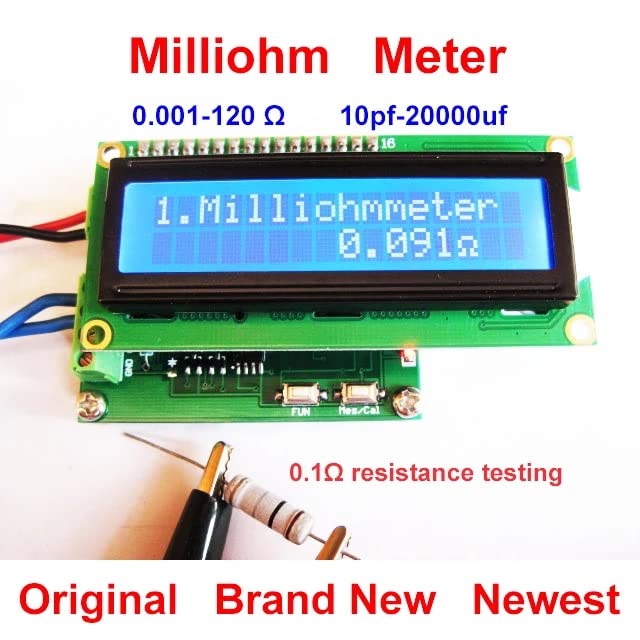

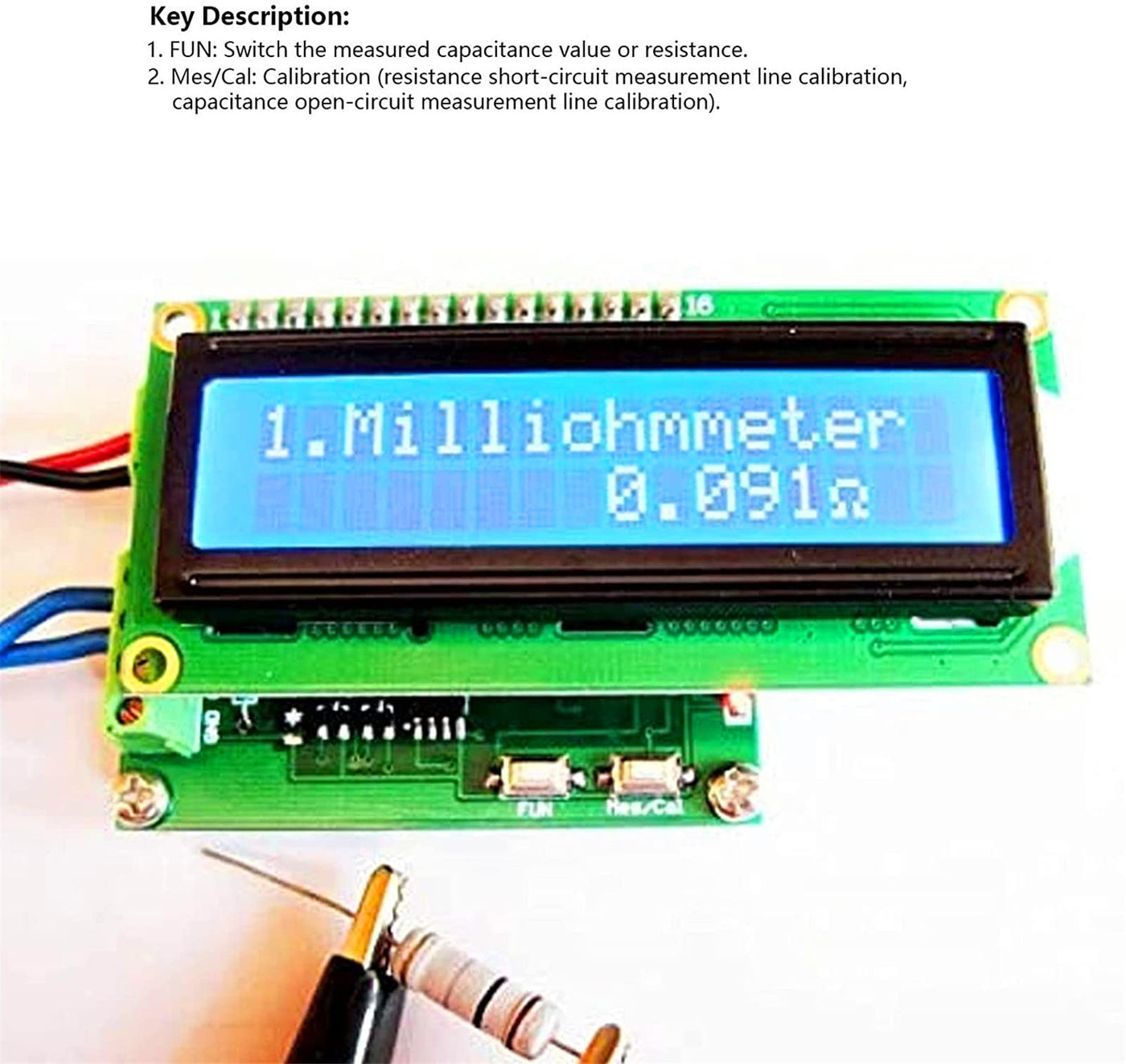

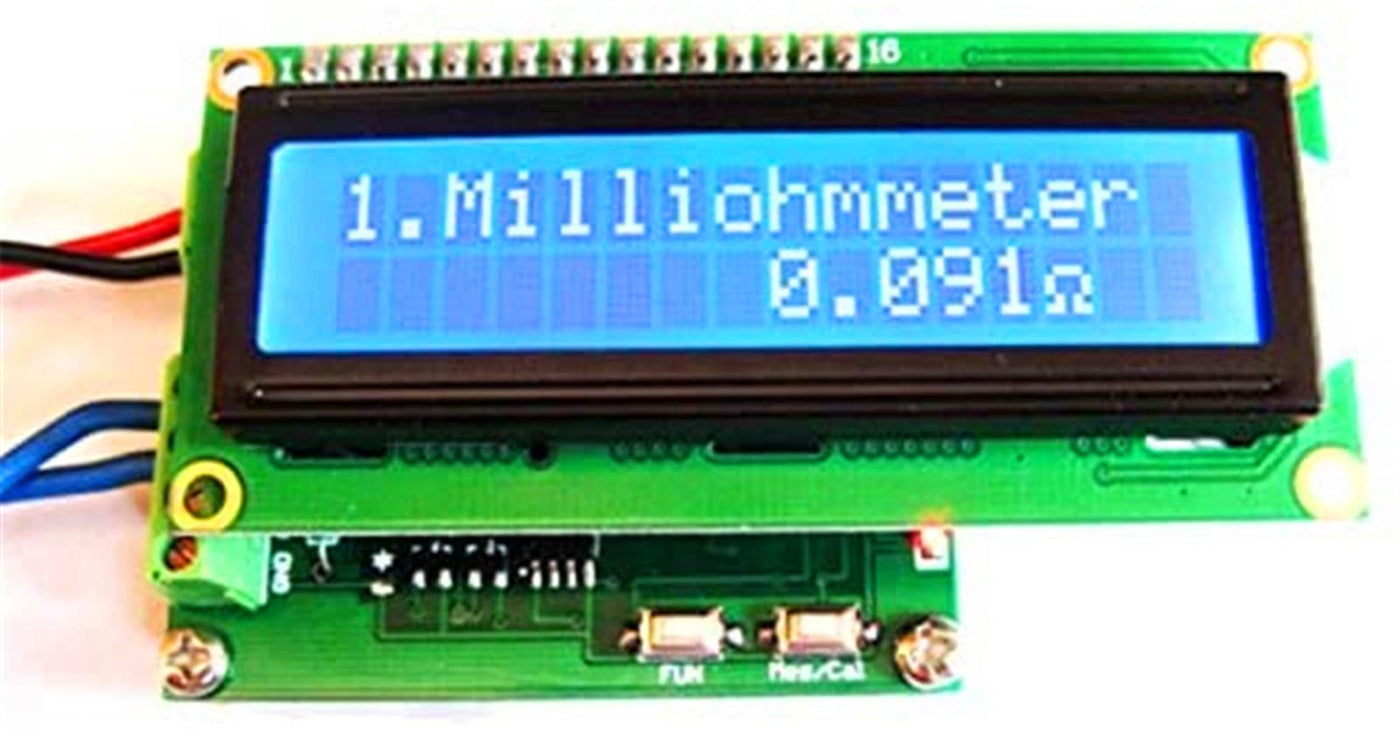

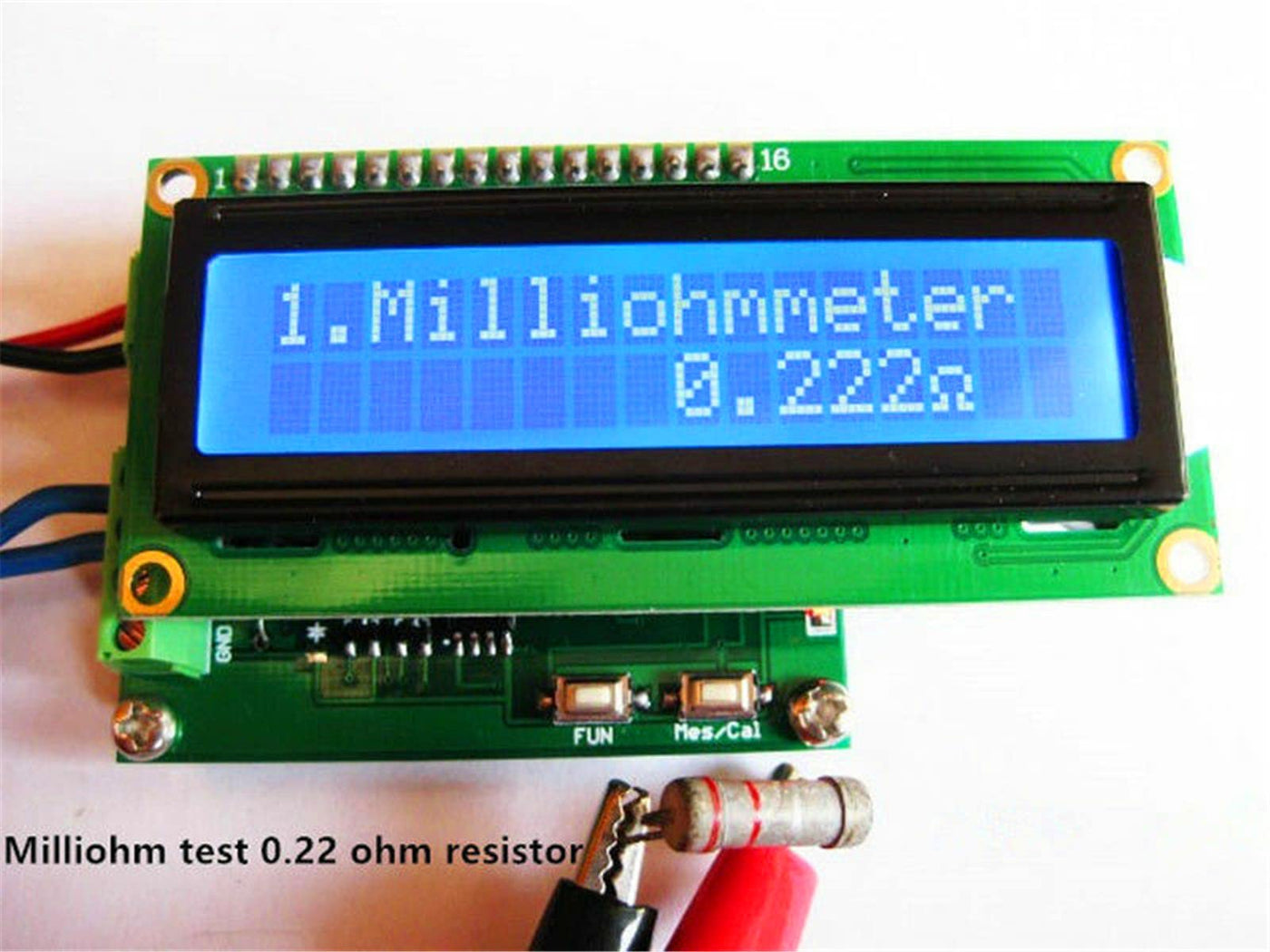

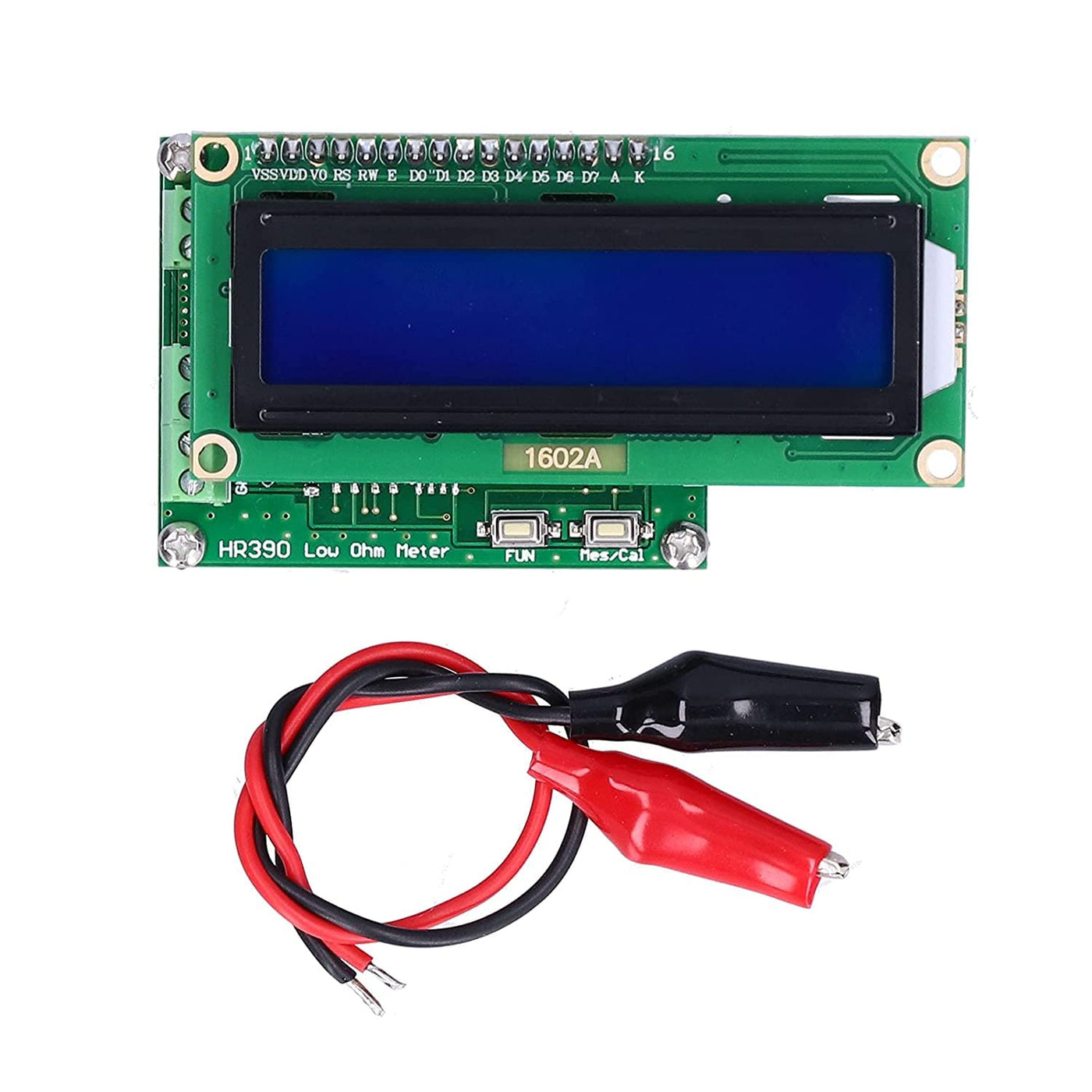

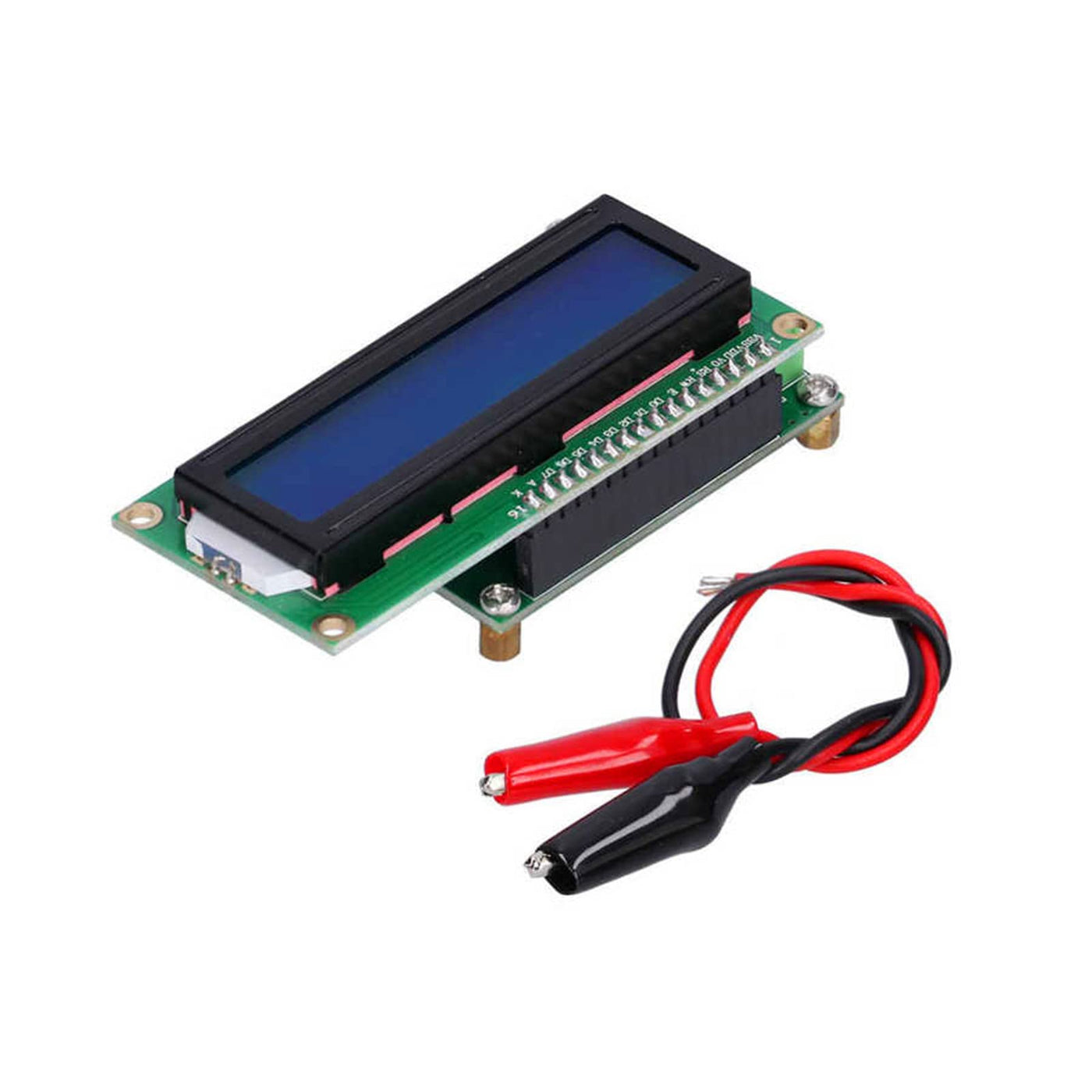

{"id":8751916351639,"title":"High Precision HR390 Milliohm Meter 0.001-120Ω Ohmmeter Low Resistance Tester Capacitance Meter Testing Module","handle":"high-precision-hr390-milliohm-meter-0-001-120ω-ohmmeter-low-resistance-tester-capacitance-meter-testing-module","description":"\u003ch3\u003eHigh Precision HR390 Milliohm Meter 0.001-120Ω Ohmmeter Low Resistance Tester Capacitance Meter Testing Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHow to Use: 1. FUN: Switch the measured capacitance value or resistance. 2.\nMes\/Cal: Calibration (resistance short‑circuit measurement line calibration,\ncapacitance open‑circuit measurement line calibration). Specification: Item\nType: Low Resistance Ohmmeter Product Material: Printed Circuit Board\nMeasuring Resistance Range: 0.001 ~ 120 Ω Resistance Measurement Resolution: 1\nmΩ Measuring Capacitance Range: 10pf ~ 20000uf Capacitance Measurement: 1pf\nWorking Voltage: 7~12V DC Working Current: \u0026lt;100 mA Terminal code Description：\nVDD:7-12V operating power supply + GND:7-12V operating power supply-\nR+:Connect to resistance R-:Connect to resistance CAP:Connect to Capacitance +\nGND:Connect to Capacitance - Package List: 1 Unit x Original HR390 Milliohm\nMeter Low Resistance Capacitance Tester 1 Set x Alligator testing clip\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe resistance measuring range is 0.001 to 120, and the capacitance measuring range is 10pf to 20000uf.\u003c\/li\u003e\n \u003cli\u003eThe ohmmeter has a measurement resolution up to 1 m, and the high accuracy will bring more convenience to your work.\u003c\/li\u003e\n \u003cli\u003eThe HR390 resistance meter has small size and light weight which allows easy storage and carrying.\u003c\/li\u003e\n \u003cli\u003eWith this low resistance ohmmeter, you can accurately and quickly measure resistance and capacitance values.\u003c\/li\u003e\n \u003cli\u003eNote: Please do not use it outside the current and voltage range.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-24T11:32:36+11:00","created_at":"2025-01-24T04:28:15+11:00","vendor":"Generic","type":"Ohmmeters","tags":["industrial_best_sellers_Jan2025"],"price":23400,"price_min":23400,"price_max":23400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45073275453591,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09VH9LHT8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"High Precision HR390 Milliohm Meter 0.001-120Ω Ohmmeter Low Resistance Tester Capacitance Meter Testing Module","public_title":null,"options":["Default Title"],"price":23400,"weight":63,"compare_at_price":null,"inventory_management":"shopify","barcode":"612755485539","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B09VH9LHT8.jpg?v=1737679305","\/\/newnestshop.com\/cdn\/shop\/files\/51glBN1LoyL.jpg?v=1737653298","\/\/newnestshop.com\/cdn\/shop\/files\/61VJGkgrqzL.jpg?v=1737653298","\/\/newnestshop.com\/cdn\/shop\/files\/61QRwdRXjFL.jpg?v=1737653298","\/\/newnestshop.com\/cdn\/shop\/files\/61HnKnGU4PL.jpg?v=1737653298","\/\/newnestshop.com\/cdn\/shop\/files\/61y2-1JCFDL.jpg?v=1737653298","\/\/newnestshop.com\/cdn\/shop\/files\/71jSuskPnFL.jpg?v=1737653298","\/\/newnestshop.com\/cdn\/shop\/files\/61I3CwwRDjL.jpg?v=1737653298"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B09VH9LHT8.jpg?v=1737679305","options":["Title"],"media":[{"alt":null,"id":36797430890647,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B09VH9LHT8.jpg?v=1737679305"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B09VH9LHT8.jpg?v=1737679305","width":1500},{"alt":null,"id":36794988396695,"position":2,"preview_image":{"aspect_ratio":1.0,"height":640,"width":640,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51glBN1LoyL.jpg?v=1737653298"},"aspect_ratio":1.0,"height":640,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51glBN1LoyL.jpg?v=1737653298","width":640},{"alt":null,"id":36794988429463,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VJGkgrqzL.jpg?v=1737653298"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VJGkgrqzL.jpg?v=1737653298","width":1500},{"alt":null,"id":36794988462231,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61QRwdRXjFL.jpg?v=1737653298"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61QRwdRXjFL.jpg?v=1737653298","width":1600},{"alt":null,"id":36794988494999,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61HnKnGU4PL.jpg?v=1737653298"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61HnKnGU4PL.jpg?v=1737653298","width":1600},{"alt":null,"id":36794988527767,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61y2-1JCFDL.jpg?v=1737653298"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61y2-1JCFDL.jpg?v=1737653298","width":1600},{"alt":null,"id":36794988560535,"position":7,"preview_image":{"aspect_ratio":1.058,"height":1512,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71jSuskPnFL.jpg?v=1737653298"},"aspect_ratio":1.058,"height":1512,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71jSuskPnFL.jpg?v=1737653298","width":1600},{"alt":null,"id":36794988593303,"position":8,"preview_image":{"aspect_ratio":1.916,"height":835,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61I3CwwRDjL.jpg?v=1737653298"},"aspect_ratio":1.916,"height":835,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61I3CwwRDjL.jpg?v=1737653298","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHigh Precision HR390 Milliohm Meter 0.001-120Ω Ohmmeter Low Resistance Tester Capacitance Meter Testing Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHow to Use: 1. FUN: Switch the measured capacitance value or resistance. 2.\nMes\/Cal: Calibration (resistance short‑circuit measurement line calibration,\ncapacitance open‑circuit measurement line calibration). Specification: Item\nType: Low Resistance Ohmmeter Product Material: Printed Circuit Board\nMeasuring Resistance Range: 0.001 ~ 120 Ω Resistance Measurement Resolution: 1\nmΩ Measuring Capacitance Range: 10pf ~ 20000uf Capacitance Measurement: 1pf\nWorking Voltage: 7~12V DC Working Current: \u0026lt;100 mA Terminal code Description：\nVDD:7-12V operating power supply + GND:7-12V operating power supply-\nR+:Connect to resistance R-:Connect to resistance CAP:Connect to Capacitance +\nGND:Connect to Capacitance - Package List: 1 Unit x Original HR390 Milliohm\nMeter Low Resistance Capacitance Tester 1 Set x Alligator testing clip\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe resistance measuring range is 0.001 to 120, and the capacitance measuring range is 10pf to 20000uf.\u003c\/li\u003e\n \u003cli\u003eThe ohmmeter has a measurement resolution up to 1 m, and the high accuracy will bring more convenience to your work.\u003c\/li\u003e\n \u003cli\u003eThe HR390 resistance meter has small size and light weight which allows easy storage and carrying.\u003c\/li\u003e\n \u003cli\u003eWith this low resistance ohmmeter, you can accurately and quickly measure resistance and capacitance values.\u003c\/li\u003e\n \u003cli\u003eNote: Please do not use it outside the current and voltage range.\u003c\/li\u003e\n \u003c\/ul\u003e"}
