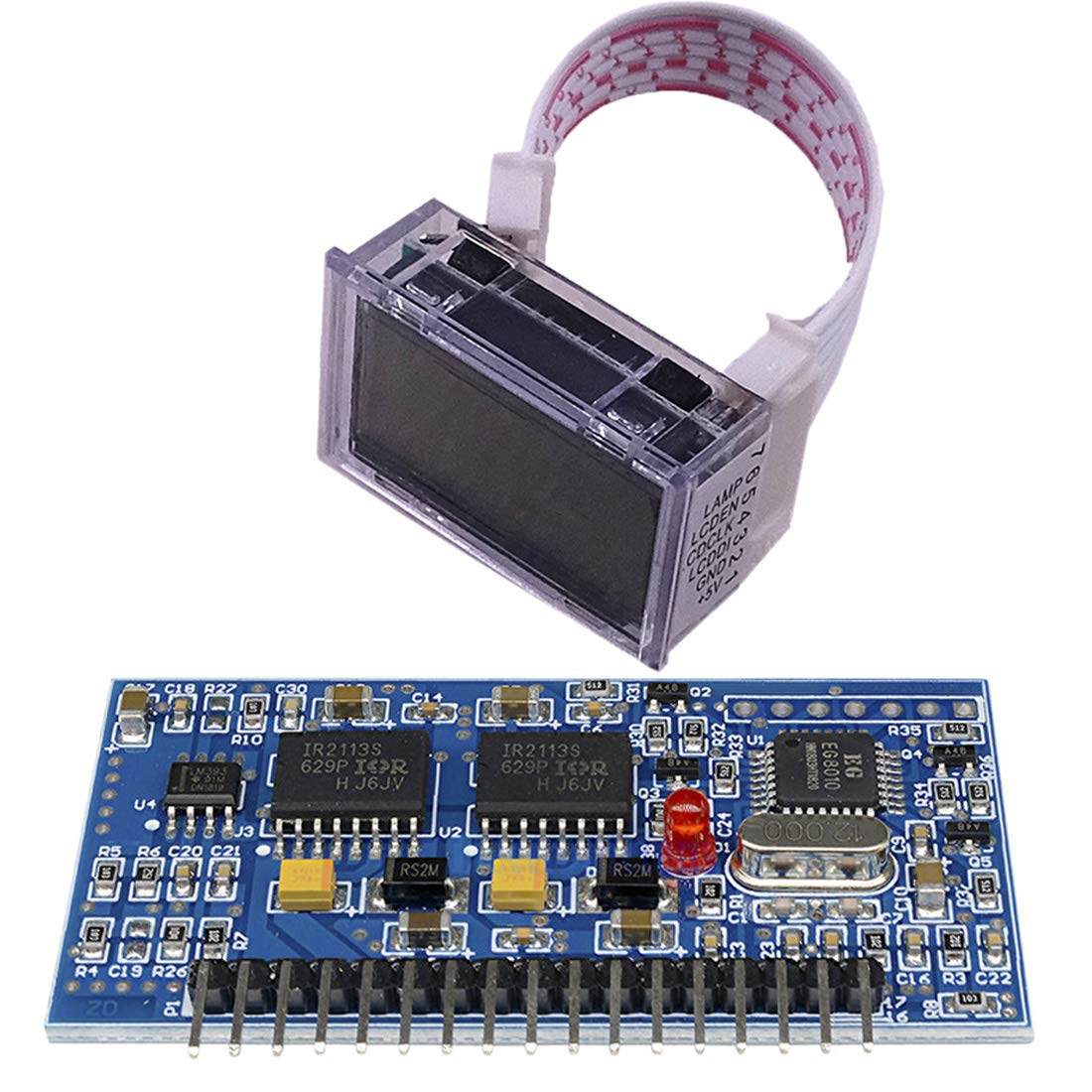

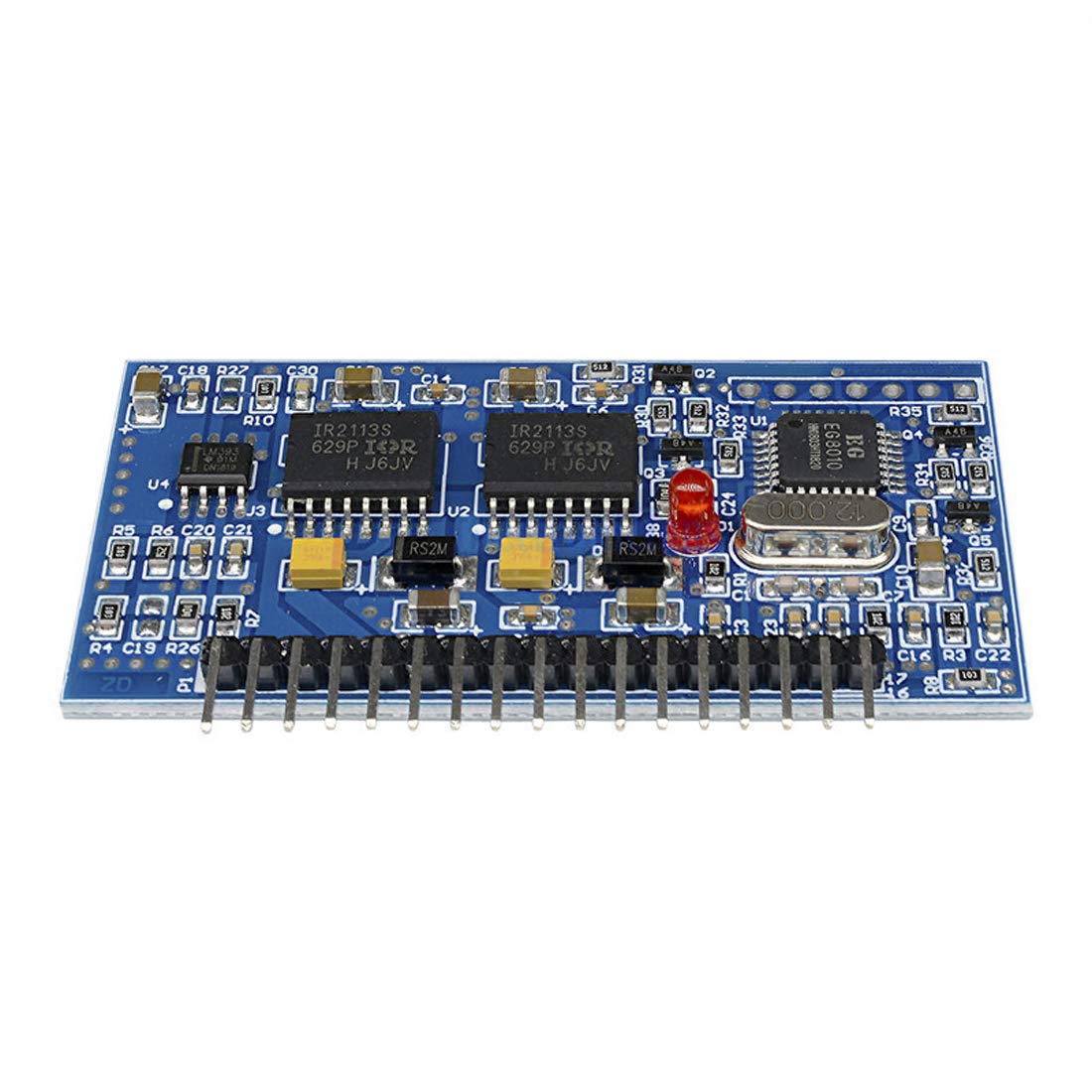

{"id":8773030051991,"title":"HiLetgo EGS002 Pure Sine Wave Inverter Drive Board SPWM EG8010+IR2110+LCD Module","handle":"hiletgo-egs002-pure-sine-wave-inverter-drive-board-spwm-eg8010-ir2110-lcd-module","description":"\u003ch3\u003eHiLetgo EGS002 Pure Sine Wave Inverter Drive Board SPWM EG8010+IR2110+LCD Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription EG8010 is a digital, function very well bring their own dead-time\ncontrol of pure sine wave inverter generator chip, used in two-stage DC-DC-AC\npower conversion structure or single-stage DC-AC power frequency transformer\nBoos architecture, an external 12MHz crystal oscillator, to achieve high\nprecision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave\ninverter ASIC. The chip uses CMOS technology, the internal integration of SPWM\nsine generator, dead time control circuit, the multiplier factor range, soft\nstart circuit, protection circuit, RS232 serial communication interface and a\nserial LCD driver module 1602 functions. Features: 1. 5V single power supply\n2. 4 pin set of pure sine wave output frequency: 50Hz pure sine wave of fixed\nfrequency of 60Hz pure sine wave of fixed frequency 0-100Hz pure sine wave\nfrequency adjustable 0-400Hz pure sine wave frequency adjustable 3. Unipolar\nand bipolar modulation 4. Comes with deadband control, pin 4 dead time: 300nS\ndead time 500nS dead time 1.0uS dead time 1.5uS dead time 5. External 12MHz\ncrystal oscillator 6. PWM carrier frequency 23.4KHz 7. Voltage, current, real\ntime temperature feedback 8. Overvoltage, undervoltage, overcurrent and\noverheating protection 9. Soft-start mode pin setting the response time of 1S\n10. Serial communication to set the output voltage, frequency and other\nparameters 11. External Serial LCD Module 1602 displays the inverter voltage,\nfrequency, temperature and current information Package included 1 EGS002\nPure Sine Wave Inverter Drive Board+LCD Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEGS002 Pure Sine Wave Inverter Drive Board\u003c\/li\u003e\n \u003cli\u003eExternal 12MHz crystal oscillator\u003c\/li\u003e\n \u003cli\u003ePWM carrier frequency 23.4KHz\u003c\/li\u003e\n \u003cli\u003eExternal Serial LCD Module 1602 displays\u003c\/li\u003e\n \u003cli\u003e5V single power supply\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:10:34+11:00","created_at":"2025-02-04T02:40:38+11:00","vendor":"HiLetgo","type":"Function Generators","tags":["industrial_best_sellers_Jan2025"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45104122396823,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01MSTB3DH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo EGS002 Pure Sine Wave Inverter Drive Board SPWM EG8010+IR2110+LCD Module","public_title":null,"options":["Default Title"],"price":11100,"weight":38,"compare_at_price":null,"inventory_management":"shopify","barcode":"3-01-1214","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B01MSTB3DH.jpg?v=1775762812","\/\/newnestshop.com\/cdn\/shop\/files\/61ceDVJa9rL.jpg?v=1738597241","\/\/newnestshop.com\/cdn\/shop\/files\/616gRtX6FlL.jpg?v=1738597240","\/\/newnestshop.com\/cdn\/shop\/files\/619W-lLtCrL.jpg?v=1738597240","\/\/newnestshop.com\/cdn\/shop\/files\/61Nx557Lt1L.jpg?v=1738597241","\/\/newnestshop.com\/cdn\/shop\/files\/51_Du5sRIiL_a0a044a2-3149-454e-8081-7937ccb8415f.jpg?v=1738597240"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B01MSTB3DH.jpg?v=1775762812","options":["Title"],"media":[{"alt":null,"id":36883005669527,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B01MSTB3DH.jpg?v=1775762812"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B01MSTB3DH.jpg?v=1775762812","width":1100},{"alt":null,"id":36883005702295,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ceDVJa9rL.jpg?v=1738597241"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ceDVJa9rL.jpg?v=1738597241","width":1100},{"alt":null,"id":36883005735063,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/616gRtX6FlL.jpg?v=1738597240"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/616gRtX6FlL.jpg?v=1738597240","width":1100},{"alt":null,"id":36883005767831,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/619W-lLtCrL.jpg?v=1738597240"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/619W-lLtCrL.jpg?v=1738597240","width":1300},{"alt":null,"id":36883005800599,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Nx557Lt1L.jpg?v=1738597241"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Nx557Lt1L.jpg?v=1738597241","width":1300},{"alt":null,"id":36883005833367,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_Du5sRIiL_a0a044a2-3149-454e-8081-7937ccb8415f.jpg?v=1738597240"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_Du5sRIiL_a0a044a2-3149-454e-8081-7937ccb8415f.jpg?v=1738597240","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo EGS002 Pure Sine Wave Inverter Drive Board SPWM EG8010+IR2110+LCD Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription EG8010 is a digital, function very well bring their own dead-time\ncontrol of pure sine wave inverter generator chip, used in two-stage DC-DC-AC\npower conversion structure or single-stage DC-AC power frequency transformer\nBoos architecture, an external 12MHz crystal oscillator, to achieve high\nprecision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave\ninverter ASIC. The chip uses CMOS technology, the internal integration of SPWM\nsine generator, dead time control circuit, the multiplier factor range, soft\nstart circuit, protection circuit, RS232 serial communication interface and a\nserial LCD driver module 1602 functions. Features: 1. 5V single power supply\n2. 4 pin set of pure sine wave output frequency: 50Hz pure sine wave of fixed\nfrequency of 60Hz pure sine wave of fixed frequency 0-100Hz pure sine wave\nfrequency adjustable 0-400Hz pure sine wave frequency adjustable 3. Unipolar\nand bipolar modulation 4. Comes with deadband control, pin 4 dead time: 300nS\ndead time 500nS dead time 1.0uS dead time 1.5uS dead time 5. External 12MHz\ncrystal oscillator 6. PWM carrier frequency 23.4KHz 7. Voltage, current, real\ntime temperature feedback 8. Overvoltage, undervoltage, overcurrent and\noverheating protection 9. Soft-start mode pin setting the response time of 1S\n10. Serial communication to set the output voltage, frequency and other\nparameters 11. External Serial LCD Module 1602 displays the inverter voltage,\nfrequency, temperature and current information Package included 1 EGS002\nPure Sine Wave Inverter Drive Board+LCD Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEGS002 Pure Sine Wave Inverter Drive Board\u003c\/li\u003e\n \u003cli\u003eExternal 12MHz crystal oscillator\u003c\/li\u003e\n \u003cli\u003ePWM carrier frequency 23.4KHz\u003c\/li\u003e\n \u003cli\u003eExternal Serial LCD Module 1602 displays\u003c\/li\u003e\n \u003cli\u003e5V single power supply\u003c\/li\u003e\n \u003c\/ul\u003e"}
