Iris Ohyama Thermometer Non-contact Thermometer DT-104 1 Second Measurement Standard Model Medical Device Certification
Iris Ohyama Thermometer Non-contact Thermometer DT-104 1 second measurement Standard model Medical device certification
[Please be sure to refer to the instruction manual. 】
1.General name
Skin infrared thermometer
2.Product name
Pick thermometer stick type DT-104
3.Contraindications・Prohibited
・Do not self-diagnose or treat the temperature results. [This may cause symptoms to worsen.] ]
・Keep out of reach of infants. Also, avoid using it only with children. [This may result in suffocation or injury. 】
・Do not use the product under conditions that do not meet the conditions of use specified in the precautions for use, and do not repair, modify, or readjust it by anyone other than the manufacturer. The manufacturer is not responsible for any damage caused by these. 4. Item specifications, etc.
① Body temperature measurement range (measurement site: forehead): +32.0℃~+43.0℃
② Body temperature measurement accuracy: +35.5~+42.0℃, within ±0.2℃, Other than that, within ±0.3℃
③Using environment temperature: +15~+40℃
④Using environment humidity: 85%RH or less
⑤Storage environment temperature/humidity: -20~+55℃ 93% RH or less (no condensation)
⑥Mechanical shock: Must not exceed the range of body temperature measurement accuracy.
⑦ Influence on long-term stability: Must not exceed the range of body temperature measurement accuracy.
⑧Minimum display unit: 0.1℃
⑨Out of measurement range notification: When measuring body temperature, "Lo" is displayed when it is lower than +32.0℃, "Hi" is displayed when it is higher than +43.0℃, ambient temperature "Er1" is displayed when the is out of the operating environment.
⑩ Operation at low voltage: When the battery voltage is low, " " is displayed.
5. Precautions for use
Do not measure body temperature anywhere other than the forehead.
When the “ ” mark appears, replace the battery.
After exercising or bathing, wait at least 30 minutes before taking your temperature.
If there is a temperature difference between the place where this product is stored and the place where it will be measured, leave it in the place where it will be used for at least 30 minutes before measuring.
If your forehead is cold, wait until it warms up before measuring.
Please note that the correct temperature may not be displayed in the following cases.
✓ Do not measure forehead temperature if the patient has trauma to the forehead. Do not measure areas of tissue damaged by scar tissue or skin diseases, as these areas will sense body temperature.
✓ When measuring in a place exposed to wind such as near an air conditioner
✓ When direct sunlight is shining on the forehead
✓ When the forehead is wet from swimming, bathing, showering, sweating, etc.
✓ Immediately after exercise
✓ If you were in a place where the temperature was different from the place to be measured until just before taking the measurement
✓ If the temperature was different from the place where the main unit was to be measured until just before taking the measurement
✓ If there is something between your forehead and the sensor that interferes with the measurement, such as hair or foundation.
✓ If there is another part of your body, such as your hand, near the measurement area (forehead). Avoid getting hurt.
Do not immerse the main unit in water.
Use within the ambient temperature range of 15 to 40 degrees Celsius.
To ensure the accuracy of measurement data, do not measure temperature in environments with strong electromagnetic interference (e.g. operating environments of microwave and high frequency equipment).
6. Name of manufacturer and manufacturer
Manufacturer: ICST Co., Ltd.
Foreign manufacturer: Bioland Technology Ltd.
7. Purpose of use or effect
br>
This product is used to measure the temperature of the skin on the body surface.
Temperature measurement completes in about 1 second without touching.
It is a non-contact thermometer.

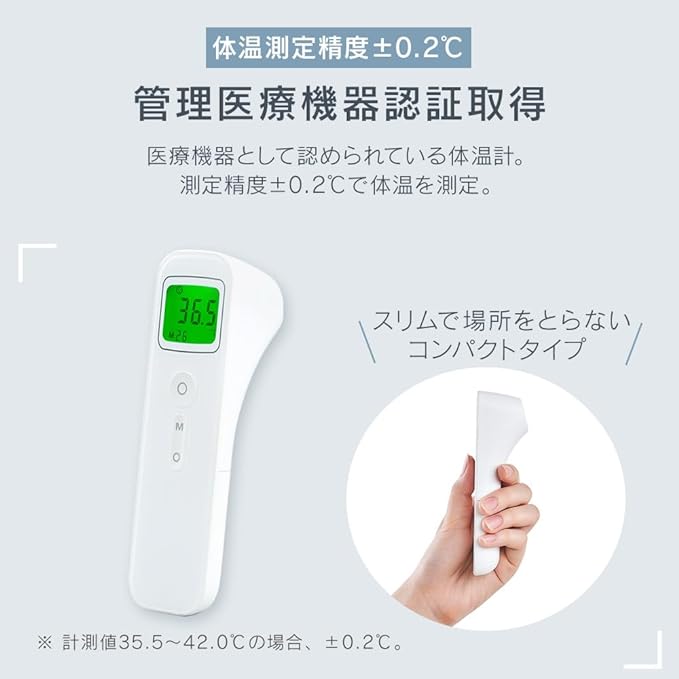

[Certified controlled medical device]
This thermometer has been approved as a medical device by a third-party organization recognized by the country.
[Small error and more accurate measurement]
Thermometers, which are medical devices, are strictly stipulated by law to have a measurement tolerance of ±0.2°C within the range of 35.5 to 42.0°C, which is related to body temperature. It is being

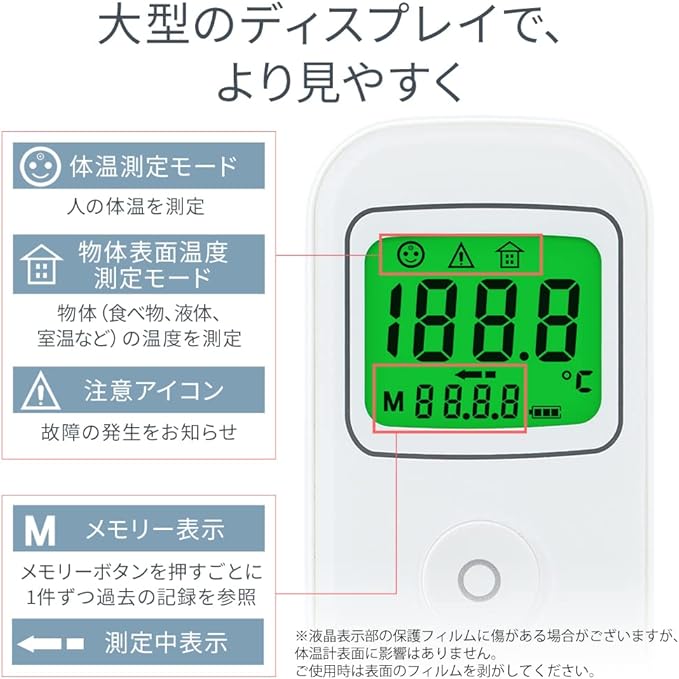

[Easy-to-read LCD display]
Backlight allows you to see your body temperature in color.
The back monitor changes to three colors depending on your body temperature.
You can tell at a glance whether you have a fever or not depending on the color.
Large LCD display for easier viewing.

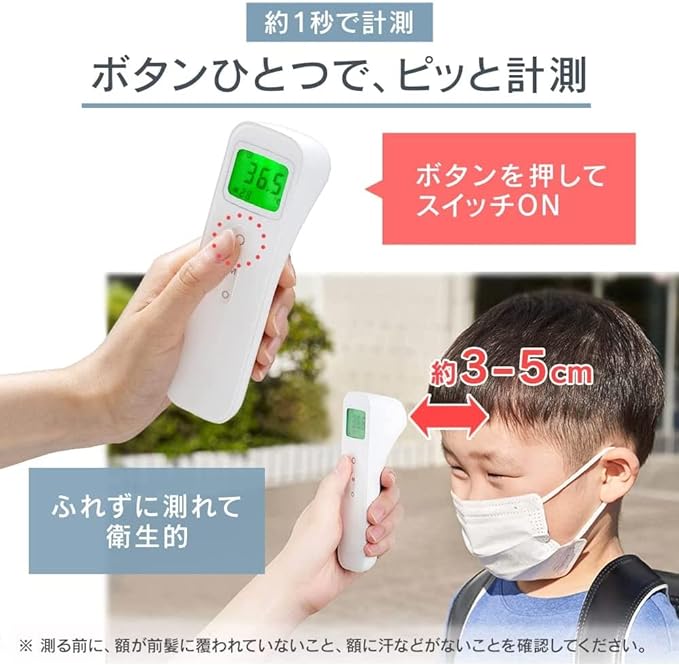

[Measure in about 1 second]
You can measure instantly with just one button.
Body temperature is one of the important pieces of information that determines your physical condition.
That's why we provide peace of mind with a thermometer that can measure more accurately.
It can be measured in about 1 second, allowing you to quickly take daily temperature measurements.
[Non-contact and safe]
Hygienic and can be measured without touching.
The non-contact type allows you to measure without touching your skin, so you can always use it cleanly.
Since it measures your forehead, it is easy and convenient to measure in any situation, such as when you are sleeping or when you go out.
[Memory function]
You can record the measured body temperature.
[Auto power off function]
If there is no operation for 15 seconds, the power will turn off automatically.
[Measurement mode switch],
By switching the mode, you can measure not only body temperature, but also baby's milk, food, bath water temperature, etc.
Thin type that is not bulky and convenient to carry.
You only need one of these for situations where you want to measure various temperatures.
- ●Medical device classification: Managed medical device
- ●Medical device certification (approval) number :303AGBZX00029000
- Measurement range/Body temperature: 32.0 to 43.0℃/Object: 0 to 99℃ ●Body temperature display: 3 digit +℃ display (every 0.1℃)
- Common name: Skin infrared thermometer●Measurement mode: body temperature measurement mode/object surface temperature measurement mode
- ・Product Size (cm): Width approx. 4 x Depth approx. 4 x Height approx. 14 ●Mass: Approx. 66g (not including batteries) ●Body temperature measurement location: Forehead ●Measurement distance: 3 to 5 m・Operating conditions/temperature: 10 ~40℃/Humidity: 15~85%RH or less ●Storage conditions/Temperature: -20~55℃/Humidity: 95%RH or less (no condensation)/Atmospheric pressure: 70~106kPa li>
