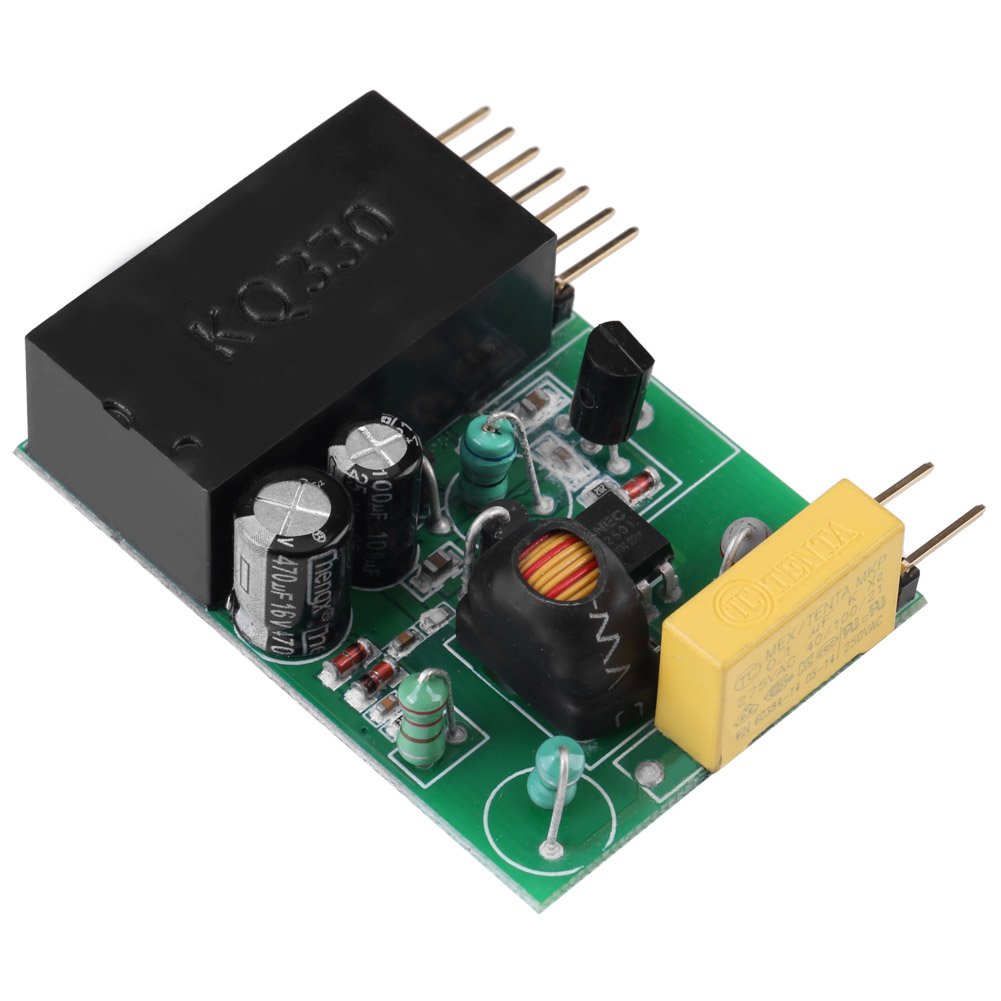

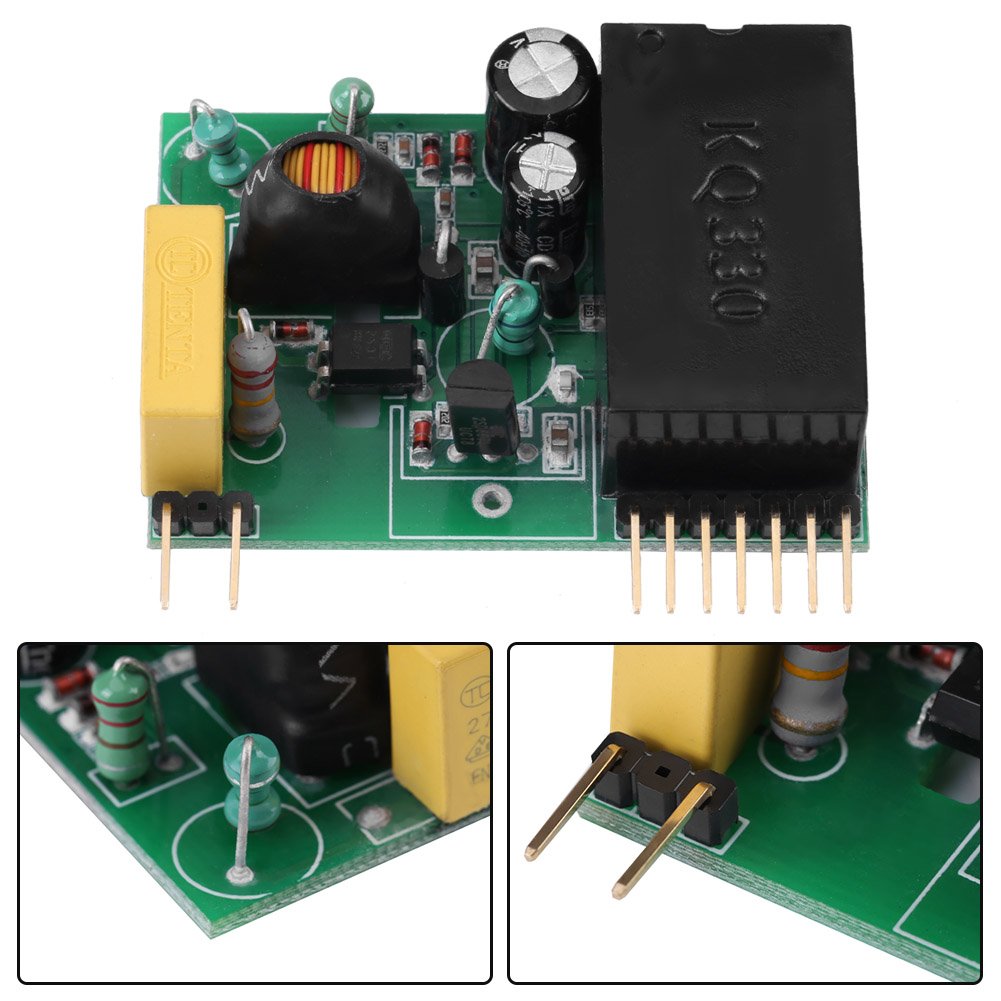

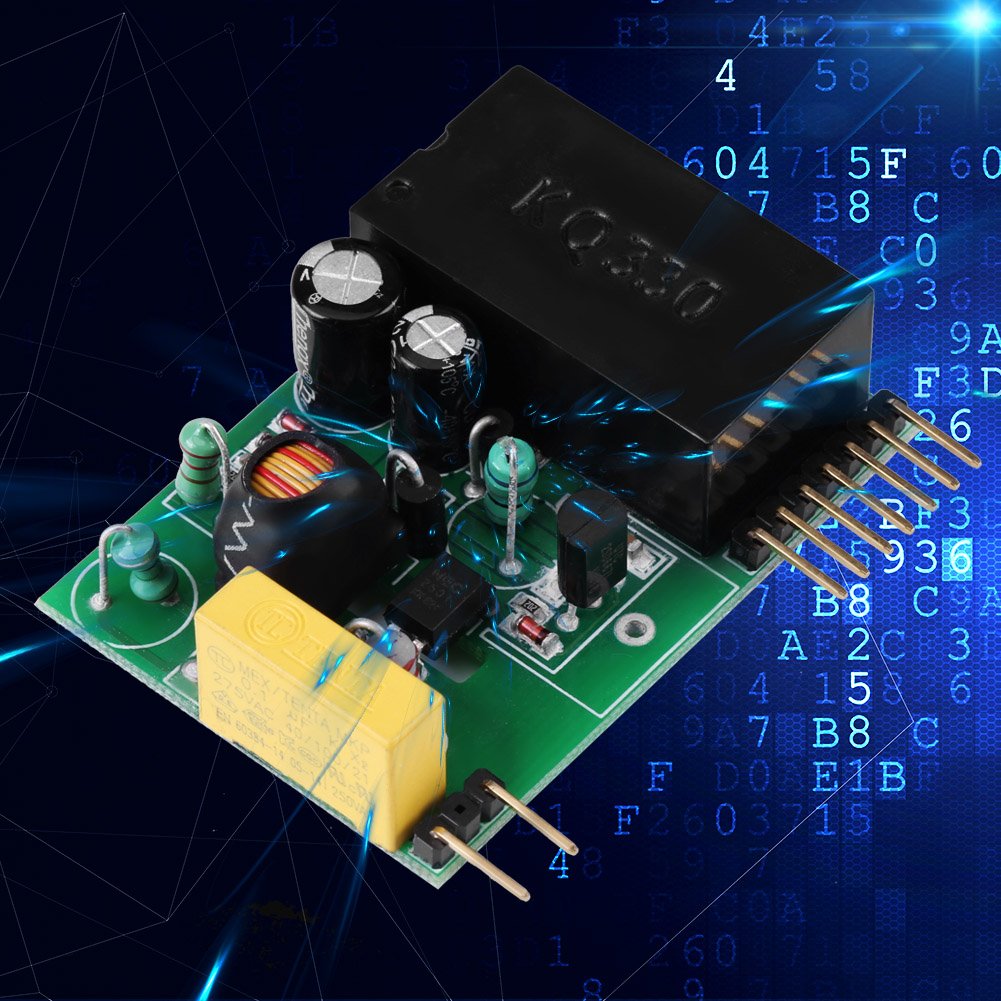

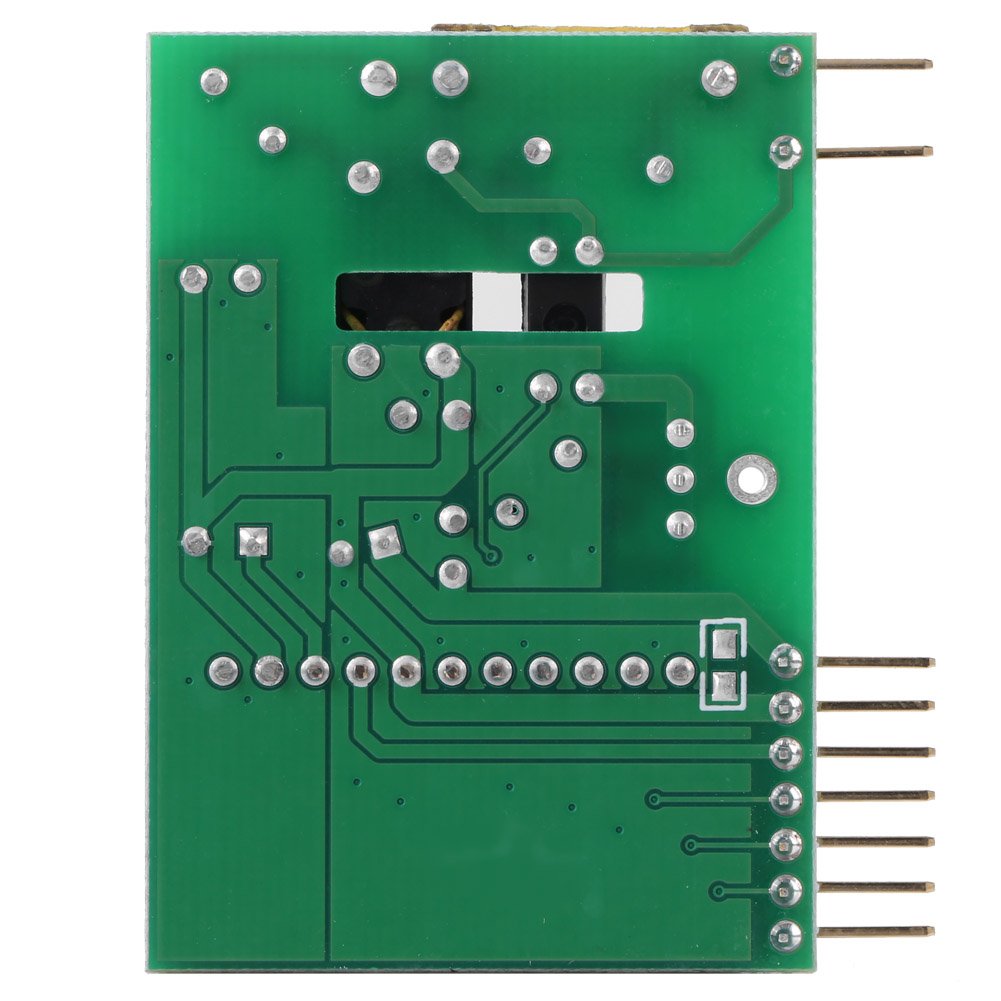

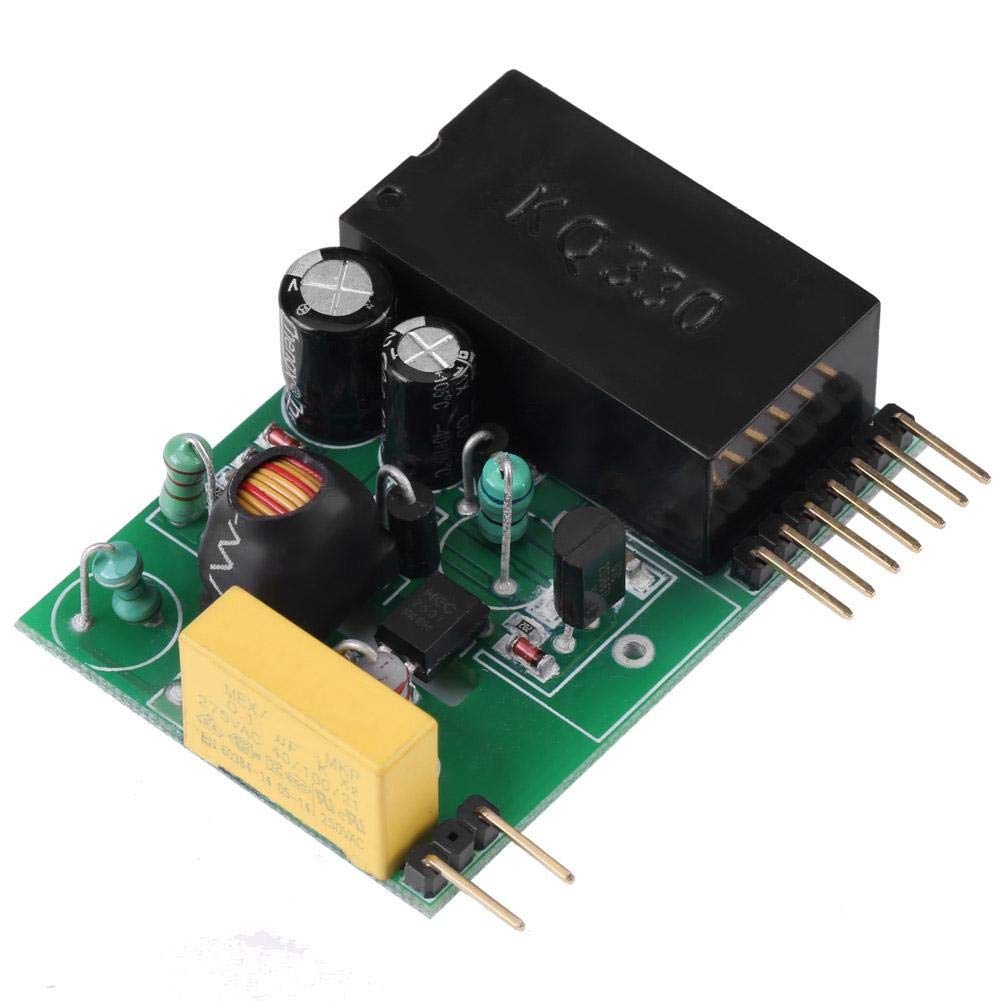

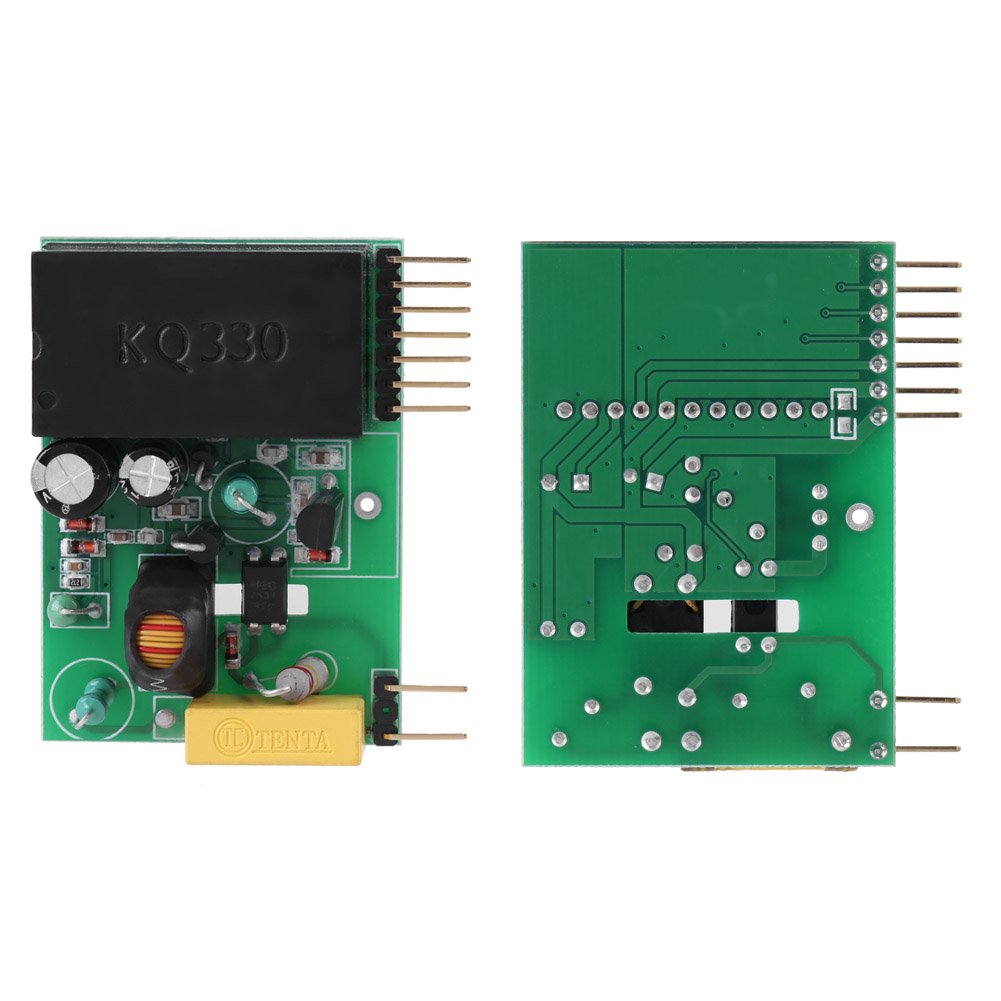

KQ-130F Power Line Carrier Module Distance 120~135KHZ for 220VAC Power Line Transceiver Powerline Carrier Module Single Row 9 Pin Carrier Data Transceiver Module for Long Distance Data Communication
KQ-130F Power Line Carrier Module Distance 120~135KHZ for 220VAC Power Line Transceiver Powerline Carrier Module Single Row 9 Pin Carrier Data Transceiver Module for Long Distance Data Communication

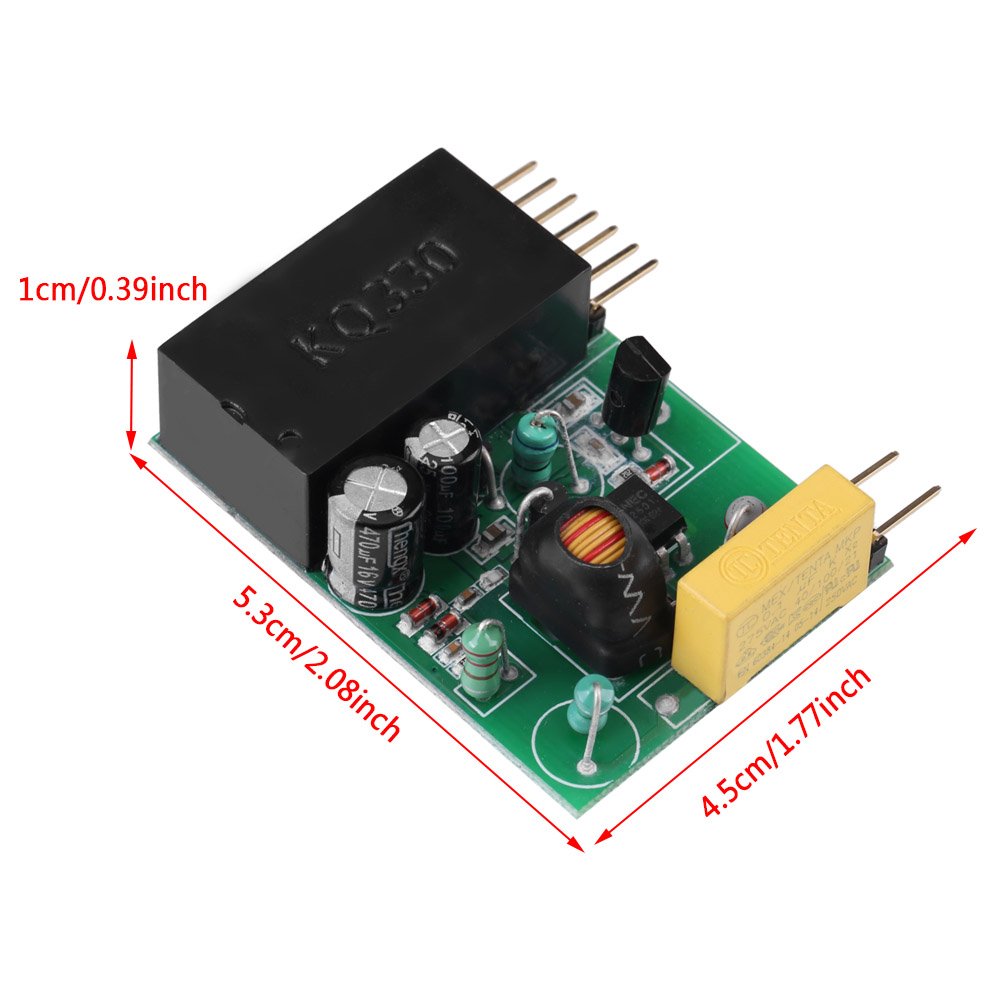

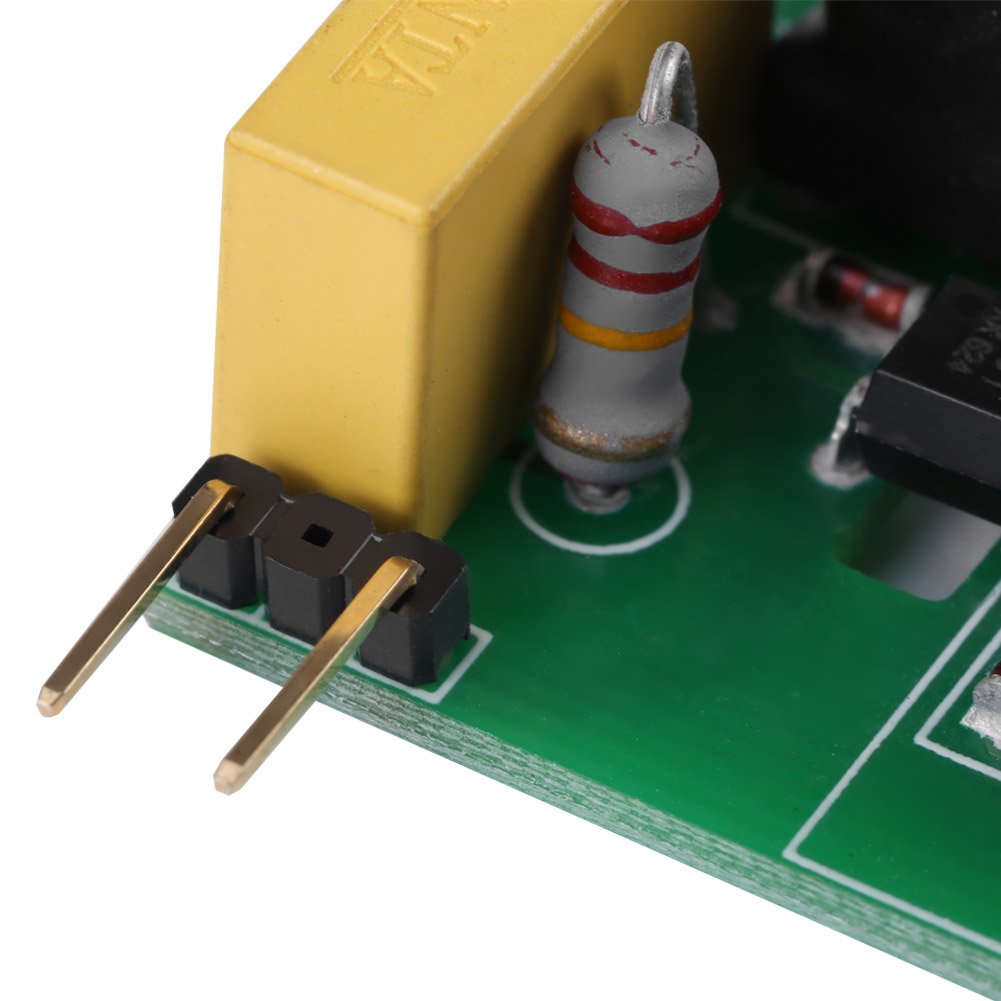

Specifications: Working Frequency: 120~135KHZConnector Baud Rate: 9600bpsActual Baud Rate: 100bpsOne Frame Continuous Send . Length: ≤252 bytes (user defines from 1 to 252, module will not send redundant data)Receive Sensitivity: ≤1mVOut-of-band Rejection Ability: ≥60dBBand Width: ≤10 KHZInsulation Resistance: 500V≥500MΩPower Supply: DC +5V(receiving: ≤11mA; sending: ≤230mA)Frequency Insulation Withstand Voltage: AC to GND 3000V (1min test no breakdown, nor current leak)Operating Temperature: -25℃~70℃Operating Humidity: ≤90%Size: 5.34.51cm/2.081.770.39inWeight: 30g(approx.) Wiring:1P ---AC: 220V live wire (or neutral wire)2P---AC: 220V neutral wire (or live wire)3P---+5V: +5V sending power supply(210mA), if only receiving data, can be disconnected to reducing power consumption4P---GND: Digital circuit ground 5P---+5V: +5V working power supply 11mA6P---RX: TTL level, carrier data input, connect to TXD of SCM7P---TX: TTL level, carrier data output, connect to RXD of SCM8P---MODE: Mode selection, connect to 5V as high level or disconnect, connect to ground as low level9P---NC/RST: Reset pin(low level effective), for frequent switching modes. No connection if do not use this function. Package Includes:1 x Power-line Carrier Module
Product Features
- Power Line Carrier Module -- KQ-130F is a single row 9-pin small size high-performance zero carrier data transceiver module
- Power Line Communication -- Designed for on 220V AC, strong interference, strong attenuation and long distance required environment, data
- Power Line Transceiver -- A frame continuous send maximum length is 252 bytes or less, from 1 to 252 defined by the user, and the module will not send redundant data

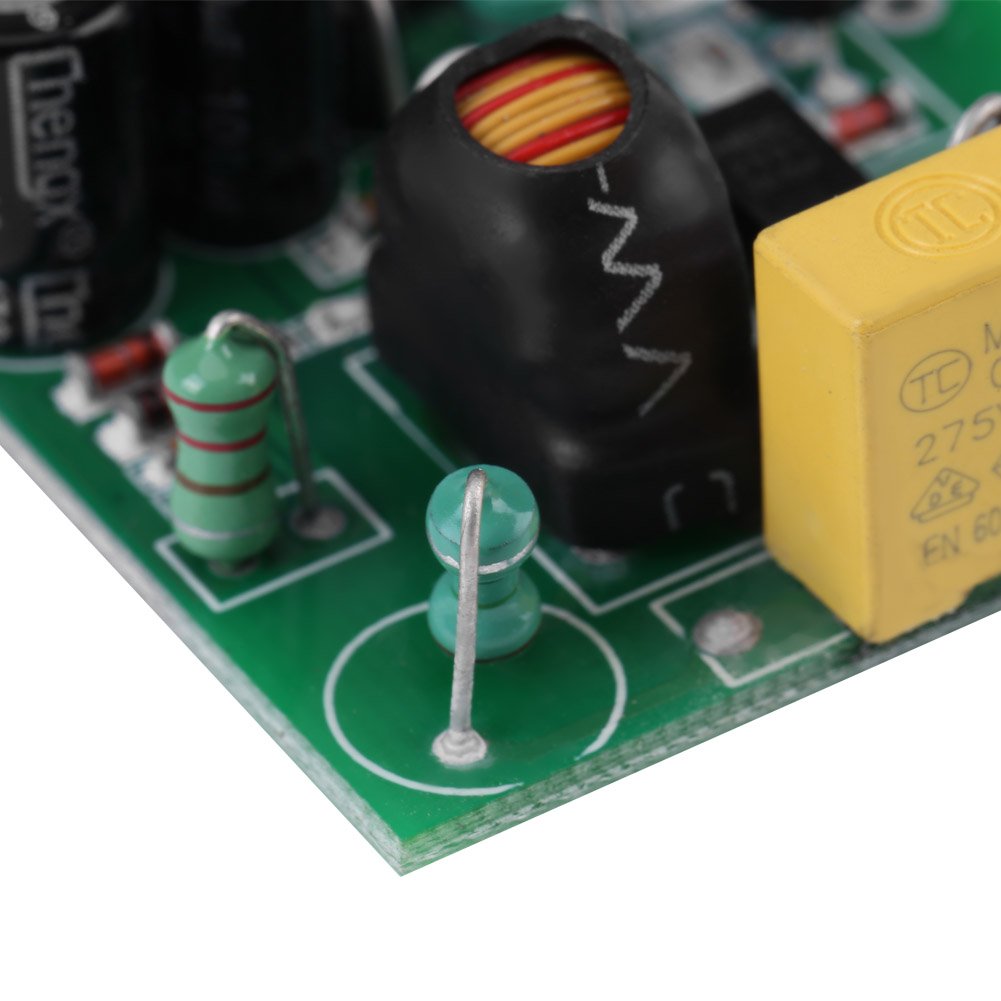

- Powerline Carrier -- TVS diode against stroke, the PCB wiring and components selection are all designed for wide temperature and high voltage
- Power Line Data Module -- Suitable for meter reading, street light, intelligent household, fire fighting, building control and other applications that need power to send data
