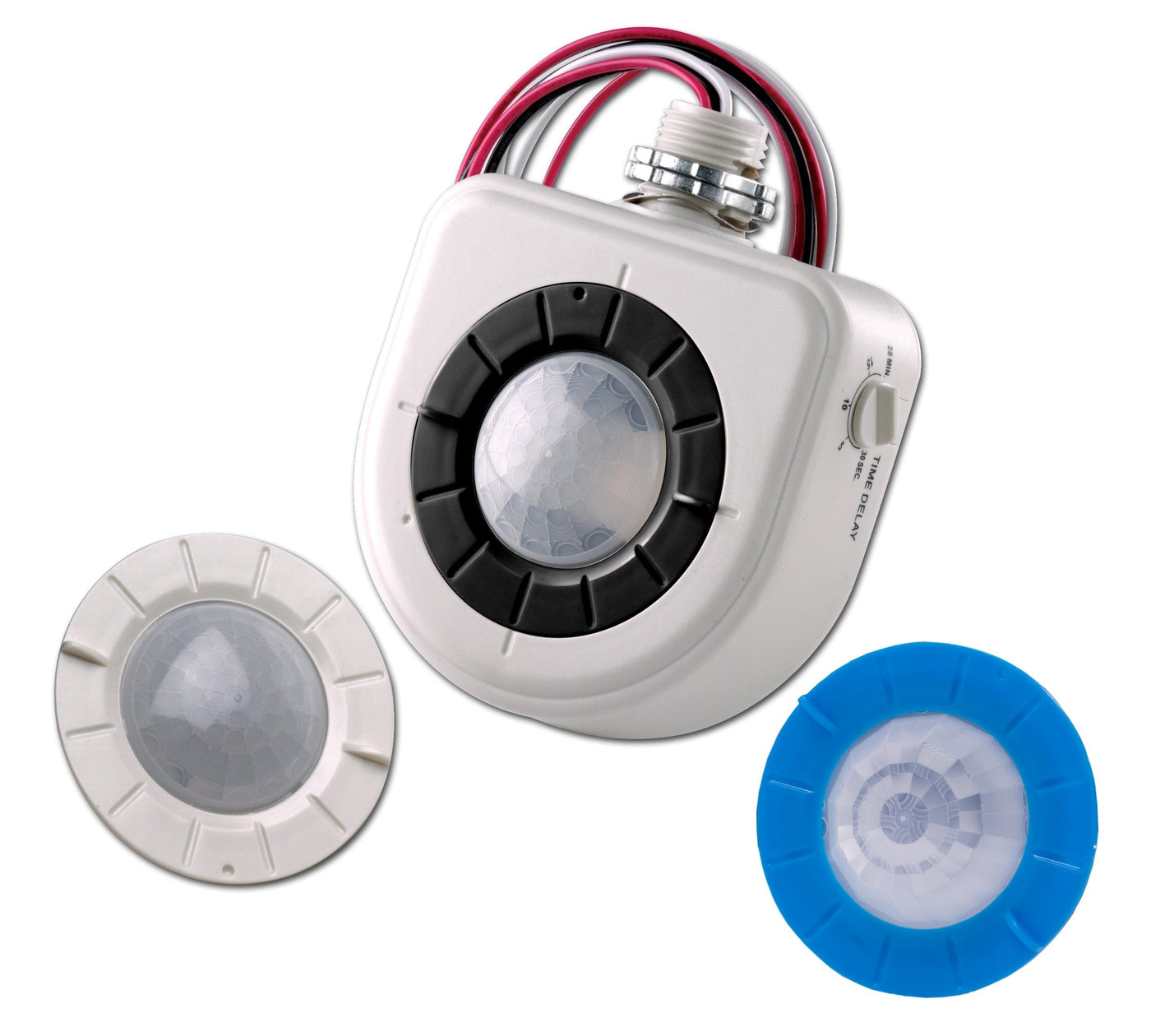

Leviton Fixture Mount PIR Sensor, High Bay, OSFHU-CTW, White

HIGH BAY SENSOR TYPE; 3.5 INCH W X 1.25 INCH D X 3.5 INCH H SIZE; WHITE FINISH; UL, CUL, CSA APPROVAL; HIGH FIXTURE MOUNTED AREA, WAREHOUSE, HIGH CEILING APPLICATION; 120/208/220/230/240/277/347 VAC AT 50/60 HZ VOLTAGE RATING; FIXTURE MOUNTING From the Manufacturer The OSFHU high-bay occupancy sensor is specifically designed for high mounted areas such as warehouses, manufacturing and other high ceiling applications. The OSFHU installs directly to an industrial fluorescent luminaire or an electrical junction box. It is a self-contained sensor and relay that turns individual light fixtures on or off based on occupancy in the detection zone. It comes with three interchangeable lenses for use in either a 360-degrees high-bay or 360-degrees low-bay general area or an aisle way. The OSFHU provides reliable coverage up to 40 ft. Mounting heights. The OSFHU is also available in a model for cold storage applications with temperatures as low as -40-degrees f. To improve the field-of-view for deep body fixtures, a separate offset adapter accessory (OSFOA-00W) can be used to position the sensor below the fixture body. The adapter simply snaps into a 1/2-inch knockout on the end of the industrial fixture to attach the sensor. High-bay fixture mount occupancy sensor, 360 and aisle way (360-degree lens and aisle way lens included), cold storage, passive infrared technology, 800VA - 6.67A@120VAC 50-60Hz, 1200VA - 4.33A@277VAC 50-60Hz, 1500VA - 4.32A@347vac 50-60Hz, 120-277/347VAC, commercial grade - white - California Title 24 compliant.

Product Features

  • WH OCC SENS FIXT MNT 3LENS COLD 120V
  • Fast, simple installation
  • Zero-crossing circuitry
  • Green LED indicates occupancy detection
  • Interchangeable lenses for 360 degrees high-bay, 360 degrees low-bay, and aisle way patterns
  • Item Package Dimension: 4.84L x 4.06W x 2.52H inches
  • Item Package Weight - 0.44 Pounds
  • The aisle lens is designed to provide detection of 60 ft. long by 20 ft. wide for heights up to 40 ft. mounting
  • Product Type - Motion Detector Device
