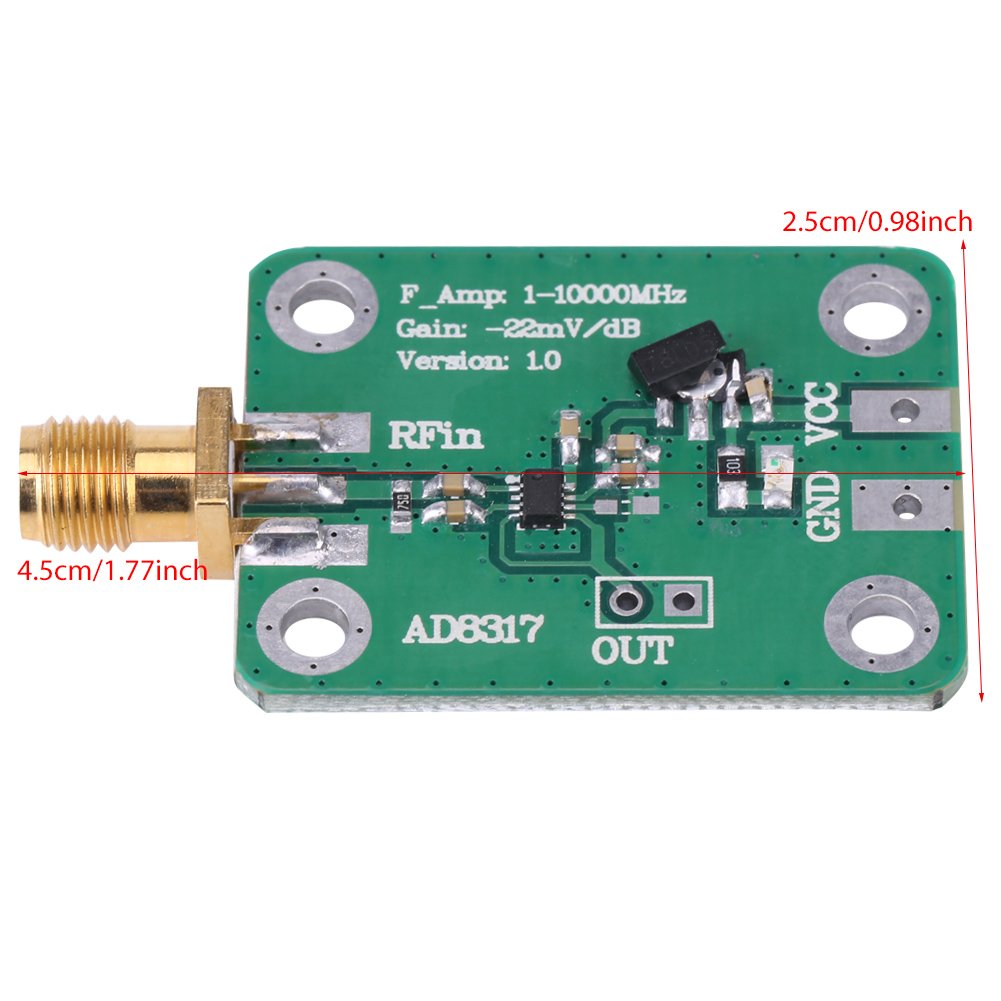

{"id":9115760558231,"title":"Logarithmic Detector, 1M-10000MHz AD8317 Radio Frequency Logarithmic Detector Power Meter, for Power Detection\/Radio Frequency Detection","handle":"logarithmic-detector-1m-10000mhz-ad8317-radio-frequency-logarithmic-detector-power-meter-for-power-detection-radio-frequency-detection","description":"\u003ch3\u003eLogarithmic Detector, 1M-10000MHz AD8317 Radio Frequency Logarithmic Detector Power Meter, for Power Detection\/Radio Frequency Detection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: The product is designed by using AD8317 chip, and is used for power\ndetection,Detection frequency range 1M---10GHz, can detect power in -55dBm to\n-0dBm of an , so that the is converted to DC voltage output. It can be widely\nused in radio frequency detection, power measurement, environmental field\nstrength detection,It can also be used as part of automatic gain control and\nautomatic level control. Specifications: Working frequency: 1M--10000MHz\nMeasurement power: -55dBm to -0dbm Output voltage: 0.33- -1.65V Detection\nslope: -22mv\/dBm (typical value) Input impedance: 50? Supply voltage: 7-15V\nSize: as the picture Weight:7g Detector typical response curve: Package\nIncluded: 1 x Logarithmic Detector\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe product is designed by using AD8317 chip, and is used for power detection.\u003c\/li\u003e\n \u003cli\u003eCan detect power in -55dBm to -0dBm of an , so that the is converted to DC voltage output.\u003c\/li\u003e\n \u003cli\u003eThe greater the amplitude or power of the , the higher the output voltage, and the output voltage is directly proportional to the logarithm of the input amplitude, thus expanding the dynamic range of the detected , which ranges reach 55dB.\u003c\/li\u003e\n \u003cli\u003eIt can be widely used in radio frequency detection, power measurement, environmental field strength detection.\u003c\/li\u003e\n \u003cli\u003eIt can also be used as part of automatic gain control and automatic level control.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-09T18:19:05+10:00","created_at":"2025-07-09T18:19:01+10:00","vendor":"Bindpo","type":"Power Meters","tags":["industrial_best_sellers_Jun2025"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45650205900951,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08QFT32M5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Logarithmic Detector, 1M-10000MHz AD8317 Radio Frequency Logarithmic Detector Power Meter, for Power Detection\/Radio Frequency Detection","public_title":null,"options":["Default Title"],"price":10000,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"AD8317","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B08QFT32M5.jpg?v=1775808644","\/\/newnestshop.com\/cdn\/shop\/files\/61DJz62bfpL.jpg?v=1752049143","\/\/newnestshop.com\/cdn\/shop\/files\/518yqtUzTQL.jpg?v=1752049144","\/\/newnestshop.com\/cdn\/shop\/files\/61xxXckYLvL.jpg?v=1752049143","\/\/newnestshop.com\/cdn\/shop\/files\/61a7jgYh6RL.jpg?v=1752049143","\/\/newnestshop.com\/cdn\/shop\/files\/61GmP1ahG_L.jpg?v=1752049143","\/\/newnestshop.com\/cdn\/shop\/files\/61xVm7QHu4L.jpg?v=1752049143","\/\/newnestshop.com\/cdn\/shop\/files\/61Axs9V2dKL.jpg?v=1752049143","\/\/newnestshop.com\/cdn\/shop\/files\/61hiaI-l5VL.jpg?v=1752049143"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B08QFT32M5.jpg?v=1775808644","options":["Title"],"media":[{"alt":null,"id":38372798070935,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B08QFT32M5.jpg?v=1775808644"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B08QFT32M5.jpg?v=1775808644","width":1001},{"alt":null,"id":38372798103703,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61DJz62bfpL.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61DJz62bfpL.jpg?v=1752049143","width":1001},{"alt":null,"id":38372798136471,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/518yqtUzTQL.jpg?v=1752049144"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/518yqtUzTQL.jpg?v=1752049144","width":1001},{"alt":null,"id":38372798169239,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xxXckYLvL.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xxXckYLvL.jpg?v=1752049143","width":1001},{"alt":null,"id":38372798202007,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61a7jgYh6RL.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61a7jgYh6RL.jpg?v=1752049143","width":1001},{"alt":null,"id":38372798267543,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61GmP1ahG_L.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61GmP1ahG_L.jpg?v=1752049143","width":1001},{"alt":null,"id":38372798333079,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xVm7QHu4L.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xVm7QHu4L.jpg?v=1752049143","width":1001},{"alt":null,"id":38372798365847,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Axs9V2dKL.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Axs9V2dKL.jpg?v=1752049143","width":1001},{"alt":null,"id":38372798398615,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61hiaI-l5VL.jpg?v=1752049143"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61hiaI-l5VL.jpg?v=1752049143","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLogarithmic Detector, 1M-10000MHz AD8317 Radio Frequency Logarithmic Detector Power Meter, for Power Detection\/Radio Frequency Detection\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: The product is designed by using AD8317 chip, and is used for power\ndetection,Detection frequency range 1M---10GHz, can detect power in -55dBm to\n-0dBm of an , so that the is converted to DC voltage output. It can be widely\nused in radio frequency detection, power measurement, environmental field\nstrength detection,It can also be used as part of automatic gain control and\nautomatic level control. Specifications: Working frequency: 1M--10000MHz\nMeasurement power: -55dBm to -0dbm Output voltage: 0.33- -1.65V Detection\nslope: -22mv\/dBm (typical value) Input impedance: 50? Supply voltage: 7-15V\nSize: as the picture Weight:7g Detector typical response curve: Package\nIncluded: 1 x Logarithmic Detector\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe product is designed by using AD8317 chip, and is used for power detection.\u003c\/li\u003e\n \u003cli\u003eCan detect power in -55dBm to -0dBm of an , so that the is converted to DC voltage output.\u003c\/li\u003e\n \u003cli\u003eThe greater the amplitude or power of the , the higher the output voltage, and the output voltage is directly proportional to the logarithm of the input amplitude, thus expanding the dynamic range of the detected , which ranges reach 55dB.\u003c\/li\u003e\n \u003cli\u003eIt can be widely used in radio frequency detection, power measurement, environmental field strength detection.\u003c\/li\u003e\n \u003cli\u003eIt can also be used as part of automatic gain control and automatic level control.\u003c\/li\u003e\n \u003c\/ul\u003e"}
