M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-J/DZ Detection 1-15mm 90-250VAC 400mA Normally Closed (NC) 2 Wires

In Stock. Leaves warehouse within 2 - 3 business days

$130.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

M30 Capacitive Proximity Sensor Switch Non-Shield Type LJC30A3-H-J/DZ Detection 1-15mm 90-250VAC 400mA Normally Closed (NC) 2 Wires

Detection Object:Can detect any dielectric.Delay Distance:10% below of the detection distance.Supply Voltage:AC90-250V 50/60Hz.Comsuption Current:1.7mA below.Control Output: 400mA below.Loop Protection : Surge absorption.Ambient Temperature & Humidity:During operation , storage : individually-30～＋65℃(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above ( DC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.Protection structure: IP67(IEC specification)

Product Features

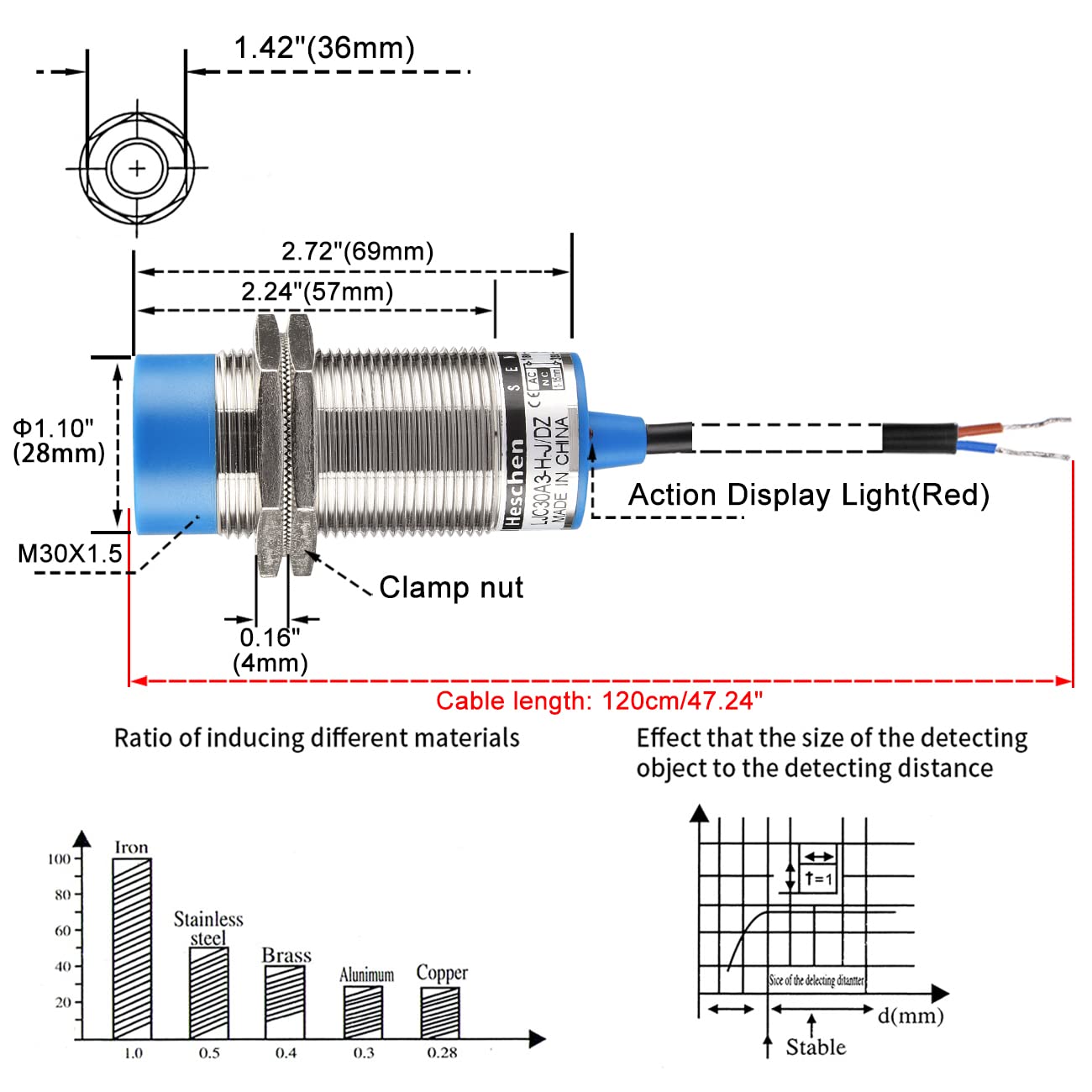

  • Mounting Hole Diameter: 30mm
  • Detecting Distance: 20mm10%; Set distance:0-18mm

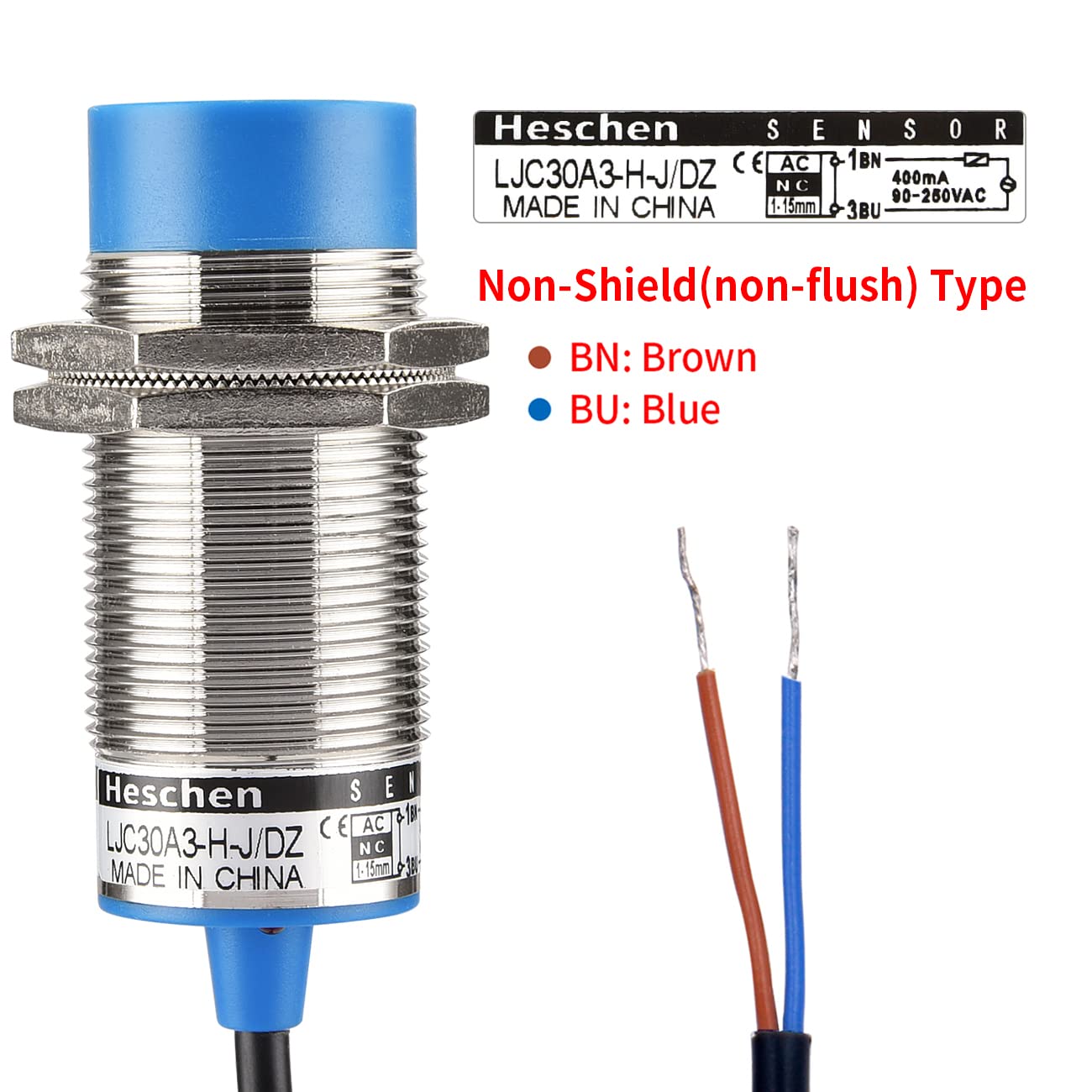

  • Output Type: Normally Closed(NC); Non-Shield Type
  • Current Output: 400mA; Working Voltage: 90-250 VAC
  • Detection Object: Can detect any dielectric.
