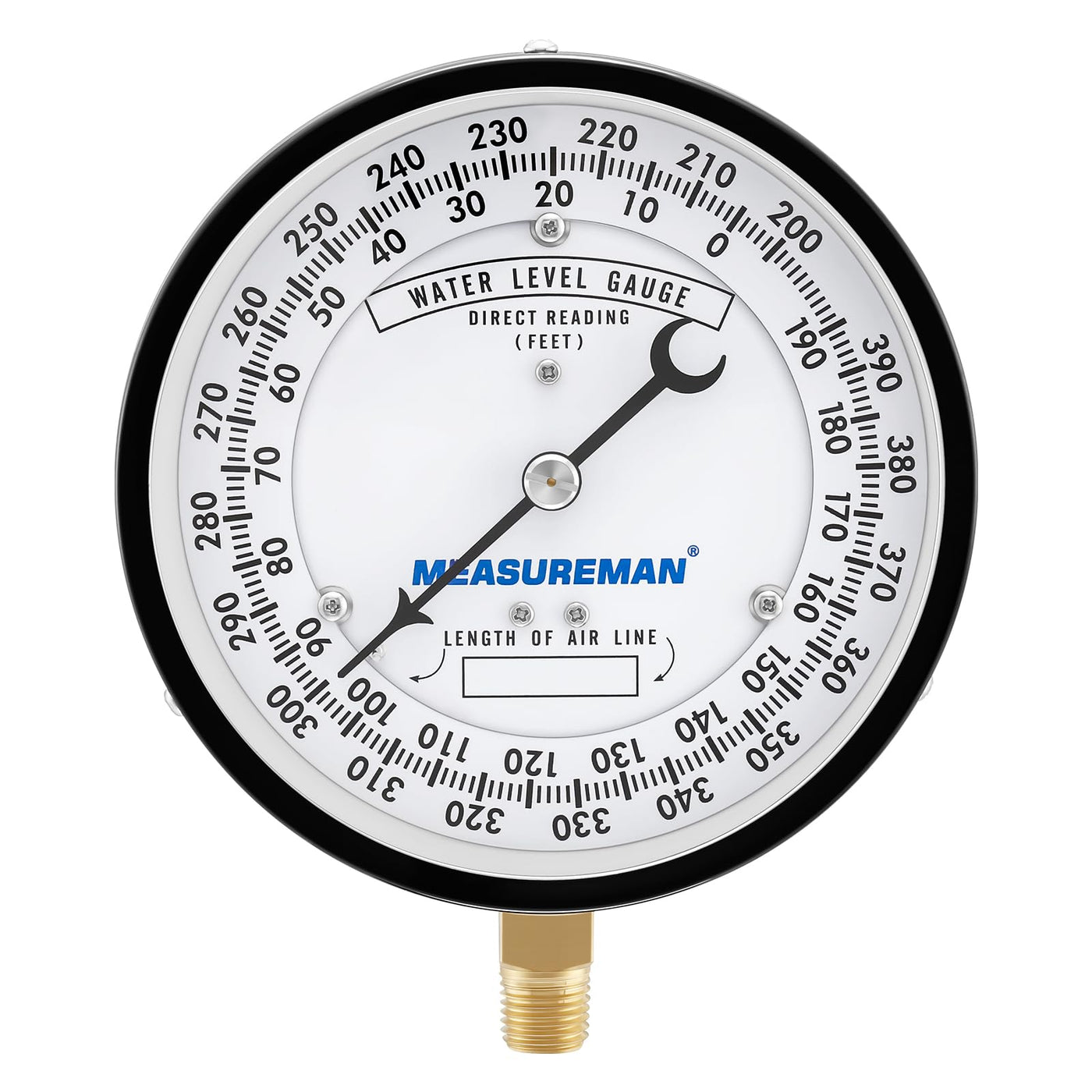

MEASUREMAN 4-1/2" Water Level Gauge, Lower Mount, 0-390 ft H2O Range, ASME B40.1 Grade B
MEASUREMAN 4-1/2" Water Level Gauge, Lower Mount, 0-390 ft H2O Range, ASME B40.1 Grade B

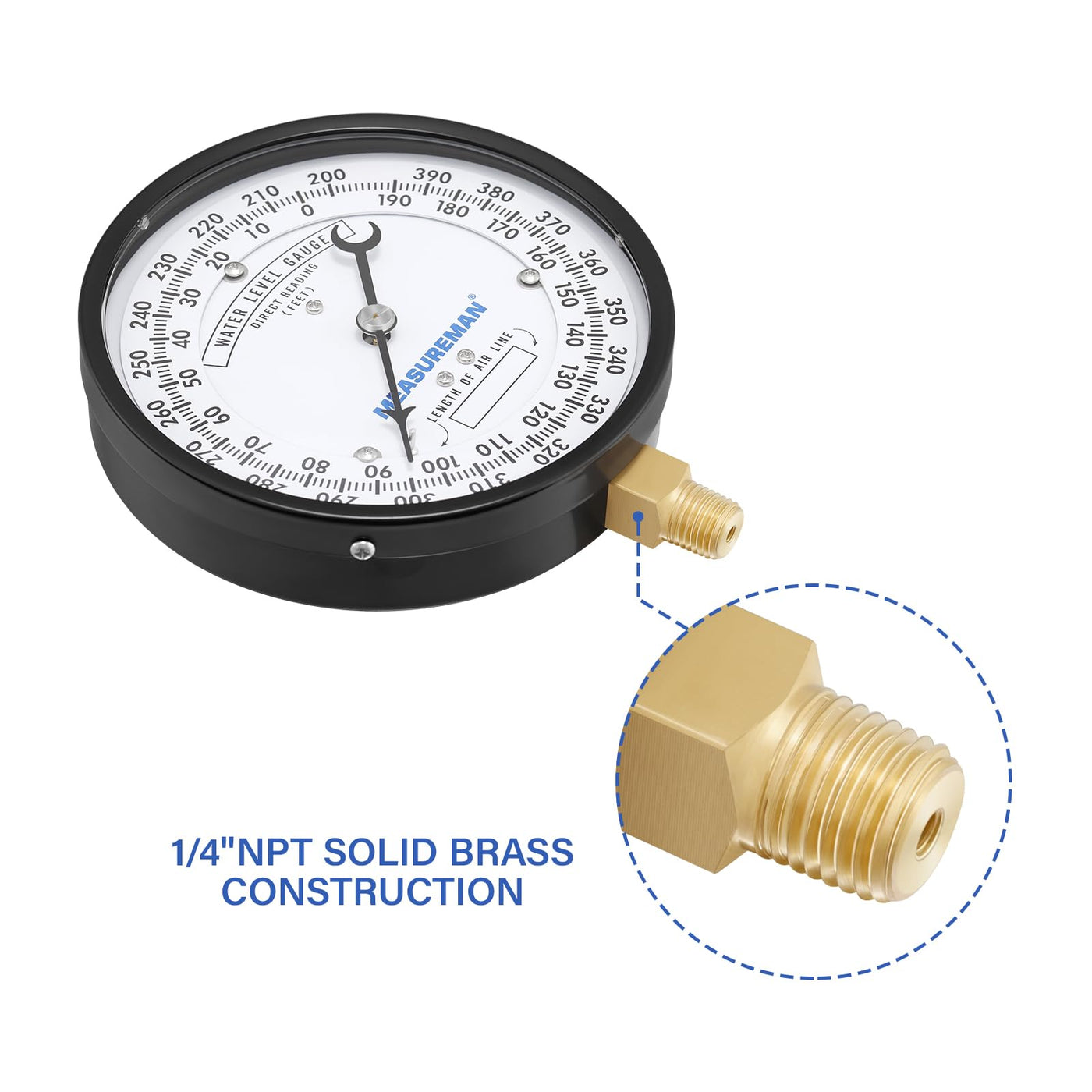

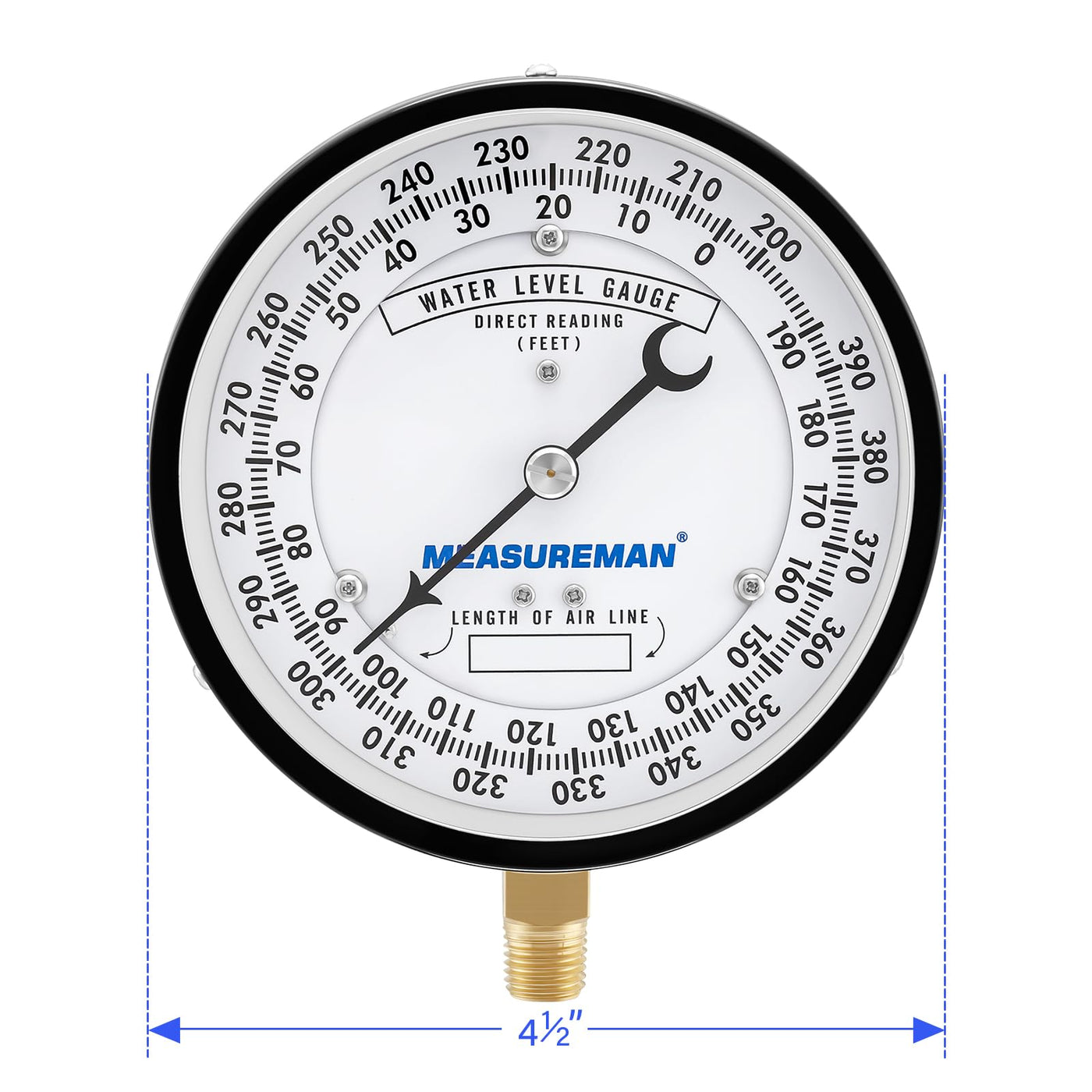

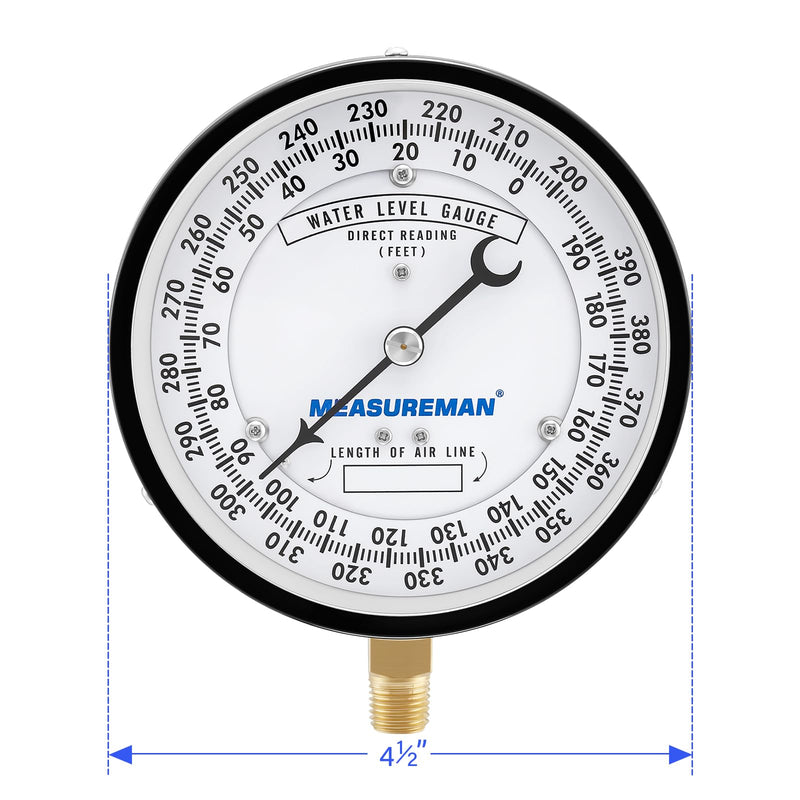

Description This gauge is used to indicate the depth of water in a well Standard:ASME B40.1 Dial:4-1/2"(114mm) white aluminum rotating dial Case:Black Steel Lens:Acrylic Ring (Bezel):Black Steel Connection:Brass Bourdon Tube:Copper Movement:Brass Pointer:Aluminum black, balanced Welding:Tin Solder Range:0-390'H2O. Working Pressure Maximum:75% of Full Scale Value (F.S.V.) Ambient Op. Temp.:-40°F to 140°F (-40°C to 60°C) Media Op. Temp. Max:140°F (60°C) Accuracy:3-2-3% of full scale Grade B Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
Product Features
- Used to indicate the depth of water in a well

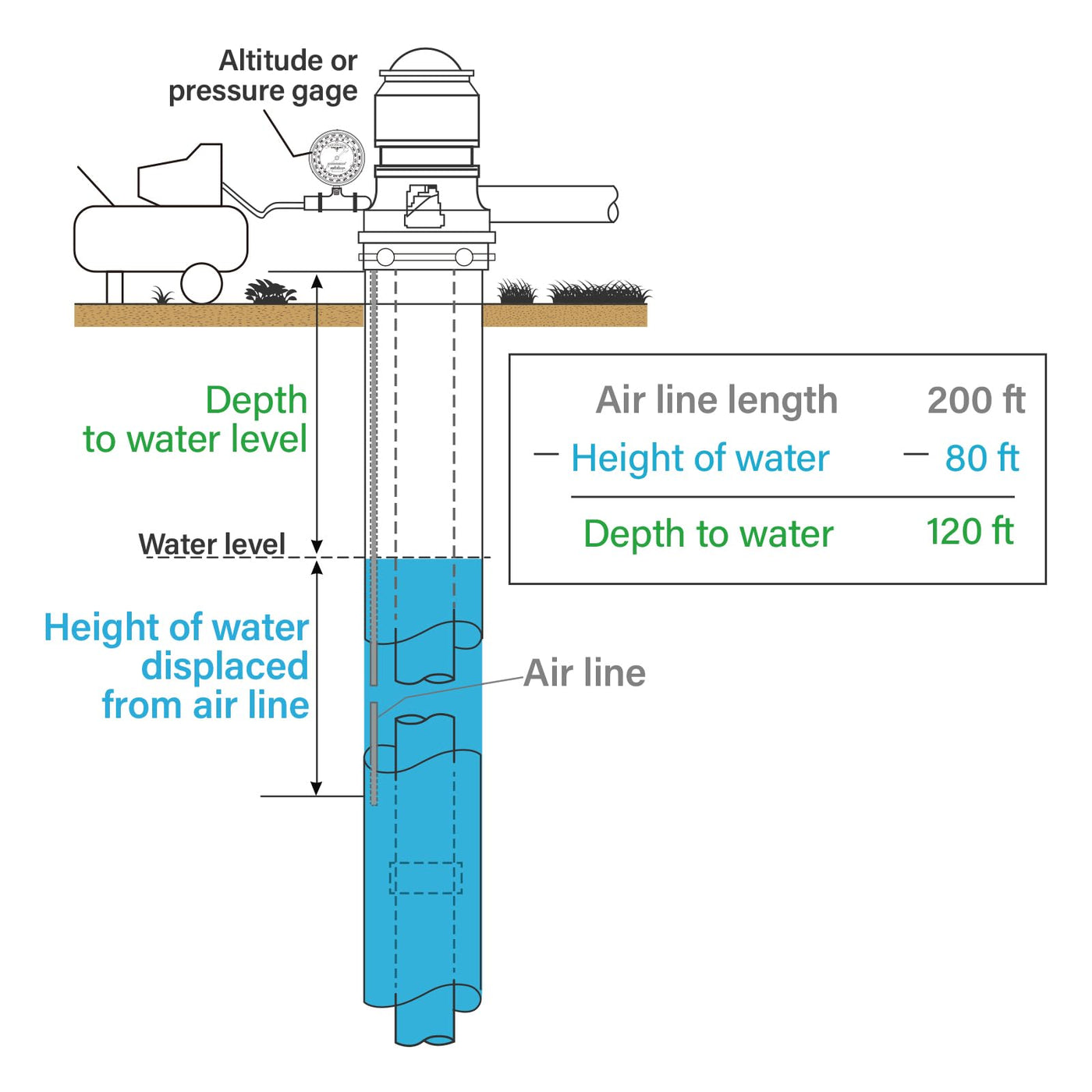

- The gauge and air line reaching well bottom are charged with air
- The pressure required to permit air to escape from the end of the air line is a measure of the head of water above the end of the air line.

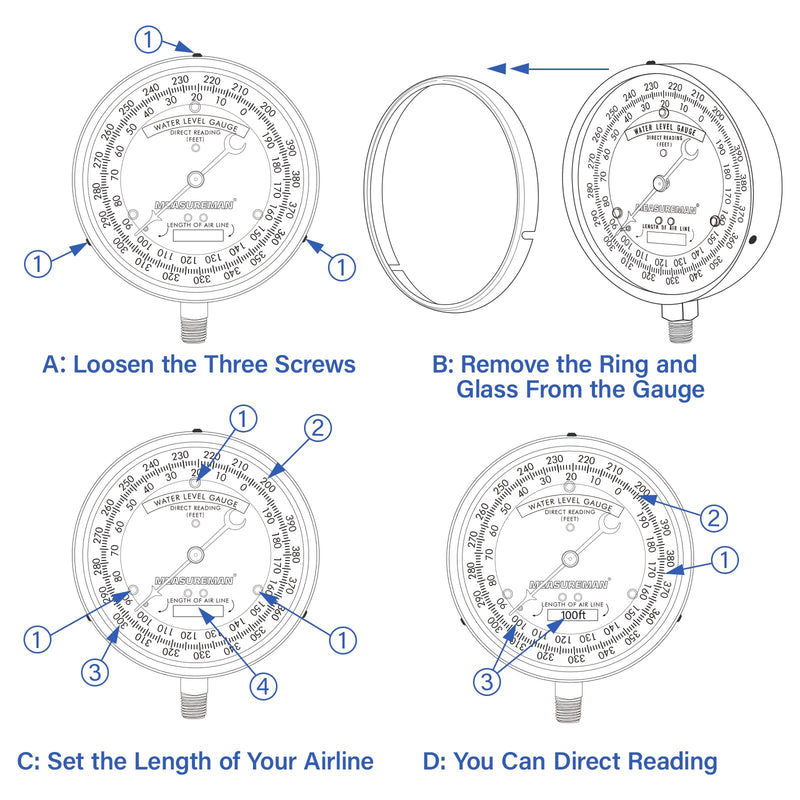

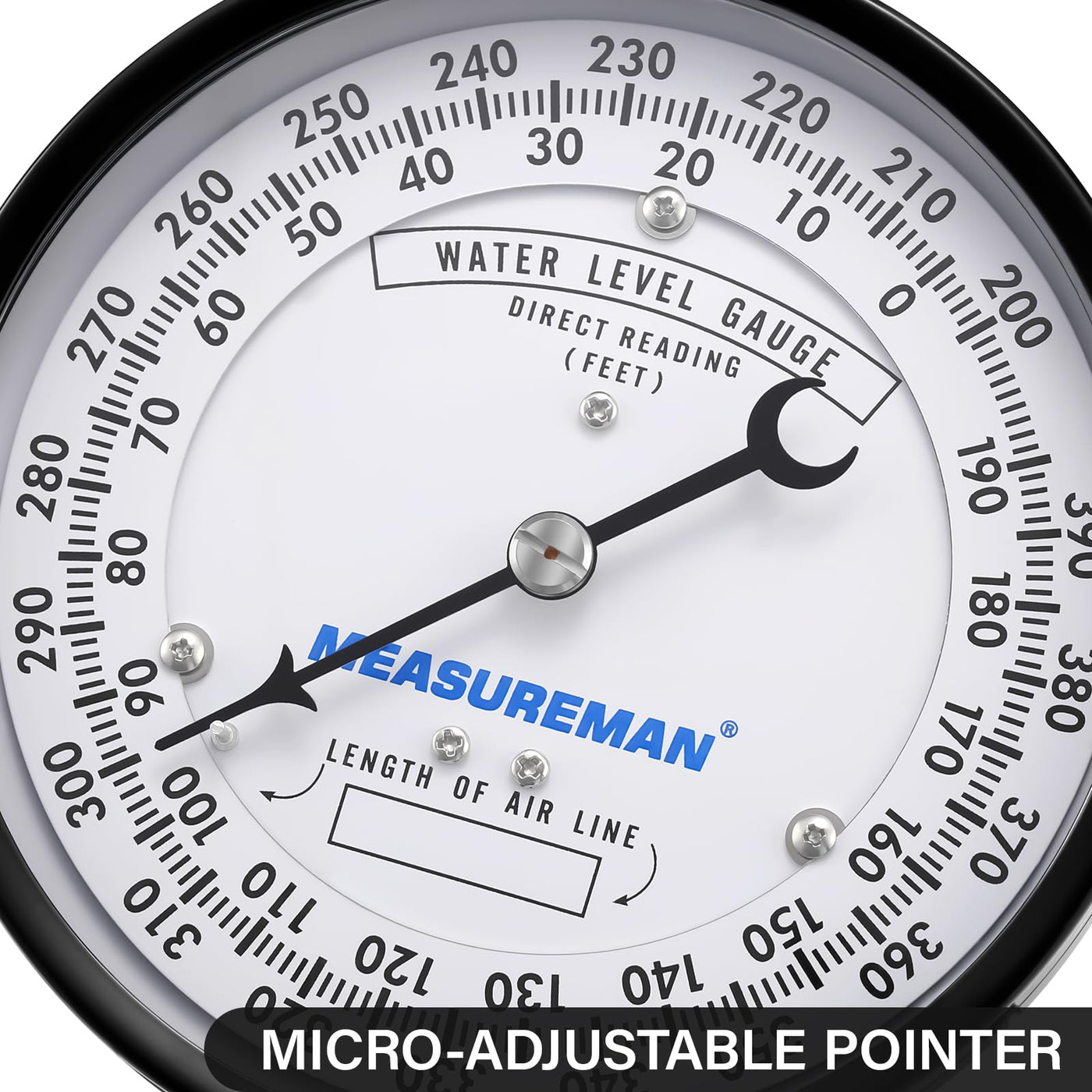

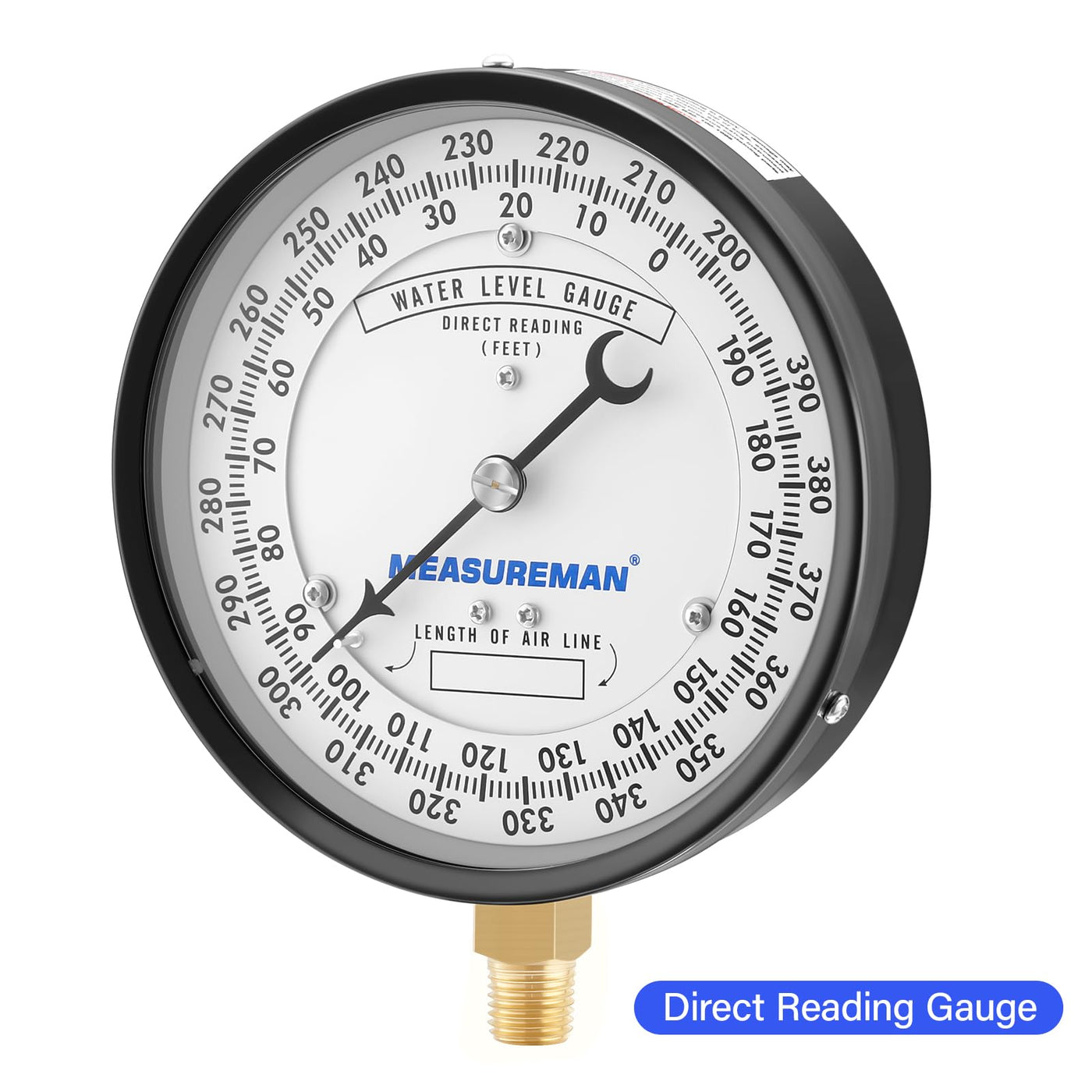

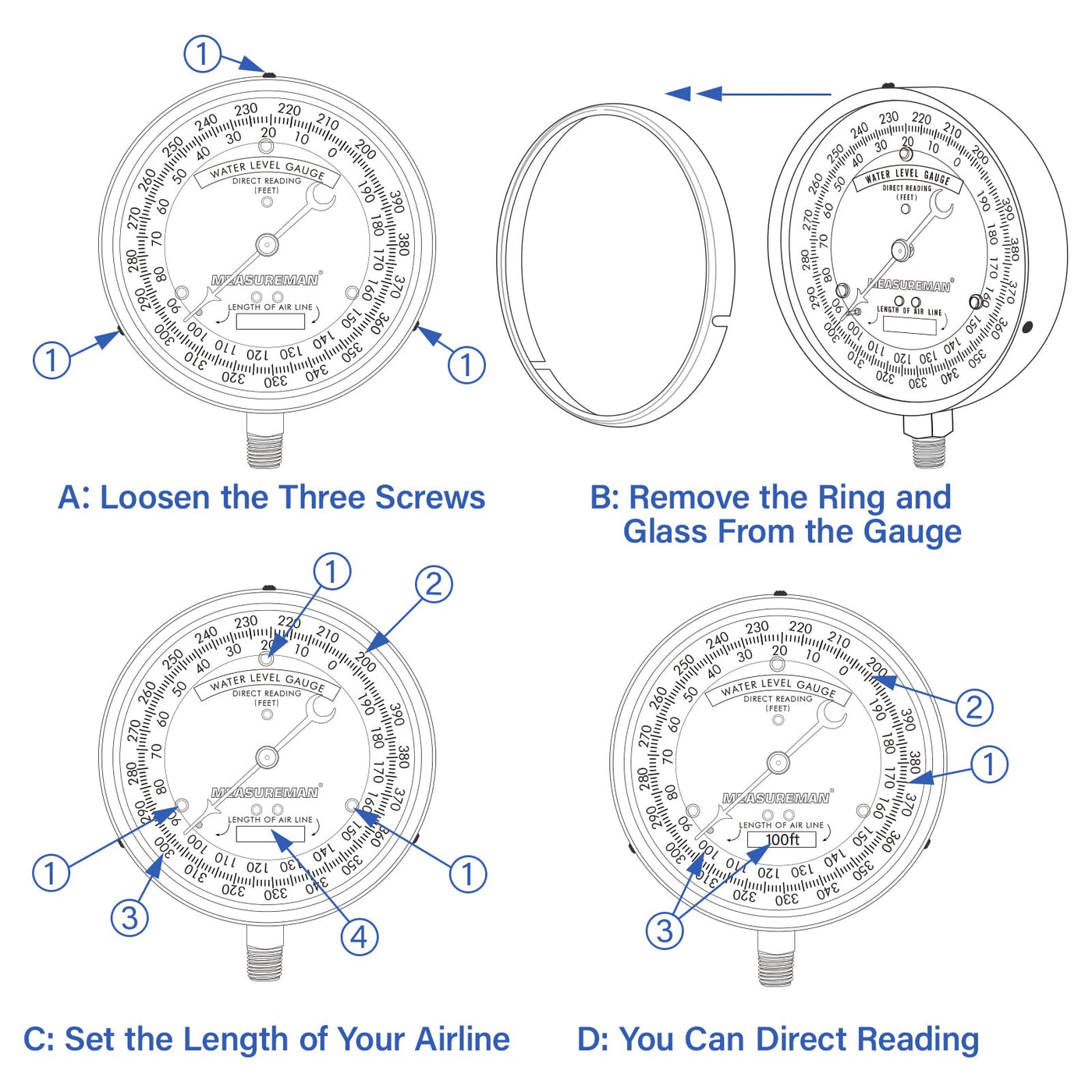

- Length of air line may be set on adjustable dial to permit reading water level in feet below the ground level.
- Range 0-390' H2O. Accuracy: +/- 3-2-3%
