Milescraft 1226 Hinge Jig – Self Clamping Door Hinge Jig, Door Hinge Mortiser. Hinge Templates Rout Mortises from 2.5” to 4.5”. Hinge Installation Kit Includes Latch Templates for All Standard Doors
Milescraft 1226 Hinge Jig – Self Clamping Door Hinge Jig, Door Hinge Mortiser. Hinge Templates Rout Mortises from 2.5” to 4.5”. Hinge Installation Kit Includes Latch Templates for All Standard Doors

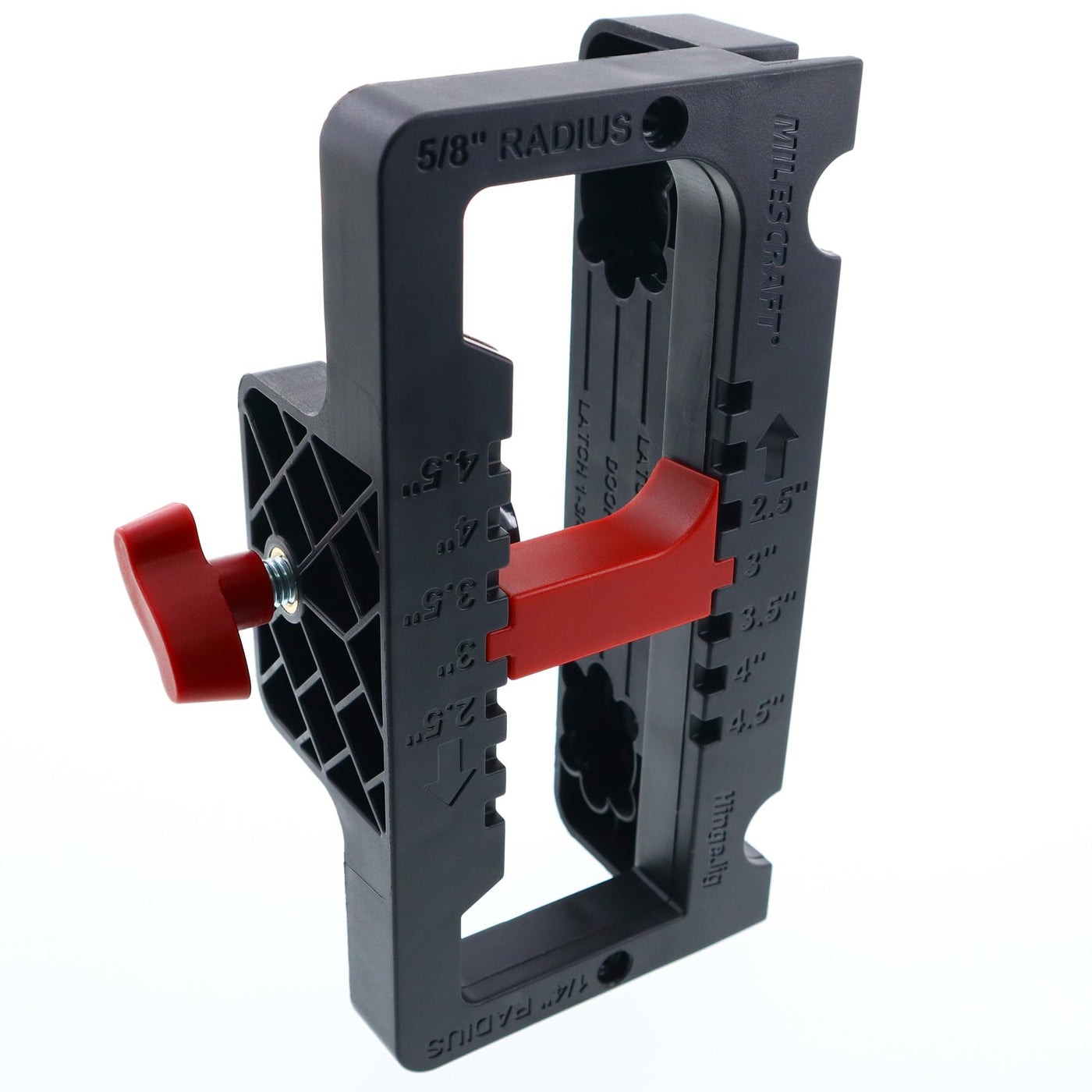

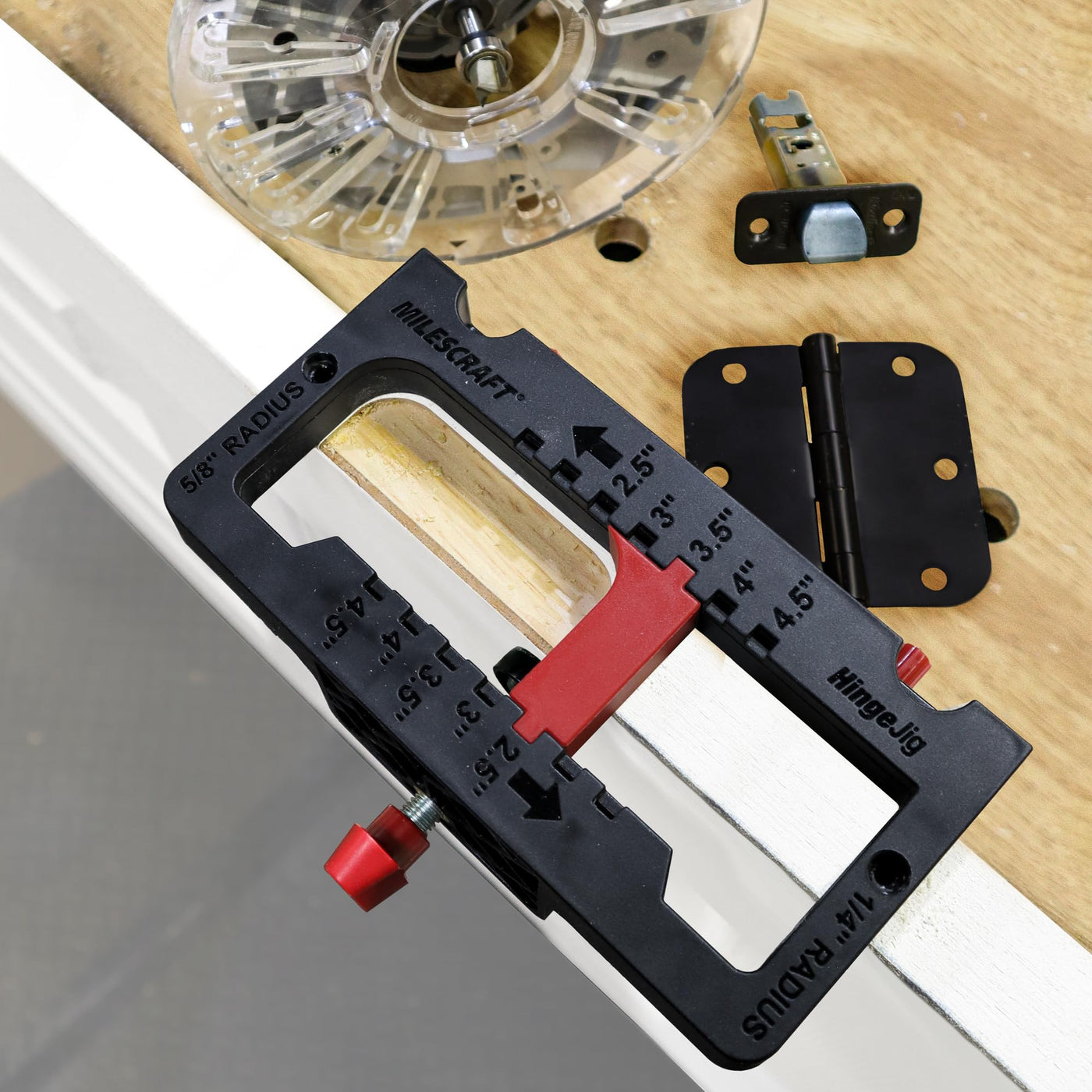

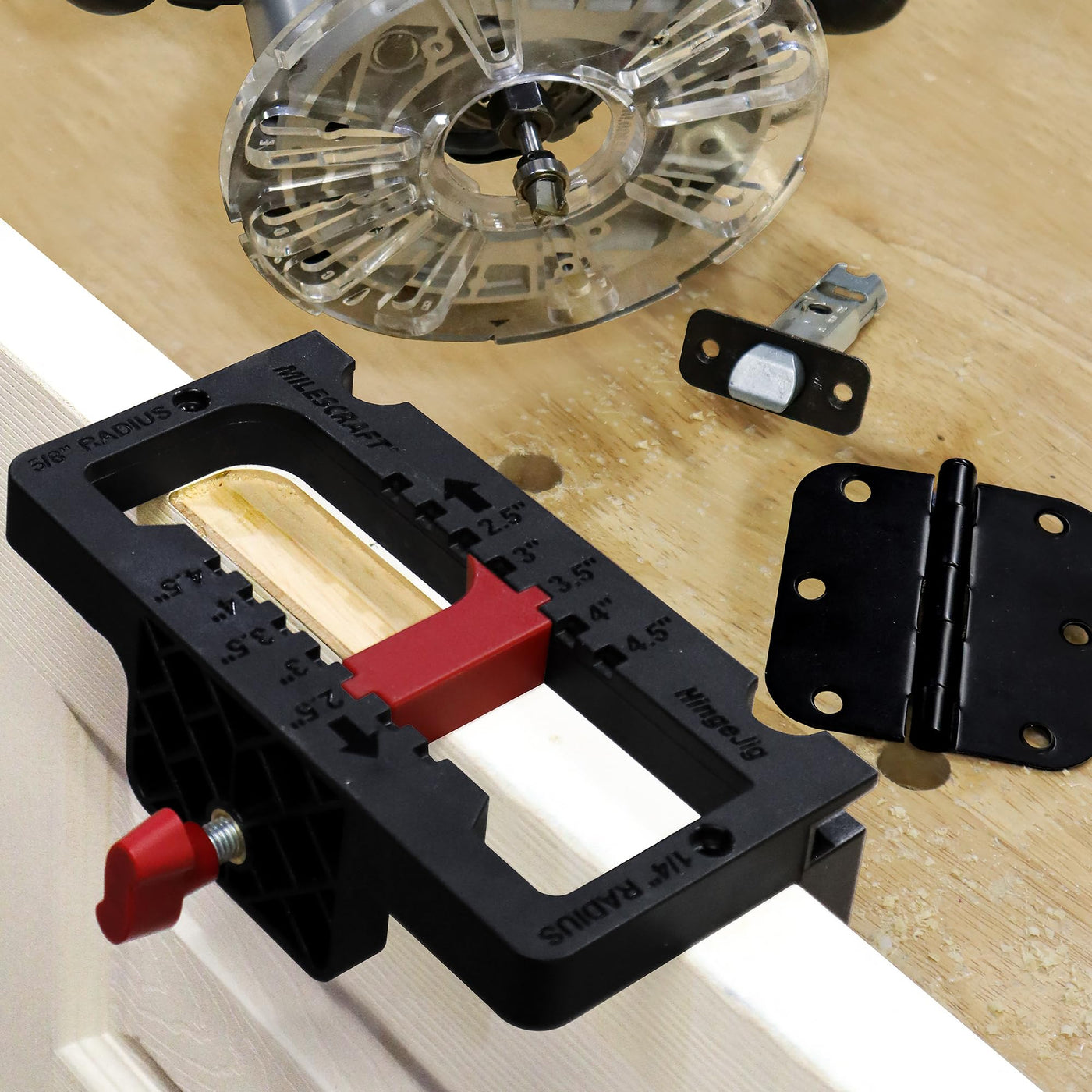

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self- clamping feature holds the HingeJig™ in place while routing without the use of screws or nails that can leave holes in a finished door. To use, place the mortise selector in the correct size position, set the backset plugs to the door setting, clamp, and rout. Create perfect hinge mortises in 2.5”, 3”, 3.5”, 4” and 4.5” sizing on both 1-3/8” and 1-3/4” doors. Easily change between ¼” and 5/8” radiuses by routing on different sides of the jig. Rout on the left for one radius, and the right for the other. Built in depth settings makes sure that you cut to the right depth every time. The HingeJig™ also comes with drop in templates to rout latch mortises. Remove the hinge selector, set the backset plug to latch, and drop in the template that has one of three common door latch sizes. When the job is done, snap the router bit and separately available hinge bit into the built-in storage for convenient retrieval. For fast, easy, and accurate door installation, turn to the HingeJig™ for your next project.
Product Features
- Padded self-clamping design of door hinge installation jig sets up quickly and prevents damages to doors caused by mounting screws or nails
- Adjustable settings allow door hinge jig to be used on all standard size 1-3/8 and 1-3/4 thick doors.
- Cut professional hinge mortises with 14, 5/8, or square corners. (Chisel Required)
- Unique design of door hinge installation jig eliminates need for multiple inserts to rout different corner radiuses

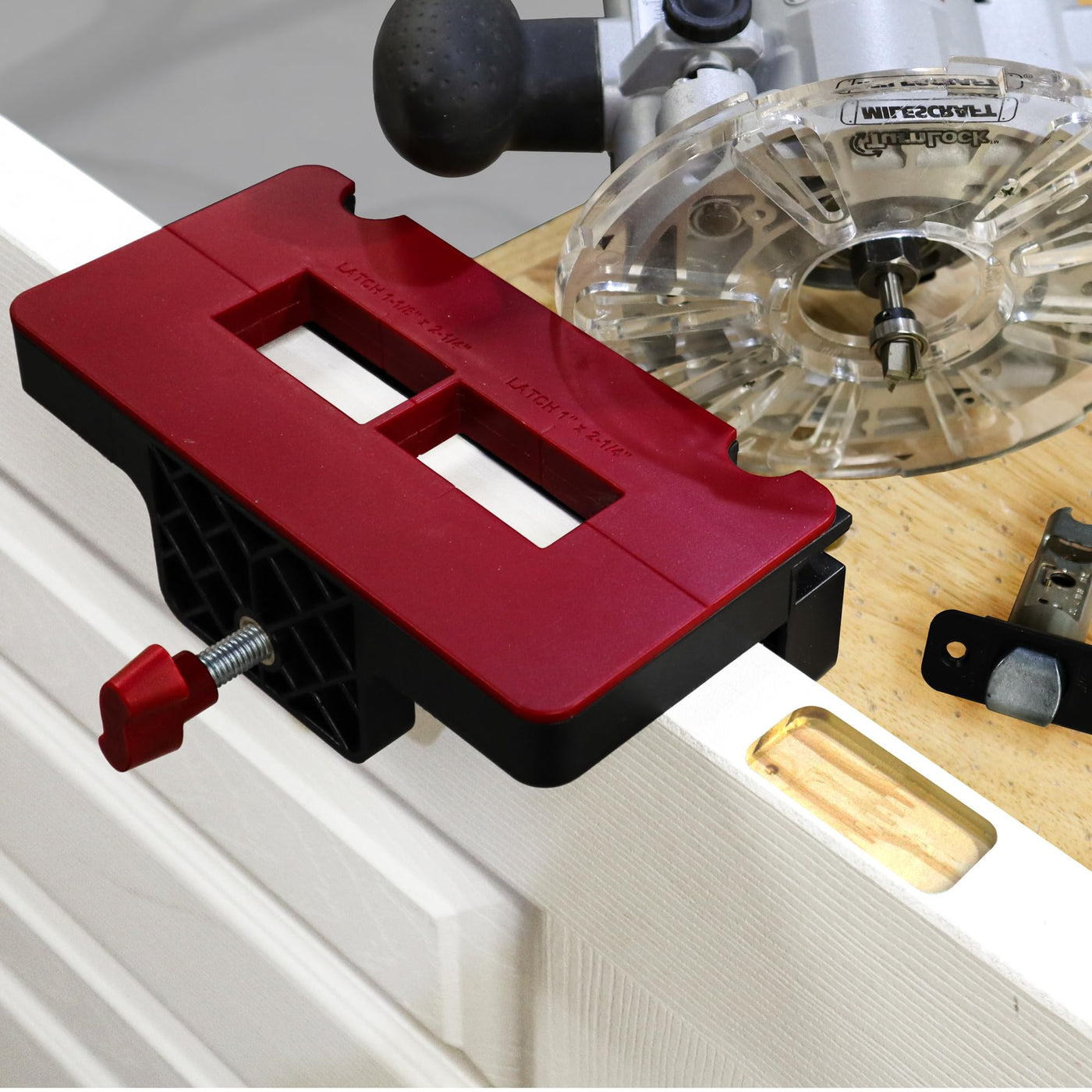

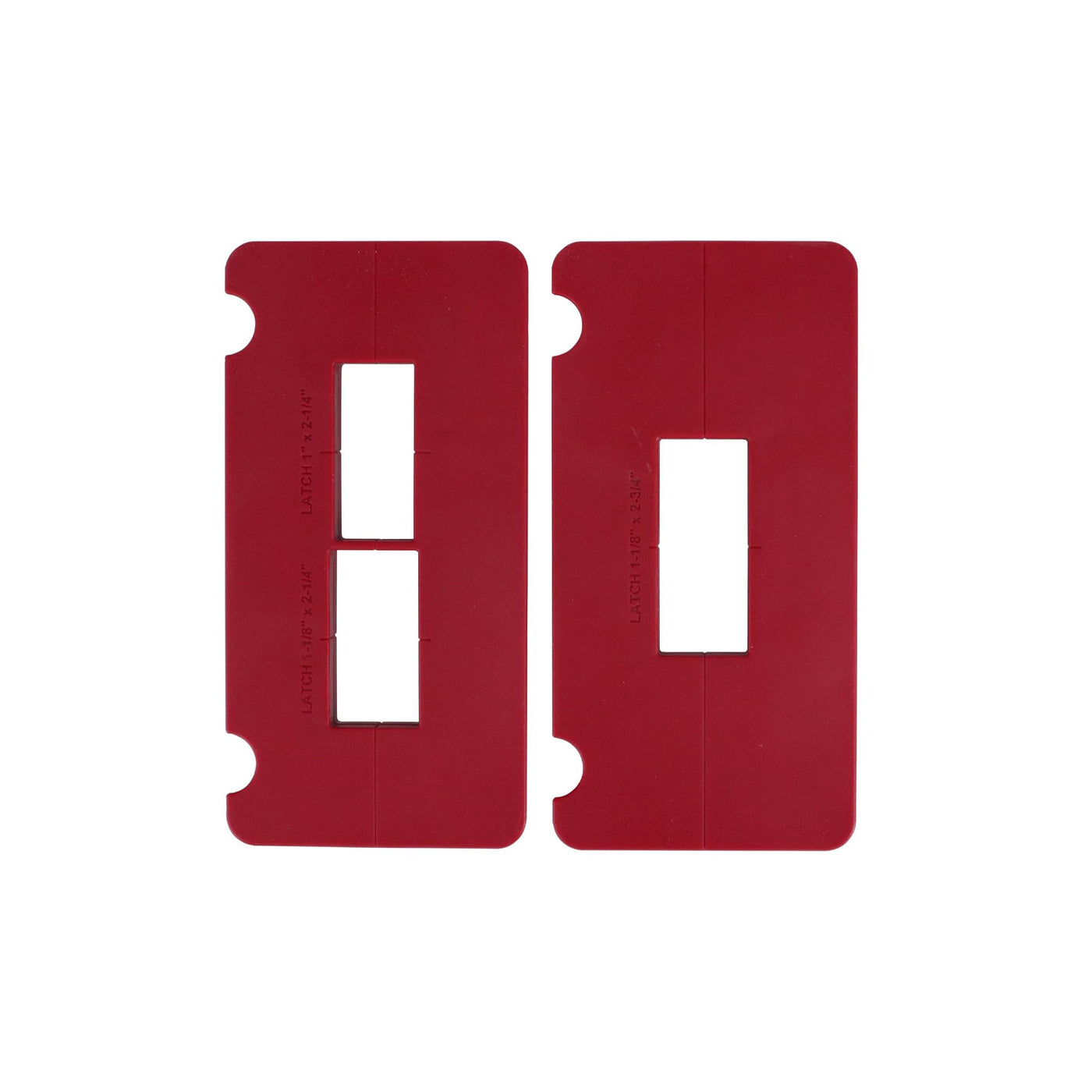

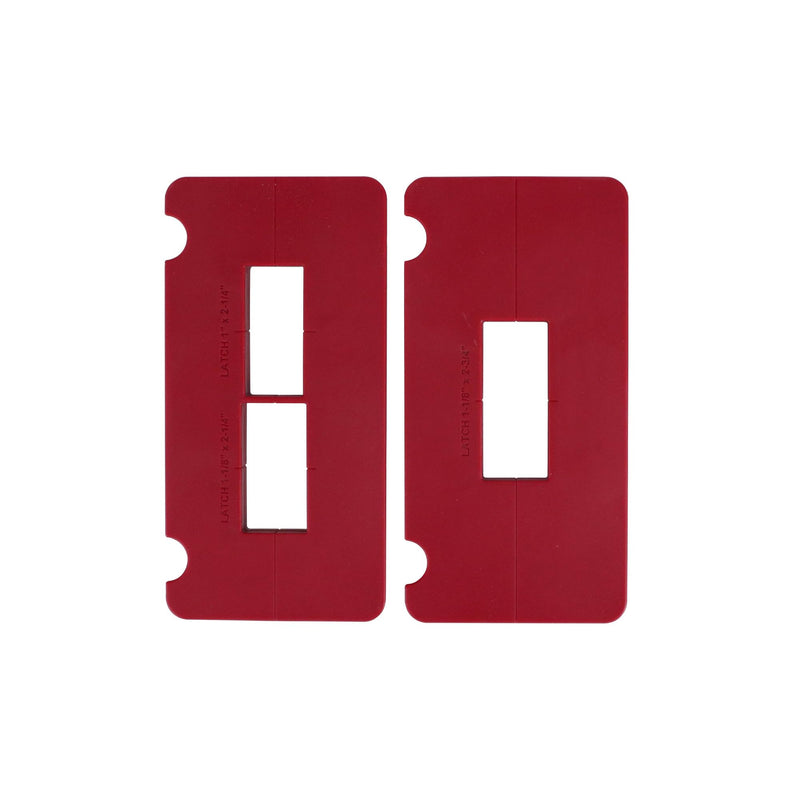

- Door hinge installation kit includes additional templates to rout common door latch mortises sized 1 x 2-1/4 , 1-1/8 x 2-1/4 , and 1-1/8 x 2-3/4

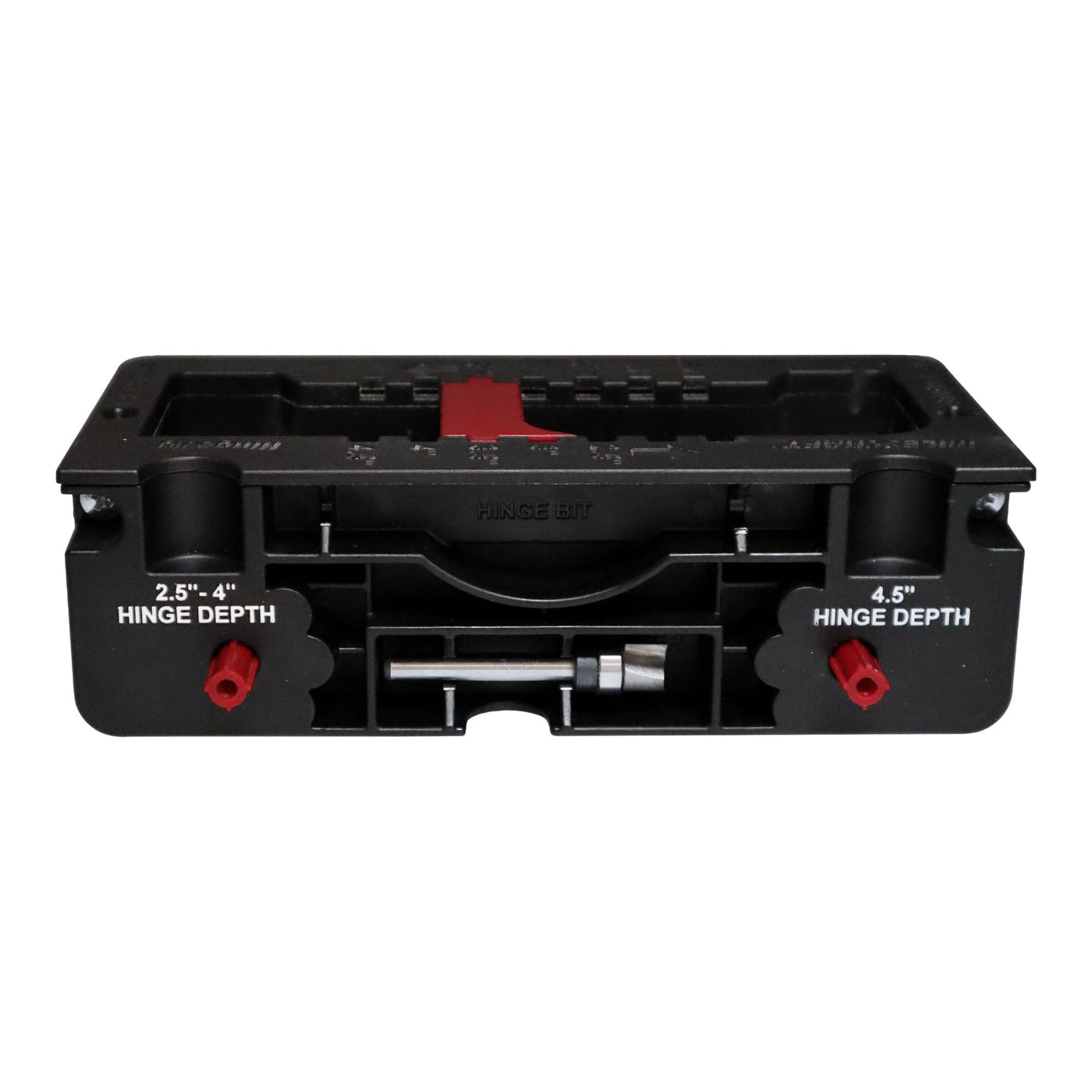

- Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

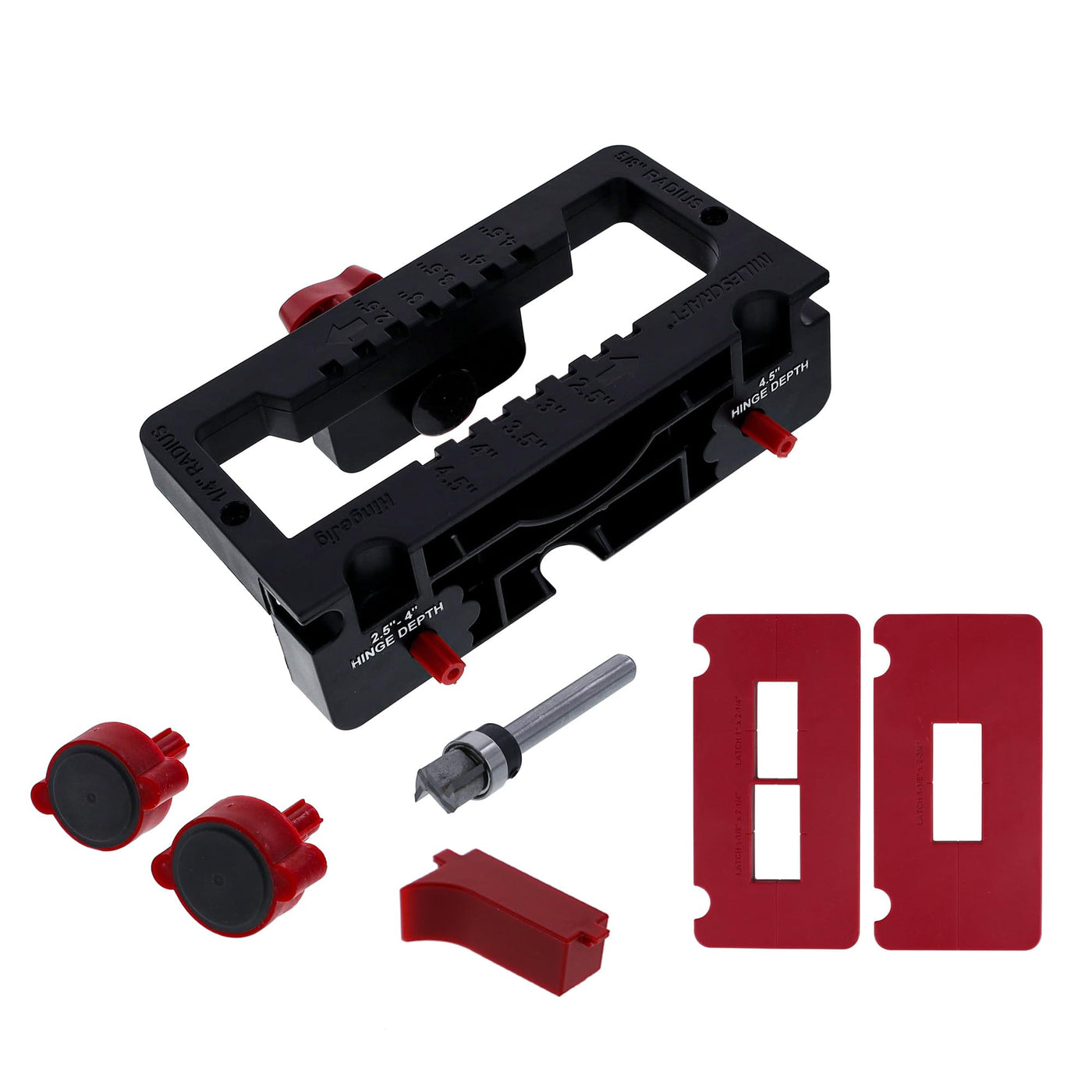

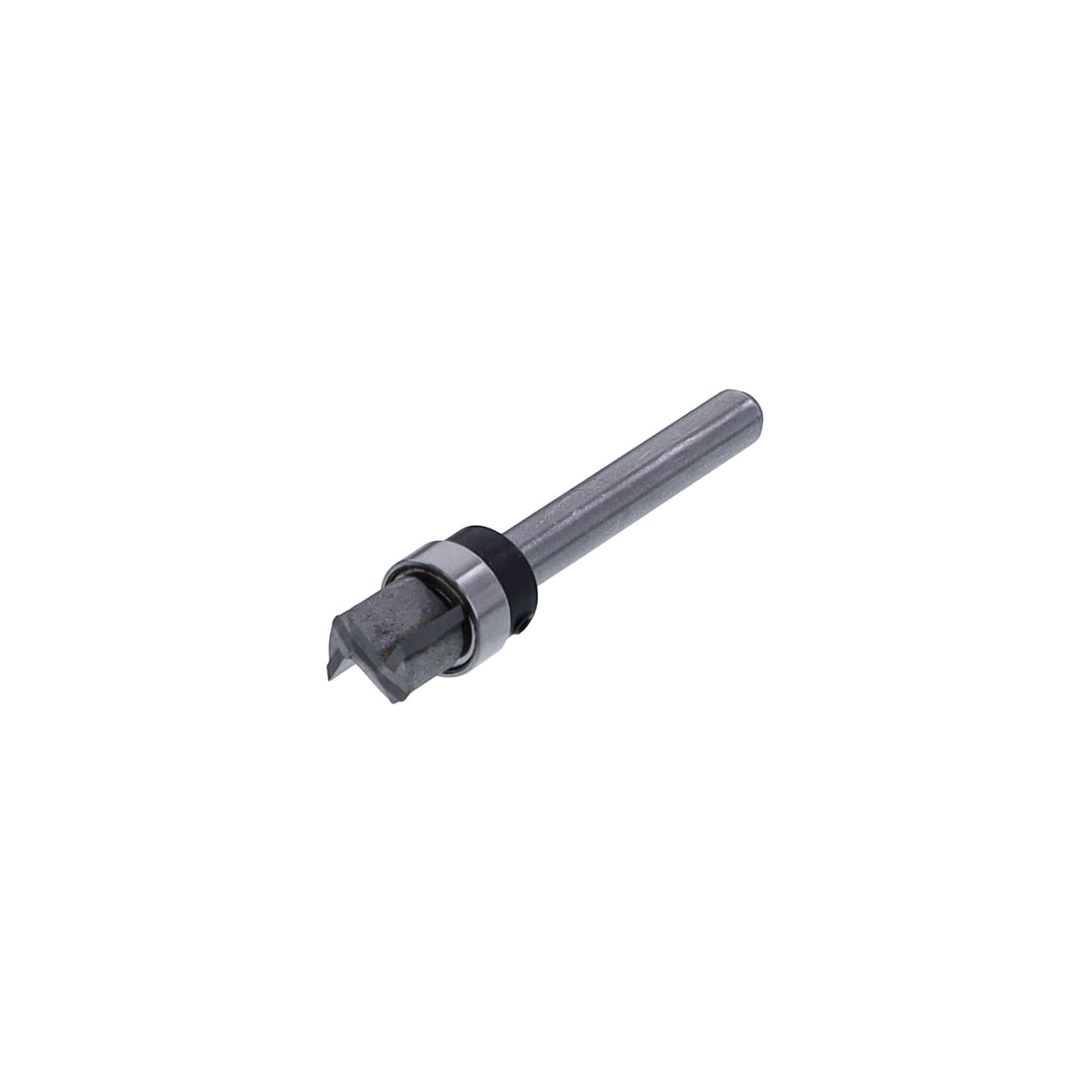

- Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises
- Door mortising jig contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval
- Not for use when routing door hinges on jamb / frame
