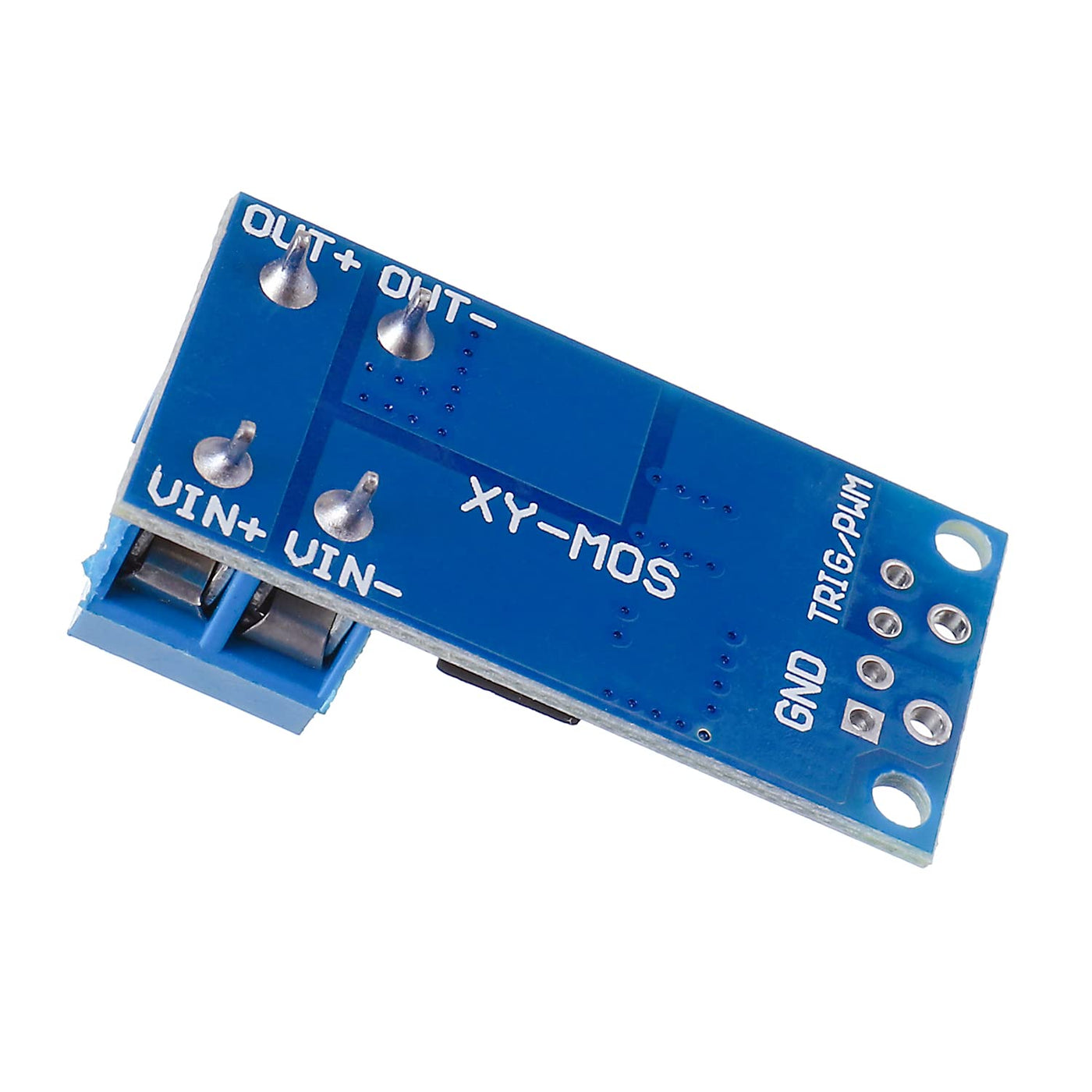

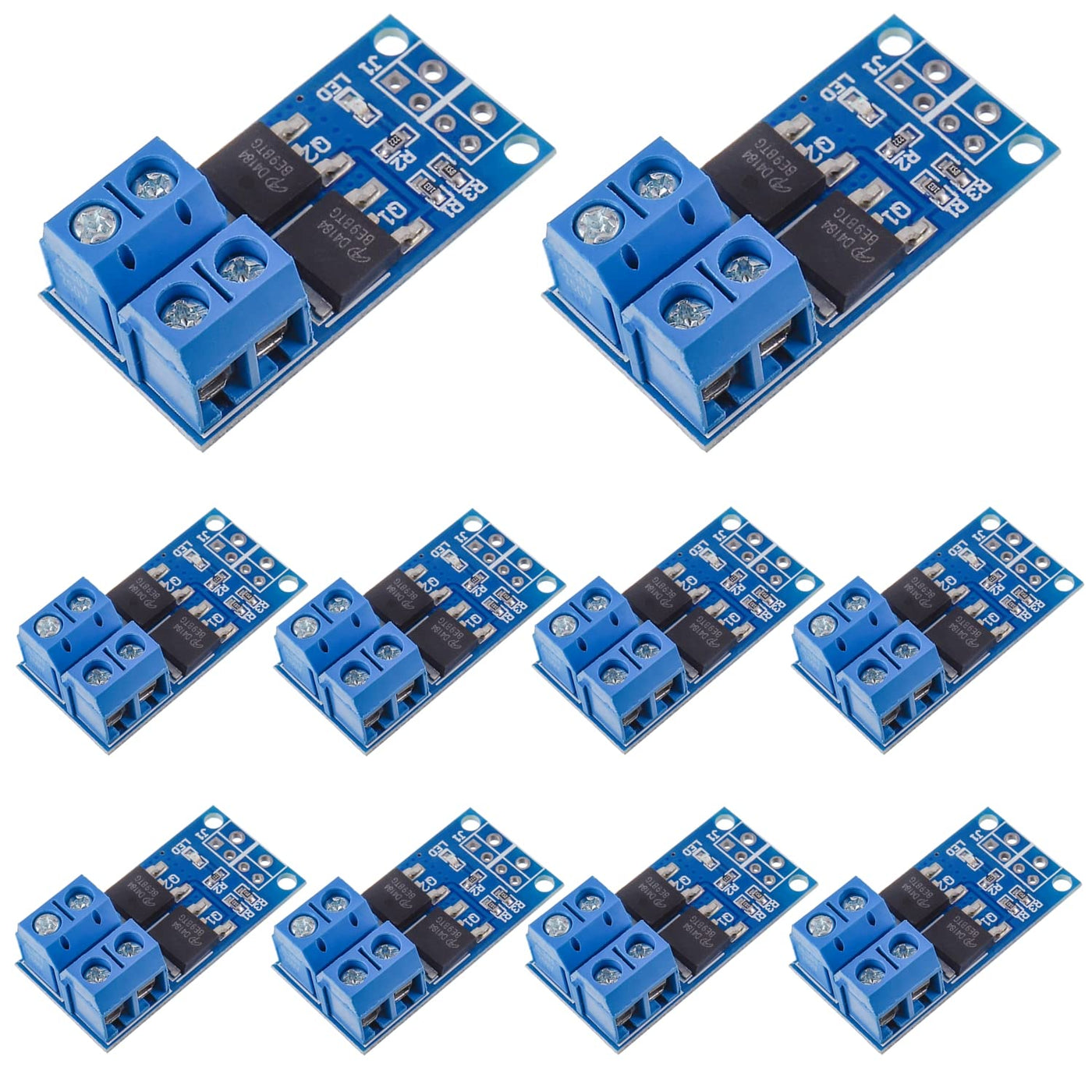

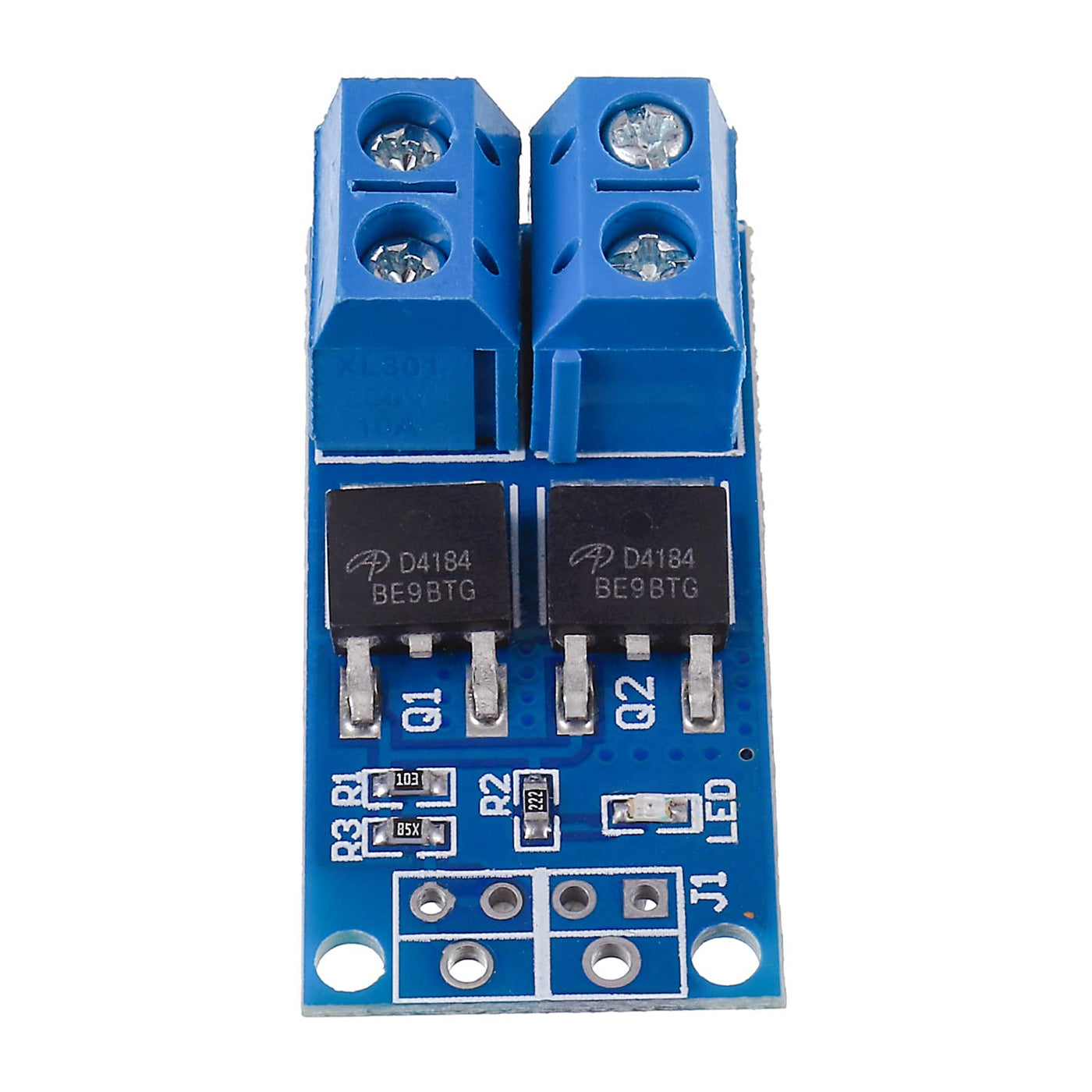

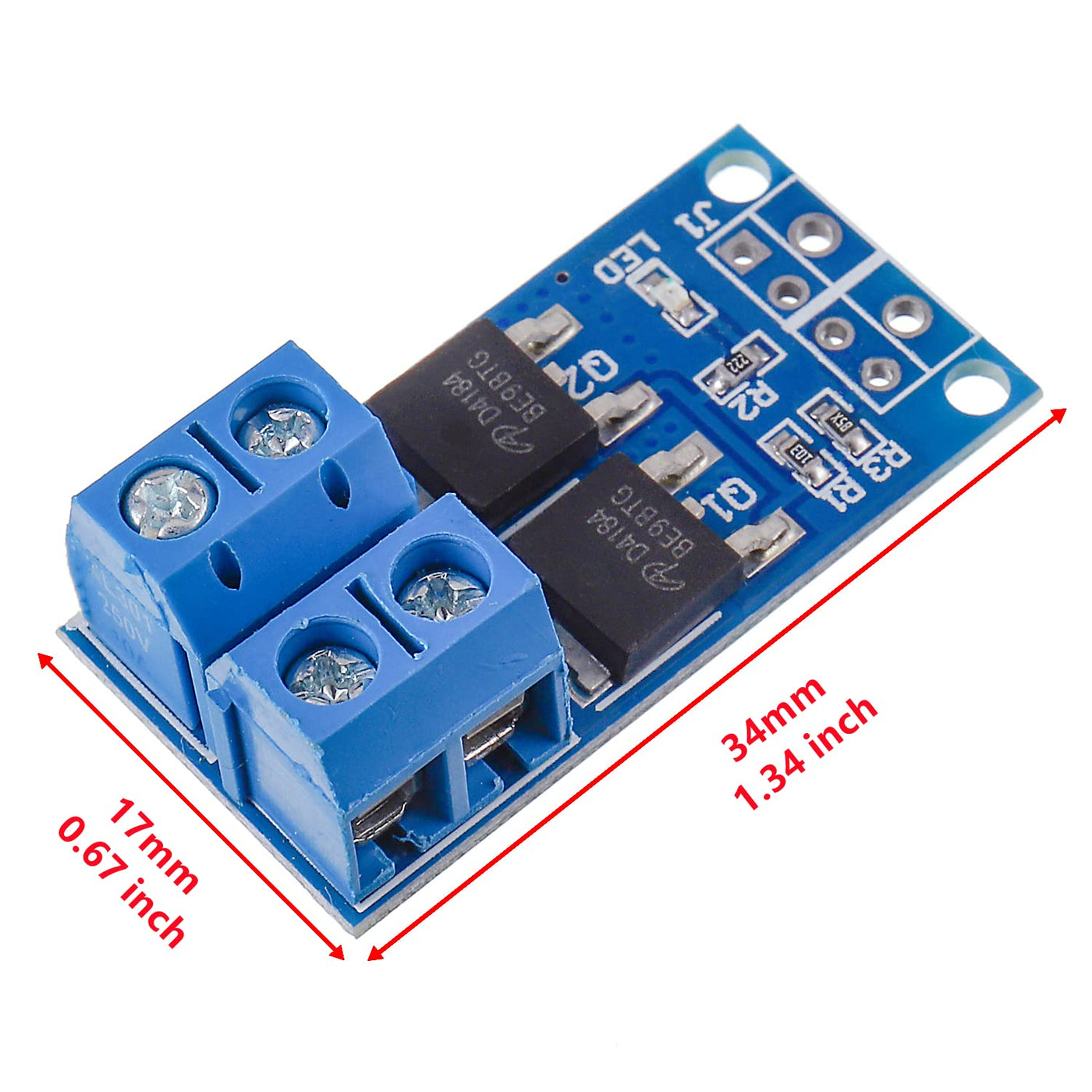

{"id":8783403942039,"title":"MOSFET Switch Drive Module DC 5V-36V 15A(Max 30A) 400W FET Trigger Switch Driving Module Board 0-20KHz PWM Adjustment Electronic Switch Control Board (Pack of 10 Pcs)","handle":"mosfet-switch-drive-module-dc-5v-36v-15amax-30a-400w-fet-trigger-switch-driving-module-board-0-20khz-pwm-adjustment-electronic-switch-control-board-pack-of-10-pcs","description":"\u003ch3\u003eMOSFET Switch Drive Module DC 5V-36V 15A(Max 30A) 400W FET Trigger Switch Driving Module Board 0-20KHz PWM Adjustment Electronic Switch Control Board (Pack of 10 Pcs)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eEPLZON DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOSFET Transistor Trigger\nSwitch Drive Module Using imported high-power dual MOS transistors in parallel\nfor active output, lower resistance, larger current, and strong power\ntechnical parameter: Output voltage: DC 5V-36V Output current: 15A (continuous\ncurrent at room temperature Enhanced heat dissipation, the maximum current can\nreach 30A) Output power: 400W Working temperature: -40℃-85℃ Size:\n1.34x0.7x0.5inch\/3.4 x 1.7 x1.2cm (length width height) Trigger source:\ndigital level (DC3.3V-20V), can be connected to the IO port of the single-chip\nmicrocomputer, PLC interface, DC power supply, etc. The module can be\nconnected to the PWM signal, which can perfectly support the frequency of\n0-20KHZ. Package Included: 10Pcs NOYITO 400W 15A dual MOS transistor driver\nmodule\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking voltage: DC 5V-36V, continuous current: 15A, power: 400W, strengthen heat dissipation conditions, the maximum current can reach 30A\u003c\/li\u003e\n \u003cli\u003eWorking temperature: -40-85C; size: 1.34x0.7x0.5inch\/3.4 x 1.7 x1.2cm (length * width * height)\u003c\/li\u003e\n \u003cli\u003eUsing imported dual MOS parallel active output, lower internal resistance, higher current, strong power, continuous current 15A at normal temperature, power: 400W, meets most equipment use, and easily realizes the control of high-power equipment\u003c\/li\u003e\n \u003cli\u003eTrigger signal source: digital high and low level (DC3.3V-20V), can be connected to MCU IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0-20KHZ support\u003c\/li\u003e\n \u003cli\u003eApplication: Output can control high-power equipment, such as motors, LED lights, bulbs, micro pumps, DC motors, solenoid valves; PWM can be input to control motor speed, lamp brightness, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-08T17:25:09+11:00","created_at":"2025-02-06T13:21:55+11:00","vendor":"EPLZON","type":"Motor Speed Controllers","tags":["industrial_best_sellers_Jan2025"],"price":10300,"price_min":10300,"price_max":10300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45120330891415,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09LLR675M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MOSFET Switch Drive Module DC 5V-36V 15A(Max 30A) 400W FET Trigger Switch Driving Module Board 0-20KHz PWM Adjustment Electronic Switch Control Board (Pack of 10 Pcs)","public_title":null,"options":["Default Title"],"price":10300,"weight":59,"compare_at_price":null,"inventory_management":"shopify","barcode":"762917456492","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B09LLR675M.jpg?v=1775766175","\/\/newnestshop.com\/cdn\/shop\/files\/61X7IUfgqIL.jpg?v=1738808518","\/\/newnestshop.com\/cdn\/shop\/files\/714ezxu0pZL.jpg?v=1738808517","\/\/newnestshop.com\/cdn\/shop\/files\/61ftuZcMMML.jpg?v=1738808517"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B09LLR675M.jpg?v=1775766175","options":["Title"],"media":[{"alt":null,"id":36909531168919,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B09LLR675M.jpg?v=1775766175"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B09LLR675M.jpg?v=1775766175","width":1500},{"alt":null,"id":36909531201687,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61X7IUfgqIL.jpg?v=1738808518"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61X7IUfgqIL.jpg?v=1738808518","width":1500},{"alt":null,"id":36909531234455,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/714ezxu0pZL.jpg?v=1738808517"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/714ezxu0pZL.jpg?v=1738808517","width":1500},{"alt":null,"id":36909531267223,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ftuZcMMML.jpg?v=1738808517"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ftuZcMMML.jpg?v=1738808517","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMOSFET Switch Drive Module DC 5V-36V 15A(Max 30A) 400W FET Trigger Switch Driving Module Board 0-20KHz PWM Adjustment Electronic Switch Control Board (Pack of 10 Pcs)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eEPLZON DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOSFET Transistor Trigger\nSwitch Drive Module Using imported high-power dual MOS transistors in parallel\nfor active output, lower resistance, larger current, and strong power\ntechnical parameter: Output voltage: DC 5V-36V Output current: 15A (continuous\ncurrent at room temperature Enhanced heat dissipation, the maximum current can\nreach 30A) Output power: 400W Working temperature: -40℃-85℃ Size:\n1.34x0.7x0.5inch\/3.4 x 1.7 x1.2cm (length width height) Trigger source:\ndigital level (DC3.3V-20V), can be connected to the IO port of the single-chip\nmicrocomputer, PLC interface, DC power supply, etc. The module can be\nconnected to the PWM signal, which can perfectly support the frequency of\n0-20KHZ. Package Included: 10Pcs NOYITO 400W 15A dual MOS transistor driver\nmodule\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking voltage: DC 5V-36V, continuous current: 15A, power: 400W, strengthen heat dissipation conditions, the maximum current can reach 30A\u003c\/li\u003e\n \u003cli\u003eWorking temperature: -40-85C; size: 1.34x0.7x0.5inch\/3.4 x 1.7 x1.2cm (length * width * height)\u003c\/li\u003e\n \u003cli\u003eUsing imported dual MOS parallel active output, lower internal resistance, higher current, strong power, continuous current 15A at normal temperature, power: 400W, meets most equipment use, and easily realizes the control of high-power equipment\u003c\/li\u003e\n \u003cli\u003eTrigger signal source: digital high and low level (DC3.3V-20V), can be connected to MCU IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0-20KHZ support\u003c\/li\u003e\n \u003cli\u003eApplication: Output can control high-power equipment, such as motors, LED lights, bulbs, micro pumps, DC motors, solenoid valves; PWM can be input to control motor speed, lamp brightness, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
