MPU9250 GY-9250 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Module IIC/SPI MPU9250/6500
MPU9250 GY-9250 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Module IIC/SPI MPU9250/6500

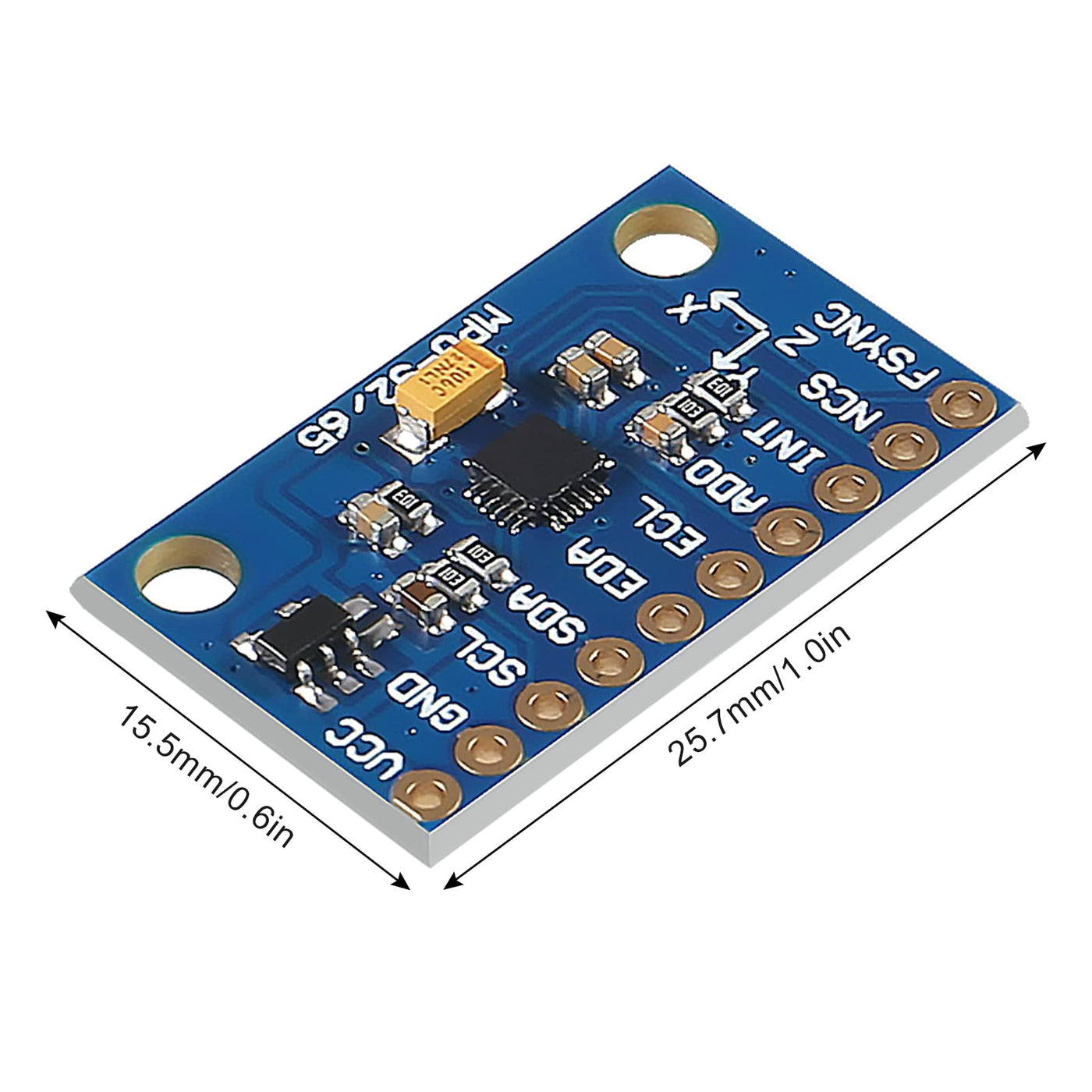

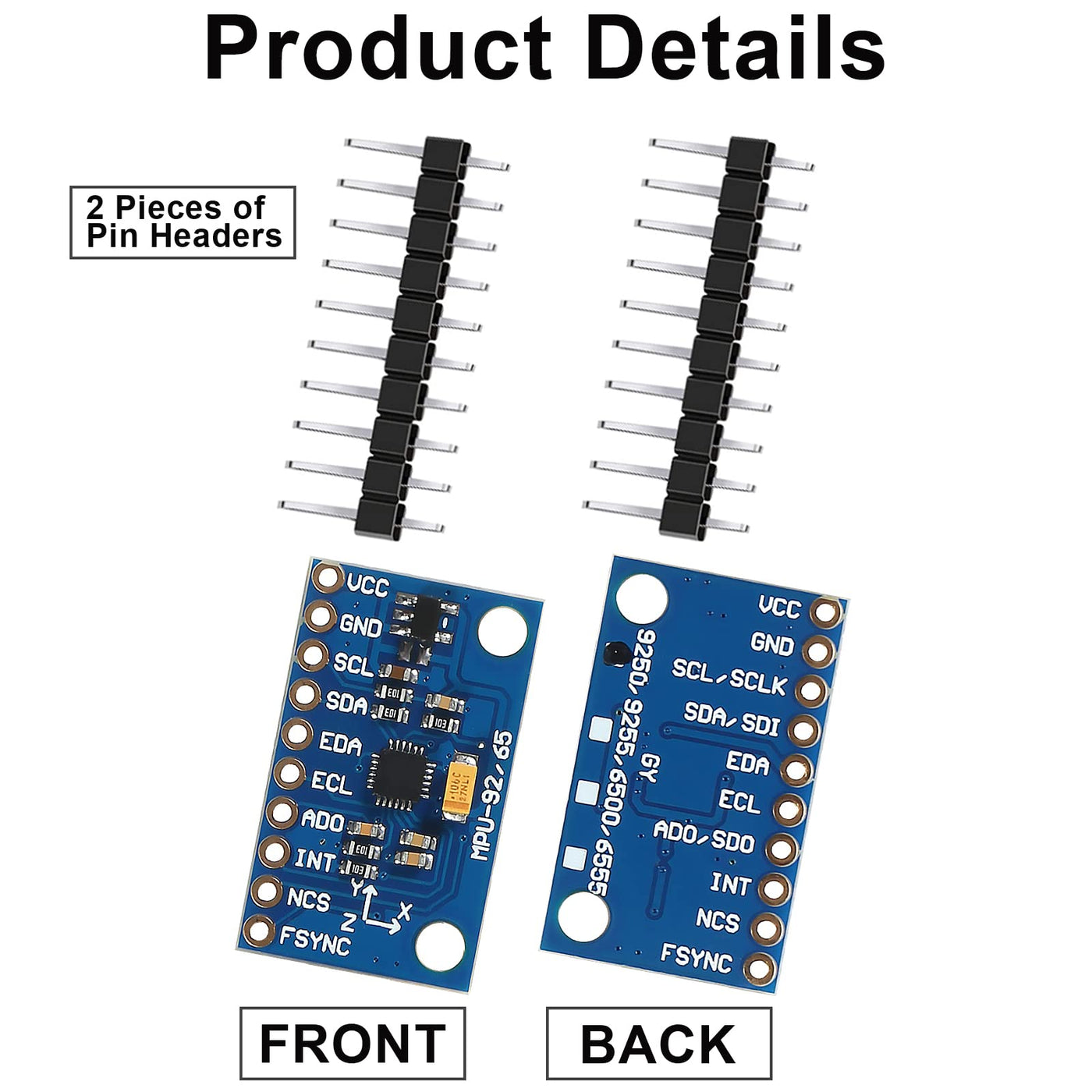

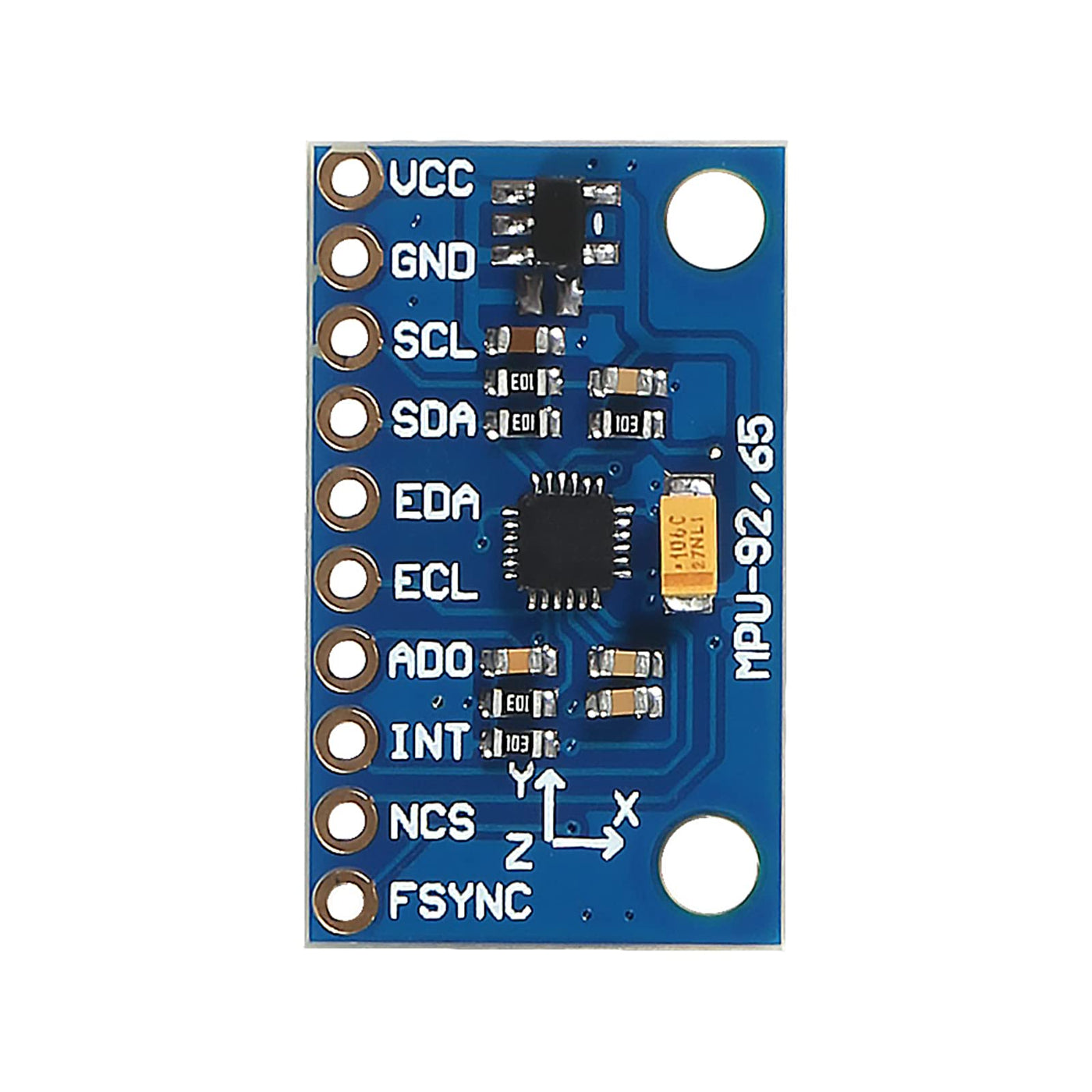

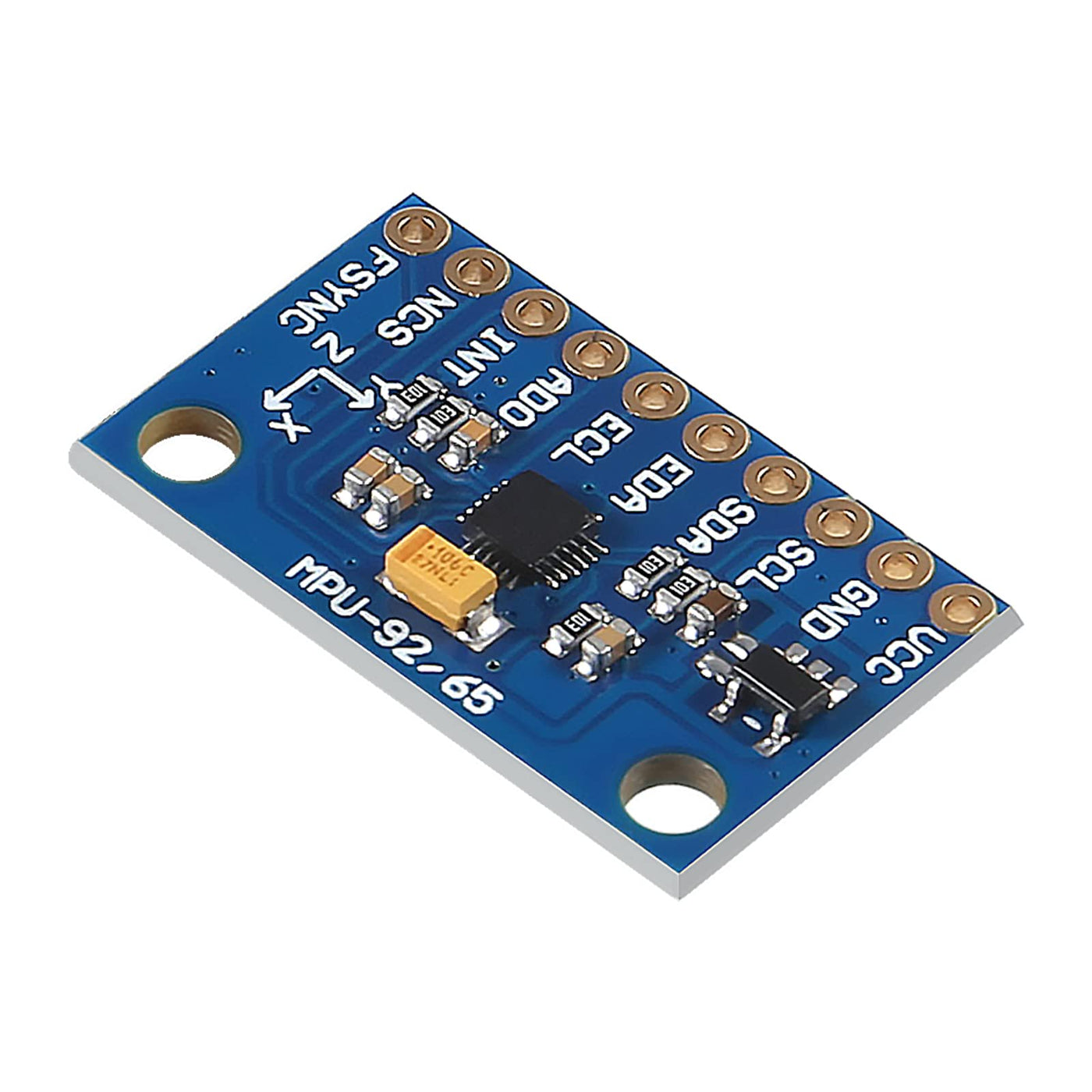

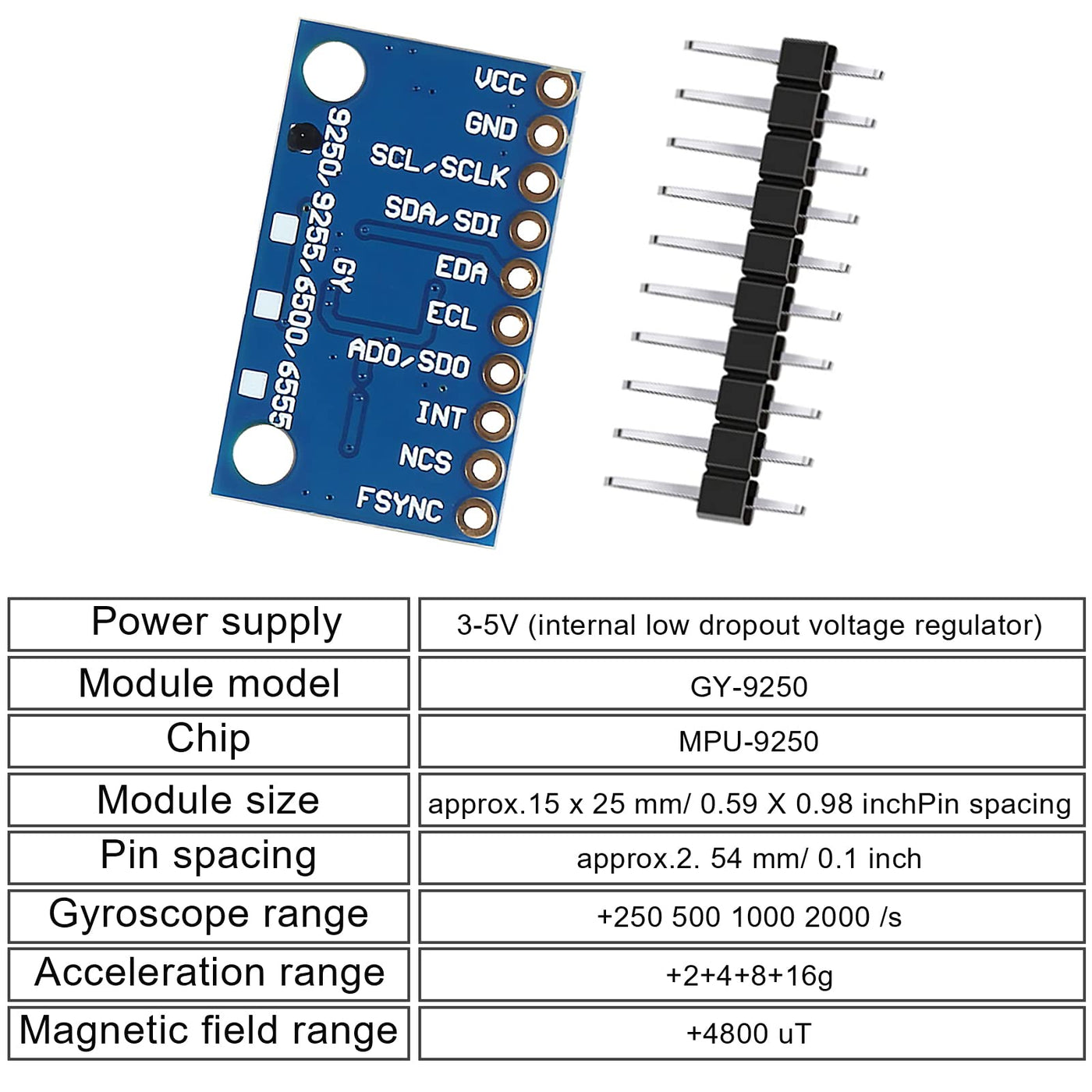

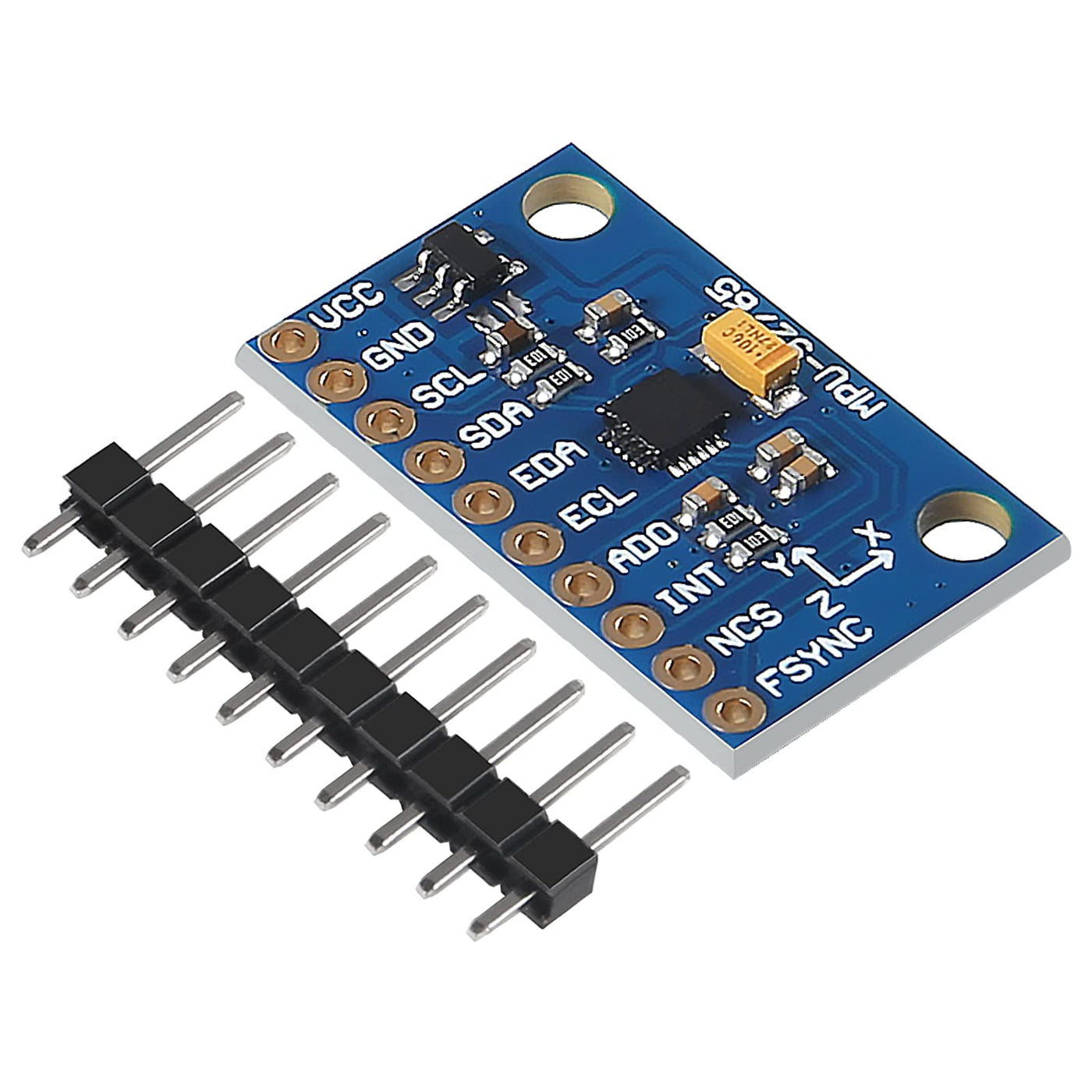

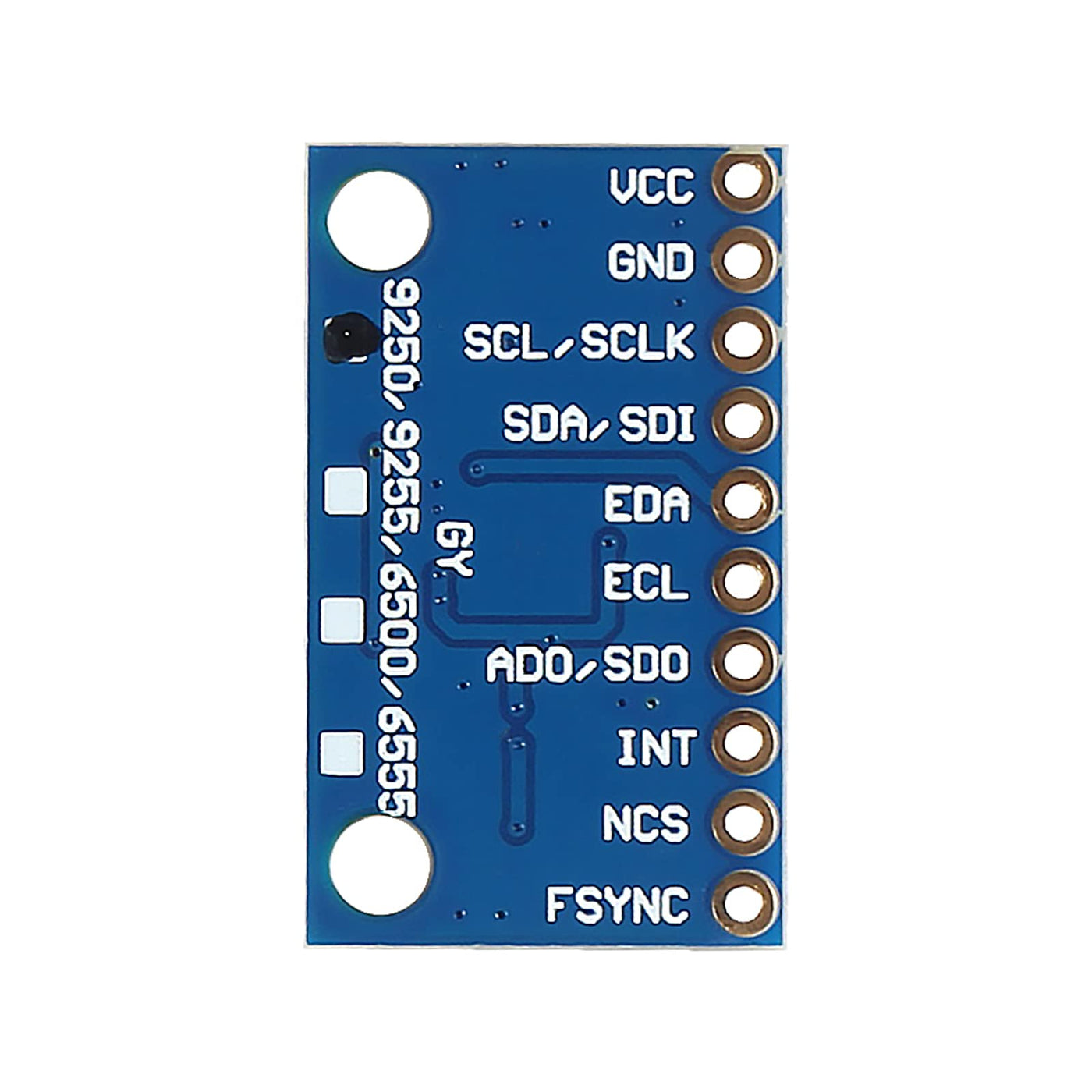

Features: This module integrates gyroscope, accelerometer and magnetometer into a single QFN package. The 9-axis sensor module features the immersion gold PCB, which uses the machine connecting process to make it work fine. Compared to previous generation, the MPU-9250 has its size smaller and its sensitivity improved to 0.15 μT/ LSB. Specifications: Module model: GY-9250 Chip: MPU-9250 Acceleration range: ±2 ±4 ±8 ±16 g Sensitivity: up to 16,384 LSB/g Gyroscope range: ± 2000 °/s Sensitivity: up to 131 LSB/deg/sec Magnetic Field Range: ± 4800 μT Supply Voltage: 4.4 to 6.5 V or 3.3V if you connect the jumper near the on-board voltage regulator Interface: I2C 2C Address: 0x68 by default, 0x69 if AD0 is pulled high Module size: approx. 15 x 25 mm/ 0.59 x 0.98 inch Pin spacing: approx. 2.54 mm/ 0.1 inch On-board pull-up resistors on SDA, SCL, and nCS On-board pull-down resistors on FSYNC and AD0 Package Included： 1 MPU9250 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor 1 Ten pin male header (1x10)
Product Features
- Module ModelGY-9250; Main Chip:MPU-9250
- MPU9250 9-Axis SensorThis module uses the MPU-9250, and combines a 3-axis gyroscope, a 3-axis accelerometer and a 3-axis magnetometer which are integrated into a single package
- Exquisite QualityThe MPU-9250 9-axis sensor module features the immersion gold PCB, the MPU-9250 integrates a 3-axis magnetometer AK8963, which features smaller size compared to previous generation and sensitivity improvement with 0.15 T/ LSB; The 16-bit AD converter is embedded in the chip, with 16-bit data output
- Power Supply3-5V (internal low dropout voltage regulator); Communication: standard IIC communication protocol
- MPU9250 Gyroscope Sensor ApplicationsDTV and set-top boxes are applied to internet connection; wearable sensors are applied to fitness equipment and sports
