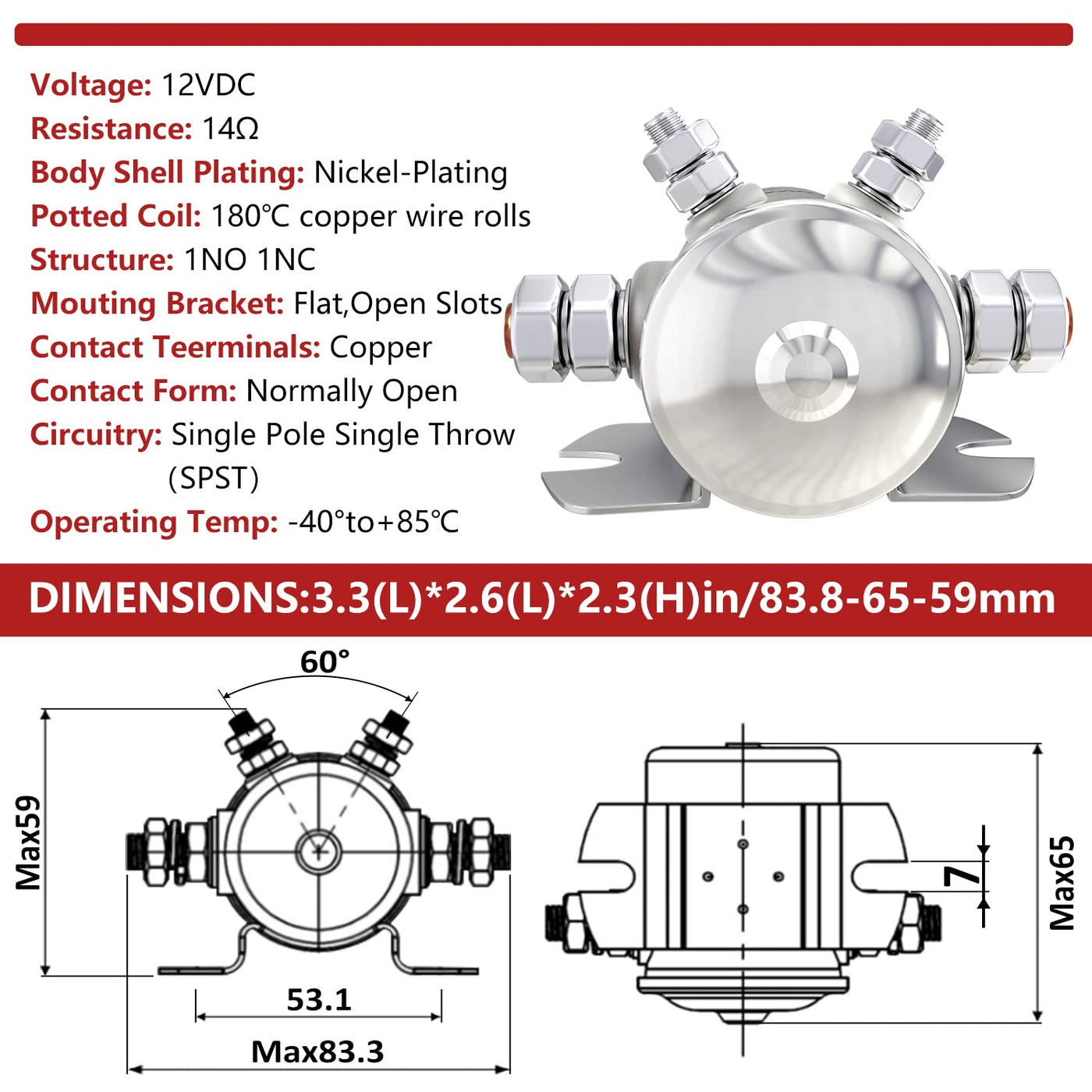

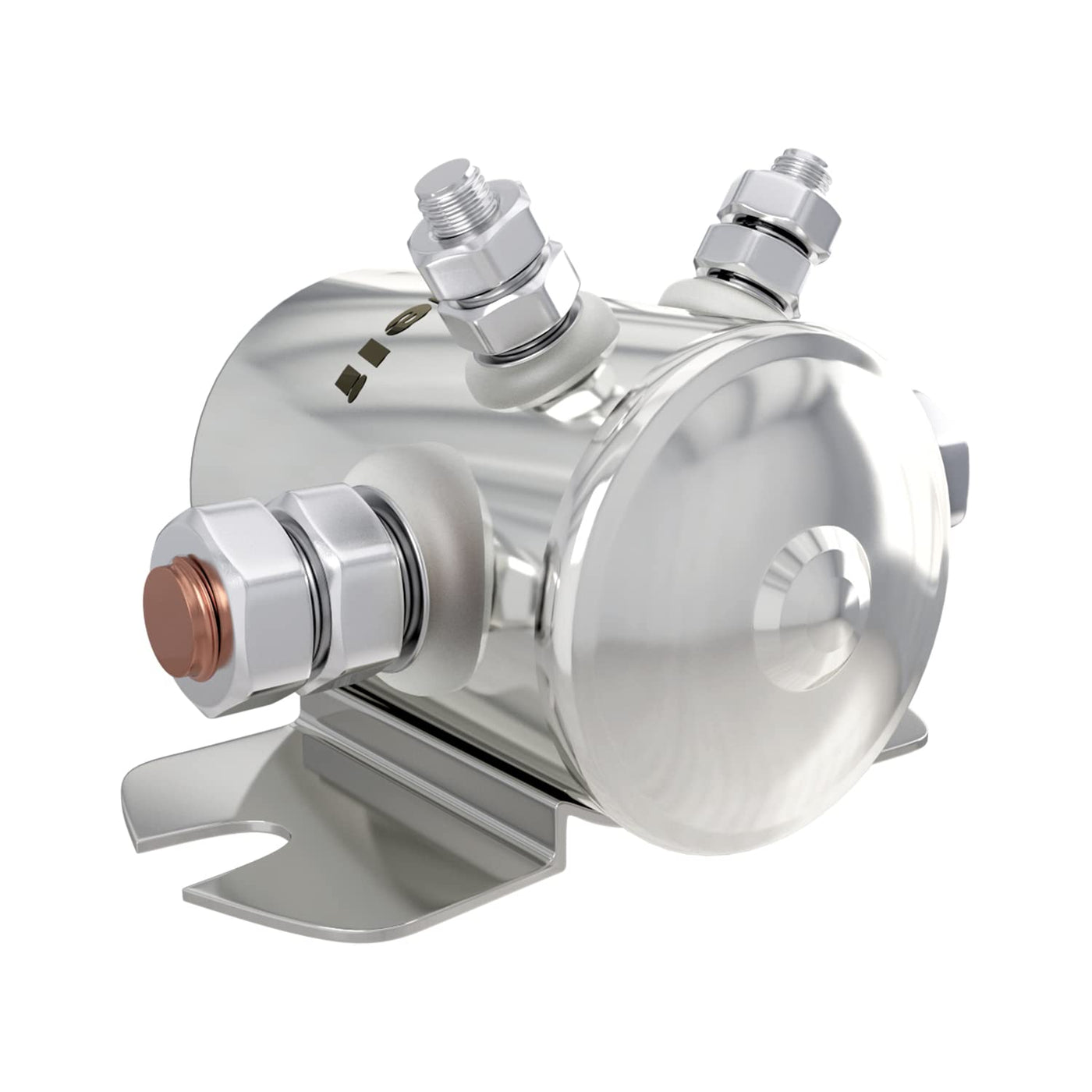

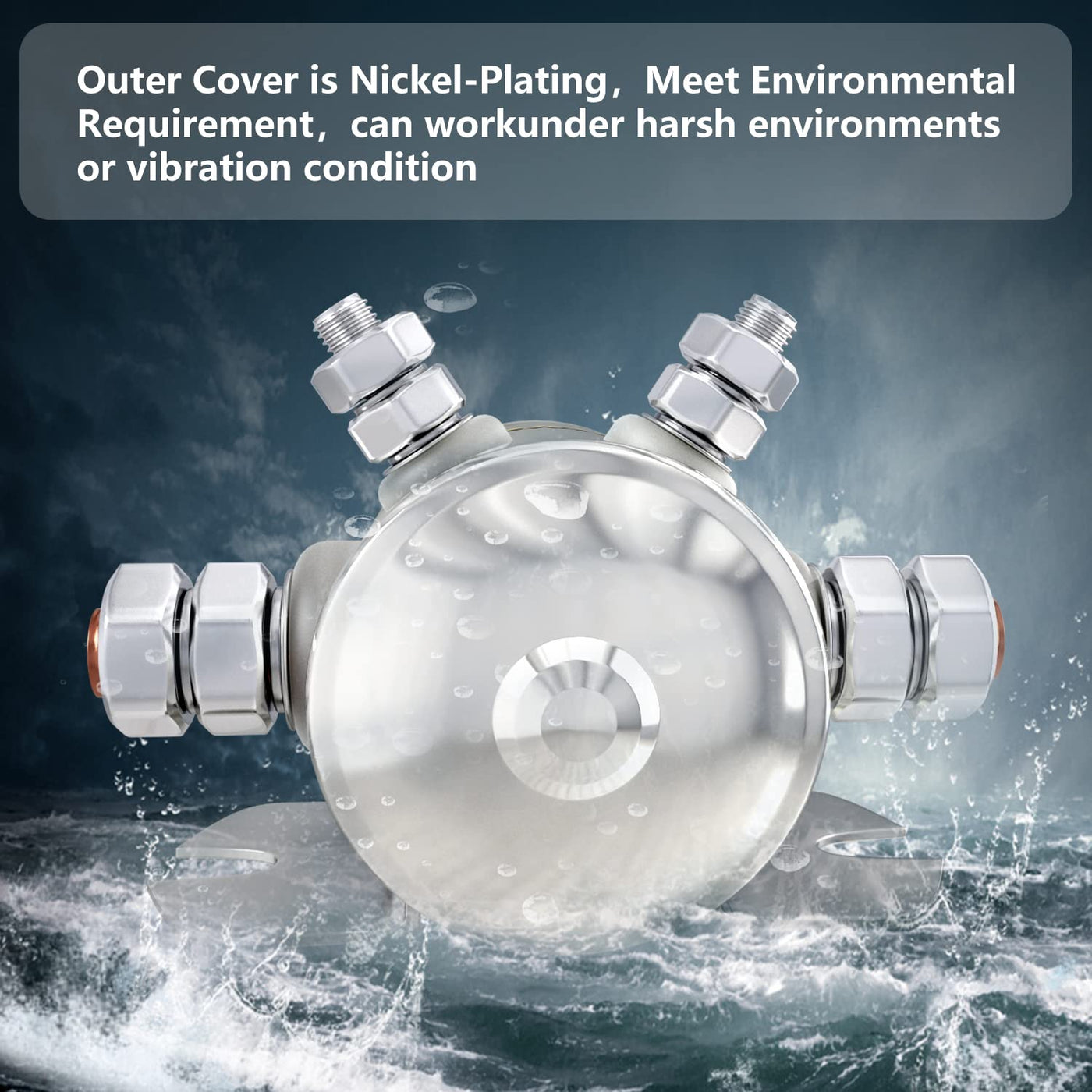

{"id":7798218162327,"title":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V","handle":"newdeli-max-300a-continuous-duty-solenoid-relay-nickel-plating-for-golf-carts-winch-marine-in-rush-12vdc-max-300a-12v","description":"\u003ch3\u003eNewdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eReplaces: DELCO 218. JOHNSON ELECTRIC 5117340.\nMOTORCRAFT SWX88. PRESTOLITE 15-88, SWX-88, 15-132, SAS4202, 15-108. YALE\n502265300,15-132, 15-133, 15-236, 15-311, 15-316, 15-88. Trombetta\n974-1215-011-09, 974-1215-011, 98226-9. EZGO 16542G1. Replacement 100% OEM\nMatch and Replacement Max 300a continuous duty solenoid relay nickel-plating\nHeavy Duty 180℃ copper coil wire rolls upgrade the conductivity of the\nproduct.Max Transient Current can reach 300Amp. Water-Resistant Nickel-Plating\nOuter and Potted Coil Interiors protect YOUR solenoid against any harsh\nenvironment. Dustproof Firmly Enclosed for overall protection from dust, dirt,\nsand and any other substance that could cause damage to YOUR Solenoid. Read\nmore Specifications Voltage 12VDC Resistance 14Ω Capacity 10.2W Max Transient\nFlash Current 300Amp Continuous Working Current Under 150Amp Contact Studs\n5\/16 -24 Studs Standard \u0026amp; Long Bracket mounting Holes 5\/16 x 19\/32 2-13\/64 on\nCenter Replaces 70-111224 208 223 547 Read\nmore\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecification:Max 300a continuous duty solenoid relay: Voltage: 12VDC; Resistance: 14; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Continuous Working Current recommend under 150 Amp,Bracket:Straight;Bracket mounting:Holes 5\/16 x 19\/32 2-13\/64 on center.\u003c\/li\u003e\n \u003cli\u003eHigh Quality:The coil uses 180 C copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO)\/ 12VDC with 2 copper point. the Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.\u003c\/li\u003e\n \u003cli\u003eApplication:Wiedly Used for Marine, Winch, Military Vehicles, Hydraulic Control Units, Golf Cart, Factory Machines.\u003c\/li\u003e\n \u003cli\u003eReplaces Part Number:This Continuous Duty Solenoid Relay Replaces #70-111224,208,223,547.\u003c\/li\u003e\n \u003cli\u003eNote: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off .\u003c\/li\u003e\n \u003c\/ul\u003e\n","published_at":"2022-10-02T14:12:46+11:00","created_at":"2022-10-02T14:13:19+11:00","vendor":"Newdeli","type":"Winches","tags":["industrial_Oct2022","sold2024"],"price":13500,"price_min":13500,"price_max":13500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42570967646359,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09TNXSWX3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V","public_title":null,"options":["Default Title"],"price":13500,"weight":372,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/products\/B09TNXSWX3.jpg?v=1664680399","\/\/newnestshop.com\/cdn\/shop\/products\/71Lv-xLCAML.jpg?v=1664680399","\/\/newnestshop.com\/cdn\/shop\/products\/715XMOaw8sL.jpg?v=1664680399","\/\/newnestshop.com\/cdn\/shop\/products\/71a6zsdrnWL.jpg?v=1664680399","\/\/newnestshop.com\/cdn\/shop\/products\/71WRyqnhuoL.jpg?v=1664680399","\/\/newnestshop.com\/cdn\/shop\/products\/714g5Art4GL.jpg?v=1664680399","\/\/newnestshop.com\/cdn\/shop\/products\/71o9RKvt1mL.jpg?v=1664680399"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/products\/B09TNXSWX3.jpg?v=1664680399","options":["Title"],"media":[{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818060439,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/B09TNXSWX3.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/B09TNXSWX3.jpg?v=1664680399","width":1500},{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818093207,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/71Lv-xLCAML.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/71Lv-xLCAML.jpg?v=1664680399","width":1500},{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818125975,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/715XMOaw8sL.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/715XMOaw8sL.jpg?v=1664680399","width":1500},{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818158743,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/71a6zsdrnWL.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/71a6zsdrnWL.jpg?v=1664680399","width":1500},{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818191511,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/71WRyqnhuoL.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/71WRyqnhuoL.jpg?v=1664680399","width":1500},{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818224279,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/714g5Art4GL.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/714g5Art4GL.jpg?v=1664680399","width":1500},{"alt":"Newdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC MAX 300A-12V - NewNest Australia","id":29898818257047,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/products\/71o9RKvt1mL.jpg?v=1664680399"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/products\/71o9RKvt1mL.jpg?v=1664680399","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNewdeli Max 300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine in Rush 12VDC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eReplaces: DELCO 218. JOHNSON ELECTRIC 5117340.\nMOTORCRAFT SWX88. PRESTOLITE 15-88, SWX-88, 15-132, SAS4202, 15-108. YALE\n502265300,15-132, 15-133, 15-236, 15-311, 15-316, 15-88. Trombetta\n974-1215-011-09, 974-1215-011, 98226-9. EZGO 16542G1. Replacement 100% OEM\nMatch and Replacement Max 300a continuous duty solenoid relay nickel-plating\nHeavy Duty 180℃ copper coil wire rolls upgrade the conductivity of the\nproduct.Max Transient Current can reach 300Amp. Water-Resistant Nickel-Plating\nOuter and Potted Coil Interiors protect YOUR solenoid against any harsh\nenvironment. Dustproof Firmly Enclosed for overall protection from dust, dirt,\nsand and any other substance that could cause damage to YOUR Solenoid. Read\nmore Specifications Voltage 12VDC Resistance 14Ω Capacity 10.2W Max Transient\nFlash Current 300Amp Continuous Working Current Under 150Amp Contact Studs\n5\/16 -24 Studs Standard \u0026amp; Long Bracket mounting Holes 5\/16 x 19\/32 2-13\/64 on\nCenter Replaces 70-111224 208 223 547 Read\nmore\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSpecification:Max 300a continuous duty solenoid relay: Voltage: 12VDC; Resistance: 14; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Continuous Working Current recommend under 150 Amp,Bracket:Straight;Bracket mounting:Holes 5\/16 x 19\/32 2-13\/64 on center.\u003c\/li\u003e\n \u003cli\u003eHigh Quality:The coil uses 180 C copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO)\/ 12VDC with 2 copper point. the Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.\u003c\/li\u003e\n \u003cli\u003eApplication:Wiedly Used for Marine, Winch, Military Vehicles, Hydraulic Control Units, Golf Cart, Factory Machines.\u003c\/li\u003e\n \u003cli\u003eReplaces Part Number:This Continuous Duty Solenoid Relay Replaces #70-111224,208,223,547.\u003c\/li\u003e\n \u003cli\u003eNote: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off .\u003c\/li\u003e\n \u003c\/ul\u003e\n"}
