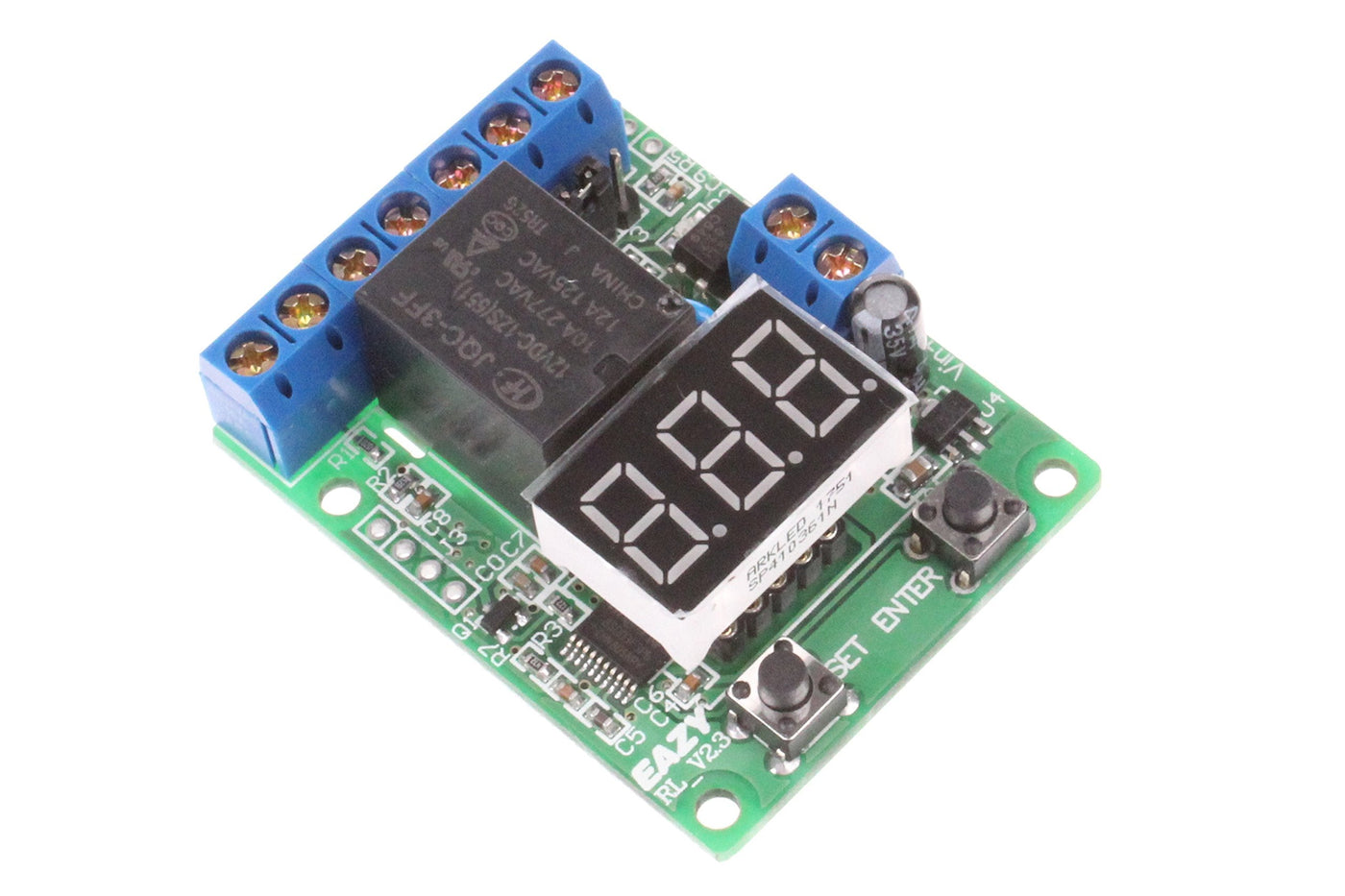

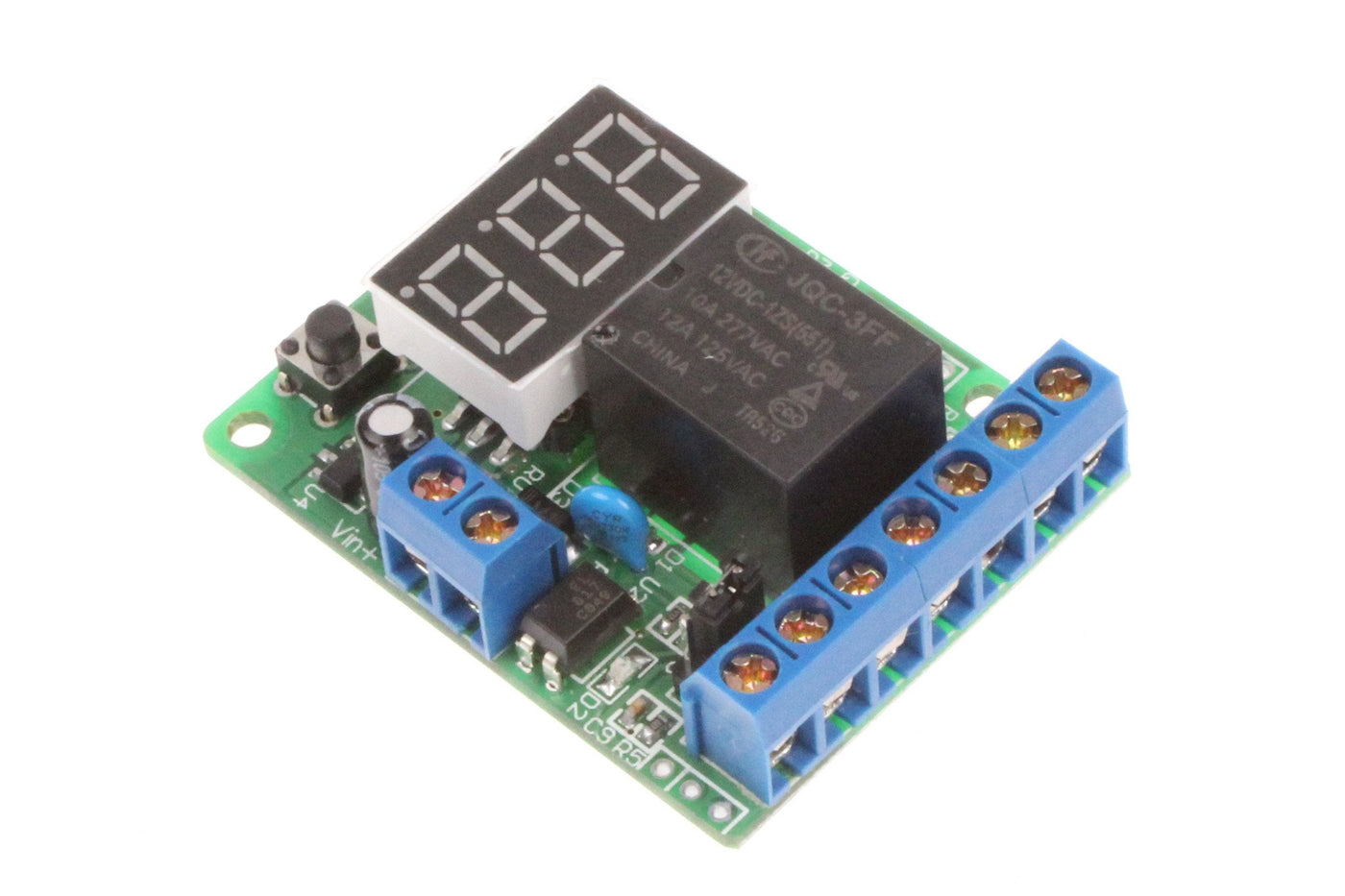

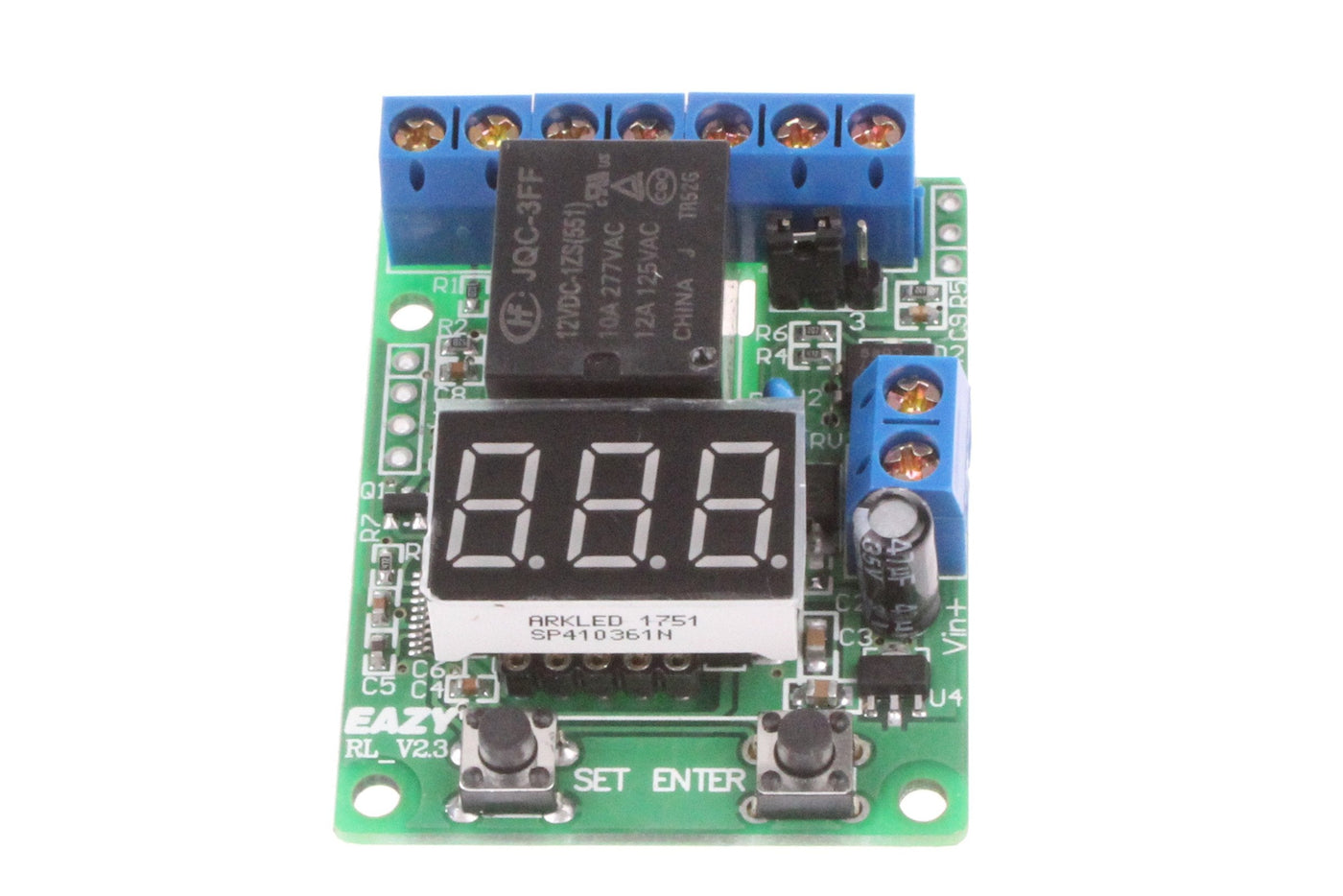

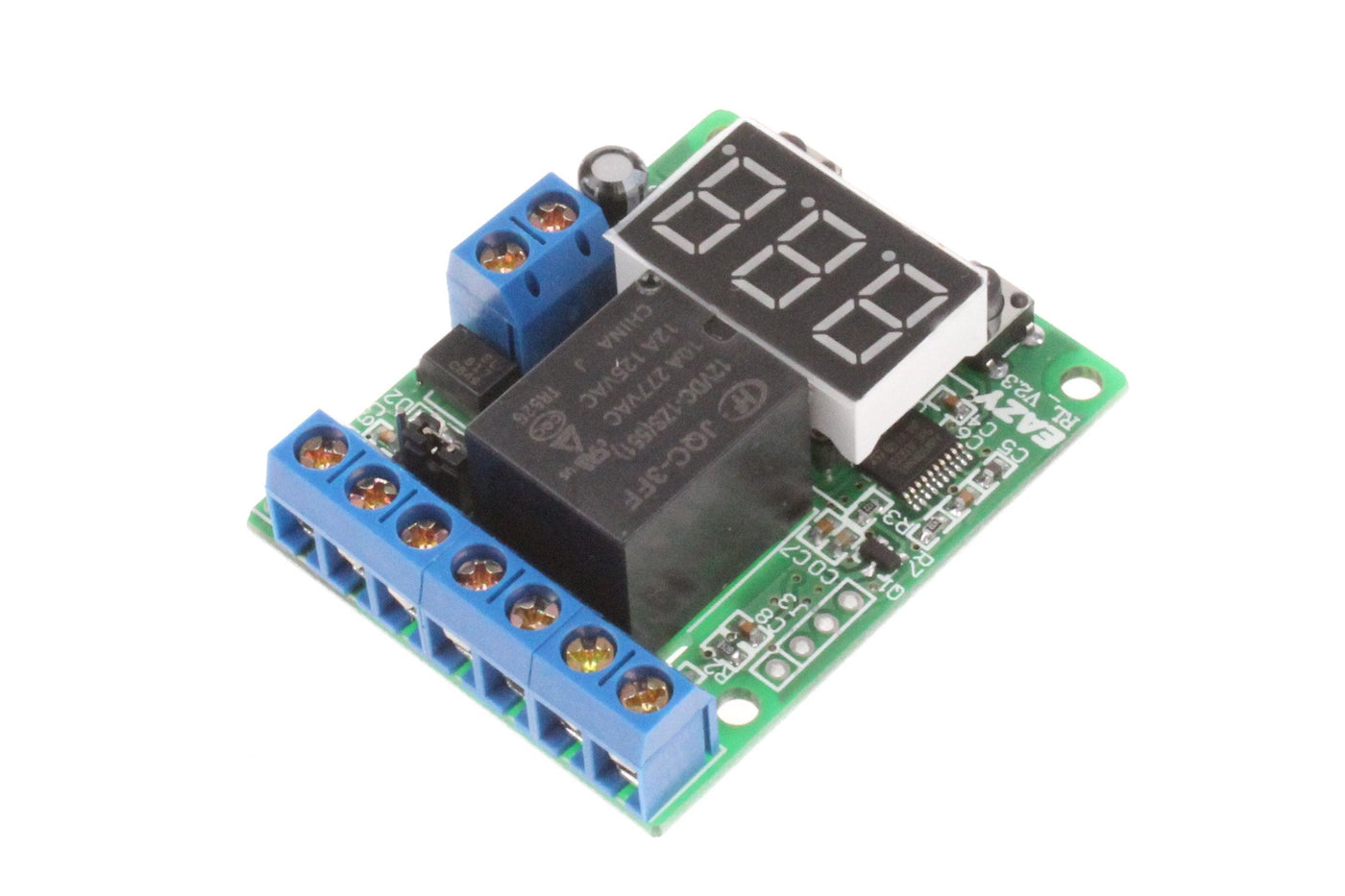

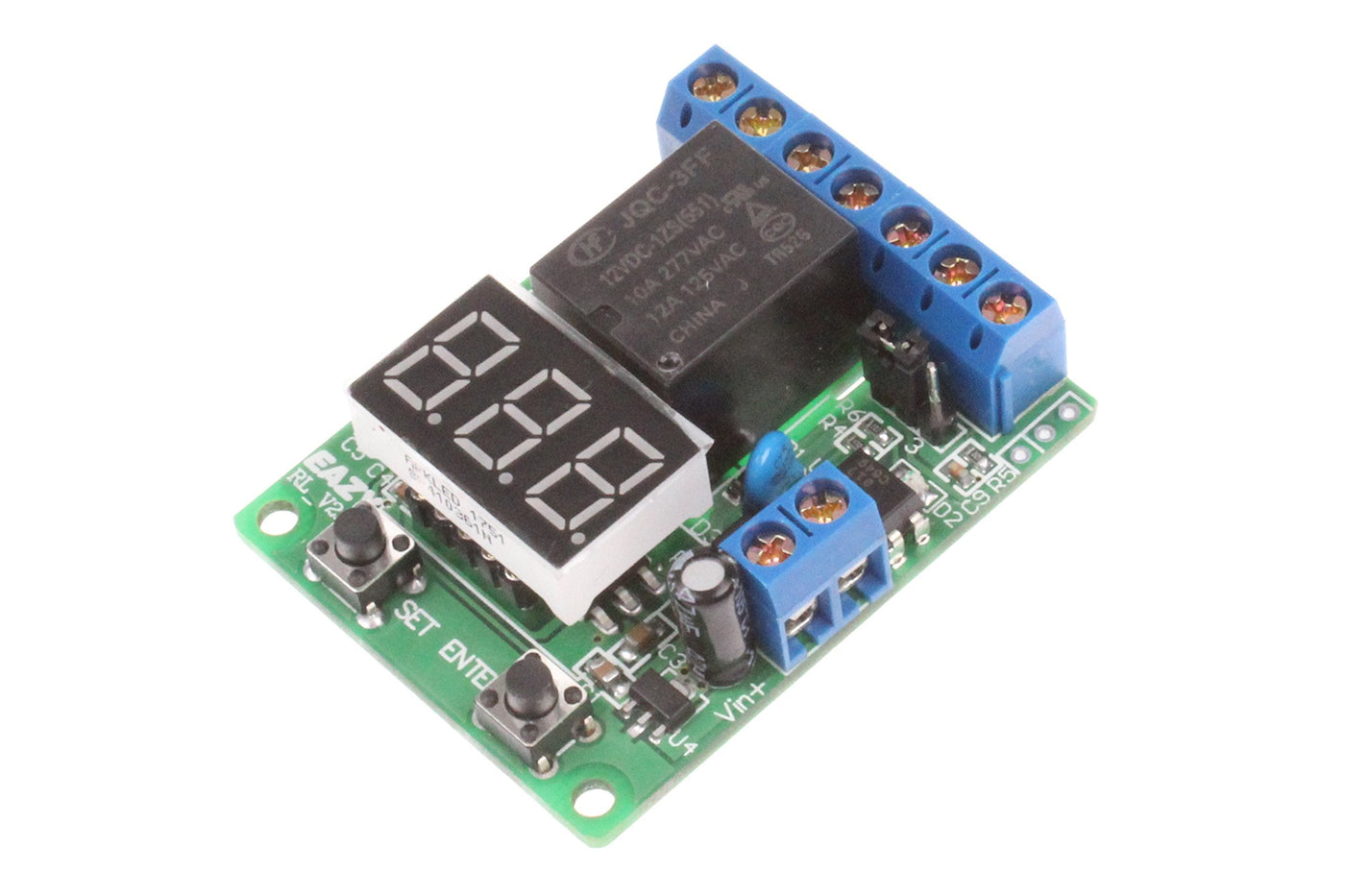

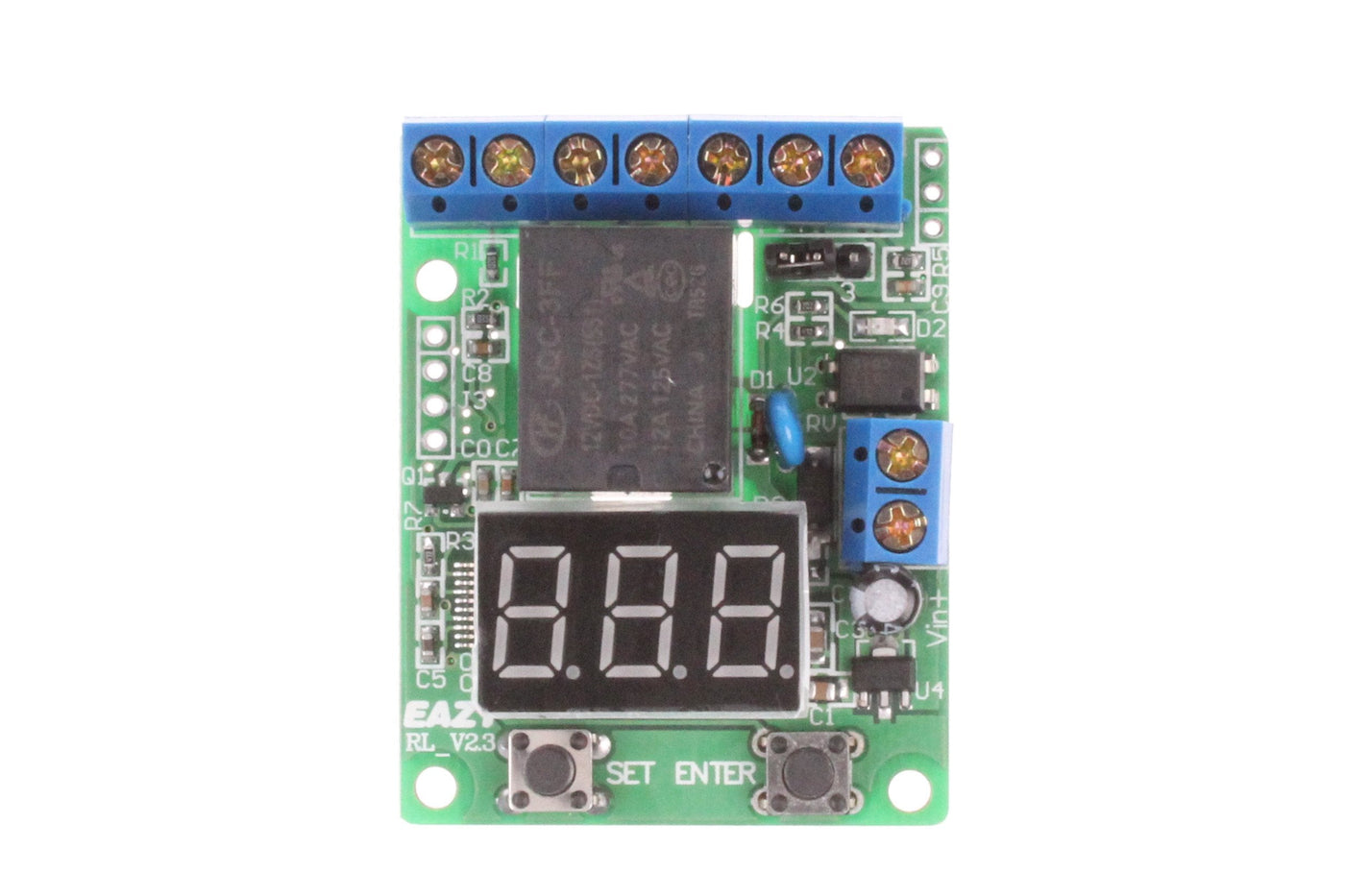

{"id":8783449194647,"title":"NOYITO Voltage Relay Module Upper Lower Limit Detection Control Switch Off ON Over Voltage Protection Battery Charge Discharge Timing (12V) 12V","handle":"noyito-voltage-relay-module-upper-lower-limit-detection-control-switch-off-on-over-voltage-protection-battery-charge-discharge-timing-12v-12v","description":"\u003ch3\u003eNOYITO Voltage Relay Module Upper Lower Limit Detection Control Switch Off ON Over Voltage Protection Battery Charge Discharge Timing (12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters Voltage detection display range: 0~99.9V Voltage detection error:\n±0.1V; Working power supply: DC 10-16V (12V version), DC18-28V (DC24V version\nrange) (\"Note: The 24V pulse charger may have more than 30V pulse voltage and\ncannot be used as the power supply for this relay board.\") Operating current:\nstandby average 16mA\/12V, relay pull-in 45mA\/12V, digital tube off standby\ncurrent 6mA\/12V; Relay parameters: a set of conversions (normally open and\nnormally closed) Contact Load: 10A\/277VAC 10A\/30 DC Note DC Load Max 30V 10A\n(Maximum load current is 1A at 50V DC) Mechanical durability: More than the 10\nmillion times Electrical durability: More than the 10 million times\n(10A-250VAC) Working environment temperature: -40～85°C Plug-in digital tube,\ncan be set to automatically shut down the digital tube (0 ~ 9 Min); When the\nrelay pulls in, it automatically starts counting in minutes and it cycles from\n0 to 999 minutes. Package Included: 1pcs NOYITO Voltage Relay Module and user\nmanual\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNOYITO Voltage Relay Module . Voltage detection display range: 0 - 99.9V; Voltage detection error: 0.1V;\u003c\/li\u003e\n \u003cli\u003eModule working voltage:: DC 10-16V (12V version) DC18-28V (DC24V version) (\"Note: The 24V pulse charger may have more than 30V pulse voltage and cannot be used as the power supply for this relay board.\").\u003c\/li\u003e\n \u003cli\u003eModule working current: standby average 16mA\/12V, relay pull-in 45mA\/12V, digital tube off standby current 6mA\/12V;\u003c\/li\u003e\n \u003cli\u003eRelay parameters: a set of conversion (normally open normally closed point), contact load: 10A\/277VAC 10A\/30 DC (NOTE: the maximum DC load 30V 10A) (maximum load current is 1A at 50V DC voltage).\u003c\/li\u003e\n \u003cli\u003eRelay Load: 10A \/ 277VAC 10A \/ 30 DC Max NOYITO Voltage Relay Module User Manual\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-08T17:24:41+11:00","created_at":"2025-02-06T13:25:29+11:00","vendor":"NOYITO","type":"Voltage Monitoring Relays","tags":["industrial_best_sellers_Jan2025"],"price":10300,"price_min":10300,"price_max":10300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45120380207255,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DS33JVJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO Voltage Relay Module Upper Lower Limit Detection Control Switch Off ON Over Voltage Protection Battery Charge Discharge Timing (12V) 12V","public_title":null,"options":["Default Title"],"price":10300,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"667797751043","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B07DS33JVJ.jpg?v=1775766260","\/\/newnestshop.com\/cdn\/shop\/files\/81E83SXiKxL.jpg?v=1738808732","\/\/newnestshop.com\/cdn\/shop\/files\/810BjR-P45L.jpg?v=1738808732","\/\/newnestshop.com\/cdn\/shop\/files\/81eP9VJ1VCL.jpg?v=1738808732","\/\/newnestshop.com\/cdn\/shop\/files\/817Ucf84AAL.jpg?v=1738808732","\/\/newnestshop.com\/cdn\/shop\/files\/81NuKtrxuzL.jpg?v=1738808732"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DS33JVJ.jpg?v=1775766260","options":["Title"],"media":[{"alt":null,"id":36909590708375,"position":1,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DS33JVJ.jpg?v=1775766260"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DS33JVJ.jpg?v=1775766260","width":2560},{"alt":null,"id":36909590741143,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1627,"width":2440,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81E83SXiKxL.jpg?v=1738808732"},"aspect_ratio":1.5,"height":1627,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81E83SXiKxL.jpg?v=1738808732","width":2440},{"alt":null,"id":36909590806679,"position":3,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/810BjR-P45L.jpg?v=1738808732"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/810BjR-P45L.jpg?v=1738808732","width":2560},{"alt":null,"id":36909590839447,"position":4,"preview_image":{"aspect_ratio":1.501,"height":1632,"width":2449,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81eP9VJ1VCL.jpg?v=1738808732"},"aspect_ratio":1.501,"height":1632,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81eP9VJ1VCL.jpg?v=1738808732","width":2449},{"alt":null,"id":36909590872215,"position":5,"preview_image":{"aspect_ratio":1.501,"height":1678,"width":2518,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/817Ucf84AAL.jpg?v=1738808732"},"aspect_ratio":1.501,"height":1678,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/817Ucf84AAL.jpg?v=1738808732","width":2518},{"alt":null,"id":36909590904983,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1644,"width":2466,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81NuKtrxuzL.jpg?v=1738808732"},"aspect_ratio":1.5,"height":1644,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81NuKtrxuzL.jpg?v=1738808732","width":2466}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO Voltage Relay Module Upper Lower Limit Detection Control Switch Off ON Over Voltage Protection Battery Charge Discharge Timing (12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters Voltage detection display range: 0~99.9V Voltage detection error:\n±0.1V; Working power supply: DC 10-16V (12V version), DC18-28V (DC24V version\nrange) (\"Note: The 24V pulse charger may have more than 30V pulse voltage and\ncannot be used as the power supply for this relay board.\") Operating current:\nstandby average 16mA\/12V, relay pull-in 45mA\/12V, digital tube off standby\ncurrent 6mA\/12V; Relay parameters: a set of conversions (normally open and\nnormally closed) Contact Load: 10A\/277VAC 10A\/30 DC Note DC Load Max 30V 10A\n(Maximum load current is 1A at 50V DC) Mechanical durability: More than the 10\nmillion times Electrical durability: More than the 10 million times\n(10A-250VAC) Working environment temperature: -40～85°C Plug-in digital tube,\ncan be set to automatically shut down the digital tube (0 ~ 9 Min); When the\nrelay pulls in, it automatically starts counting in minutes and it cycles from\n0 to 999 minutes. Package Included: 1pcs NOYITO Voltage Relay Module and user\nmanual\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNOYITO Voltage Relay Module . Voltage detection display range: 0 - 99.9V; Voltage detection error: 0.1V;\u003c\/li\u003e\n \u003cli\u003eModule working voltage:: DC 10-16V (12V version) DC18-28V (DC24V version) (\"Note: The 24V pulse charger may have more than 30V pulse voltage and cannot be used as the power supply for this relay board.\").\u003c\/li\u003e\n \u003cli\u003eModule working current: standby average 16mA\/12V, relay pull-in 45mA\/12V, digital tube off standby current 6mA\/12V;\u003c\/li\u003e\n \u003cli\u003eRelay parameters: a set of conversion (normally open normally closed point), contact load: 10A\/277VAC 10A\/30 DC (NOTE: the maximum DC load 30V 10A) (maximum load current is 1A at 50V DC voltage).\u003c\/li\u003e\n \u003cli\u003eRelay Load: 10A \/ 277VAC 10A \/ 30 DC Max NOYITO Voltage Relay Module User Manual\u003c\/li\u003e\n \u003c\/ul\u003e"}
