Photodiode Sensor Module, 4 Pins Photodiode Sensor Module, 5mm Photodiode Module, for Digital Light Brightness Detection, Photosensitive Sensor Module for Arduino(10PCS)
Photodiode Sensor Module, 4 Pins Photodiode Sensor Module, 5mm Photodiode Module, for Digital Light Brightness Detection, Photosensitive Sensor Module for Arduino(10PCS)
Instructions for the use of the photodiode sensor module: 1 The photodiode module is most sensitive to ambient light intensity and is generally used to detect the brightness of the surrounding environment and light intensity, which can be used with the photoresistor sensor module on most occasions. The difference between the two is therefore, that the photodiode module has good directivity and can sense the light source in a fixed direction. 2 When the module has no light conditions or the light intensity does not reach the set threshold, the DO port outputs a high level, When the ambient light intensity exceeds the set threshold, the module D0 outputs a low level; 3 The digital output D0 of the small board can be directly connected to the microcontroller, and the highLow level to detect changes in ambient light intensity; 4 The digital output DO of the small board can directly drive the relay module of our store, which can be composed of a photoelectric switch; 5. The analog output AO of the small board can be connected to the AD module of our store, and through AD conversion, more accurate values of the ambient light intensity can be obtained
Product Features
- Photodiode sensor module: light brightness detection, light brightness sensor, with directionality, only senses the light source directly in front of the sensor, for better light seeking effect

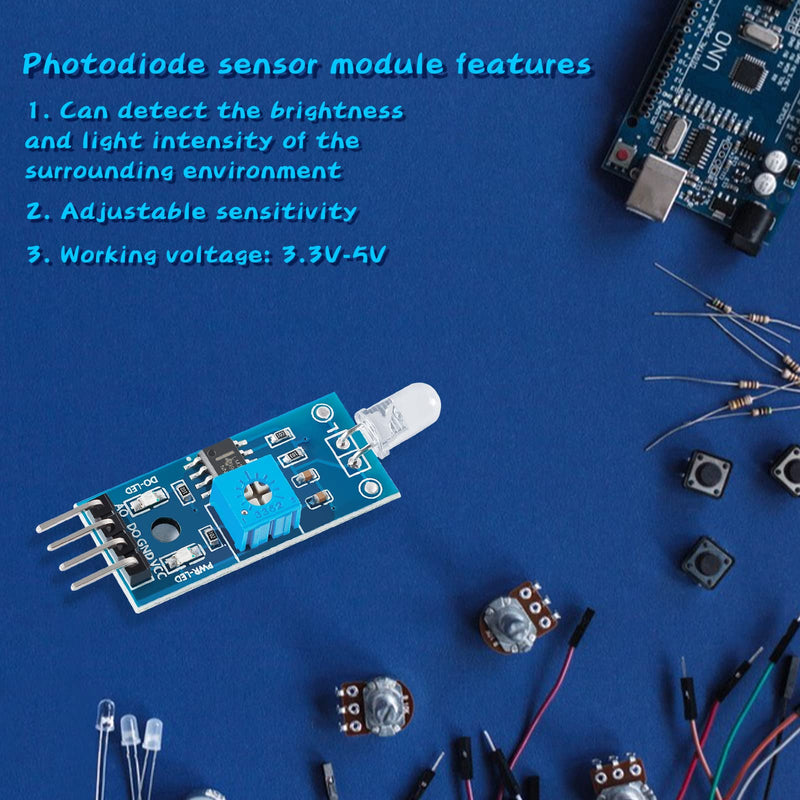

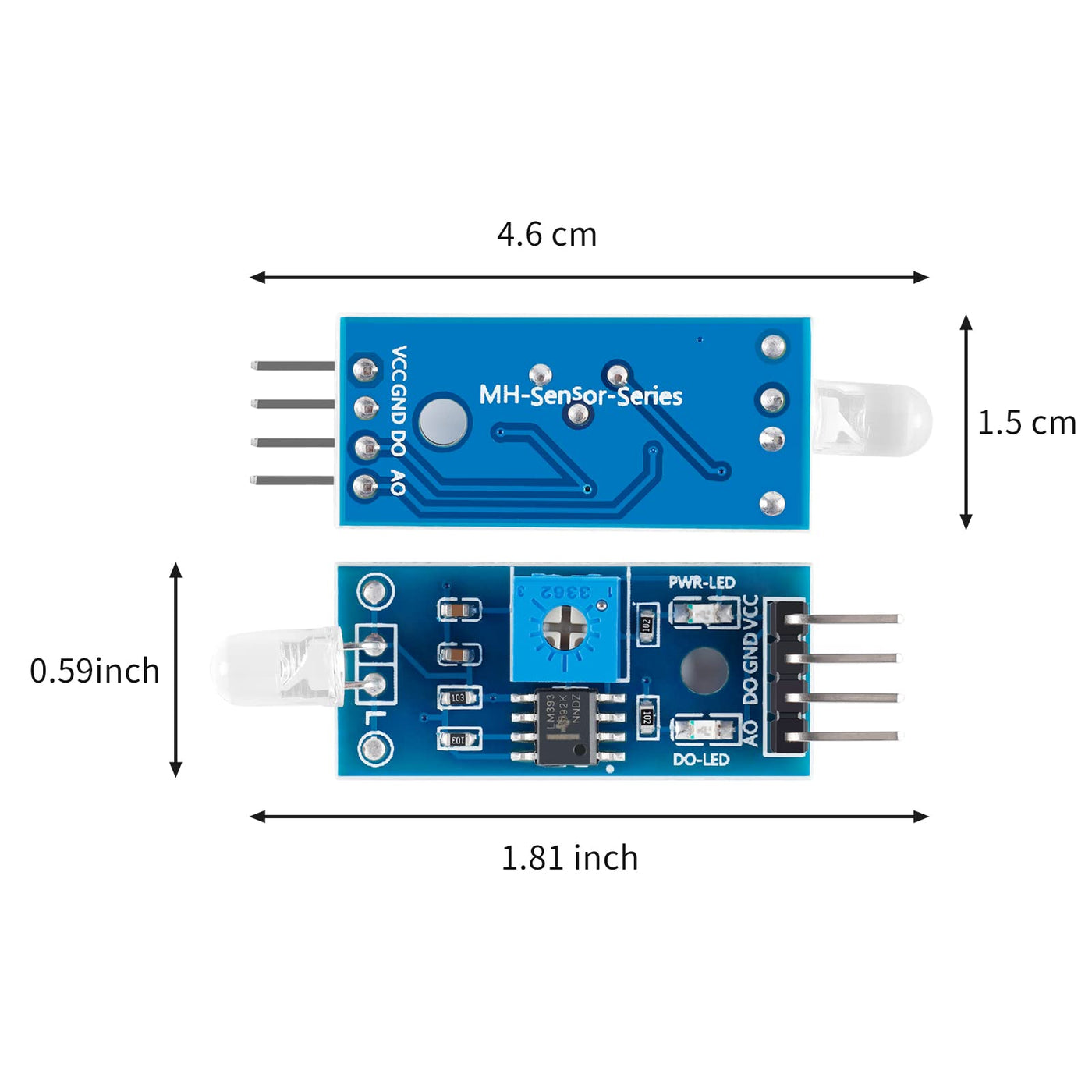

- Module features:1. Can detect the brightness and light intensity of the surrounding environment (compared with photoresistor, directional comparisonGood, can perceive light sources in a fixed direction)2. The sensitivity is adjustable (adjusted by the blue digital potentiometer in the picture)3. Working voltage 3.3V-5V4. Output form: DO digital switch output (0 and 1) and AO analog voltage output5. With fixing bolt holes for easy installation6. Small board PCB size: 3.2cm * 1.4cm
- Photodiode sensor module interface description: 1. VCC is connected to 3.3V-5V voltage (can be directly connected to 5v microcontroller and 3.3v microcontroller)2 .GND External GND3 .DO small board digital output interface (0 and 1)4. AO small board analog output interface

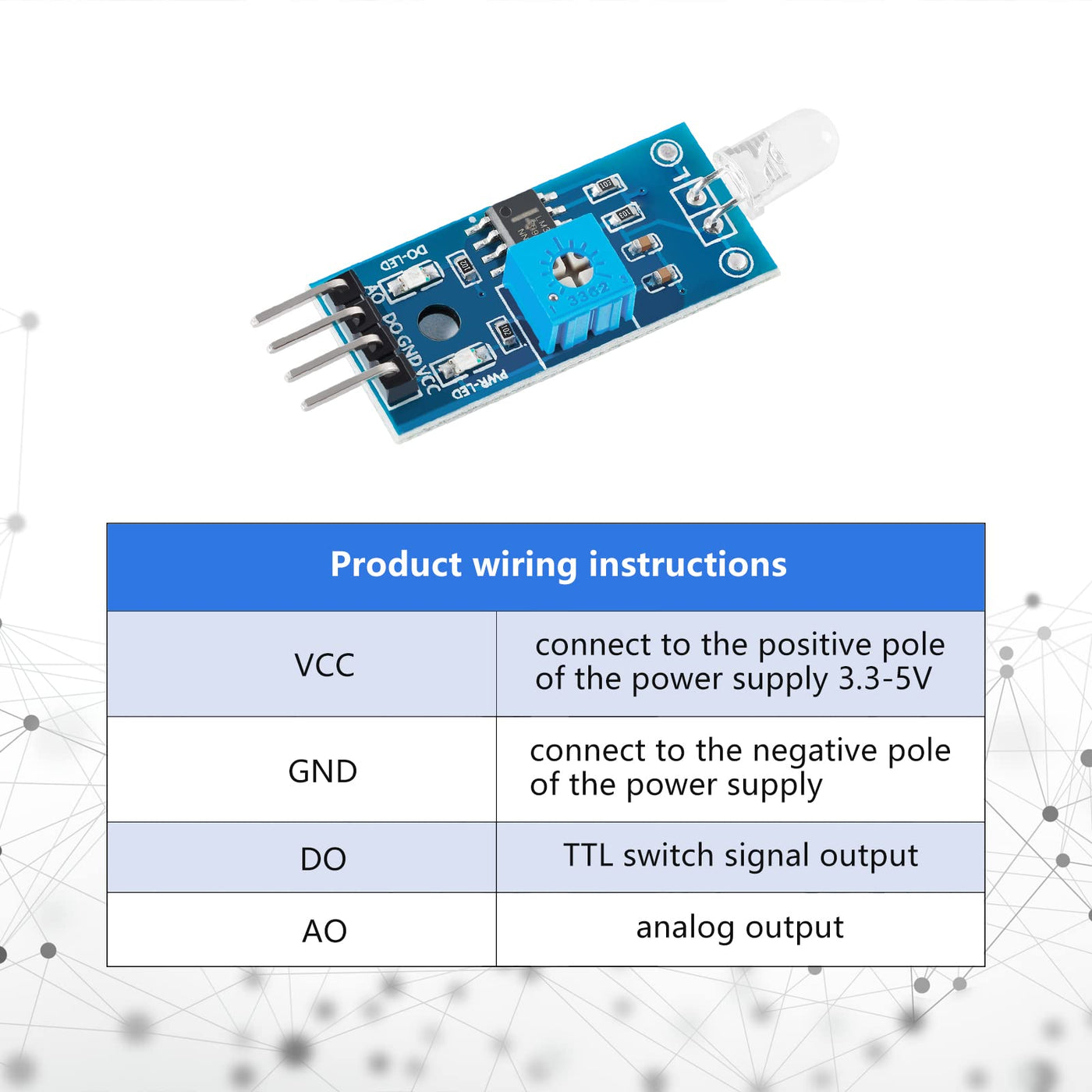

- Product wiring instructions:1. VCC is connected to the positive pole of the power supply 3.3-5V2. GND is connected to the negative pole of the power supply3. DO TTL switch signal output4. AO analog output

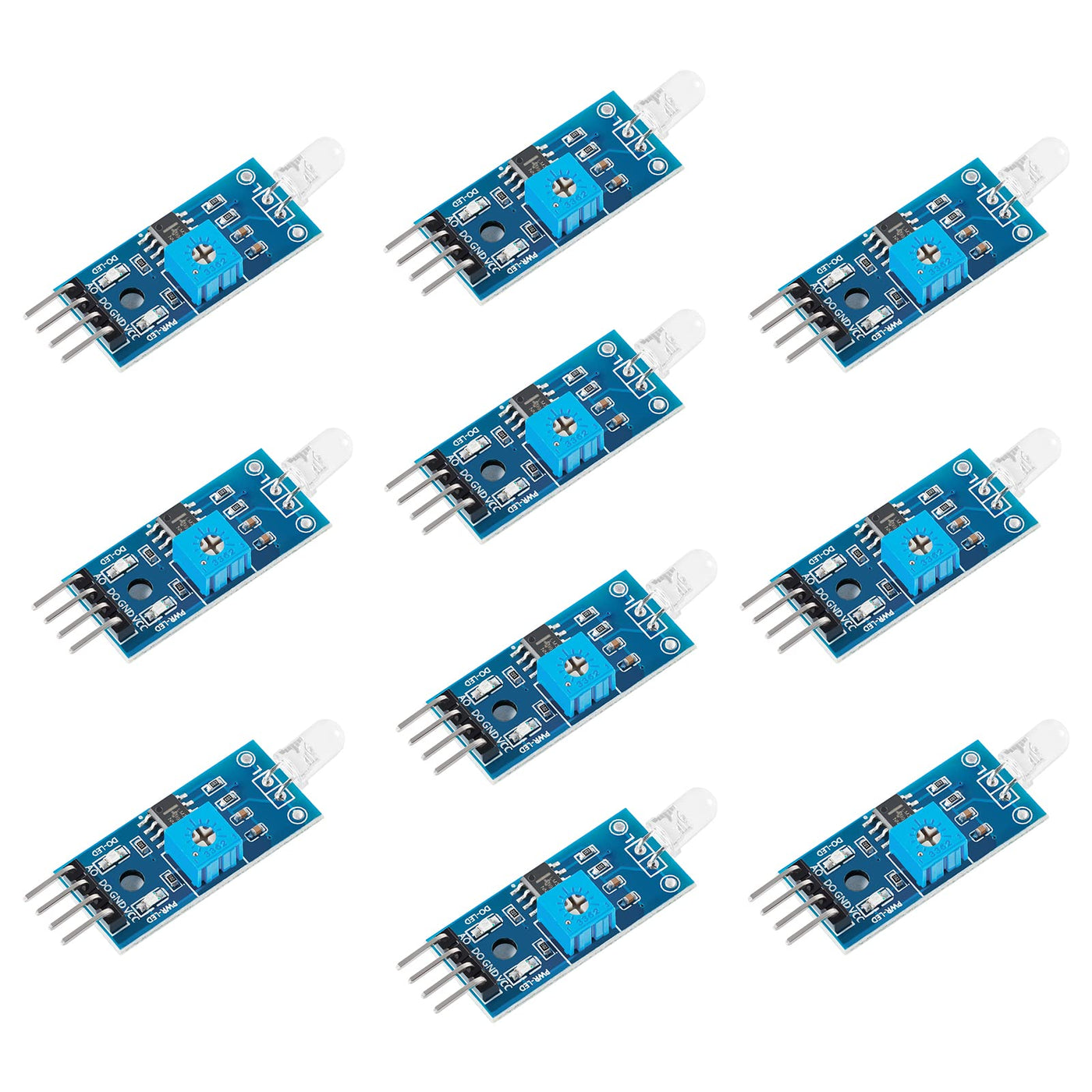

- Packing List: 10 Photodiode Sensor Modules Included(If you want to buy more products, please pay attention to the brand EC Buying store)
