Rechargeable Battery Charger, XTAR VC2 2 Bays Battery Charger for 3.6V 3.7V Li-ion IMR INR ICR 10440 18650 26650 Rechargeable Battery
Rechargeable Battery Charger, XTAR VC2 2 Bays Battery Charger for 3.6V 3.7V Li-ion IMR INR ICR 10440 18650 26650 Rechargeable Battery

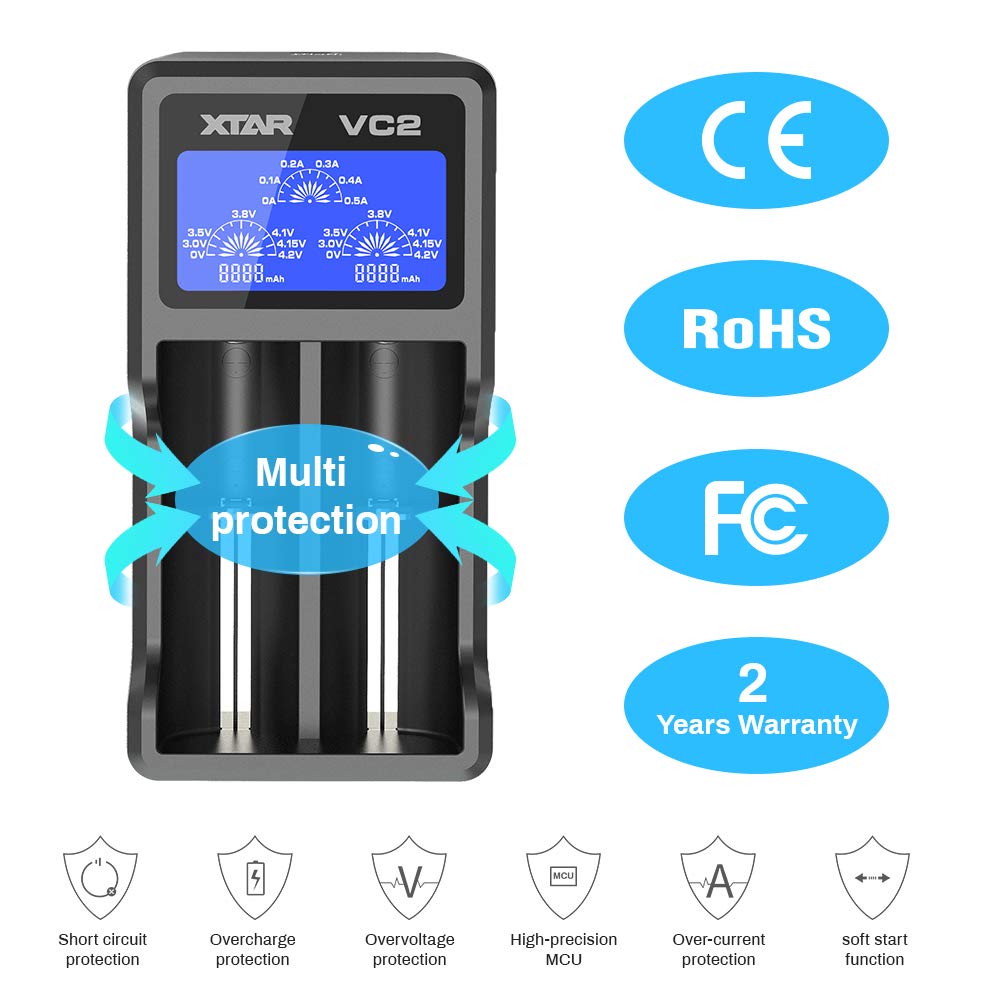

Power up Your Batteries, Light up Your Life XTAR VC2 battery charger is applied to rechargeable batteries of : 3.6V 3.7V Li-ion IMR INR ICR rechargeable battery 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650 (NOTE: protected 20700/21700 batteries cannot be charged.) XTAR VC2 Rechargeable Battery Charger for 3.6V 3.7V Li-ion/ IMR / INR/ ICR Rechargeable batteries Best Materials for Best Quality ABS outer case: Solid and light weight; fire- proof & water proof PVC cover: soft with high flexibility; durable and resistant to water Copper cord: good electrical conductivity Convenient to Charge With a USB to Micro-USB cable ( included in the package content), it is convenient to connect VC2 battery charger to power supply that with a USB port. Please use 5V/1.0A power source or above to maximize efficiency. USB port of laptop supplies power no more than 0.9A, so it is not recommend for normal charging, but it can be used as emergency charging. Multiple Protection for the batteries XTAR VC2 rechargeable battery charger performs the functions of over-current protection, over-voltage protection, over-charge protection, short-circuit protection and over-heat protection. With the multiple protection, the batteries get powered and keep active. Read more Smart LCD Screen Display Charging information is displayed in innovative tachometer-style. From top to bottom, Charging Current (A), Battery Voltage (V), Charging Capacity (mAh) and Battery Type (Li-ion/Ni-MH/...) will be displayed. 0.5A Charging Current Adapt to any 5V USB power. Automatically recognize and adjust the current from 0.1A to 0.5A. Heat-losing Stripe Crack The stripe crack is designed for heating losing, which is helpful to control the temperature and improve the charging efficiency. Upgraded Smart chips The upgraded chips equip VC2 battery charger with functions of multiple protection, smart LCD display, 0V activation and etc. Read more Standard Technical Specifications Model VC2 Input DC 5V 1A Constant Current 0.5A X 2 Cut-off Voltage 4.2 ± 0.05V Cut-off Current ≤120mA Size L131mm x W66mm x H33mm Net Weight 109g XTAR VC2 XTAR VC8 PLUS XTAR VC4 PLUS XTAR VC4 XTAR VC4 XTAR VC2L Compatible battery Apply to 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/1465 0/16340/17335/17500/17670/18350/18490/18500/18650/18700/20700/21700/22650/2550 0/26650 Note: Can not charge protected 20700/21700 batteries. Apply to 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340/17500/17670/18350/18490/18500/18650/18700/20700/21700/ 22650/25500/26650 1.2V Ni-MH/Ni-CD AAAA/AAA/AA/A/SC /C Note: Can charge protected 20700/21700 batteries. Apply to 3.6 V/3.7 V LI-ION/MR/INR/ICR 10440/14500/17335/17500/14650/16340 /17670/18350/18650/18700/18490/18500/20700/21700/22650/25500/26650/32650 1.2V NI-MH/NI-CD AAAA/AAA/AA/A/SC/C/D Note, rechargeable 21700 battery with protection plate Apply to 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340 /17335/17500/17670/18350/18490/18500/18650/18700/20700/21700/22650/25500/26650 /32650 1.2V Ni-MH/Ni-CD AAAA/AAA/AA/A/SC/C/D Apply to 3.6V/3.7V Li- ion/IMR/INR/ICR 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650 32650 1.2V Ni-MH/Ni-CDAAAA / AAA / AA / A / SC / C / D Note: Can charge protected 21700 batteries. Apply to 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340/17335/17500/17670/18350/1 8490/18500/18650/18700/20700/21700/22650/25500/26650 and 1.2V Ni-MH/Ni-CD AAAA/AAA/AA/A/SC/C/D batteries. Note: Can charge protected 20700/21700 batteries. Contents Displayed Of LCD 1.Charging Current 2.Battery Voltage 3.Charging Capacity 1.Battery Voltage 2.Real-time power 3. Charging capacity 4.Battery Type 5.Battery Internal Resistance 6.Battery current 1.Charging current 2.Battery voltage 3.Charging capacity 4.Battery type 5.Battery channel number 1. Charging current gear 2. Real-time battery voltage 3. Charging capacity 4. Battery type 5.Battery channel number 1.Charging current 2.Battery voltage 3.Charging capacity 4.Battery type 5.Battery channel number 1.Charging current gear 2.Real-time voltage 3.Charging capacity 4.Adjustable button Input port Micro USB Port DC & Type-C input port Type-c input port DC input port Type-c input port Type-c input port Power input 5V⎓1A "QC3.0(5V⎓3A/ 9V⎓2A ) DC (12V⎓3A)" QC3.0(5V⎓3A/ 9V⎓2A ) 5V⎓2.1A QC3.0(5V⎓3A/ 9V⎓2A ) 5V⎓2.1A Constant Current Max 0.5A×2 slot Max 3Ax1 slot , 2Ax2 / 1Ax4 / 1Ax8 slot Max 3Ax1 slot, 2Ax2 / 1Ax4 / 0.5Ax4 slot Max 0.5A x 4 slot, 1A x 2 slot Max 3Ax1 slot, 2Ax2 / 1Ax4 / 0.5Ax4 slot Max 2Ax1,1Ax2 /0.5Ax2 slot Test Batteries' real Capacity ✓ ✓ OV Activation ✓ ✓ ✓ ✓ ✓ ✓ The grading mode ✓ ✓ Adapter NO DC 36W Adapter QC3.0 18W Adapter NO NO NO
Product Features

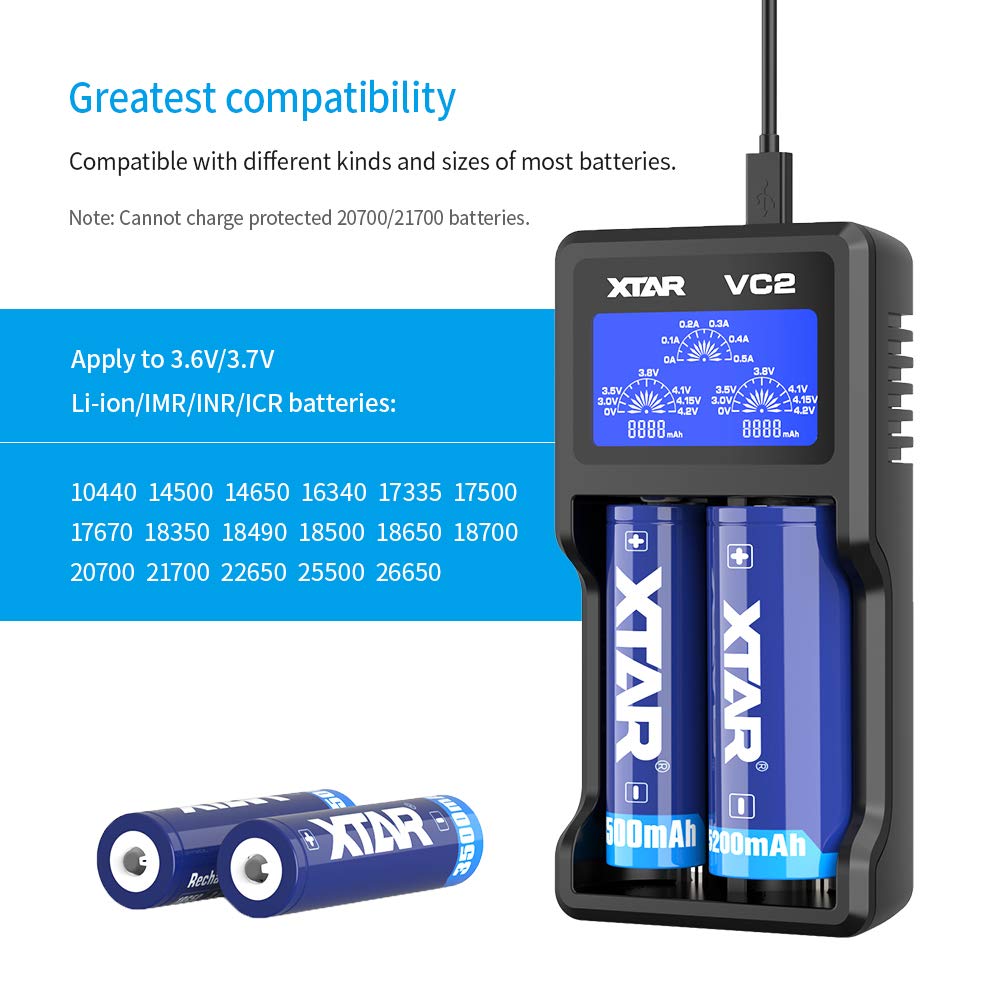

- [ Battery Charger for Certain Rechargeable Battery ] XTAR VC2 battery charger is designed for charging 3.6V 3.7V Li-ion IMR INR ICR rechargeable battery. This 2-bay battery charger is compatible with certain batteries: 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650. Please note that protected 20700/21700 batteries can not be charged while unprotected 20700/21700 batteries can be charged.

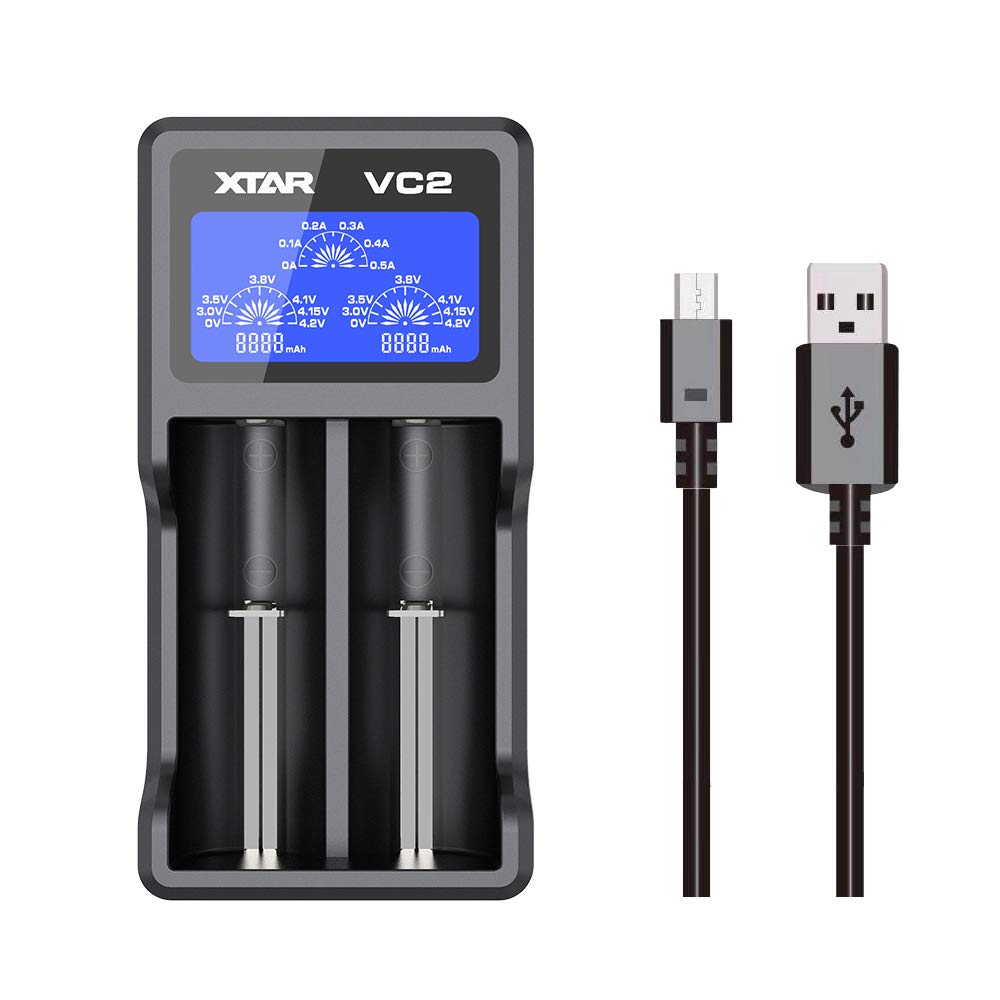

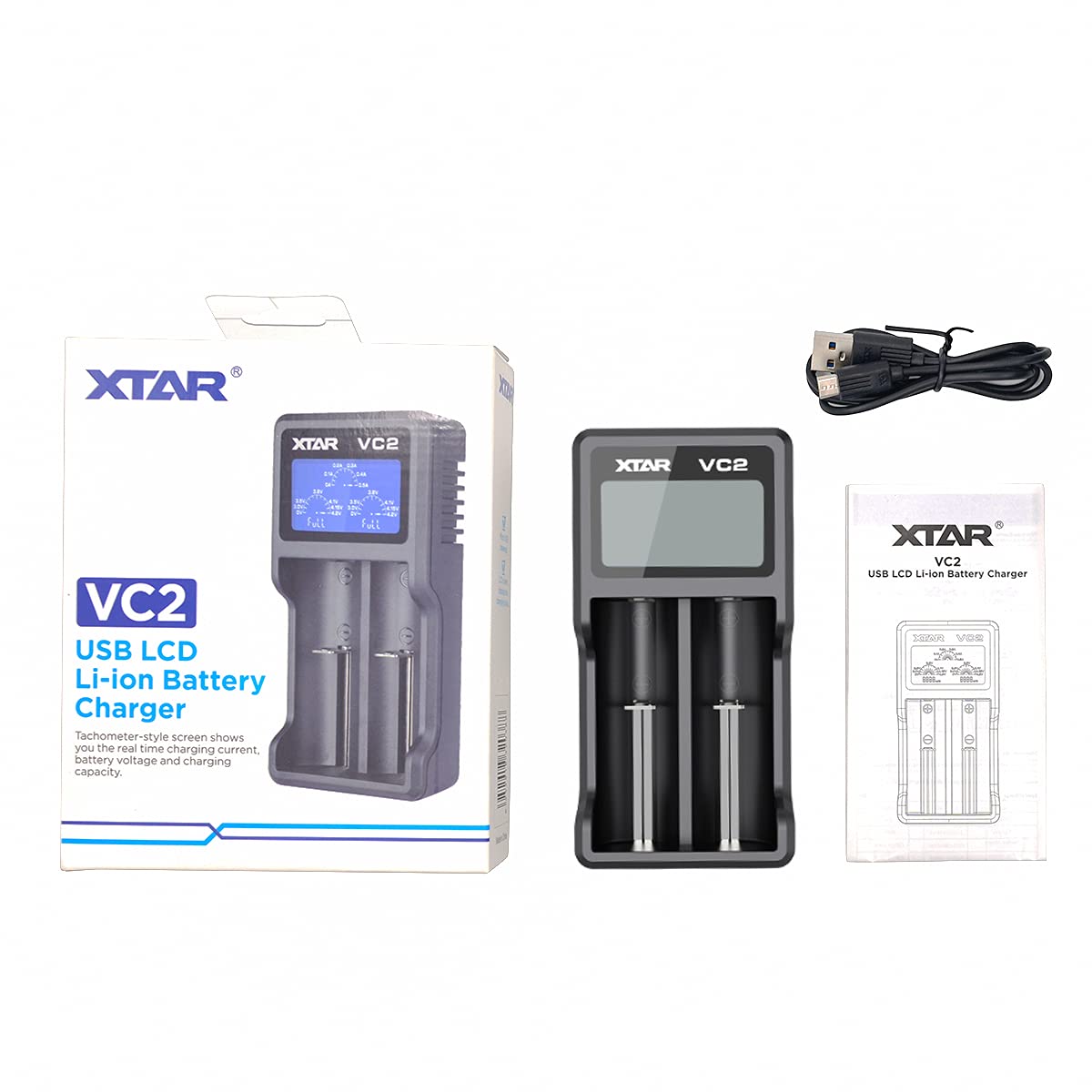

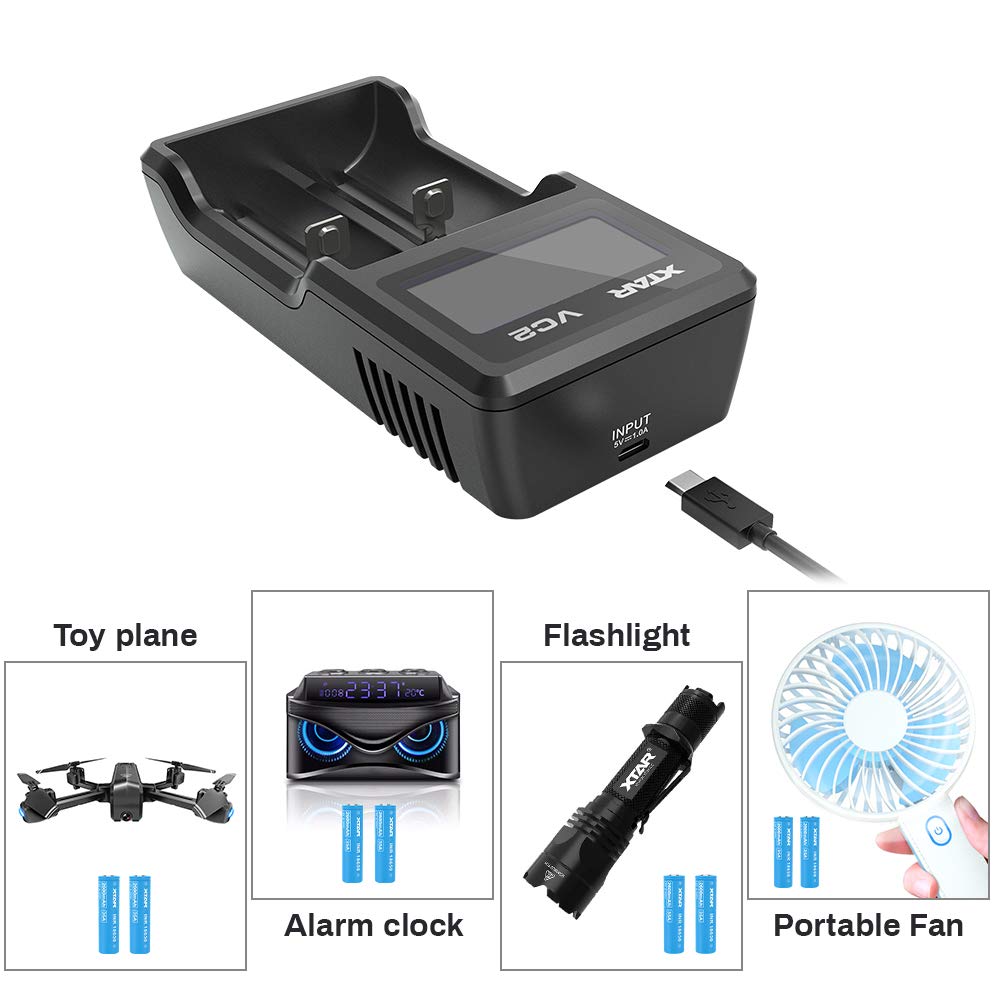

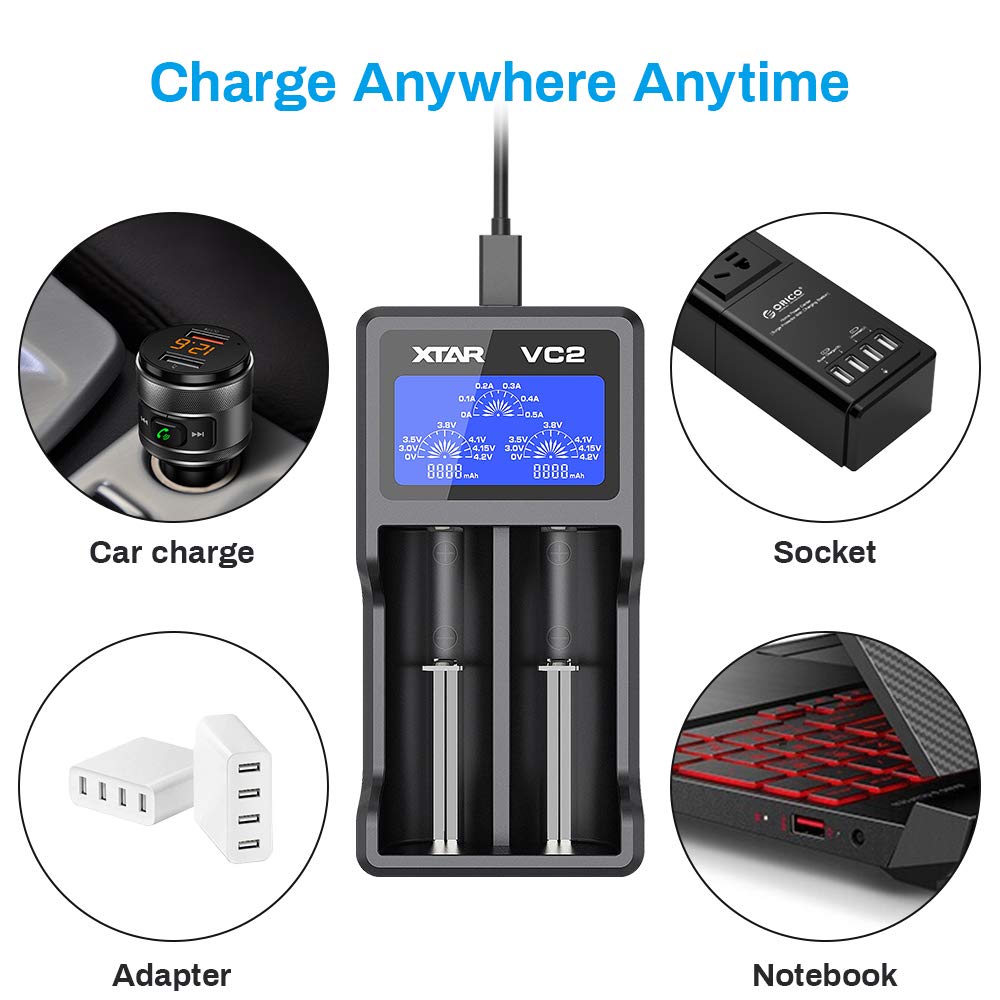

- [ Micro-USB Powered] XTAR VC2 charger has a micro usb input that accepts power at 5V1A, compatible with any 5V USB power. A USB to Micro-USB cable is included.
- [ Smart LCD Display ] When the battery charger is connected to power supply and rechargeable batteries are inserted, the LCD screen will show charging current, battery voltage, charging capacity from top to bottom in tachometer style. You can get detailed charging information form the smart LCD screen of XTAR VC2 rechargeable battery charger.
- [ Activate 0V Rechargeable Batteries] The VC2 battery charger performs 0V activation function. Insert a Li-ion/ IMR/ INR/ ICR rechargeable battery that is over-discharged or old, the VC2 charger will activate the sleepy rechargeable battery. Get your rechargeable batteries charged and live a eco-friendly life!

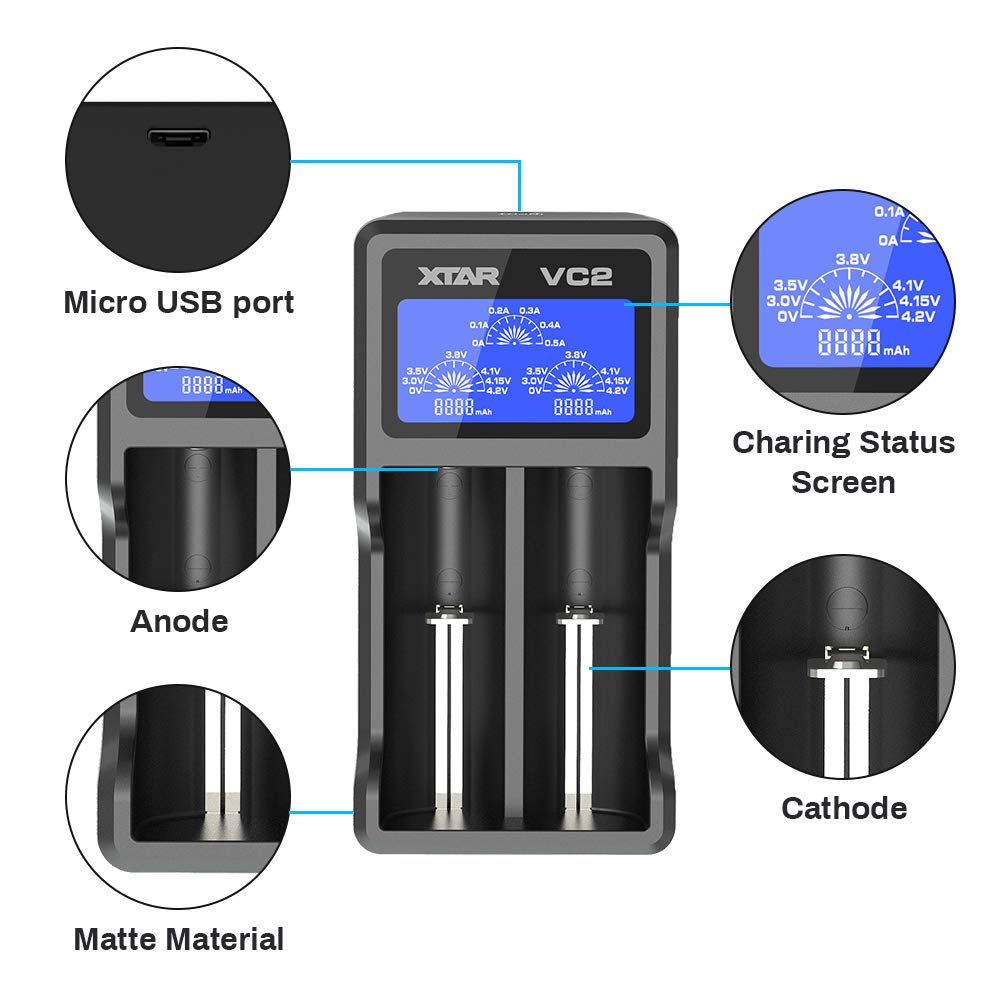

- [ Best Material and Design ] With built-in upgraded microchip, ABS outer case having stripe cracks for heat dissipation, smart LCD screen, anti-oxidation & anti-corrosion elastic alloy bay, XTAR VC2 battery charger is of top quality.
- [ Important Note ] Please note that XTAR VC2 battery chargers only work with certain kind of 3.6V 3.7V Li-ion IMR INR ICR rechargeable batteries.
