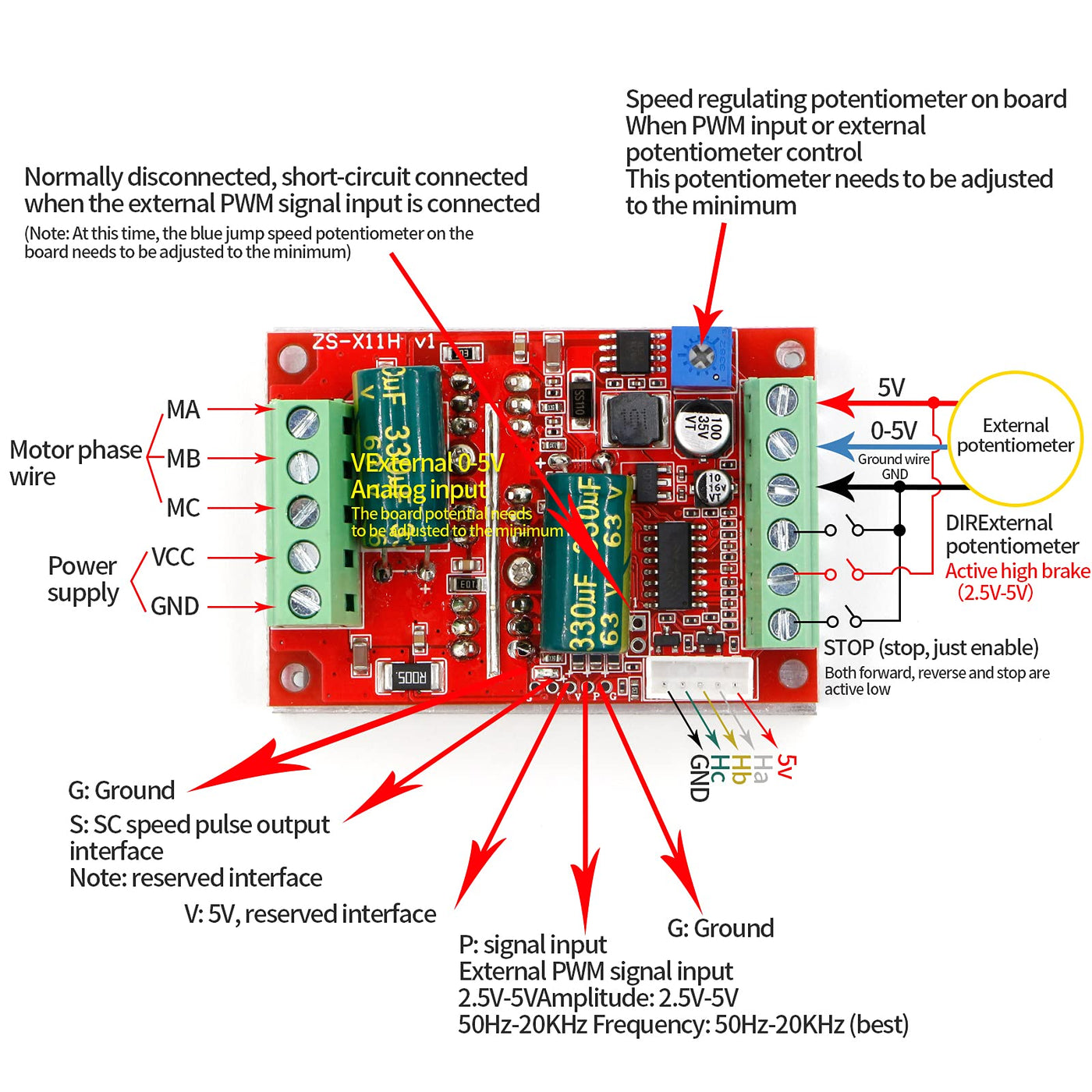

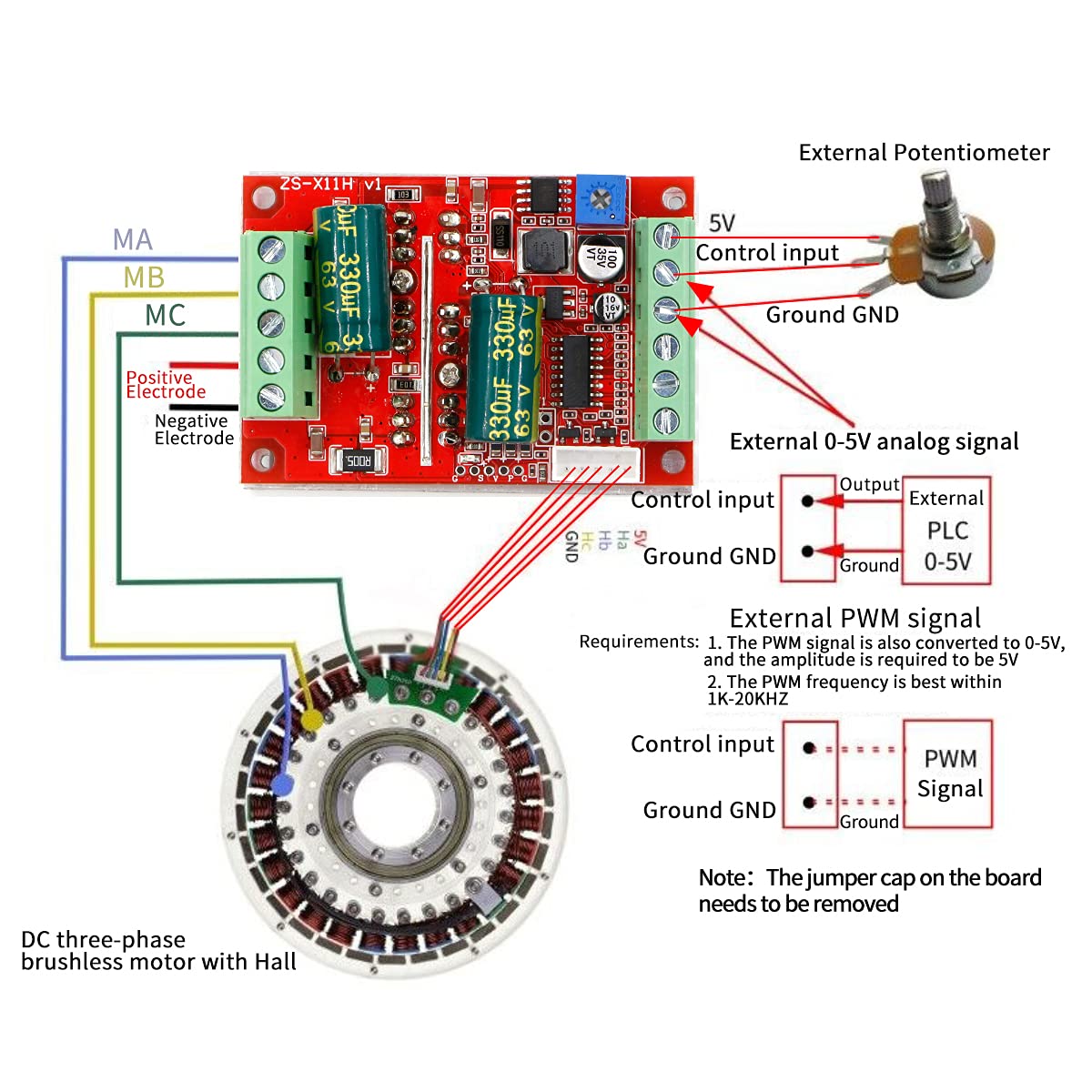

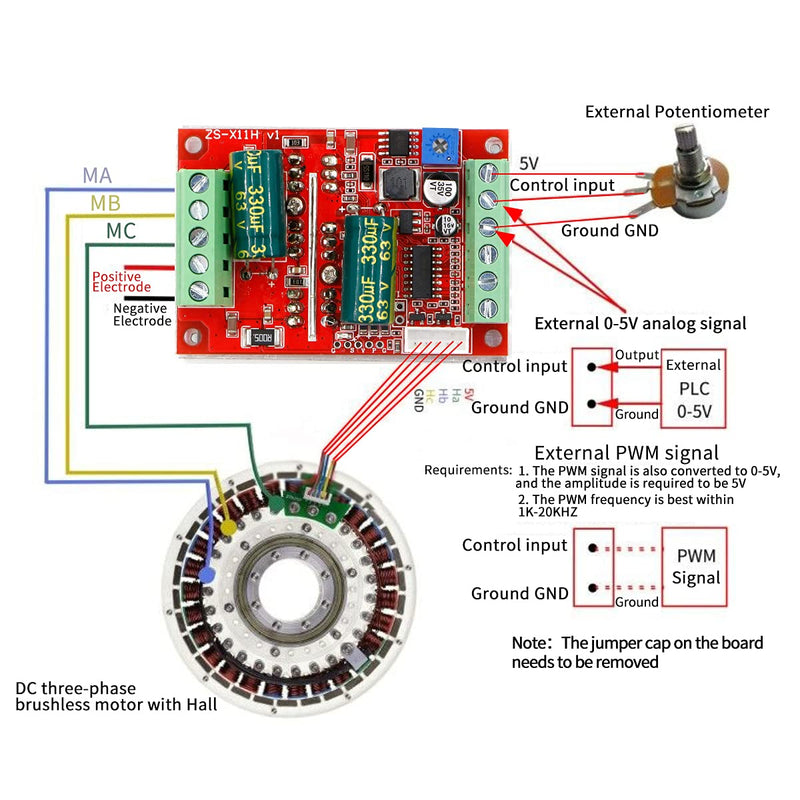

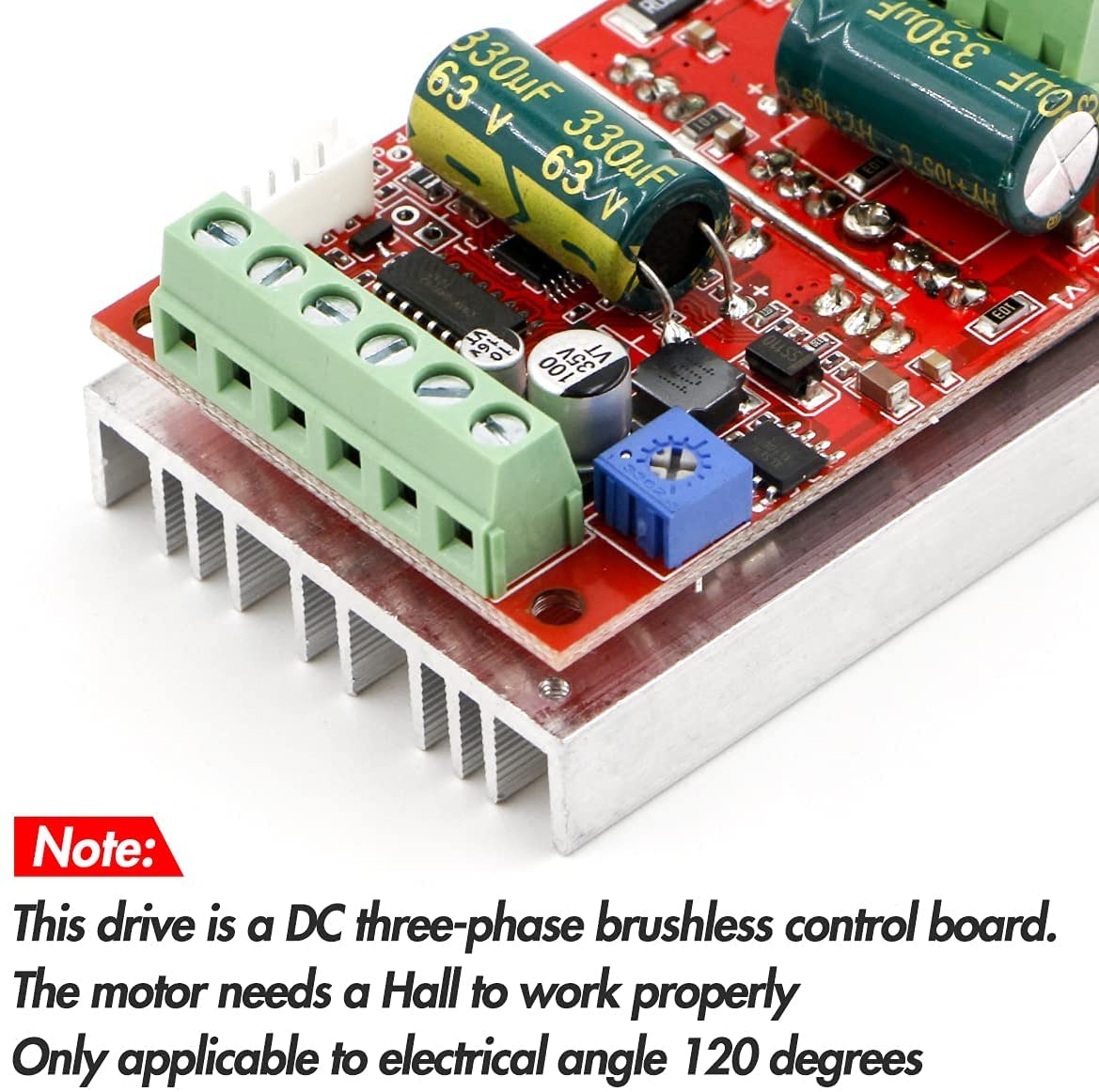

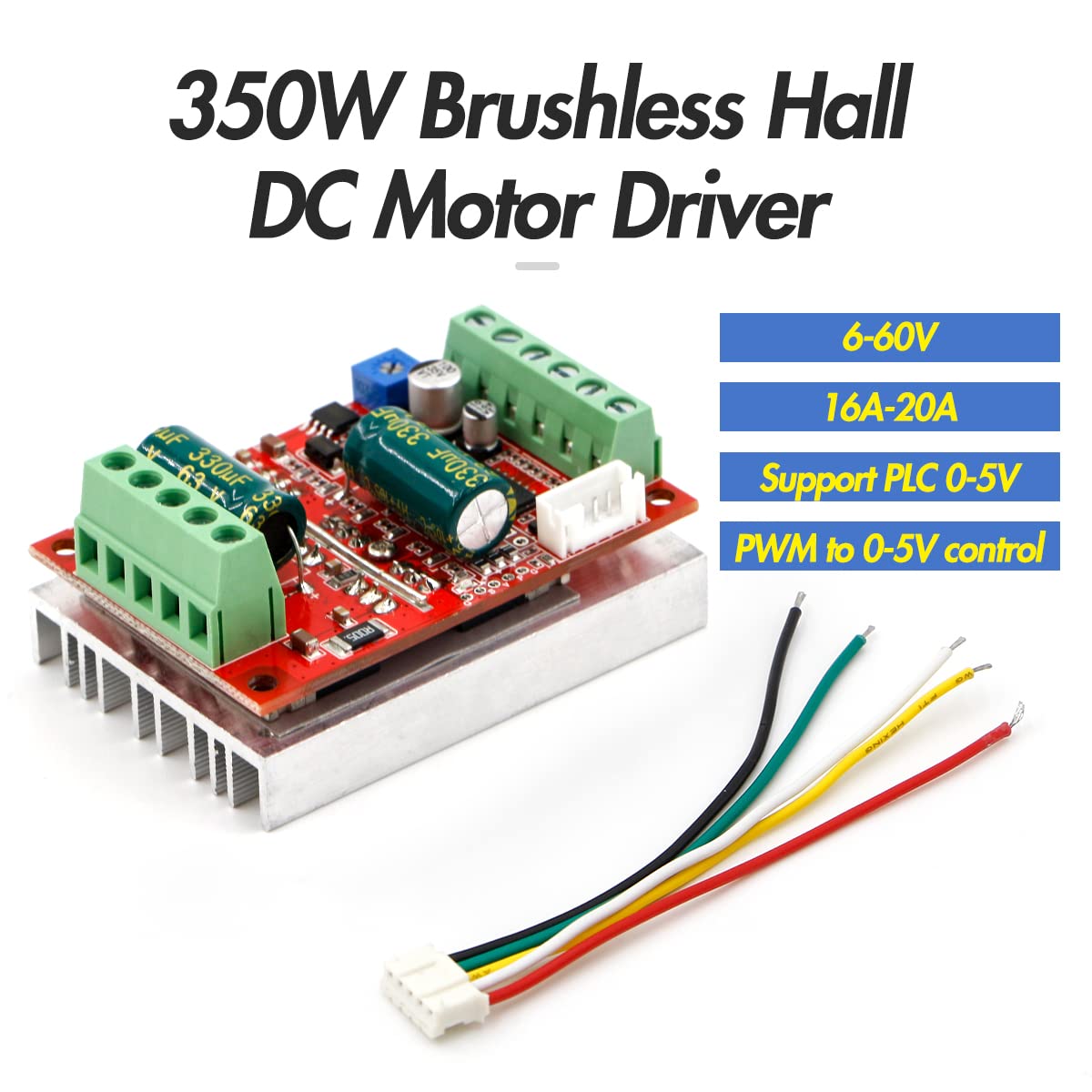

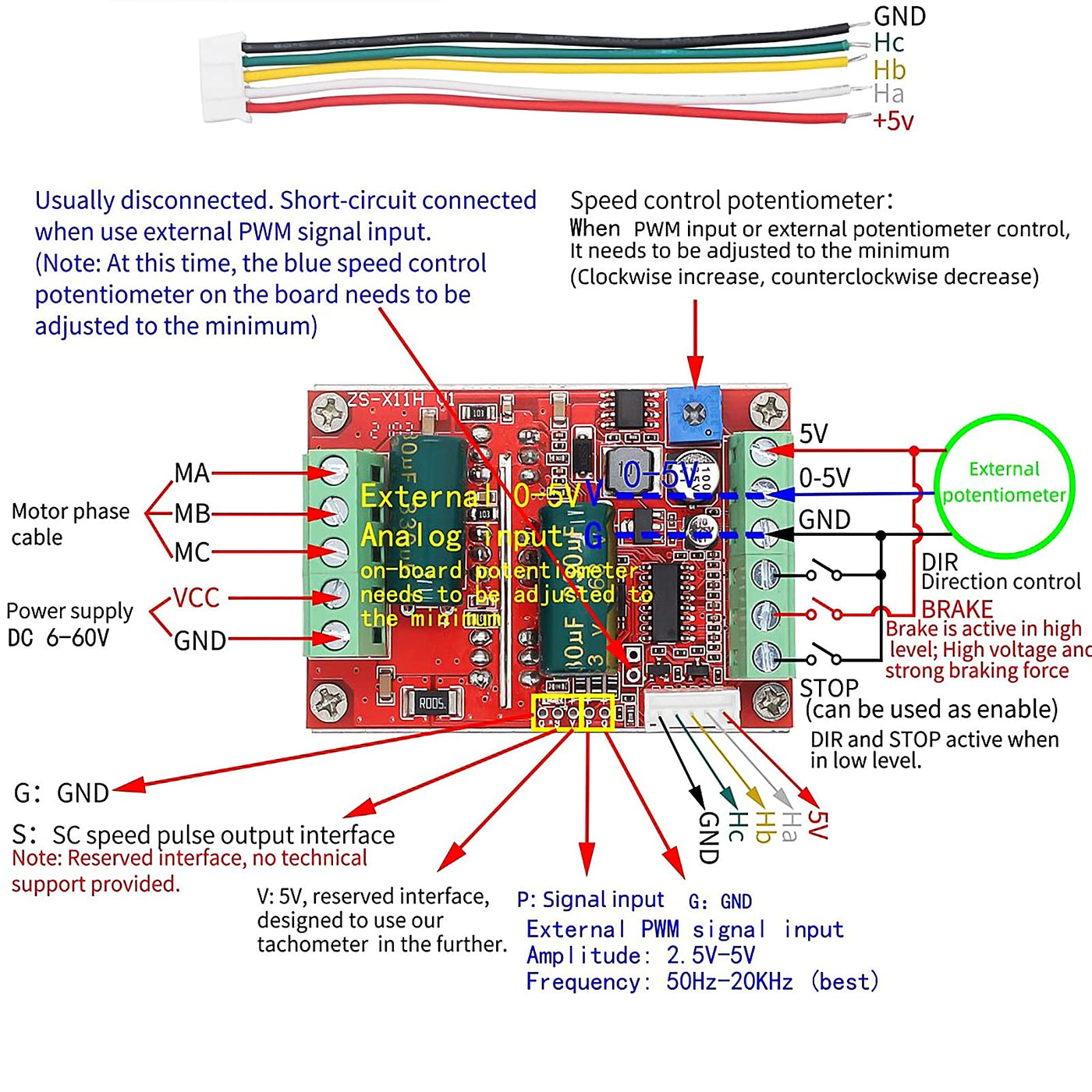

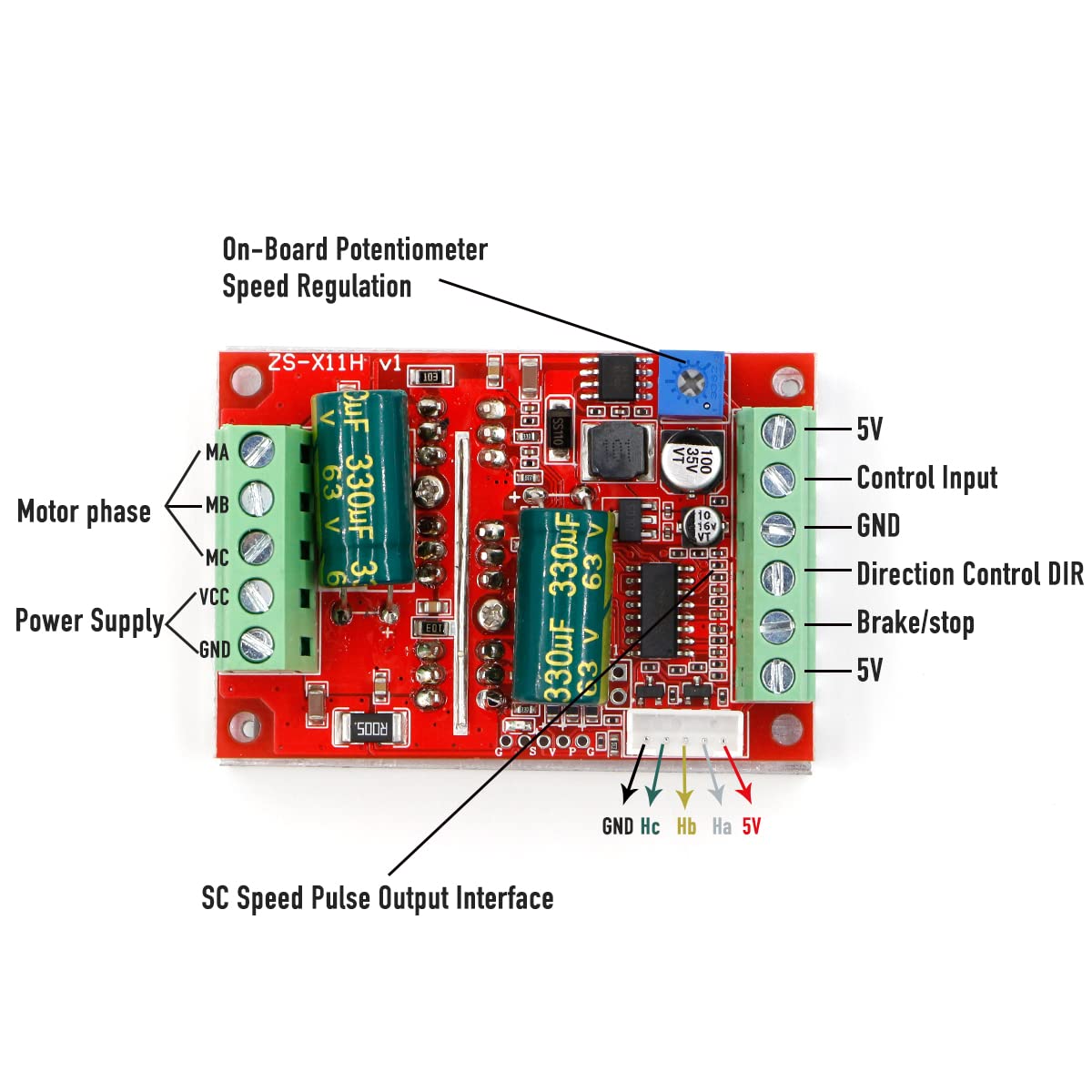

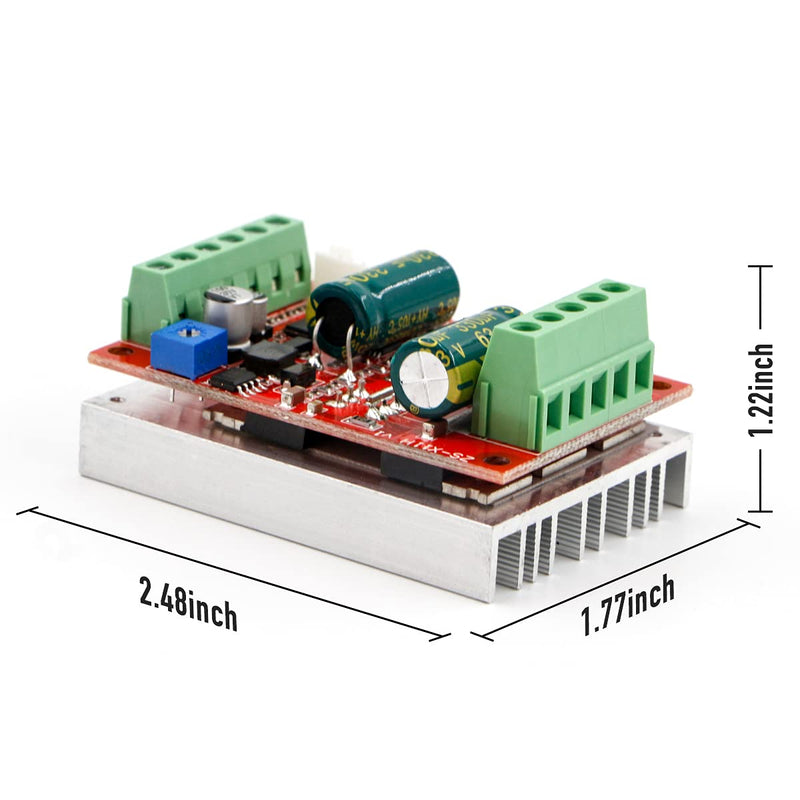

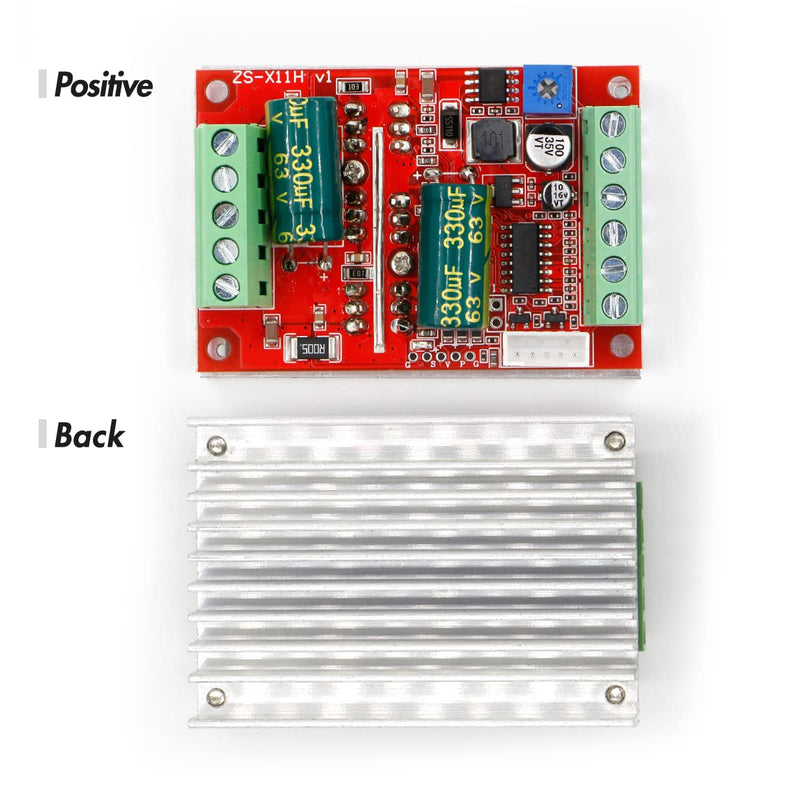

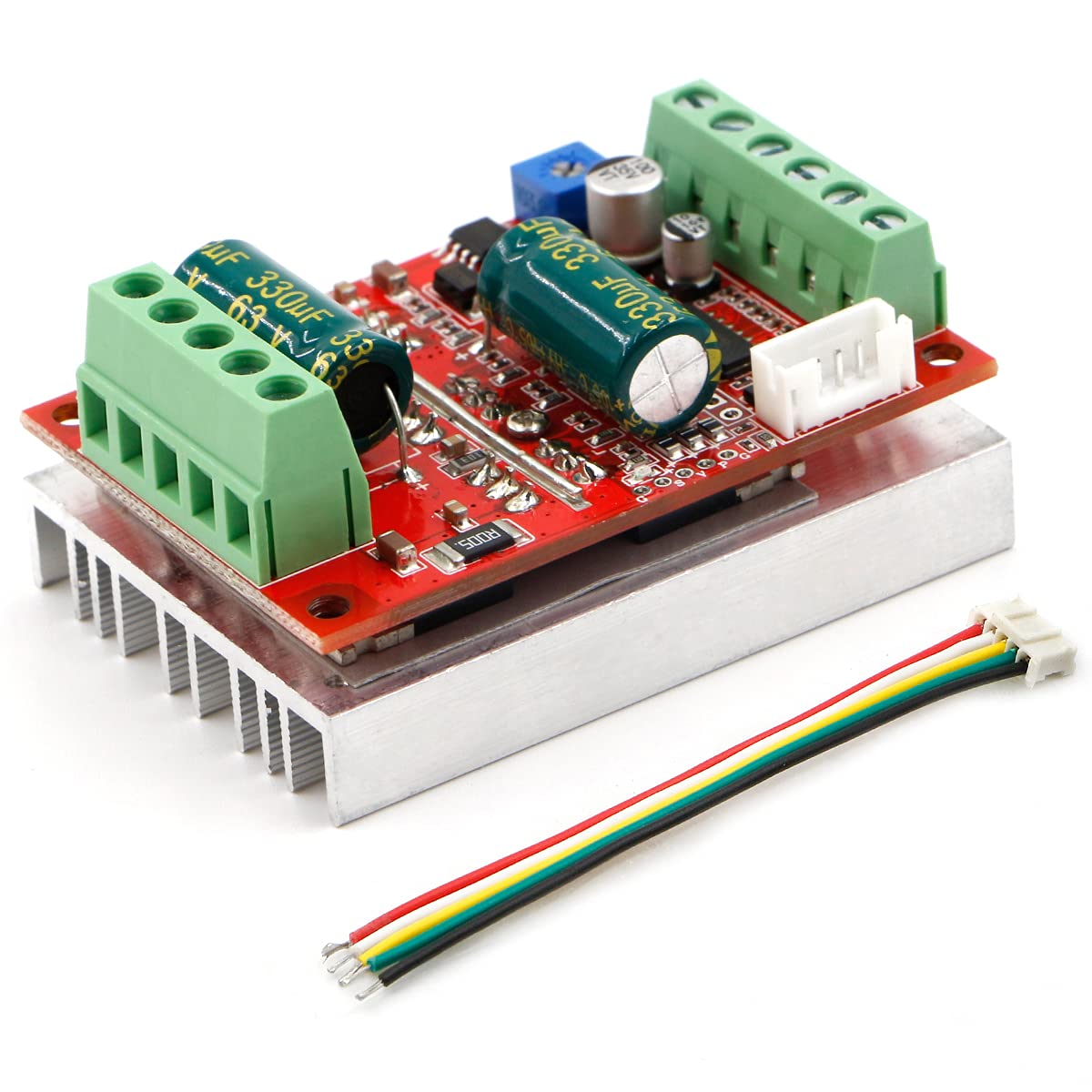

{"id":8768095355031,"title":"RioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall Red","handle":"riorand-350w-6-60v-pwm-dc-brushless-electric-motor-speed-controller-with-hall-red","description":"\u003ch3\u003eRioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThree phase DC brushless with Hall motor controller, need motor with Hall to work properly. Brushless motor driver board, high power PLC. This driver is only for DC brushless with Hall motor with electric angle 120 degrees.\u003c\/li\u003e\n \u003cli\u003eNew upgrade BLDC wide voltage 6-60V high power 350W, DC three-phase brushless with Hall controller, support PLC 0-5V touch volume control, support PWM control amplitude 2.5-5V.\u003c\/li\u003e\n \u003cli\u003eThe main board power supply circuit without fuse, can be added(by yourself), the power supply positive and negative terminals will cause permanent damage to some of the chips on the board (not even for a few seconds when the high current)\u003c\/li\u003e\n \u003cli\u003eMotor output for sampling overcurrent protection, due to the module power supply current are very large. Do not artificially cause a short circuit in the normal operation of the module, a short circuit will damage the tube. Wiring test machine for small-current low-voltage test, successful then through the high-current high-voltage . Bare board module, pay attention to wire insulation when wiring, forbid strong voltage to touch the board.\u003c\/li\u003e\n \u003cli\u003eDo not connect the obvious and drive module voltage, current, power phase does not match or far from the motor to avoid inexplicable \"nonsense\" damage.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:37:05+11:00","created_at":"2025-01-30T22:35:19+11:00","vendor":"RioRand","type":"Motor Speed Controllers","tags":["industrial_best_sellers_Jan2025"],"price":12700,"price_min":12700,"price_max":12700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45096318664855,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B087M2378D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall Red","public_title":null,"options":["Default Title"],"price":12700,"weight":140,"compare_at_price":null,"inventory_management":"shopify","barcode":"KJL-01","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/61kLe1LOoPL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/61lEp1elilL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/81uJxlo3-XL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/61YNjnldViL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/61cVoCh2zrL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/71O_Q6LkwKL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/81HEpzr3-yL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/71-iE2Ii5fL.jpg?v=1738236922","\/\/newnestshop.com\/cdn\/shop\/files\/71_PQIUW6ML.jpg?v=1738236922"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/61kLe1LOoPL.jpg?v=1738236922","options":["Title"],"media":[{"alt":null,"id":36854743138455,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kLe1LOoPL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kLe1LOoPL.jpg?v=1738236922","width":1200},{"alt":null,"id":36854743171223,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61lEp1elilL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61lEp1elilL.jpg?v=1738236922","width":1200},{"alt":null,"id":36854743203991,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81uJxlo3-XL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81uJxlo3-XL.jpg?v=1738236922","width":1600},{"alt":null,"id":36854743236759,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61YNjnldViL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61YNjnldViL.jpg?v=1738236922","width":1200},{"alt":null,"id":36854743302295,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61cVoCh2zrL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61cVoCh2zrL.jpg?v=1738236922","width":1200},{"alt":null,"id":36854743335063,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71O_Q6LkwKL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71O_Q6LkwKL.jpg?v=1738236922","width":1200},{"alt":null,"id":36854743367831,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/81HEpzr3-yL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/81HEpzr3-yL.jpg?v=1738236922","width":1600},{"alt":null,"id":36854743400599,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71-iE2Ii5fL.jpg?v=1738236922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71-iE2Ii5fL.jpg?v=1738236922","width":1200},{"alt":null,"id":36854743433367,"position":9,"preview_image":{"aspect_ratio":1.006,"height":1162,"width":1169,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71_PQIUW6ML.jpg?v=1738236922"},"aspect_ratio":1.006,"height":1162,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71_PQIUW6ML.jpg?v=1738236922","width":1169}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThree phase DC brushless with Hall motor controller, need motor with Hall to work properly. Brushless motor driver board, high power PLC. This driver is only for DC brushless with Hall motor with electric angle 120 degrees.\u003c\/li\u003e\n \u003cli\u003eNew upgrade BLDC wide voltage 6-60V high power 350W, DC three-phase brushless with Hall controller, support PLC 0-5V touch volume control, support PWM control amplitude 2.5-5V.\u003c\/li\u003e\n \u003cli\u003eThe main board power supply circuit without fuse, can be added(by yourself), the power supply positive and negative terminals will cause permanent damage to some of the chips on the board (not even for a few seconds when the high current)\u003c\/li\u003e\n \u003cli\u003eMotor output for sampling overcurrent protection, due to the module power supply current are very large. Do not artificially cause a short circuit in the normal operation of the module, a short circuit will damage the tube. Wiring test machine for small-current low-voltage test, successful then through the high-current high-voltage . Bare board module, pay attention to wire insulation when wiring, forbid strong voltage to touch the board.\u003c\/li\u003e\n \u003cli\u003eDo not connect the obvious and drive module voltage, current, power phase does not match or far from the motor to avoid inexplicable \"nonsense\" damage.\u003c\/li\u003e\n \u003c\/ul\u003e"}
