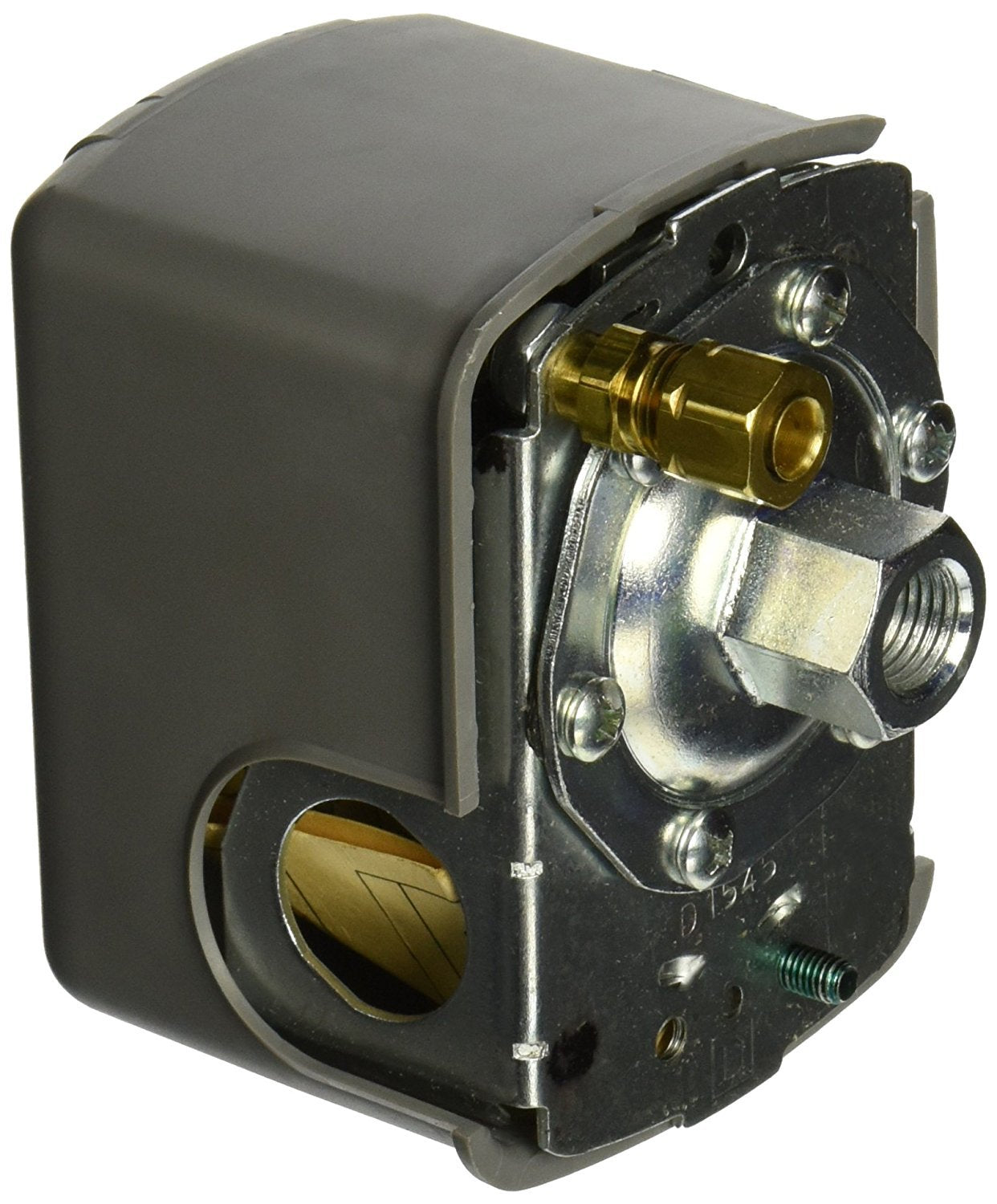

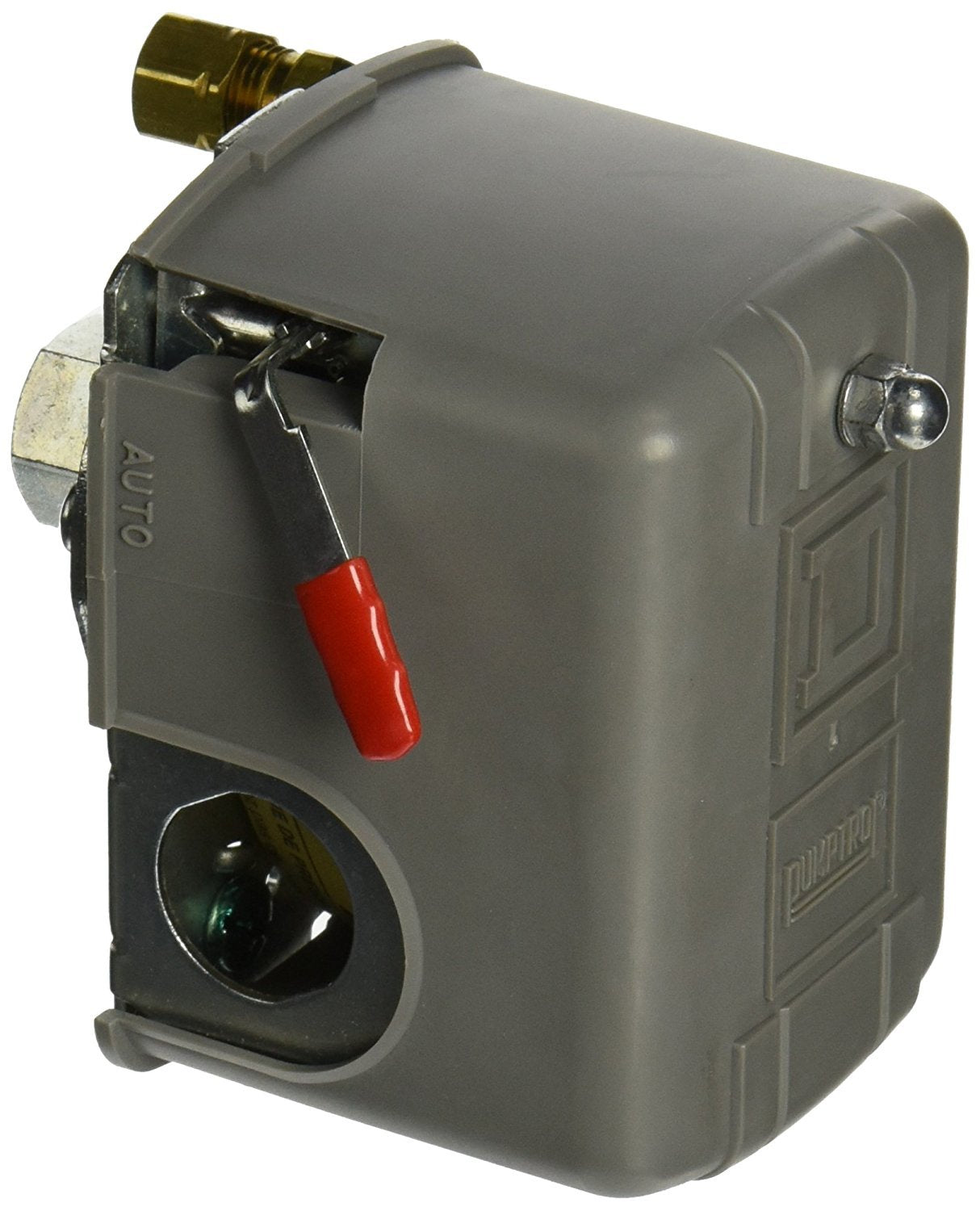

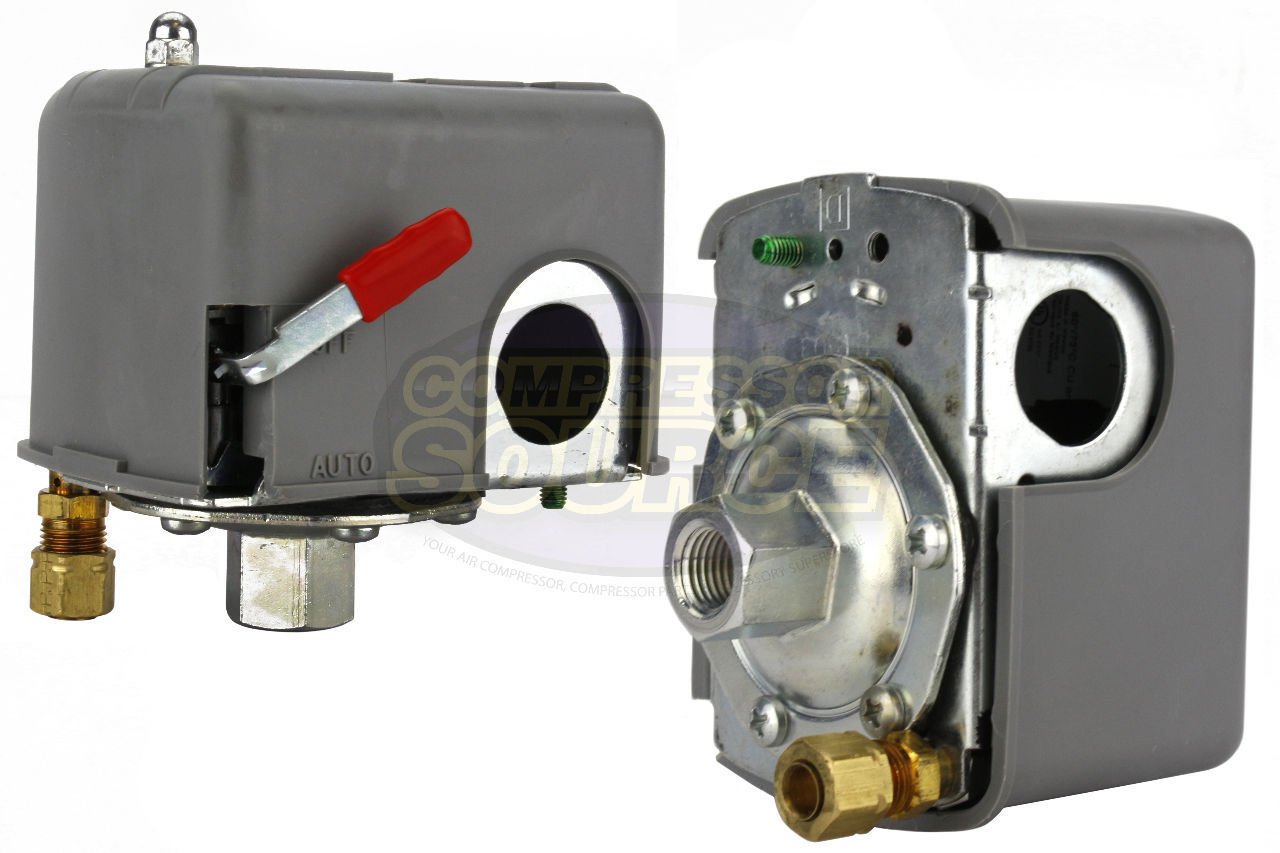

Square D Pumptrol Pressure switch for compressed air compressor 9013FHG12J52M1X 95-125 psi With Unloader & On/Off Lever (Paks)

In Stock. Leaves warehouse within 2 - 3 business days

$280.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Square D Pumptrol Pressure switch for compressed air compressor 9013FHG12J52M1X 95-125 psi With Unloader & On/Off Lever (Paks)

TECHNICAL INFO SHOWN BELOW. Range of product Square D Pumptrol Pressure sensor name 9013FH Pressure sensor size 150 psi Value of setting Off at 125 psi Electrical circuit type Power circuit Product specific application Control small electrically driven air compressors Quantity per set 1 Type of packing Individual Complementary Pressure sensor type Electromechanical pressure switch Controlled fluid Air (-22...257 °F) Adjustable range on rising pressure 70...150 psi Approximate adjustable differential 30 psi Destruction pressure 220 psi Pressure actuator Diaphragm Pressure switch type of operation Regulation between 2 thresholds Scale type Fixed differential Setting Internal Local display Without Contacts type and composition 2 NC, snap action, DPST- DB, Form YY Cable entry number 2 0.88 in cable entries with 0.84 in across flats UL 508 Electrical connection Screw-clamp terminals, clamping capacity: 5.261 mm² Screw-clamp terminals, clamping capacity: 10 AWG Fluid connection type 0.25 inch NPSF internal conforming to UL 508 Short circuit protection 20 A by cartridge fuse, type gG Materials in contact with fluid Nitrile (Buna-N) or equivalent rubber diaphragm Zinc plated steel or equivalent flange Material Noryl thermoplastic resin or equivalent cover Polypropylene cover Operating position Any position Motor power kW 0.75 kW (1 hp) at 575 V AC, 3 phases 0.75 kW (1 hp) at 460 V AC, 3 phases 2.2 kW (3 hp) at 230 V AC, 3 phases 1.5 kW (2 hp) at 115 V AC, 3 phases 1.1 kW (1.5 hp) at 115 V AC, 1 phase 1.5 kW (2 hp) at 230 V AC, 1 phase Electrical durability 100000 cycles at 10 cyc/mn Mechanical durability 300000 cycles Terminal block type 4 terminals Operating rate 10 cyc/mn [Ui] rated insulation voltage 575 V conforming to UL 508 Product weight 1 lb(US) Repeat accuracy +/- 3 % Terminals description ISO n°1 L1-T1 L2-T2

Product Features

  • 9013FHG12J52M1X
  • 1 Port pressure switch 95-125
  • Pressure switch W/ Unloader & ON/OFF LEVER
