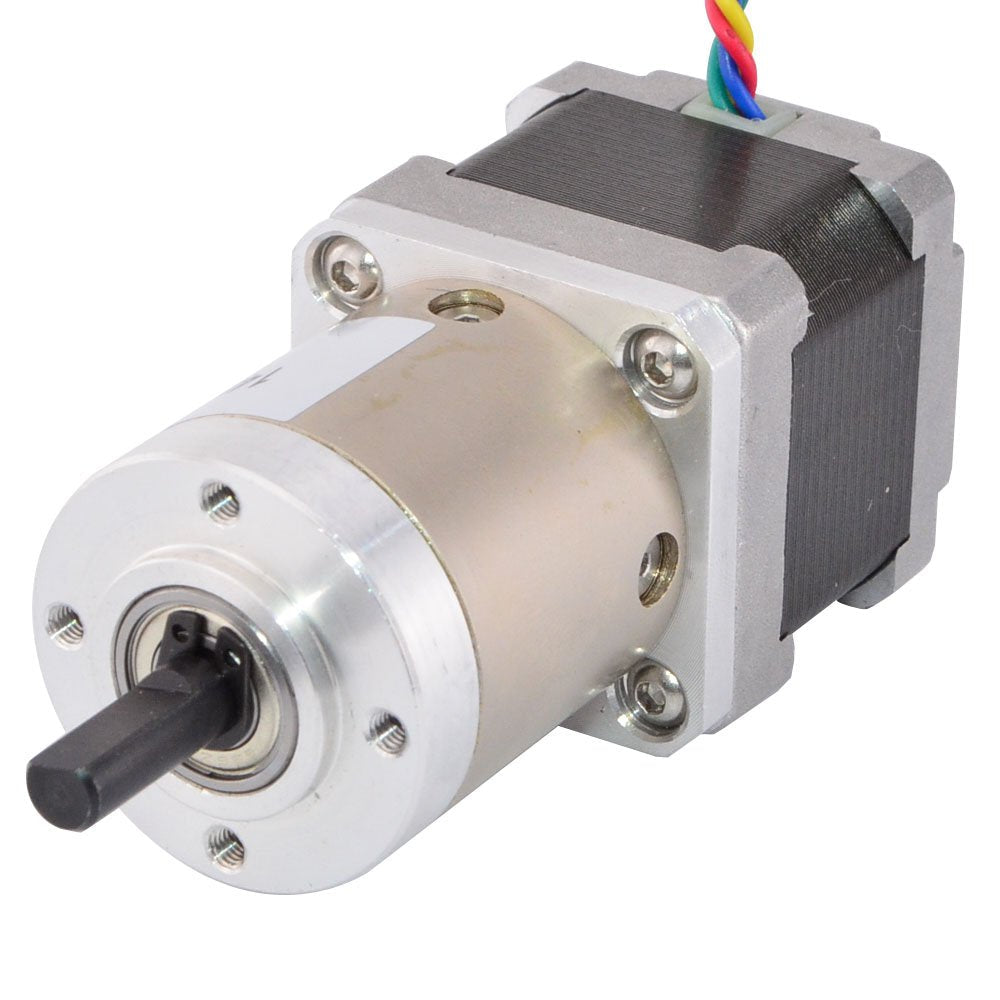

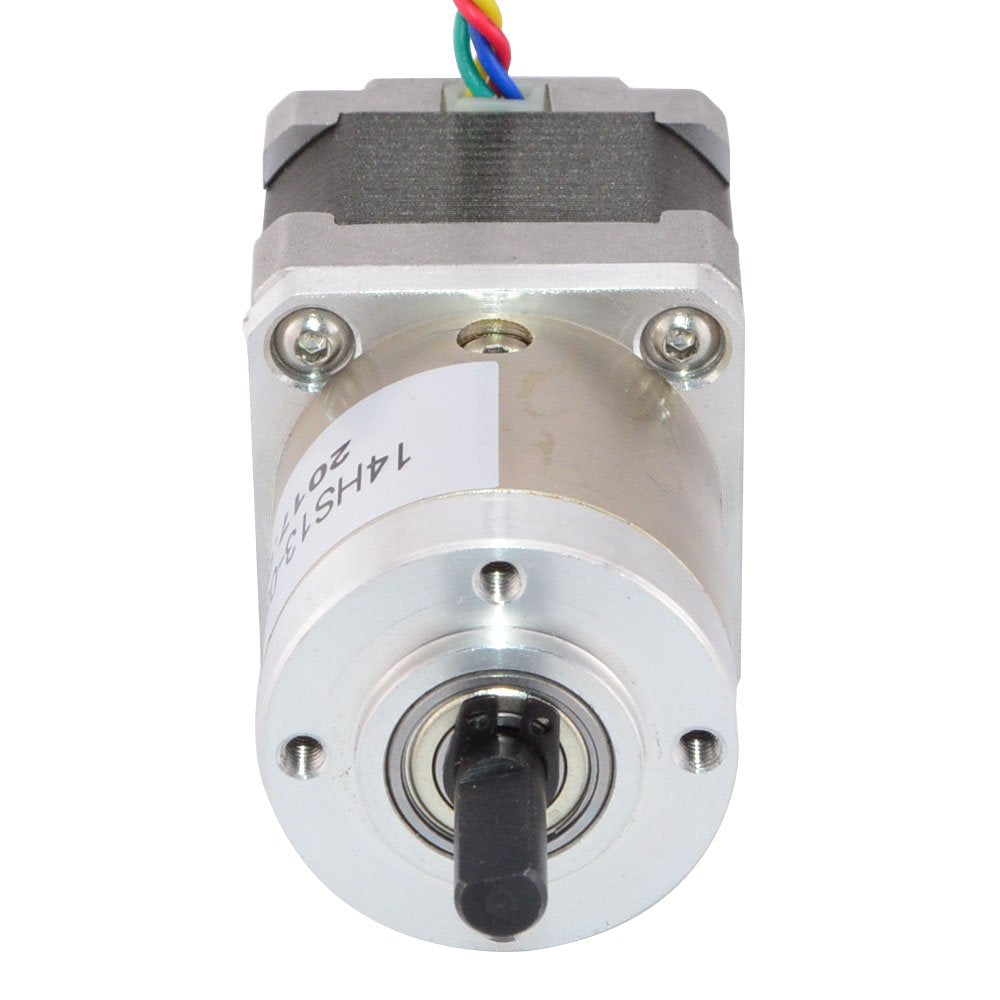

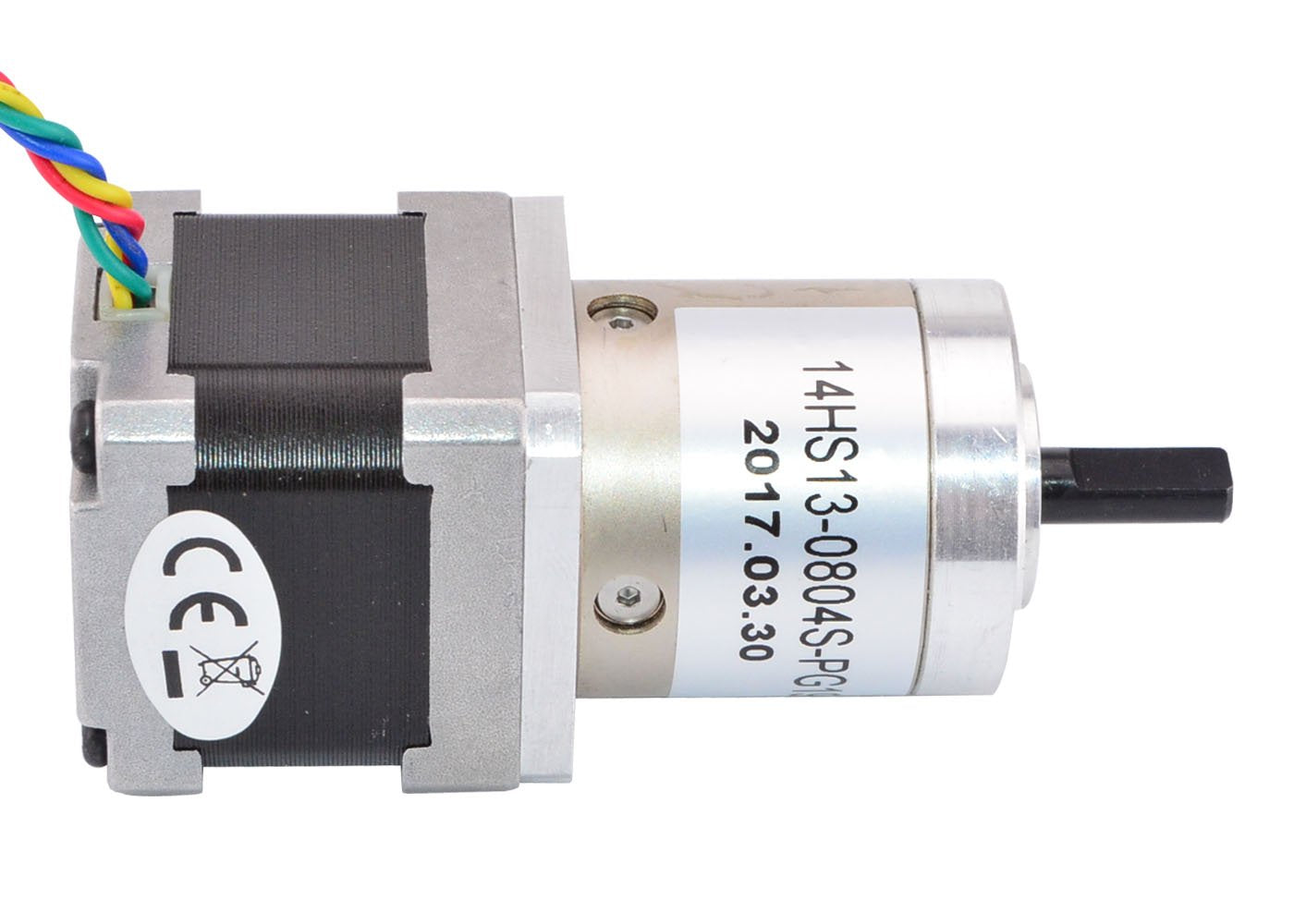

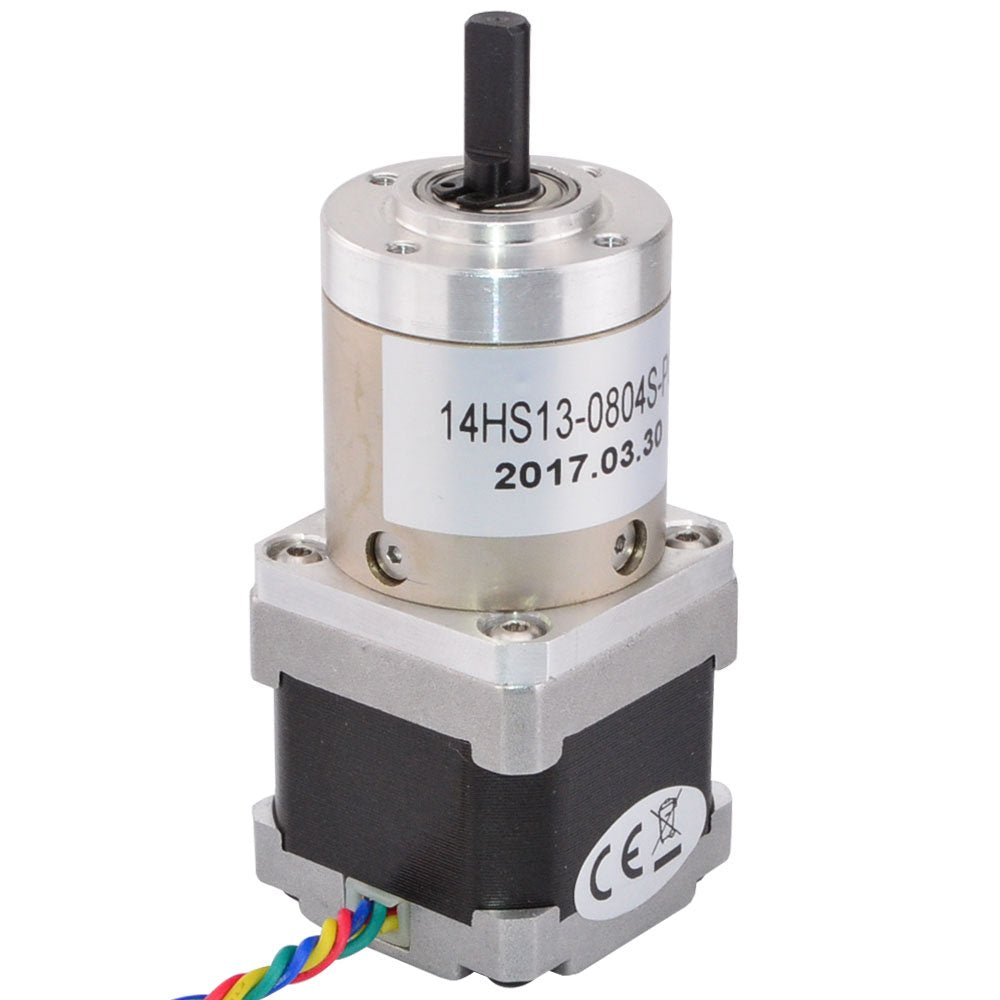

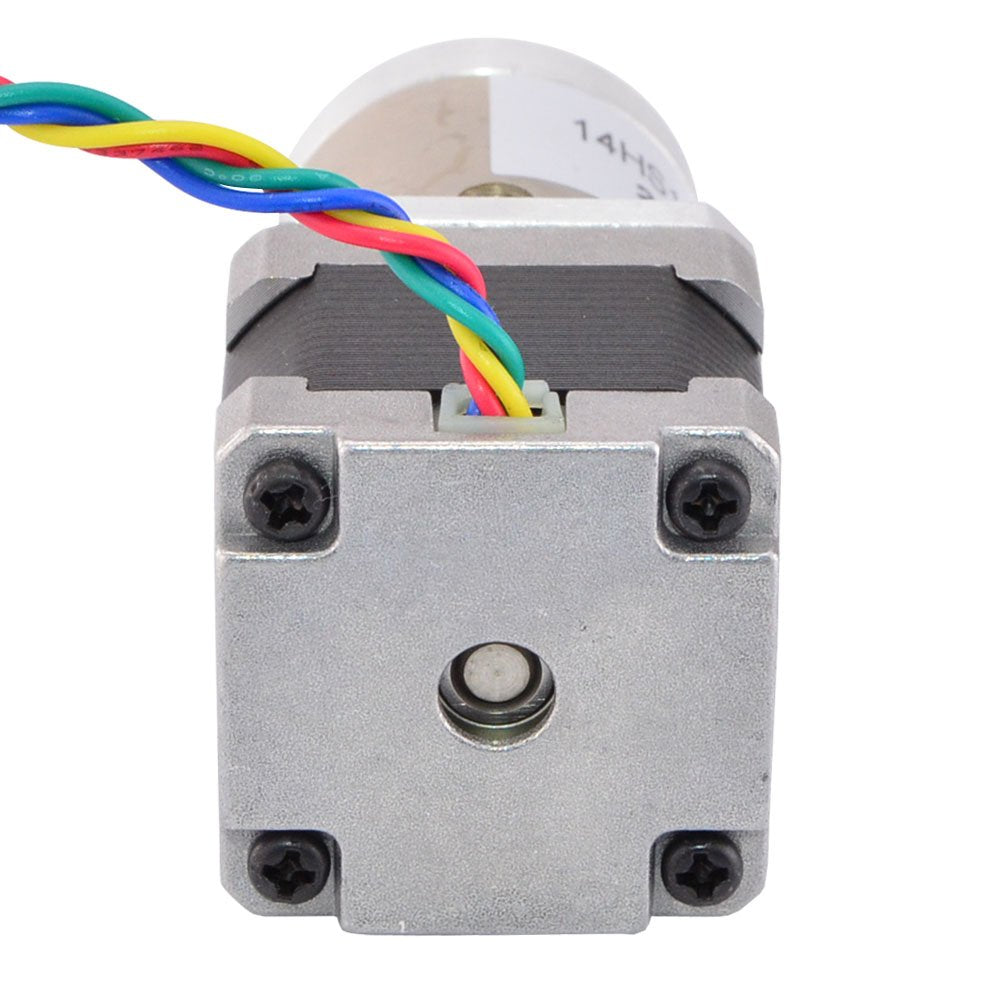

{"id":9680781312151,"title":"STEPPERONLINE 19:1 Planetary Gearbox Nema 14 Geared Stepper Motor 0.8APrinter Camera Robotics DIY CNC","handle":"stepperonline-19-1-planetary-gearbox-nema-14-geared-stepper-motor-0-8aprinter-camera-robotics-diy-cnc","description":"\u003ch3\u003eSTEPPERONLINE 19:1 Planetary Gearbox Nema 14 Geared Stepper Motor 0.8APrinter Camera Robotics DIY CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high precision NEMA 14 Stepper motor has an integrated Planetary gearbox\nwith a 19.19:1 gear ratio, the resolution reach 0.094 deg. step angle. It's a\ngood solution in applications that need very low rotation speeds and\/or lots\nof torque. Electrical Specification: Manufacturer Part Number:\n14HS13-0804S-PG19 Motor Type: Bipolar Stepper Step Angle: 0.094 deg. \nHolding Torque: 2.8Nm Rated Current\/phase: 0.8A Phase Resistance: 6.8ohms\n Inductance: 10mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 19.19:1 Gear Efficiency: 81% Backlash at No-load:\n\u0026lt;=1 deg. Max.Permissible Torque: 3Nm(425oz-in) Moment Permissible Torque:\n5Nm(708oz-in) Shaft Maximum Axial Load: 5N Shaft Maximum Radial Load: 25N\nPhysical Specifications: Frame Size: 35 x 35mm Motor Length: 34mm \nGearbox Length: 35.8mm Shaft Diameter: 6mm Shaft Length: 18mm D-cut\nLength: 12mm Number of Leads: 4 Lead Length: 500mm Weight: 320g\nConnection: Red(A+), Green(A-), Yellow(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.094 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 14 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 19.19:1\u003c\/li\u003e\n \u003cli\u003eRated current 0.8A \u0026amp; resistance 6.8ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T19:42:31+10:00","created_at":"2026-07-26T19:07:43+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["home_improvement_Aug2026"],"price":22300,"price_min":22300,"price_max":22300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48067972628631,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNEQU7K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 19:1 Planetary Gearbox Nema 14 Geared Stepper Motor 0.8APrinter Camera Robotics DIY CNC","public_title":null,"options":["Default Title"],"price":22300,"weight":363,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056366019","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQU7K.jpg?v=1785056865","\/\/newnestshop.com\/cdn\/shop\/files\/61_gaa89QGL.jpg?v=1785056865","\/\/newnestshop.com\/cdn\/shop\/files\/610fVJl5c8L.jpg?v=1785056865","\/\/newnestshop.com\/cdn\/shop\/files\/61L9NQPUHBL.jpg?v=1785056865","\/\/newnestshop.com\/cdn\/shop\/files\/61goG1w8K2L.jpg?v=1785056865","\/\/newnestshop.com\/cdn\/shop\/files\/41WihRtG68L.jpg?v=1785056865","\/\/newnestshop.com\/cdn\/shop\/files\/218GV3YcfTL.jpg?v=1785056865"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQU7K.jpg?v=1785056865","options":["Title"],"media":[{"alt":null,"id":42455425876119,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQU7K.jpg?v=1785056865"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQU7K.jpg?v=1785056865","width":1000},{"alt":null,"id":42455425908887,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61_gaa89QGL.jpg?v=1785056865"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61_gaa89QGL.jpg?v=1785056865","width":1000},{"alt":null,"id":42455425941655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/610fVJl5c8L.jpg?v=1785056865"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/610fVJl5c8L.jpg?v=1785056865","width":1000},{"alt":null,"id":42455425974423,"position":4,"preview_image":{"aspect_ratio":1.4,"height":1000,"width":1400,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61L9NQPUHBL.jpg?v=1785056865"},"aspect_ratio":1.4,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61L9NQPUHBL.jpg?v=1785056865","width":1400},{"alt":null,"id":42455426007191,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61goG1w8K2L.jpg?v=1785056865"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61goG1w8K2L.jpg?v=1785056865","width":1000},{"alt":null,"id":42455426039959,"position":6,"preview_image":{"aspect_ratio":2.475,"height":202,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41WihRtG68L.jpg?v=1785056865"},"aspect_ratio":2.475,"height":202,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41WihRtG68L.jpg?v=1785056865","width":500},{"alt":null,"id":42455426072727,"position":7,"preview_image":{"aspect_ratio":1.188,"height":176,"width":209,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/218GV3YcfTL.jpg?v=1785056865"},"aspect_ratio":1.188,"height":176,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/218GV3YcfTL.jpg?v=1785056865","width":209}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 19:1 Planetary Gearbox Nema 14 Geared Stepper Motor 0.8APrinter Camera Robotics DIY CNC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high precision NEMA 14 Stepper motor has an integrated Planetary gearbox\nwith a 19.19:1 gear ratio, the resolution reach 0.094 deg. step angle. It's a\ngood solution in applications that need very low rotation speeds and\/or lots\nof torque. Electrical Specification: Manufacturer Part Number:\n14HS13-0804S-PG19 Motor Type: Bipolar Stepper Step Angle: 0.094 deg. \nHolding Torque: 2.8Nm Rated Current\/phase: 0.8A Phase Resistance: 6.8ohms\n Inductance: 10mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 19.19:1 Gear Efficiency: 81% Backlash at No-load:\n\u0026lt;=1 deg. Max.Permissible Torque: 3Nm(425oz-in) Moment Permissible Torque:\n5Nm(708oz-in) Shaft Maximum Axial Load: 5N Shaft Maximum Radial Load: 25N\nPhysical Specifications: Frame Size: 35 x 35mm Motor Length: 34mm \nGearbox Length: 35.8mm Shaft Diameter: 6mm Shaft Length: 18mm D-cut\nLength: 12mm Number of Leads: 4 Lead Length: 500mm Weight: 320g\nConnection: Red(A+), Green(A-), Yellow(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGood Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.094 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 14 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 19.19:1\u003c\/li\u003e\n \u003cli\u003eRated current 0.8A \u0026amp; resistance 6.8ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
