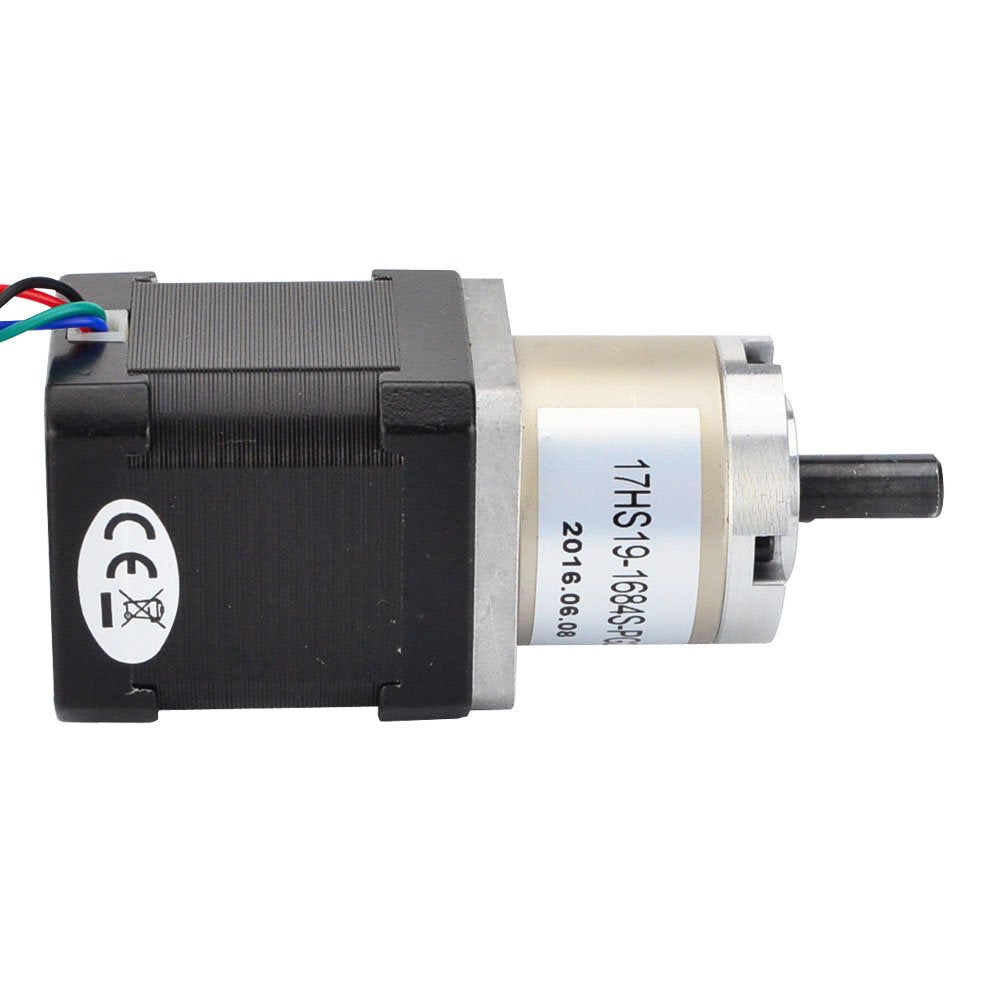

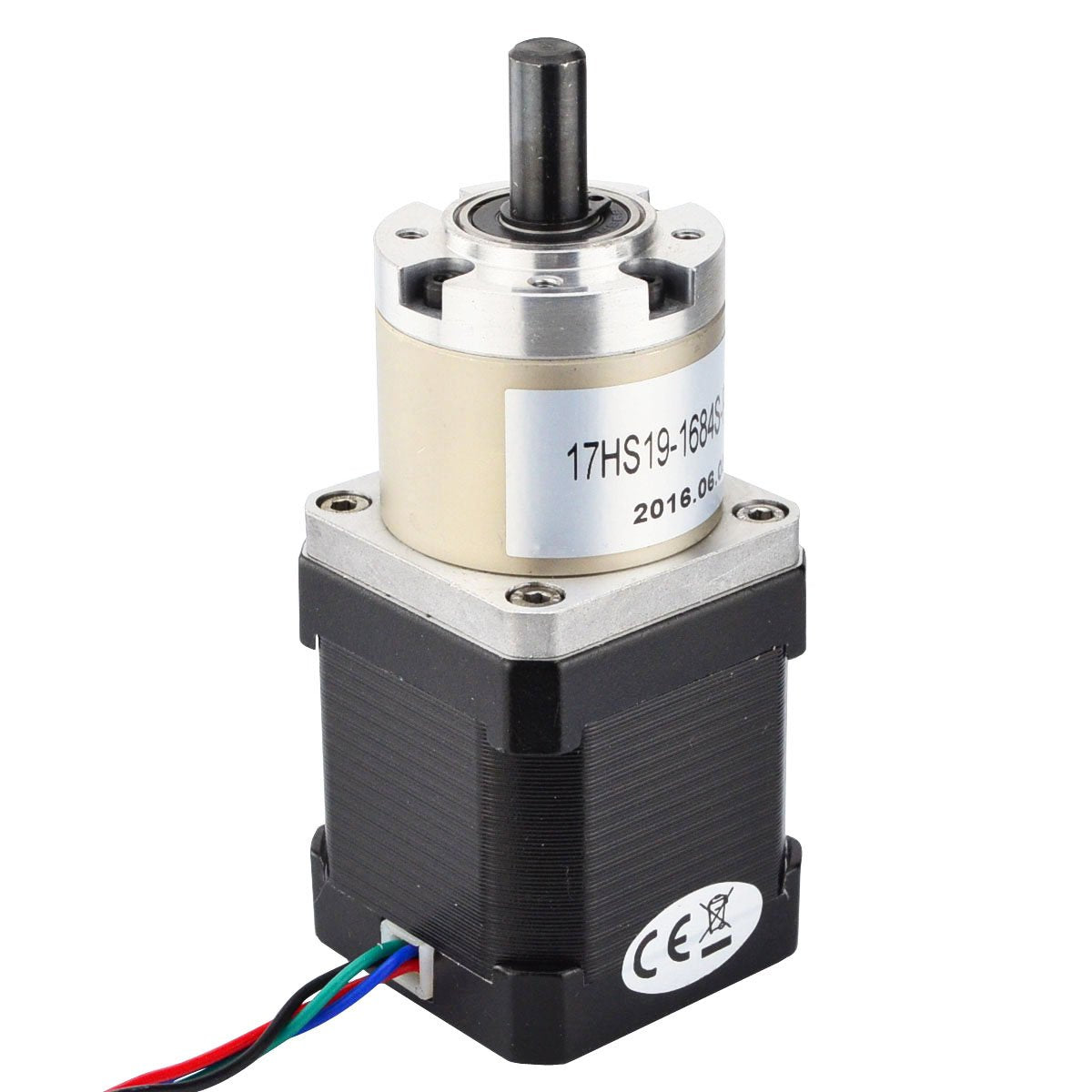

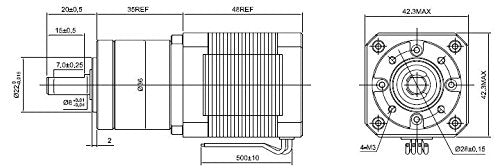

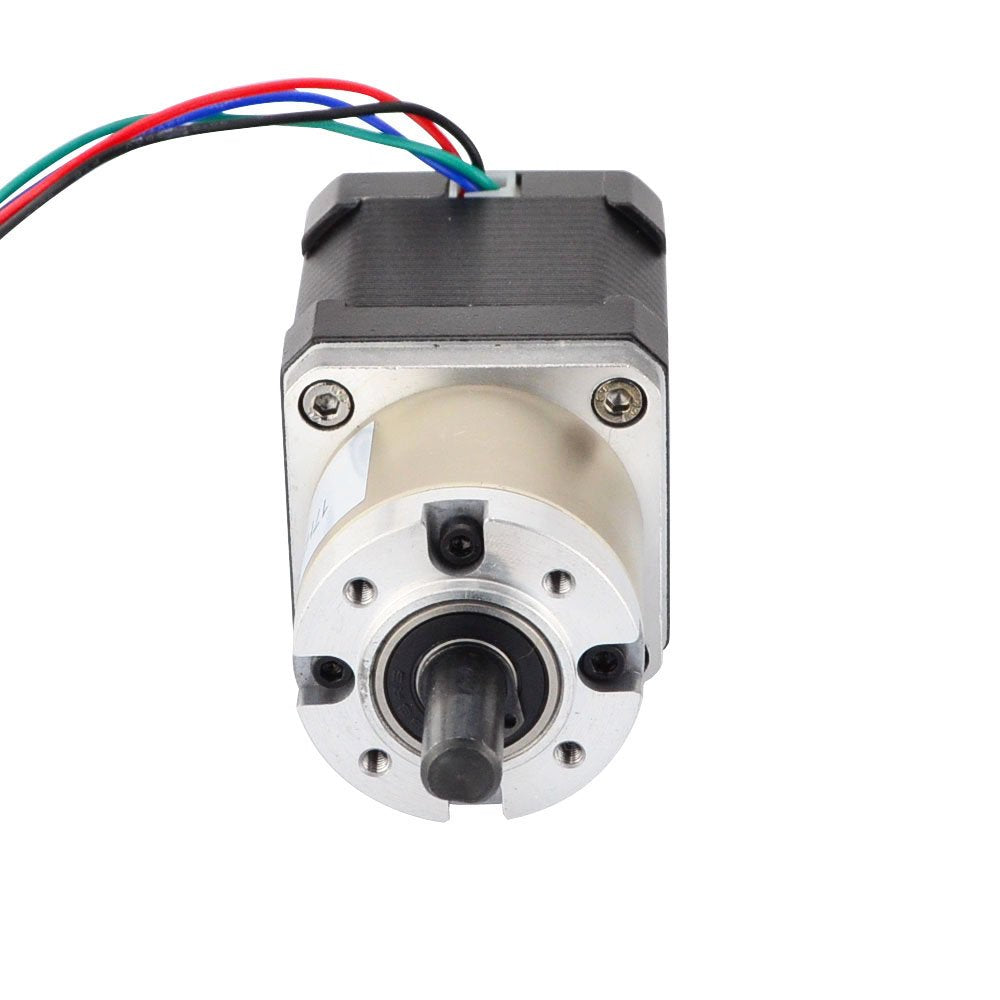

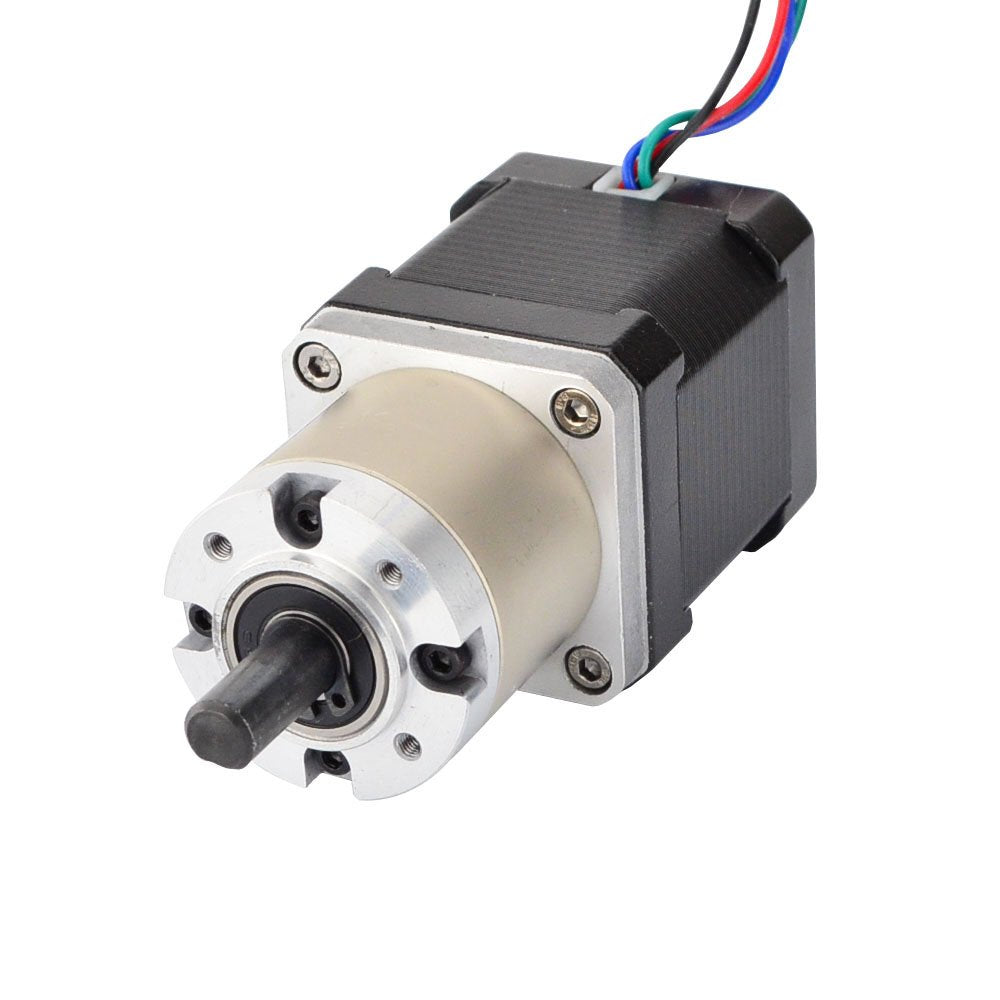

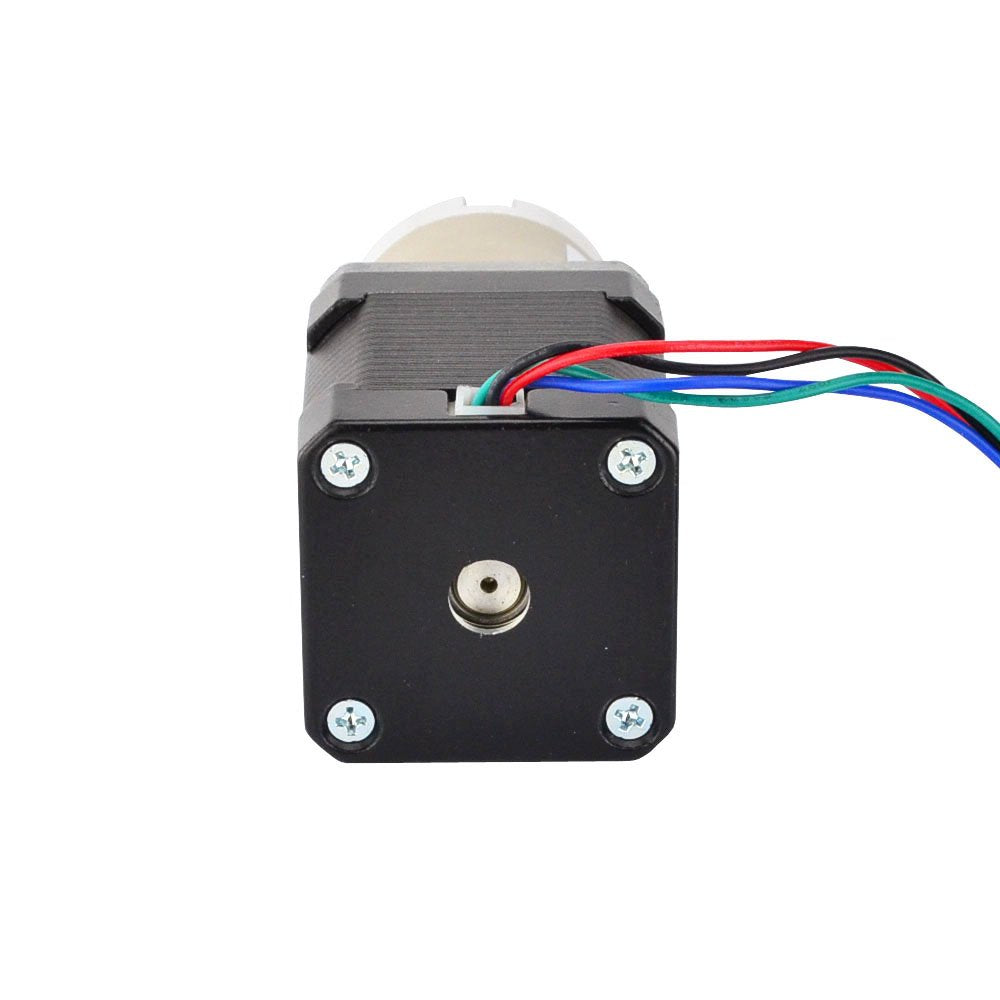

{"id":8751935946903,"title":"STEPPERONLINE 27:1 Planetary Gearbox High Torque Nema 17 Stepper Motor 3D Printer DIY Camera","handle":"stepperonline-27-1-planetary-gearbox-high-torque-nema-17-stepper-motor-3d-printer-diy-camera","description":"\u003ch3\u003eSTEPPERONLINE 27:1 Planetary Gearbox High Torque Nema 17 Stepper Motor 3D Printer DIY Camera\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high precision NEMA 17 Stepper motor has an integrated Planetary gearbox\nwith a 26.85:1 gear ratio, the resolution reach 0.067 deg. step angle. It's a\ngood solution in applications that need very low rotation speeds and\/or lots\nof torque. Electrical Specification: Manufacturer Part Number:\n17HS19-1684S-PG27 Motor Type: Bipolar Stepper Step Angle: 0.067 deg. \nHolding Torque: 3Nm Rated Current\/phase: 1.68A Phase Resistance: 1.65ohms\n Inductance: 2.8mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 26.85:1 Efficiency: 81% Backlash at No-load:\u0026lt;=1\ndeg. Max.Permissible Torque: 3Nm(425oz-in) Moment Permissible Torque:\n5Nm(708oz-in) Shaft Maximum Axial Load: 50N Shaft Maximum Radial Load:\n100N Physical Specifications: Frame Size: 42 x 42mm Motor Length: 48mm \nGearbox Length: 35mm Shaft Diameter: 8mm Shaft Length: 20mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 570g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.067 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 26.85:1\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-01-24T11:27:36+11:00","created_at":"2025-01-24T04:51:01+11:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_best_sellers_Jan2025"],"price":23900,"price_min":23900,"price_max":23900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45073331486871,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00QEUZ9EM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 27:1 Planetary Gearbox High Torque Nema 17 Stepper Motor 3D Printer DIY Camera","public_title":null,"options":["Default Title"],"price":23900,"weight":608,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056502370","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B00QEUZ9EM.jpg?v=1737681850","\/\/newnestshop.com\/cdn\/shop\/files\/51_zGHUeC4L.jpg?v=1737654664","\/\/newnestshop.com\/cdn\/shop\/files\/61xPklz53gL.jpg?v=1737654664","\/\/newnestshop.com\/cdn\/shop\/files\/51OiMbnh8bL.jpg?v=1737654664","\/\/newnestshop.com\/cdn\/shop\/files\/51PnE1AcrRL.jpg?v=1737654664","\/\/newnestshop.com\/cdn\/shop\/files\/41odlBSJ0DL.jpg?v=1737654664","\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL_d880d060-491c-4d6e-a41b-8a4010a6f1a6.jpg?v=1737654664"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B00QEUZ9EM.jpg?v=1737681850","options":["Title"],"media":[{"alt":null,"id":36797519364247,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00QEUZ9EM.jpg?v=1737681850"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00QEUZ9EM.jpg?v=1737681850","width":1000},{"alt":null,"id":36795118190743,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_zGHUeC4L.jpg?v=1737654664"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_zGHUeC4L.jpg?v=1737654664","width":1000},{"alt":null,"id":36795118223511,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xPklz53gL.jpg?v=1737654664"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xPklz53gL.jpg?v=1737654664","width":1200},{"alt":null,"id":36795118256279,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51OiMbnh8bL.jpg?v=1737654664"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51OiMbnh8bL.jpg?v=1737654664","width":1000},{"alt":null,"id":36795118289047,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51PnE1AcrRL.jpg?v=1737654664"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51PnE1AcrRL.jpg?v=1737654664","width":1000},{"alt":null,"id":36795118321815,"position":6,"preview_image":{"aspect_ratio":2.976,"height":168,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41odlBSJ0DL.jpg?v=1737654664"},"aspect_ratio":2.976,"height":168,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41odlBSJ0DL.jpg?v=1737654664","width":500},{"alt":null,"id":36795118354583,"position":7,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL_d880d060-491c-4d6e-a41b-8a4010a6f1a6.jpg?v=1737654664"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL_d880d060-491c-4d6e-a41b-8a4010a6f1a6.jpg?v=1737654664","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 27:1 Planetary Gearbox High Torque Nema 17 Stepper Motor 3D Printer DIY Camera\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high precision NEMA 17 Stepper motor has an integrated Planetary gearbox\nwith a 26.85:1 gear ratio, the resolution reach 0.067 deg. step angle. It's a\ngood solution in applications that need very low rotation speeds and\/or lots\nof torque. Electrical Specification: Manufacturer Part Number:\n17HS19-1684S-PG27 Motor Type: Bipolar Stepper Step Angle: 0.067 deg. \nHolding Torque: 3Nm Rated Current\/phase: 1.68A Phase Resistance: 1.65ohms\n Inductance: 2.8mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 26.85:1 Efficiency: 81% Backlash at No-load:\u0026lt;=1\ndeg. Max.Permissible Torque: 3Nm(425oz-in) Moment Permissible Torque:\n5Nm(708oz-in) Shaft Maximum Axial Load: 50N Shaft Maximum Radial Load:\n100N Physical Specifications: Frame Size: 42 x 42mm Motor Length: 48mm \nGearbox Length: 35mm Shaft Diameter: 8mm Shaft Length: 20mm D-cut\nLength: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 570g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.067 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 17 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 26.85:1\u003c\/li\u003e\n \u003cli\u003eRated current 1.68A \u0026amp; resistance 1.65ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
