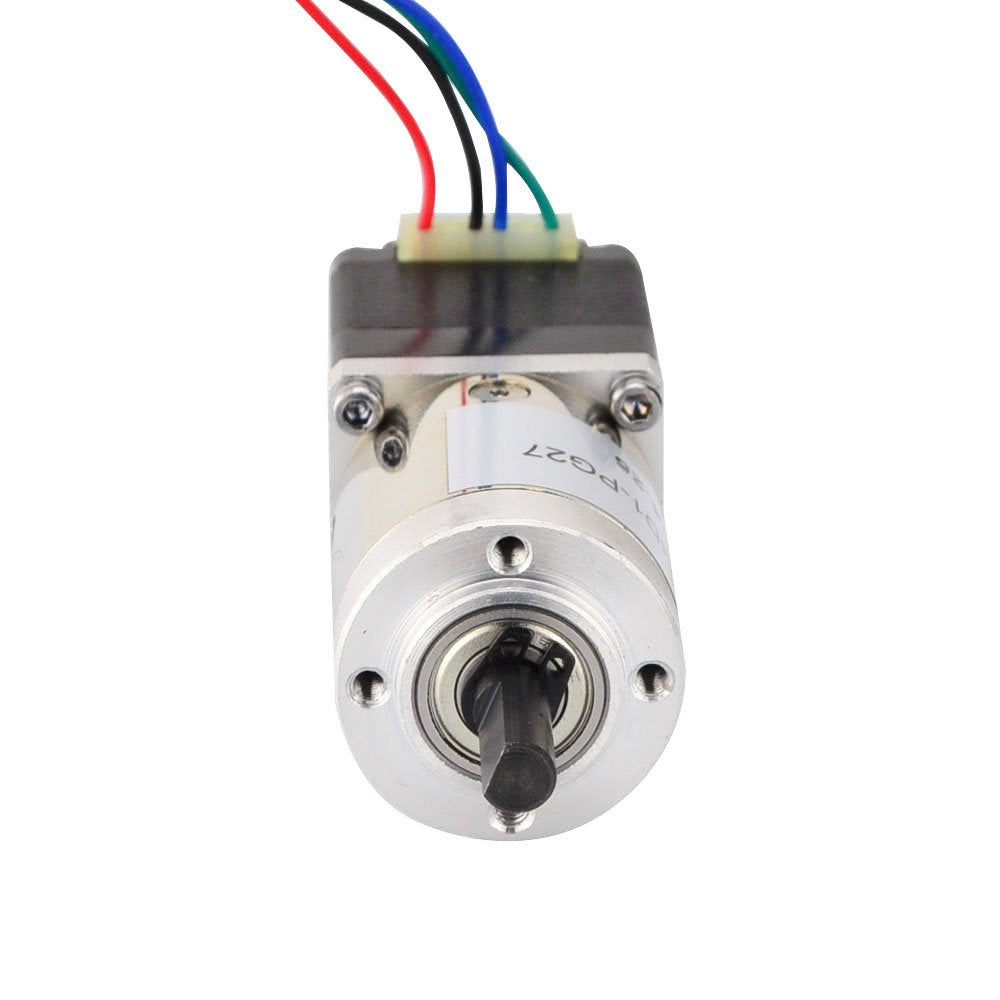

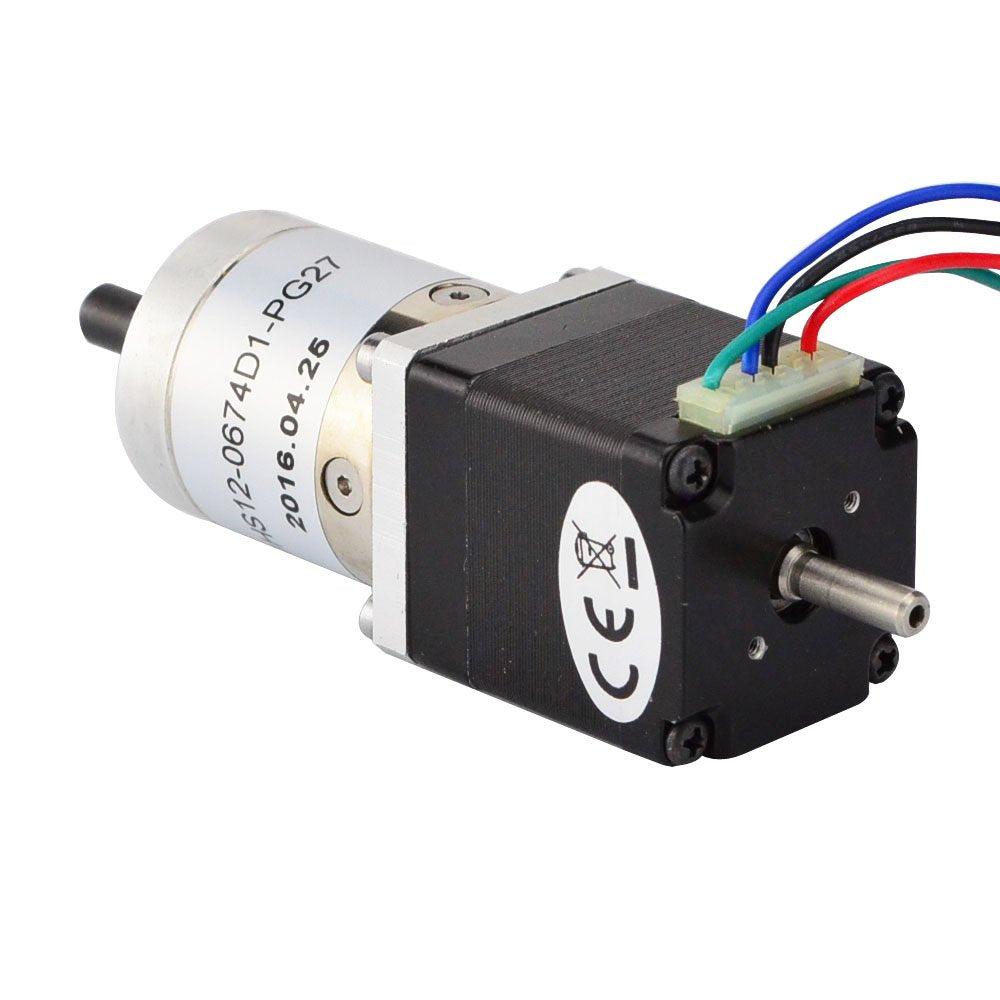

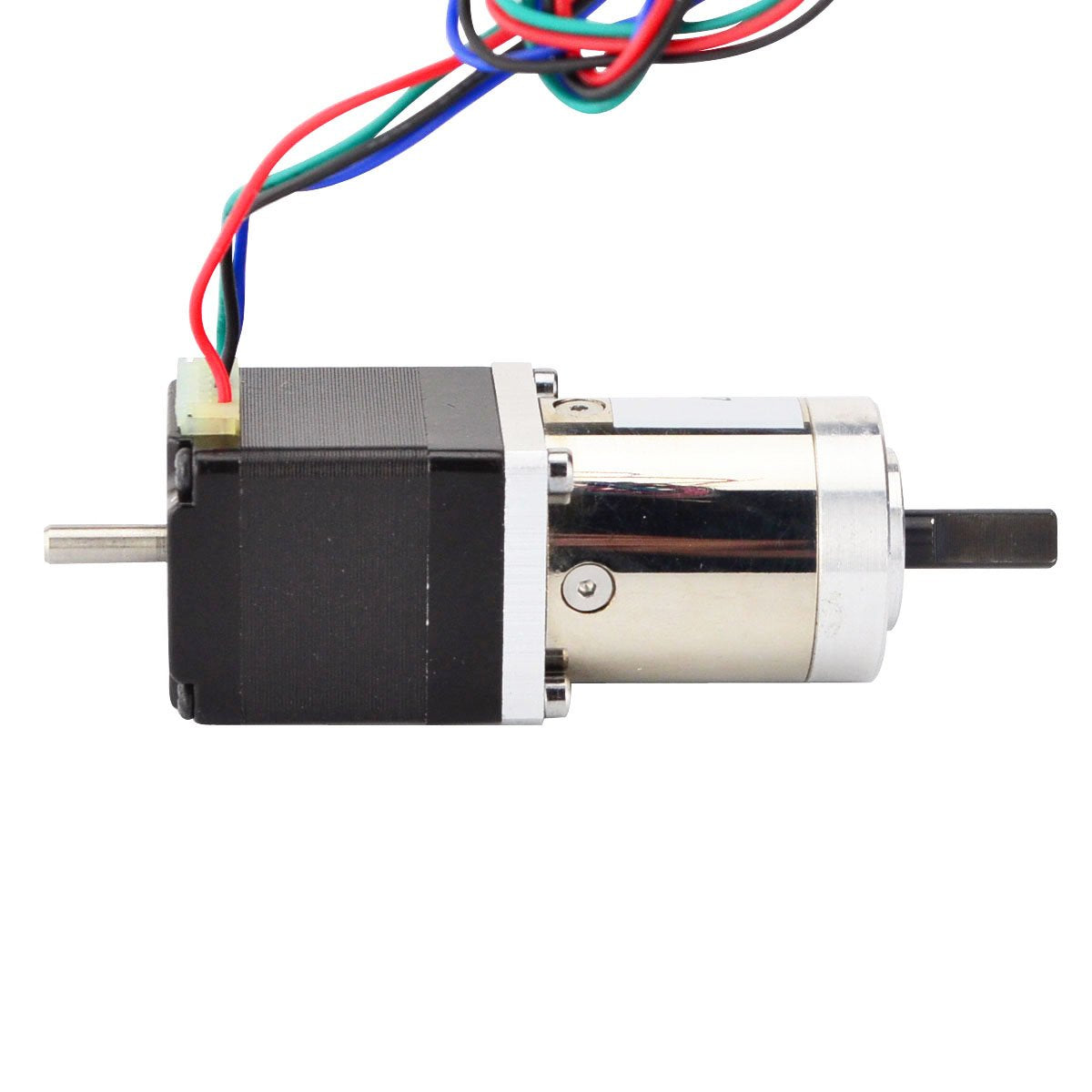

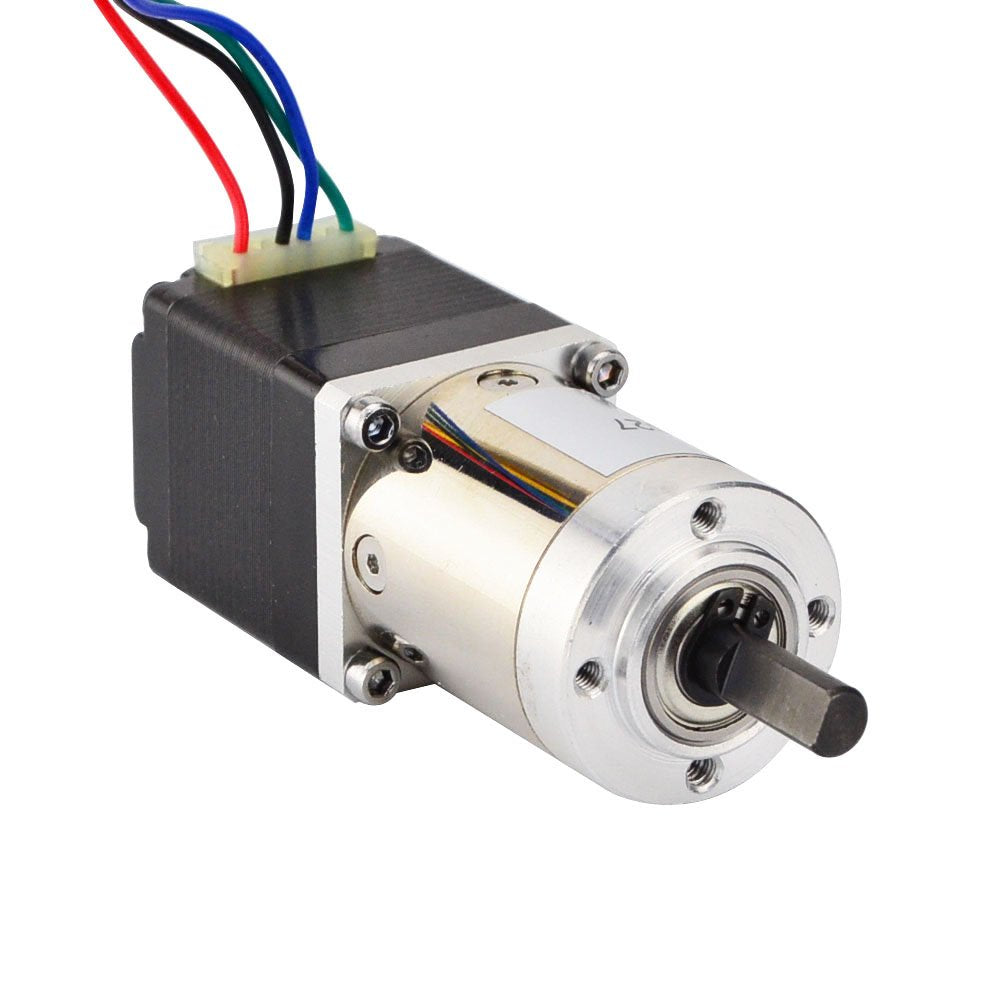

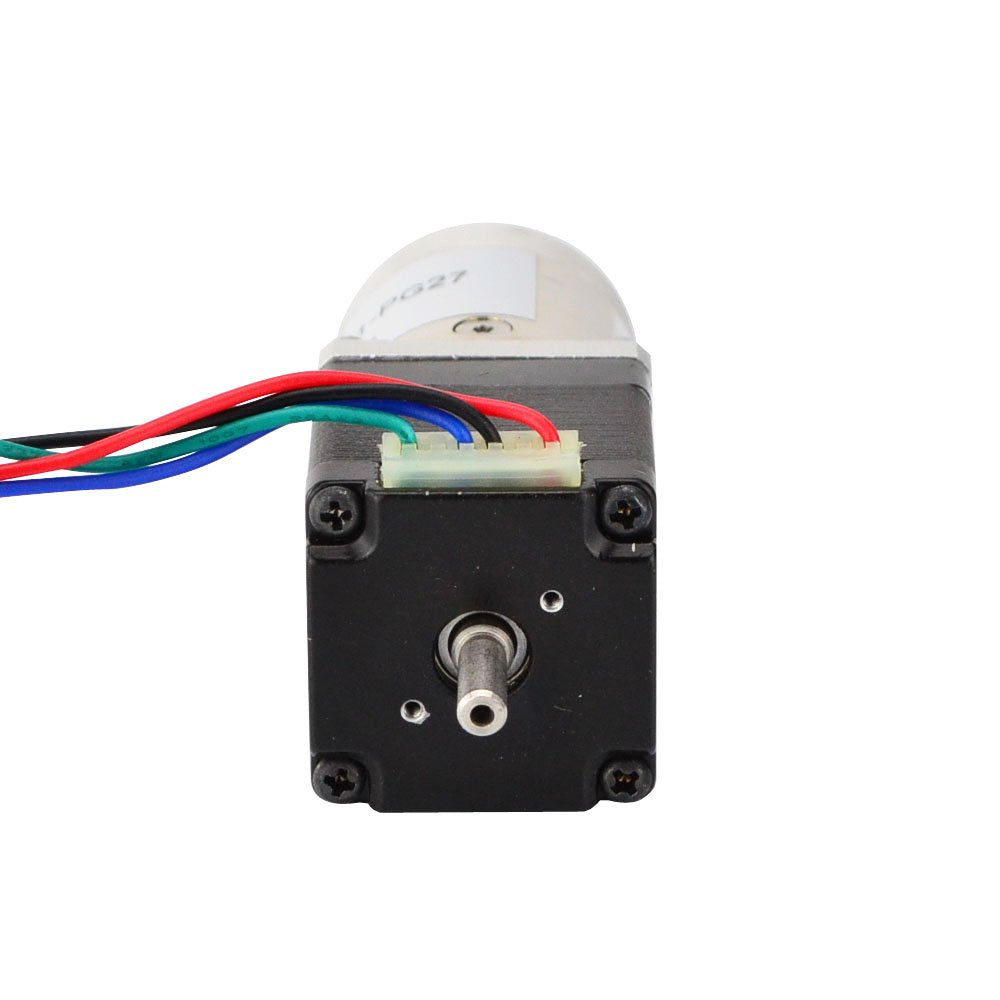

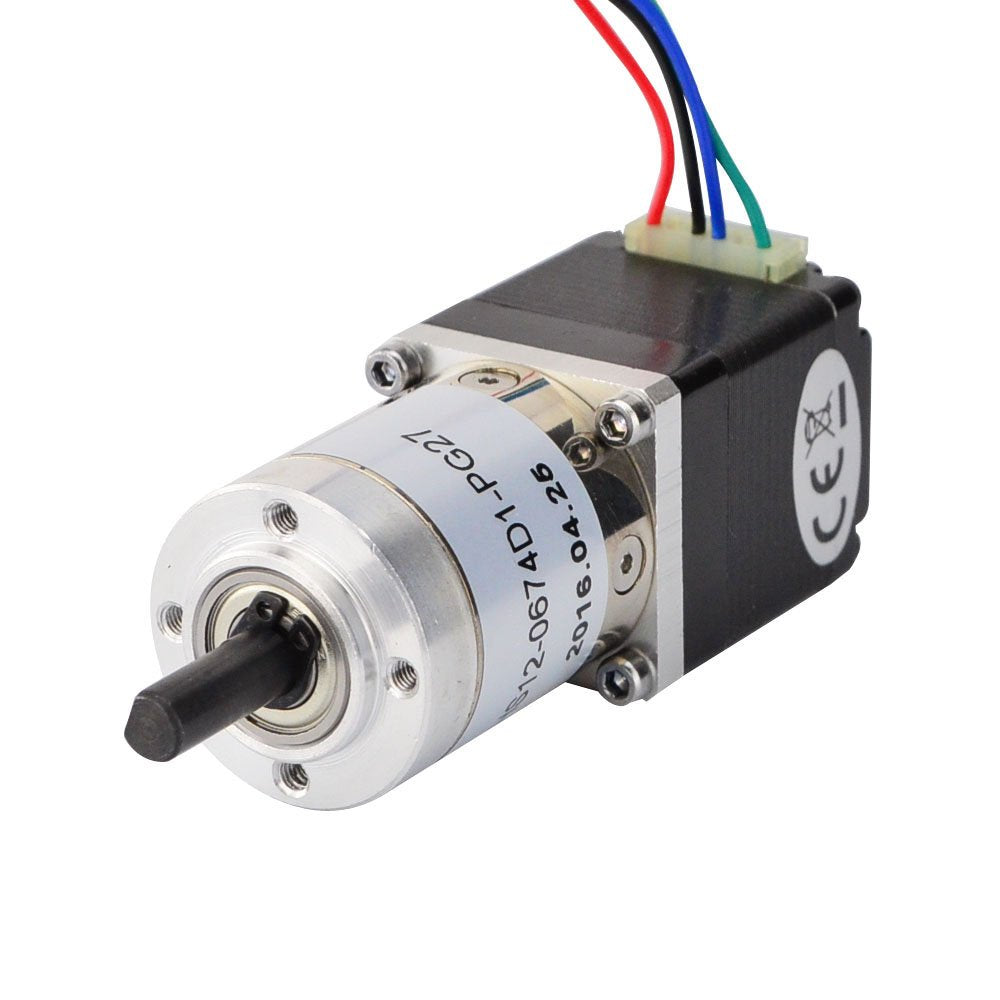

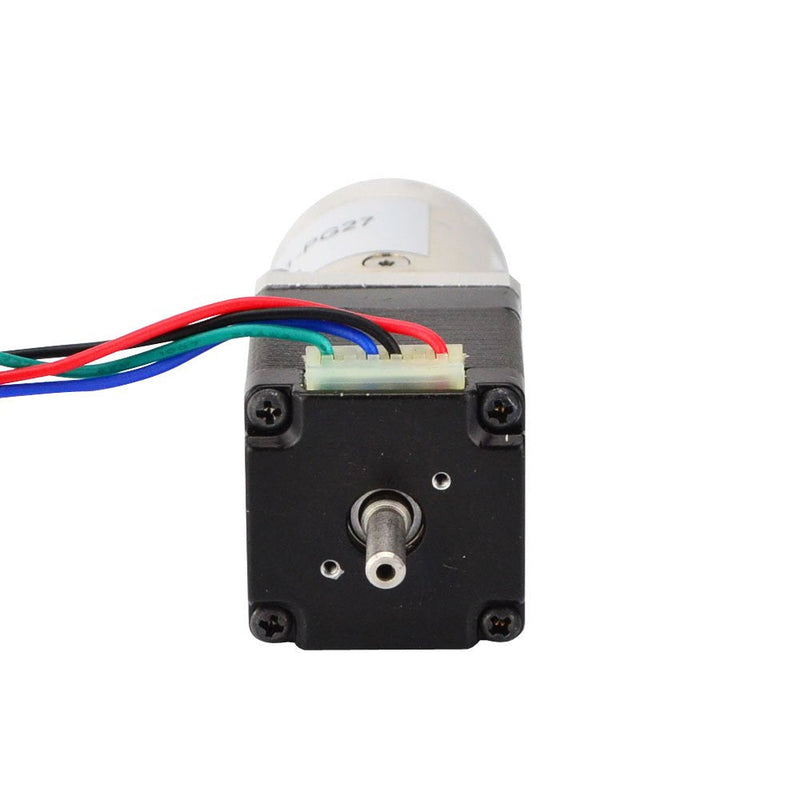

{"id":9681501421719,"title":"STEPPERONLINE 27:1 Planetary Gearbox Nema 11 Dual Shaft Geared Stepper Motor DIY Robot Camera","handle":"stepperonline-27-1-planetary-gearbox-nema-11-dual-shaft-geared-stepper-motor-diy-robot-camera","description":"\u003ch3\u003eSTEPPERONLINE 27:1 Planetary Gearbox Nema 11 Dual Shaft Geared Stepper Motor DIY Robot Camera\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high precision NEMA 11 Stepper motor has an integrated Planetary gearbox\nwith a 26.85:1 gear ratio, the resolution reach 0.067 deg. step angle. It's a\ngood solution in applications that need very low rotation speeds and\/or lots\nof torque. A rear shaft can mount encoder or equals, the rear shaft diameter\nis 3.9mm. Electrical Specification: Manufacturer Part Number:\n11HS12-0674D1-PG27 Motor Type: Bipolar Stepper Step Angle: 0.067 deg. \nHolding Torque: 1.3Nm Rated Current\/phase: 0.67A Phase Resistance: 5.6ohms\n Inductance: 4.2mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 26.85:1 Gear Efficiency: 81% Backlash at No-\nload:\u0026lt;=1 deg. Max.Permissible Torque: 3Nm(425oz-in) Moment Permissible\nTorque: 5Nm(708oz-in) Shaft Maximum Axial Load: 5N Shaft Maximum Radial\nLoad: 25N Physical Specifications: Frame Size: 30 x 30mm Motor Length:\n31.5mm Gearbox Length: 35mm Front Shaft Diameter: 6mm Front Shaft\nLength: 18mm Front D-cut Length: 12mm Rear Shaft Diameter 3.9mm Rear\nShaft Length: 12mm Number of Leads: 4 Lead Length: 300mm Weight: 120g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.067 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 11 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 26.85:1\u003c\/li\u003e\n \u003cli\u003eRated current 0.67A \u0026amp; resistance 5.6ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T17:14:33+10:00","created_at":"2026-07-27T09:37:37+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["home_improvement_Aug2026"],"price":23000,"price_min":23000,"price_max":23000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48069463212183,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNEQFAM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE 27:1 Planetary Gearbox Nema 11 Dual Shaft Geared Stepper Motor DIY Robot Camera","public_title":null,"options":["Default Title"],"price":23000,"weight":249,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056386307","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQFAM.jpg?v=1785109060","\/\/newnestshop.com\/cdn\/shop\/files\/513yEGzlXJL.jpg?v=1785109060","\/\/newnestshop.com\/cdn\/shop\/files\/61TDL0fxZqL.jpg?v=1785109060","\/\/newnestshop.com\/cdn\/shop\/files\/61Wvn_F2v2L.jpg?v=1785109060","\/\/newnestshop.com\/cdn\/shop\/files\/51Cntvk1-lL.jpg?v=1785109060","\/\/newnestshop.com\/cdn\/shop\/files\/61u_RPh5jPL.jpg?v=1785109060","\/\/newnestshop.com\/cdn\/shop\/files\/41dppY2elHL.jpg?v=1785109059","\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL_3bc128ce-8901-4607-af21-f82adb911ad6.jpg?v=1785109059"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQFAM.jpg?v=1785109060","options":["Title"],"media":[{"alt":null,"id":42462615470231,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQFAM.jpg?v=1785109060"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEQFAM.jpg?v=1785109060","width":1000},{"alt":null,"id":42462615502999,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/513yEGzlXJL.jpg?v=1785109060"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/513yEGzlXJL.jpg?v=1785109060","width":1000},{"alt":null,"id":42462615535767,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61TDL0fxZqL.jpg?v=1785109060"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61TDL0fxZqL.jpg?v=1785109060","width":1000},{"alt":null,"id":42462615568535,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Wvn_F2v2L.jpg?v=1785109060"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61Wvn_F2v2L.jpg?v=1785109060","width":1200},{"alt":null,"id":42462615601303,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51Cntvk1-lL.jpg?v=1785109060"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51Cntvk1-lL.jpg?v=1785109060","width":1000},{"alt":null,"id":42462615634071,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61u_RPh5jPL.jpg?v=1785109060"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61u_RPh5jPL.jpg?v=1785109060","width":1000},{"alt":null,"id":42462615666839,"position":7,"preview_image":{"aspect_ratio":2.66,"height":188,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41dppY2elHL.jpg?v=1785109059"},"aspect_ratio":2.66,"height":188,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41dppY2elHL.jpg?v=1785109059","width":500},{"alt":null,"id":42462615699607,"position":8,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL_3bc128ce-8901-4607-af21-f82adb911ad6.jpg?v=1785109059"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL_3bc128ce-8901-4607-af21-f82adb911ad6.jpg?v=1785109059","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE 27:1 Planetary Gearbox Nema 11 Dual Shaft Geared Stepper Motor DIY Robot Camera\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis high precision NEMA 11 Stepper motor has an integrated Planetary gearbox\nwith a 26.85:1 gear ratio, the resolution reach 0.067 deg. step angle. It's a\ngood solution in applications that need very low rotation speeds and\/or lots\nof torque. A rear shaft can mount encoder or equals, the rear shaft diameter\nis 3.9mm. Electrical Specification: Manufacturer Part Number:\n11HS12-0674D1-PG27 Motor Type: Bipolar Stepper Step Angle: 0.067 deg. \nHolding Torque: 1.3Nm Rated Current\/phase: 0.67A Phase Resistance: 5.6ohms\n Inductance: 4.2mH+\/-20%(1KHz) Gearbox Specifications: Gearbox Type:\nPlanetary Gear Ratio: 26.85:1 Gear Efficiency: 81% Backlash at No-\nload:\u0026lt;=1 deg. Max.Permissible Torque: 3Nm(425oz-in) Moment Permissible\nTorque: 5Nm(708oz-in) Shaft Maximum Axial Load: 5N Shaft Maximum Radial\nLoad: 25N Physical Specifications: Frame Size: 30 x 30mm Motor Length:\n31.5mm Gearbox Length: 35mm Front Shaft Diameter: 6mm Front Shaft\nLength: 18mm Front D-cut Length: 12mm Rear Shaft Diameter 3.9mm Rear\nShaft Length: 12mm Number of Leads: 4 Lead Length: 300mm Weight: 120g\nConnection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the\nmotor connect to a constant current or chopper drive controller before you\ntest motor. Connecting the motor directly to a power supply will destroy the\nmotor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Torque Good Speed\u003c\/li\u003e\n \u003cli\u003e0.067 deg. Step Angle\u003c\/li\u003e\n \u003cli\u003eNEMA 11 bipolar 4-wire\u003c\/li\u003e\n \u003cli\u003ePlanetary Gearbox Ratio 26.85:1\u003c\/li\u003e\n \u003cli\u003eRated current 0.67A \u0026amp; resistance 5.6ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
