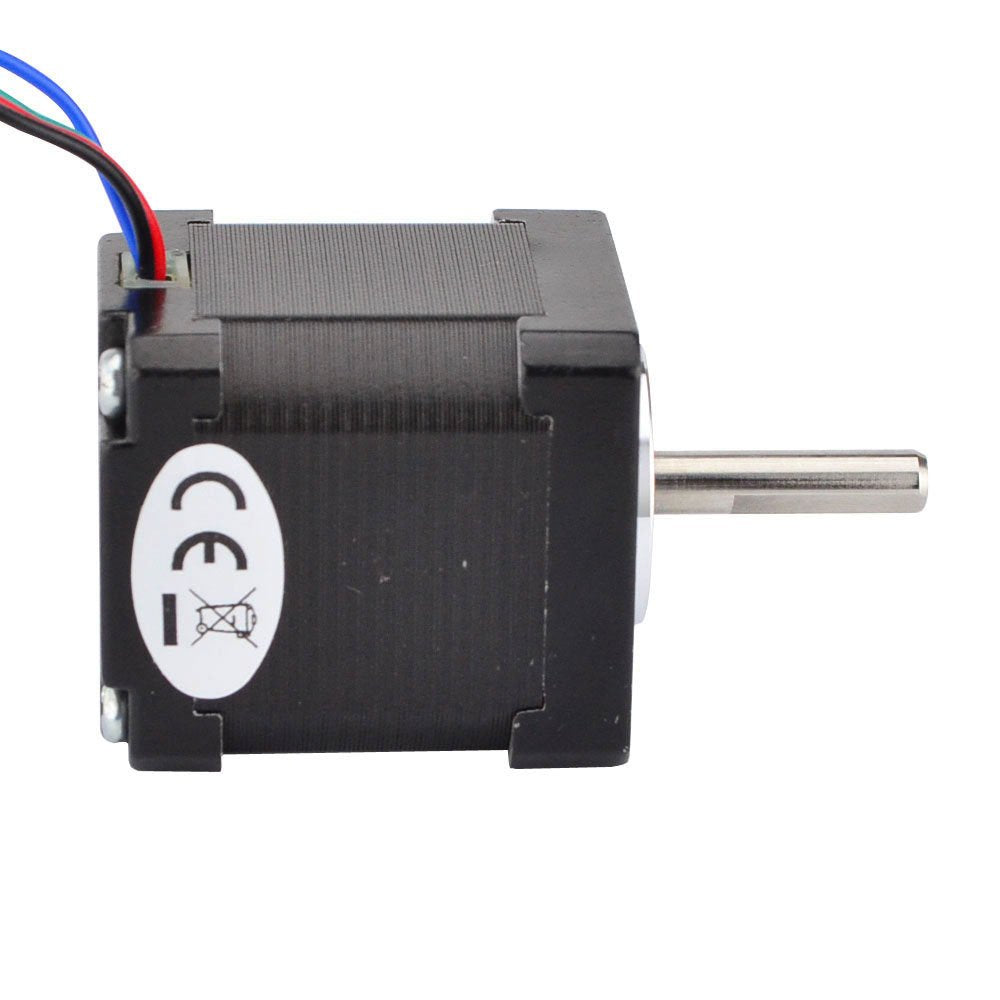

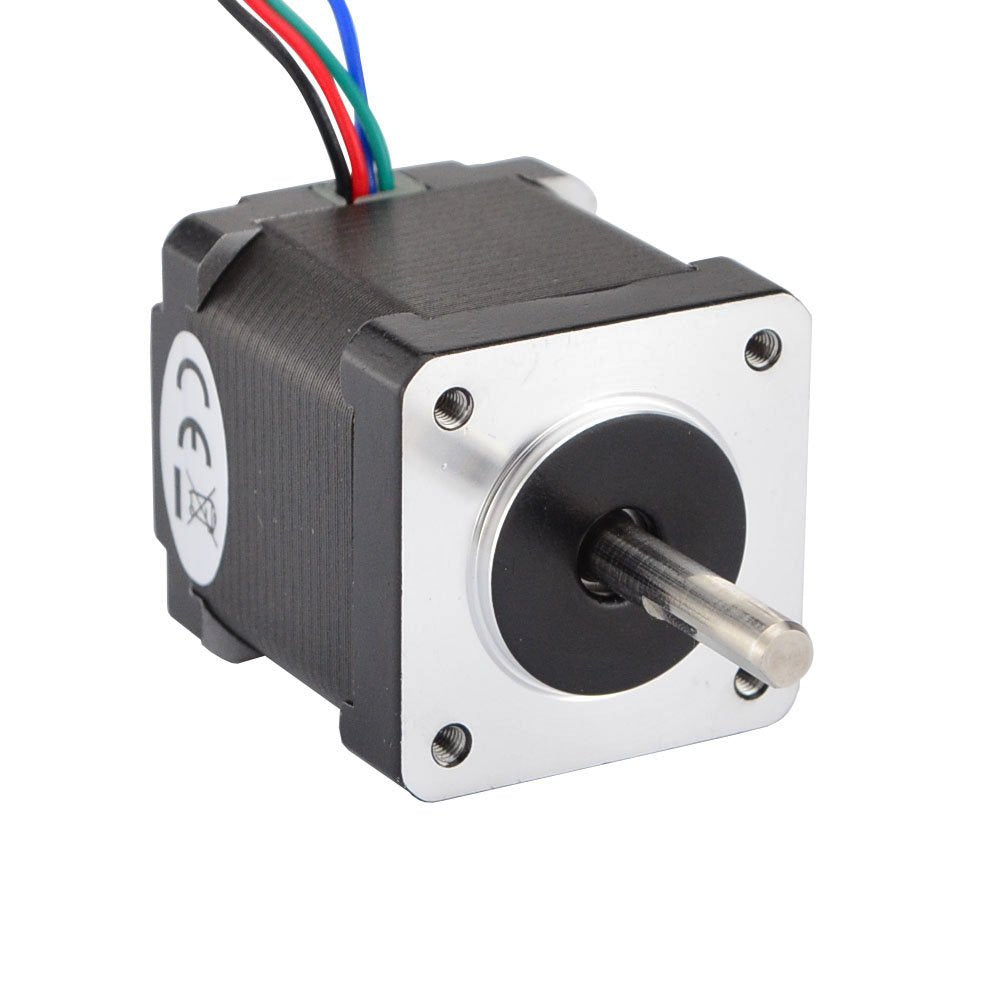

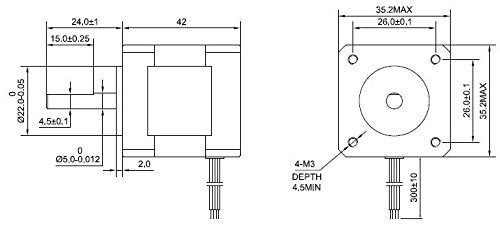

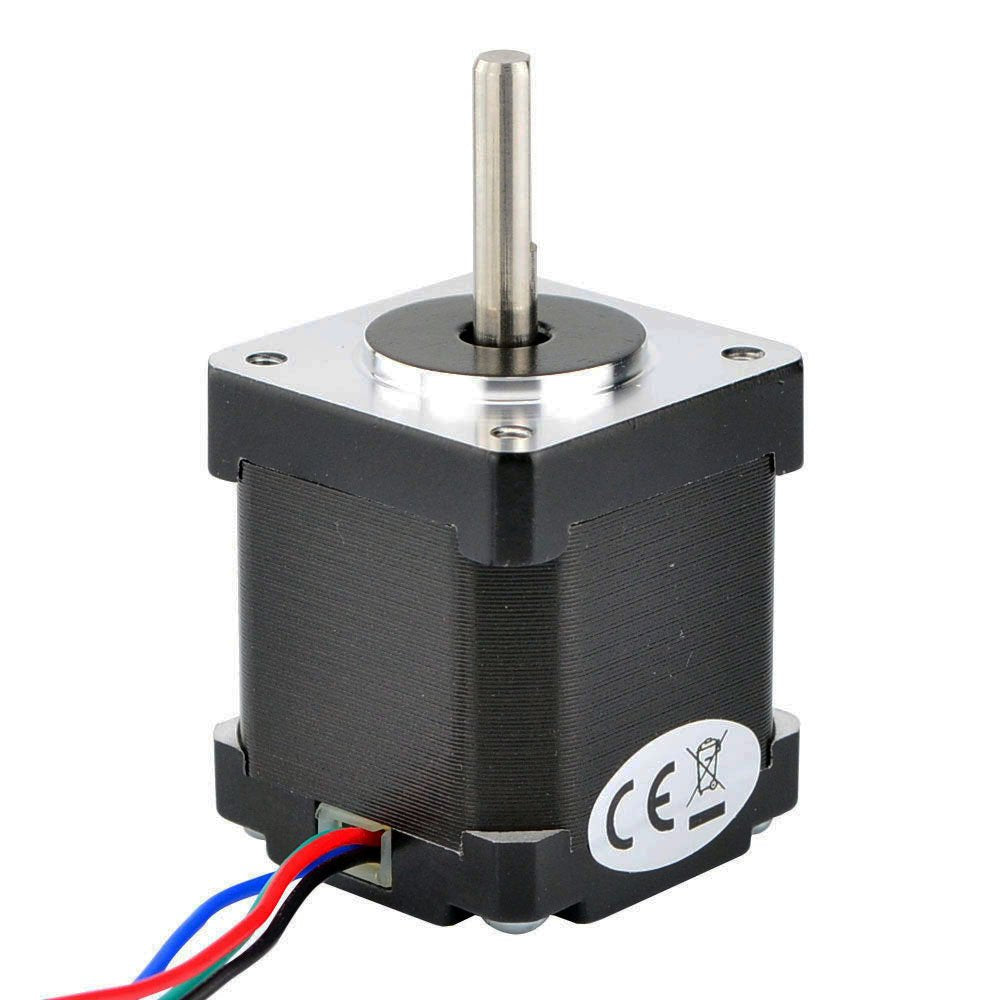

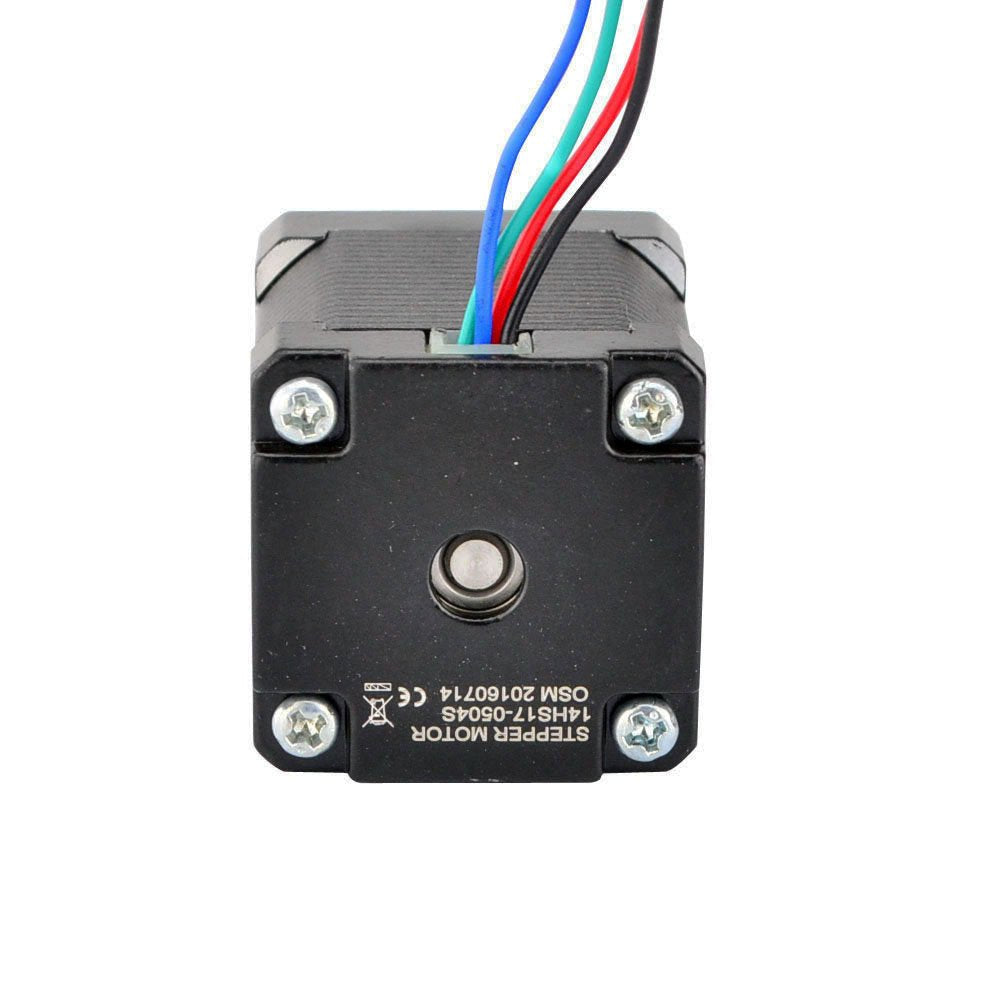

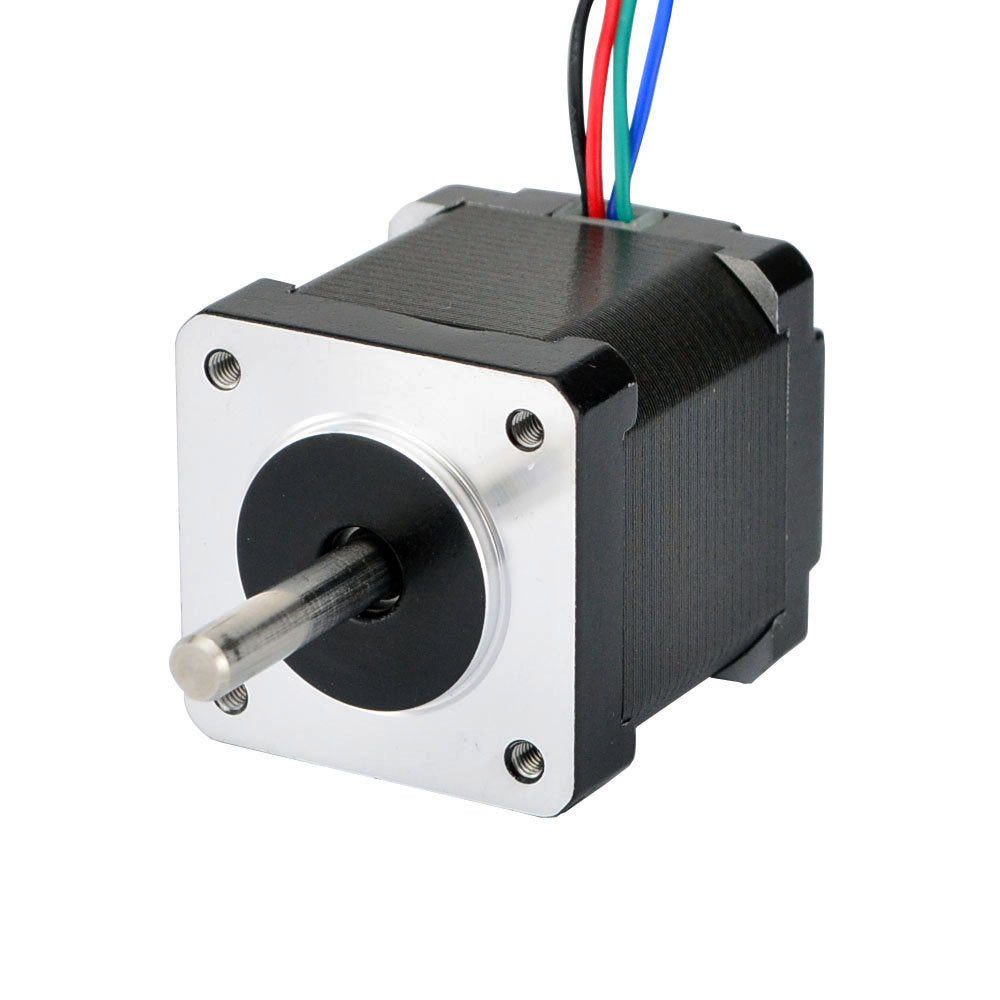

{"id":8766164369559,"title":"STEPPERONLINE Nema 14 Bipolar Motor Stepper 0.5A 32.6oz.in\/23Ncm 4-Lead 1.8 deg DIY Robot","handle":"stepperonline-nema-14-bipolar-motor-stepper-0-5a-32-6oz-in-23ncm-4-lead-1-8-deg-diy-robot","description":"\u003ch3\u003eSTEPPERONLINE Nema 14 Bipolar Motor Stepper 0.5A 32.6oz.in\/23Ncm 4-Lead 1.8 deg DIY Robot\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis hybrid bipolar Nema 14 stepper motor with 1.8 deg. step angle (200\nsteps\/revolution). Each phase draws 500 mA at 7.5 V, allowing for a holding\ntorque of 23Ncm(32.6oz.in). Electrical Specification: Manufacturer Part\nNumber: 14HS17-0504S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. \nHolding Torque: 23Ncm(32.6oz.in) Rated Current\/phase: 0.5A Phase\nResistance: 15ohms Inductance: 26mH+\/-20%(1KHz) Physical Specification: \nFrame Size: 35 x 35mm Body Length: 42mm Shaft Diameter: 5mm Shaft\nLength: 24mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 300mm \nWeight: 220g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make\nsure the motor connect to a constant current or chopper drive controller\nbefore you test motor. Connecting the motor directly to a power supply will\ndestroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Torque\u003c\/li\u003e\n \u003cli\u003e23Ncm(32.6oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 14 bipolar 1.65\"x1.65\"x1.65\" 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 deg. step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 0.5A \u0026amp; resistance 15ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:46:05+11:00","created_at":"2025-01-29T22:15:11+11:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_best_sellers_Jan2025"],"price":15700,"price_min":15700,"price_max":15700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45091697950871,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNEPTZY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 14 Bipolar Motor Stepper 0.5A 32.6oz.in\/23Ncm 4-Lead 1.8 deg DIY Robot","public_title":null,"options":["Default Title"],"price":15700,"weight":227,"compare_at_price":null,"inventory_management":"shopify","barcode":"701056324880","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEPTZY.jpg?v=1775757820","\/\/newnestshop.com\/cdn\/shop\/files\/61jm2WsSyrL.jpg?v=1738149314","\/\/newnestshop.com\/cdn\/shop\/files\/61xeHNtNh8L.jpg?v=1738149314","\/\/newnestshop.com\/cdn\/shop\/files\/51ozVknFYCL.jpg?v=1738149314","\/\/newnestshop.com\/cdn\/shop\/files\/61VSik4gt9L.jpg?v=1738149314","\/\/newnestshop.com\/cdn\/shop\/files\/41a-sQU_7yL.jpg?v=1738149314","\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL.jpg?v=1738149313"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEPTZY.jpg?v=1775757820","options":["Title"],"media":[{"alt":null,"id":36844480823447,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEPTZY.jpg?v=1775757820"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B00PNEPTZY.jpg?v=1775757820","width":1000},{"alt":null,"id":36844480856215,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61jm2WsSyrL.jpg?v=1738149314"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61jm2WsSyrL.jpg?v=1738149314","width":1000},{"alt":null,"id":36844480888983,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xeHNtNh8L.jpg?v=1738149314"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61xeHNtNh8L.jpg?v=1738149314","width":1000},{"alt":null,"id":36844480921751,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51ozVknFYCL.jpg?v=1738149314"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51ozVknFYCL.jpg?v=1738149314","width":1000},{"alt":null,"id":36844480954519,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VSik4gt9L.jpg?v=1738149314"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VSik4gt9L.jpg?v=1738149314","width":1000},{"alt":null,"id":36844480987287,"position":6,"preview_image":{"aspect_ratio":2.193,"height":228,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41a-sQU_7yL.jpg?v=1738149314"},"aspect_ratio":2.193,"height":228,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41a-sQU_7yL.jpg?v=1738149314","width":500},{"alt":null,"id":36844481020055,"position":7,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL.jpg?v=1738149313"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/31cKfwDcIqL.jpg?v=1738149313","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 14 Bipolar Motor Stepper 0.5A 32.6oz.in\/23Ncm 4-Lead 1.8 deg DIY Robot\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis hybrid bipolar Nema 14 stepper motor with 1.8 deg. step angle (200\nsteps\/revolution). Each phase draws 500 mA at 7.5 V, allowing for a holding\ntorque of 23Ncm(32.6oz.in). Electrical Specification: Manufacturer Part\nNumber: 14HS17-0504S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. \nHolding Torque: 23Ncm(32.6oz.in) Rated Current\/phase: 0.5A Phase\nResistance: 15ohms Inductance: 26mH+\/-20%(1KHz) Physical Specification: \nFrame Size: 35 x 35mm Body Length: 42mm Shaft Diameter: 5mm Shaft\nLength: 24mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 300mm \nWeight: 220g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make\nsure the motor connect to a constant current or chopper drive controller\nbefore you test motor. Connecting the motor directly to a power supply will\ndestroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Torque\u003c\/li\u003e\n \u003cli\u003e23Ncm(32.6oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 14 bipolar 1.65\"x1.65\"x1.65\" 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 deg. step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 0.5A \u0026amp; resistance 15ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
