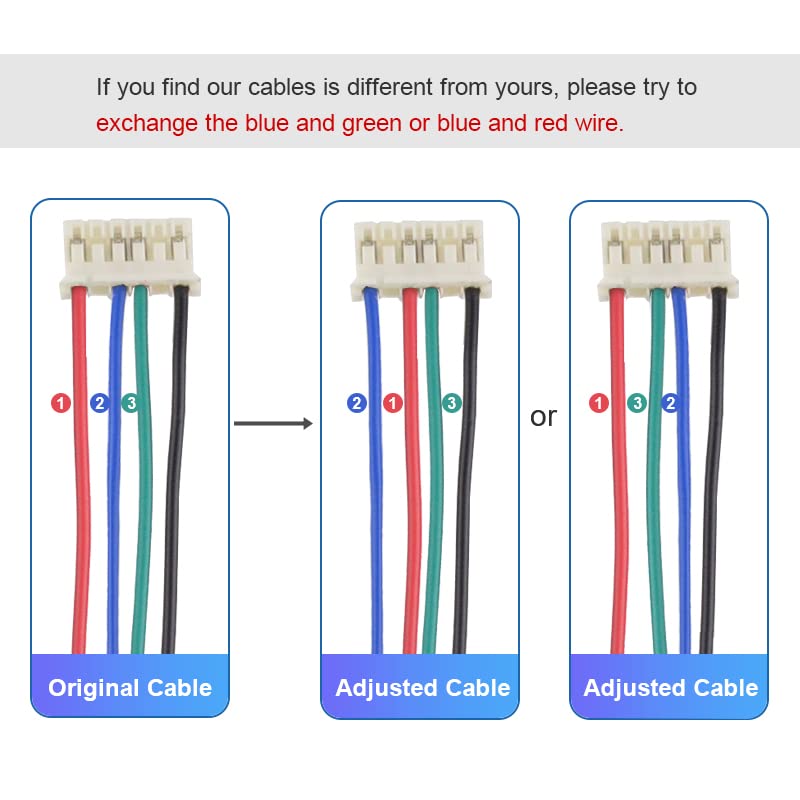

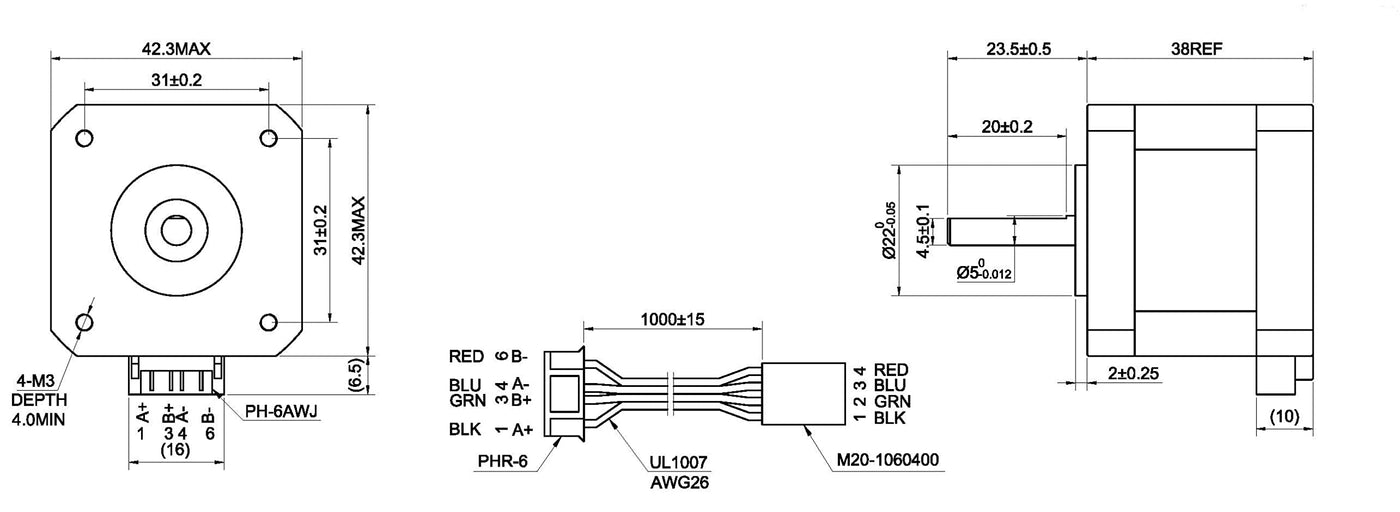

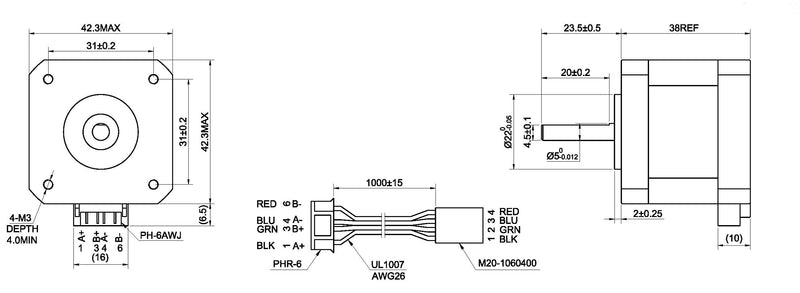

{"id":8804880842903,"title":"STEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (1 Pack) Black-1.8°","handle":"stepperonline-nema-17-stepper-motor-bipolar-1-5a-42ncm-42x42x38mm-1-8deg-4-wires-with-1m-cable-and-connector-1-pack-black-1-8","description":"\u003ch3\u003eSTEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (1 Pack)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x38mm.\nIt has 4 wires, each phase draws current 1.5A, with holding torque 42Ncm.\nElectrical Specification Manufacturer Part Number: 17HE15-1504S Motor Type:\nBipolar Stepper Step Angle: 1.8 deg Holding Torque: 42Ncm(59.49oz.in) Rated\nCurrent\/phase: 1.50A Phase Resistance: 2.3ohms Inductance: 4.00mH ±\n20%(1KHz) Physical Specification Frame Size: 42 x 42mm Body Length: 38mm\nShaft Diameter: Φ5mm Shaft Length: 23.5mm D-cut Length: 20mm Number of\nLeads: 4 Lead Length: 1000mm Weight: 280g Connection A+: Black, A-: Blue,\nB+: Green, B-: Red WARNING On some systems, the middle 2 wires on the motor\nside are swapped. This is easy to fix by slightly prying back the white nubs\nand swapping the wires. Otherwise they work fine. Make sure the motor\nconnect to a constant current or chopper drive controller before you test\nmotor. Connecting the motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNema 17 Stepper Motor with 42Ncm holding troque\u003c\/li\u003e\n \u003cli\u003eBipolar stepper motor ,dimension 42*42*38mm, 2 phase, 4 leads\u003c\/li\u003e\n \u003cli\u003eStep angle 1.8deg, 200 step\/revolution\u003c\/li\u003e\n \u003cli\u003eRated Current\/phase 1.5A \u0026amp; Phase Resistance 2.3ohms\u003c\/li\u003e\n \u003cli\u003eLow noise high speed 3d printer stepper motor, build with 1m Cable and Connector\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-08T17:13:08+11:00","created_at":"2025-02-08T12:51:40+11:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["industrial_best_sellers_Jan2025"],"price":12000,"price_min":12000,"price_max":12000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45144951980183,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B38GX54H","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (1 Pack) Black-1.8°","public_title":null,"options":["Default Title"],"price":12000,"weight":308,"compare_at_price":null,"inventory_management":"shopify","barcode":"17HE15-1504S","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0B38GX54H.jpg?v=1775768026","\/\/newnestshop.com\/cdn\/shop\/files\/512EirXornL.jpg?v=1738979502","\/\/newnestshop.com\/cdn\/shop\/files\/41rgkHMY_ML.jpg?v=1738979502","\/\/newnestshop.com\/cdn\/shop\/files\/41VMXpeYgKL.jpg?v=1738979502","\/\/newnestshop.com\/cdn\/shop\/files\/51SXHf185bL.jpg?v=1738979502","\/\/newnestshop.com\/cdn\/shop\/files\/4167urN8W3L.jpg?v=1738979502","\/\/newnestshop.com\/cdn\/shop\/files\/61NGmp8r7uL.jpg?v=1738979502"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B38GX54H.jpg?v=1775768026","options":["Title"],"media":[{"alt":null,"id":36945571905687,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B38GX54H.jpg?v=1775768026"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B38GX54H.jpg?v=1775768026","width":1000},{"alt":null,"id":36945571938455,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/512EirXornL.jpg?v=1738979502"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/512EirXornL.jpg?v=1738979502","width":800},{"alt":null,"id":36945571971223,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41rgkHMY_ML.jpg?v=1738979502"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41rgkHMY_ML.jpg?v=1738979502","width":1000},{"alt":null,"id":36945572003991,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41VMXpeYgKL.jpg?v=1738979502"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41VMXpeYgKL.jpg?v=1738979502","width":1000},{"alt":null,"id":36945572036759,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SXHf185bL.jpg?v=1738979502"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SXHf185bL.jpg?v=1738979502","width":1000},{"alt":null,"id":36945572069527,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/4167urN8W3L.jpg?v=1738979502"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/4167urN8W3L.jpg?v=1738979502","width":1000},{"alt":null,"id":36945572102295,"position":7,"preview_image":{"aspect_ratio":2.732,"height":937,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61NGmp8r7uL.jpg?v=1738979502"},"aspect_ratio":2.732,"height":937,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61NGmp8r7uL.jpg?v=1738979502","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (1 Pack)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x38mm.\nIt has 4 wires, each phase draws current 1.5A, with holding torque 42Ncm.\nElectrical Specification Manufacturer Part Number: 17HE15-1504S Motor Type:\nBipolar Stepper Step Angle: 1.8 deg Holding Torque: 42Ncm(59.49oz.in) Rated\nCurrent\/phase: 1.50A Phase Resistance: 2.3ohms Inductance: 4.00mH ±\n20%(1KHz) Physical Specification Frame Size: 42 x 42mm Body Length: 38mm\nShaft Diameter: Φ5mm Shaft Length: 23.5mm D-cut Length: 20mm Number of\nLeads: 4 Lead Length: 1000mm Weight: 280g Connection A+: Black, A-: Blue,\nB+: Green, B-: Red WARNING On some systems, the middle 2 wires on the motor\nside are swapped. This is easy to fix by slightly prying back the white nubs\nand swapping the wires. Otherwise they work fine. Make sure the motor\nconnect to a constant current or chopper drive controller before you test\nmotor. Connecting the motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNema 17 Stepper Motor with 42Ncm holding troque\u003c\/li\u003e\n \u003cli\u003eBipolar stepper motor ,dimension 42*42*38mm, 2 phase, 4 leads\u003c\/li\u003e\n \u003cli\u003eStep angle 1.8deg, 200 step\/revolution\u003c\/li\u003e\n \u003cli\u003eRated Current\/phase 1.5A \u0026amp; Phase Resistance 2.3ohms\u003c\/li\u003e\n \u003cli\u003eLow noise high speed 3d printer stepper motor, build with 1m Cable and Connector\u003c\/li\u003e\n \u003c\/ul\u003e"}
