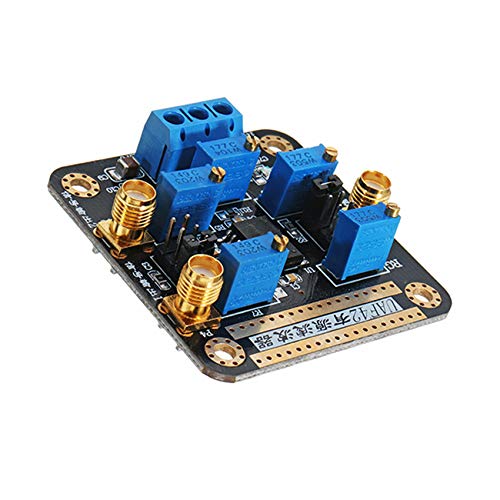

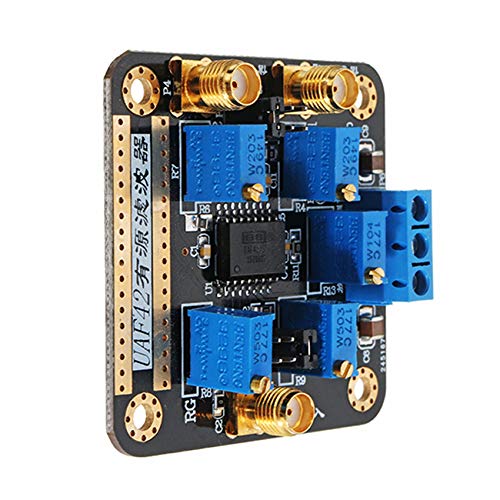

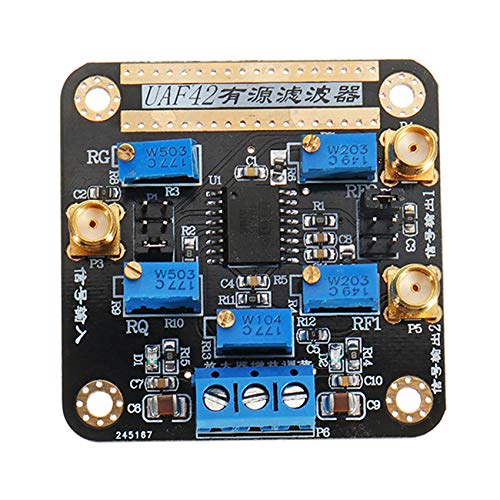

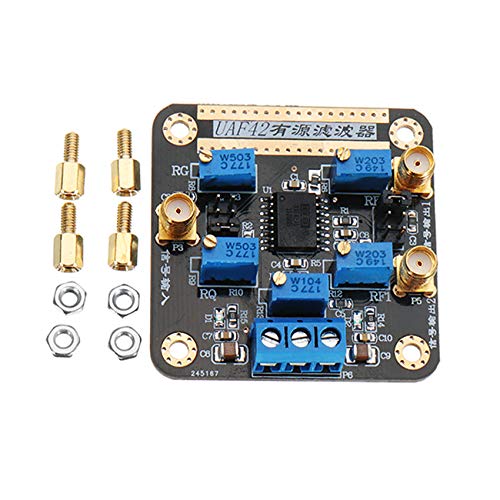

Taidacent UAF42 Universal Active Filter Module High Pass Low Pass Band Pass Filtering Active Band Pass Filter Module Tunable Filter

In Stock. Leaves warehouse within 2 - 3 business days

$229.00 AUD
Maximum quantity available reached.
Shop with Confidence — Free Shipping, Always
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Taidacent UAF42 Universal Active Filter Module High Pass Low Pass Band Pass Filtering Active Band Pass Filter Module Tunable Filter

Product Features

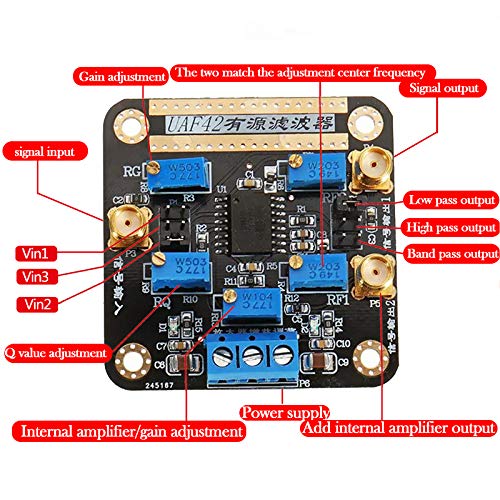

  • UAF42 is a universal active filter that can be configured for various low-pass, high-pass, and band-pass filters.
  • It uses a classic state-variable analog architecture with an inverting amplifier and two integrators.
  • The integrator includes an on-chip 1000pF capacitor trimmed to 0.5%.
  • A fourth useless FET input operational amplifier (same as the other three) can be used to form additional stages, or for special filters such as band stop and inverse Chebyshev.
  • Generally used in power system, sensor signal processing, transmitter and receiver, signal generator processing, etc.
