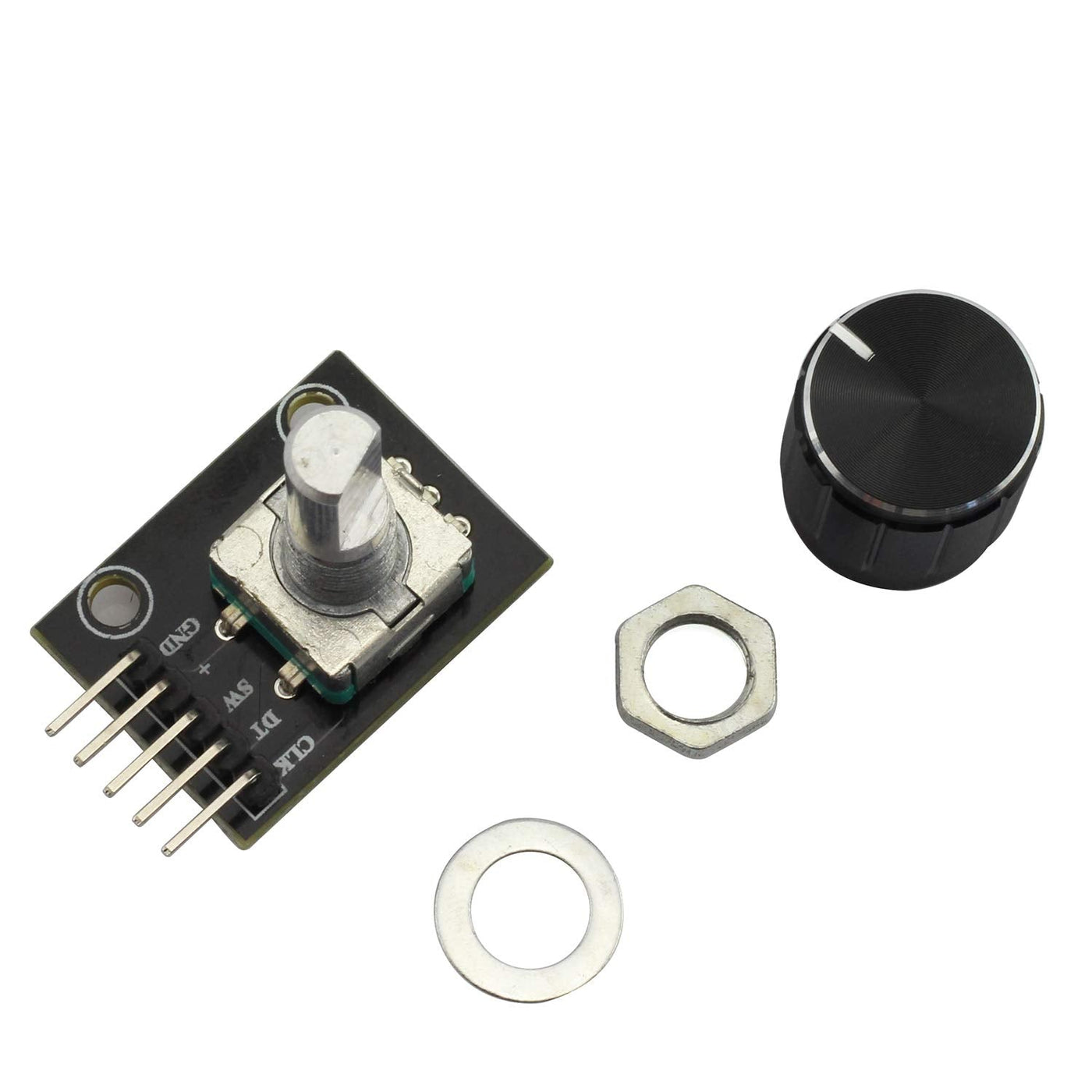

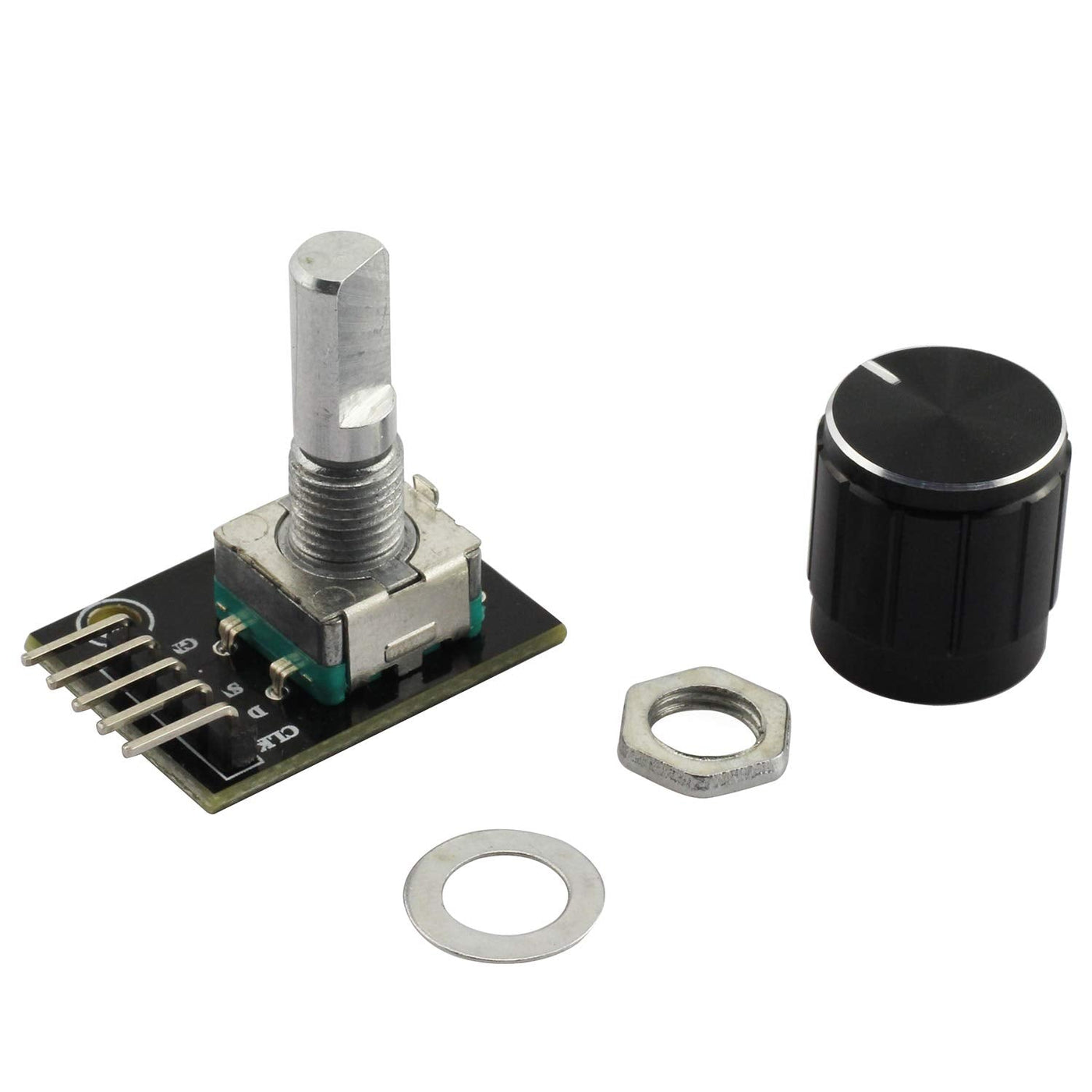

{"id":8826425770135,"title":"Tegg 2 PCS KY-040 360 Degree Rotary Encoder Module Brick Sensor clickable Switch with Knob Cap for Arduino","handle":"tegg-2-pcs-ky-040-360-degree-rotary-encoder-module-brick-sensor-clickable-switch-with-knob-cap-for-arduino","description":"\u003ch3\u003eTegg 2 PCS KY-040 360 Degree Rotary Encoder Module Brick Sensor clickable Switch with Knob Cap for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Type: KY-040 Rotary Decoder Encoder. Operating Voltage: 5V. One\nround number of pulse: 20. Width: 19mm\/0.75 Inches. Length: 30mm\/ 1.18 Inches.\nHeight: 28mm\/1.10 Inches. Material of Knob Cap: Aluminium Alloy. Diameter of\nKnob Cap: 14mm\/ 0.55 Inches. Height of Knob Cap: 17mm\/ 0.67Inches. Package:2\nPCS. Pin description: CLK - equivalent to output A in regular encoder. DT -\nequivalent to output B in regular encoder. GND - equivalent to output C in\nregular encoder. SW - reset switch. + (VCC) - positive supply to the unit. The\nKY-040 rotary encoder is a 360 degree rotary input device (i.e. a control\nknob) that provides an indication of how much the knob has been rotated AND\nwhich direction it is rotating in. It is a great device for stepper and servo\nmotor control. You can also use it to control devices like digital\npotentiometers. It is ideal for navigating menus on a display or taking inputs\nsuch as numbers or text characters. The range of input can be easily defined\nand mapped in software. A push button switch is built into this encoder. If\nyou push on the shaft, the normally open switch \"SW\" will close. This can be\nused as an On\/Off switch, to change control functions, ranges, selecting a\nmenu item or entering a number. The \"D\" shaft of the encoder can be fitted\nwith a knob for using it in a product.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eType: KY-040 Rotary Decoder Encoder.\u003c\/li\u003e\n \u003cli\u003eOperating Voltage: 5V. One round number of pulse: 20.\u003c\/li\u003e\n \u003cli\u003eSize: 30x19x28mm\/1.18x0.75x1.10 Inches(LxWxH). Package:2 PCS.\u003c\/li\u003e\n \u003cli\u003eUnlike rotary potentiometer count, the rotation counts are not limited.\u003c\/li\u003e\n \u003cli\u003eWith the button on the rotary encoder can be reset to its initial state, that starts counting from 0.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-18T15:37:18+11:00","created_at":"2025-02-10T19:47:24+11:00","vendor":"Tegg","type":"Switch Encoders","tags":["industrial_best_sellers_Jan2025"],"price":9200,"price_min":9200,"price_max":9200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45167954296983,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07QL6V4WP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Tegg 2 PCS KY-040 360 Degree Rotary Encoder Module Brick Sensor clickable Switch with Knob Cap for Arduino","public_title":null,"options":["Default Title"],"price":9200,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"713871349672","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B07QL6V4WP.jpg?v=1775771741","\/\/newnestshop.com\/cdn\/shop\/files\/61XVhl7HZAL.jpg?v=1739177247","\/\/newnestshop.com\/cdn\/shop\/files\/611n6DzJbDL.jpg?v=1739177247","\/\/newnestshop.com\/cdn\/shop\/files\/61ZzU89emTL.jpg?v=1739177247","\/\/newnestshop.com\/cdn\/shop\/files\/6142Y-PCNEL.jpg?v=1739177247"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B07QL6V4WP.jpg?v=1775771741","options":["Title"],"media":[{"alt":null,"id":36978310348951,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07QL6V4WP.jpg?v=1775771741"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07QL6V4WP.jpg?v=1775771741","width":1500},{"alt":null,"id":36978310381719,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61XVhl7HZAL.jpg?v=1739177247"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61XVhl7HZAL.jpg?v=1739177247","width":1500},{"alt":null,"id":36978310414487,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/611n6DzJbDL.jpg?v=1739177247"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/611n6DzJbDL.jpg?v=1739177247","width":1500},{"alt":null,"id":36978310447255,"position":4,"preview_image":{"aspect_ratio":1.001,"height":1354,"width":1355,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ZzU89emTL.jpg?v=1739177247"},"aspect_ratio":1.001,"height":1354,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ZzU89emTL.jpg?v=1739177247","width":1355},{"alt":null,"id":36978310480023,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1466,"width":1466,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/6142Y-PCNEL.jpg?v=1739177247"},"aspect_ratio":1.0,"height":1466,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/6142Y-PCNEL.jpg?v=1739177247","width":1466}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTegg 2 PCS KY-040 360 Degree Rotary Encoder Module Brick Sensor clickable Switch with Knob Cap for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Type: KY-040 Rotary Decoder Encoder. Operating Voltage: 5V. One\nround number of pulse: 20. Width: 19mm\/0.75 Inches. Length: 30mm\/ 1.18 Inches.\nHeight: 28mm\/1.10 Inches. Material of Knob Cap: Aluminium Alloy. Diameter of\nKnob Cap: 14mm\/ 0.55 Inches. Height of Knob Cap: 17mm\/ 0.67Inches. Package:2\nPCS. Pin description: CLK - equivalent to output A in regular encoder. DT -\nequivalent to output B in regular encoder. GND - equivalent to output C in\nregular encoder. SW - reset switch. + (VCC) - positive supply to the unit. The\nKY-040 rotary encoder is a 360 degree rotary input device (i.e. a control\nknob) that provides an indication of how much the knob has been rotated AND\nwhich direction it is rotating in. It is a great device for stepper and servo\nmotor control. You can also use it to control devices like digital\npotentiometers. It is ideal for navigating menus on a display or taking inputs\nsuch as numbers or text characters. The range of input can be easily defined\nand mapped in software. A push button switch is built into this encoder. If\nyou push on the shaft, the normally open switch \"SW\" will close. This can be\nused as an On\/Off switch, to change control functions, ranges, selecting a\nmenu item or entering a number. The \"D\" shaft of the encoder can be fitted\nwith a knob for using it in a product.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eType: KY-040 Rotary Decoder Encoder.\u003c\/li\u003e\n \u003cli\u003eOperating Voltage: 5V. One round number of pulse: 20.\u003c\/li\u003e\n \u003cli\u003eSize: 30x19x28mm\/1.18x0.75x1.10 Inches(LxWxH). Package:2 PCS.\u003c\/li\u003e\n \u003cli\u003eUnlike rotary potentiometer count, the rotation counts are not limited.\u003c\/li\u003e\n \u003cli\u003eWith the button on the rotary encoder can be reset to its initial state, that starts counting from 0.\u003c\/li\u003e\n \u003c\/ul\u003e"}
