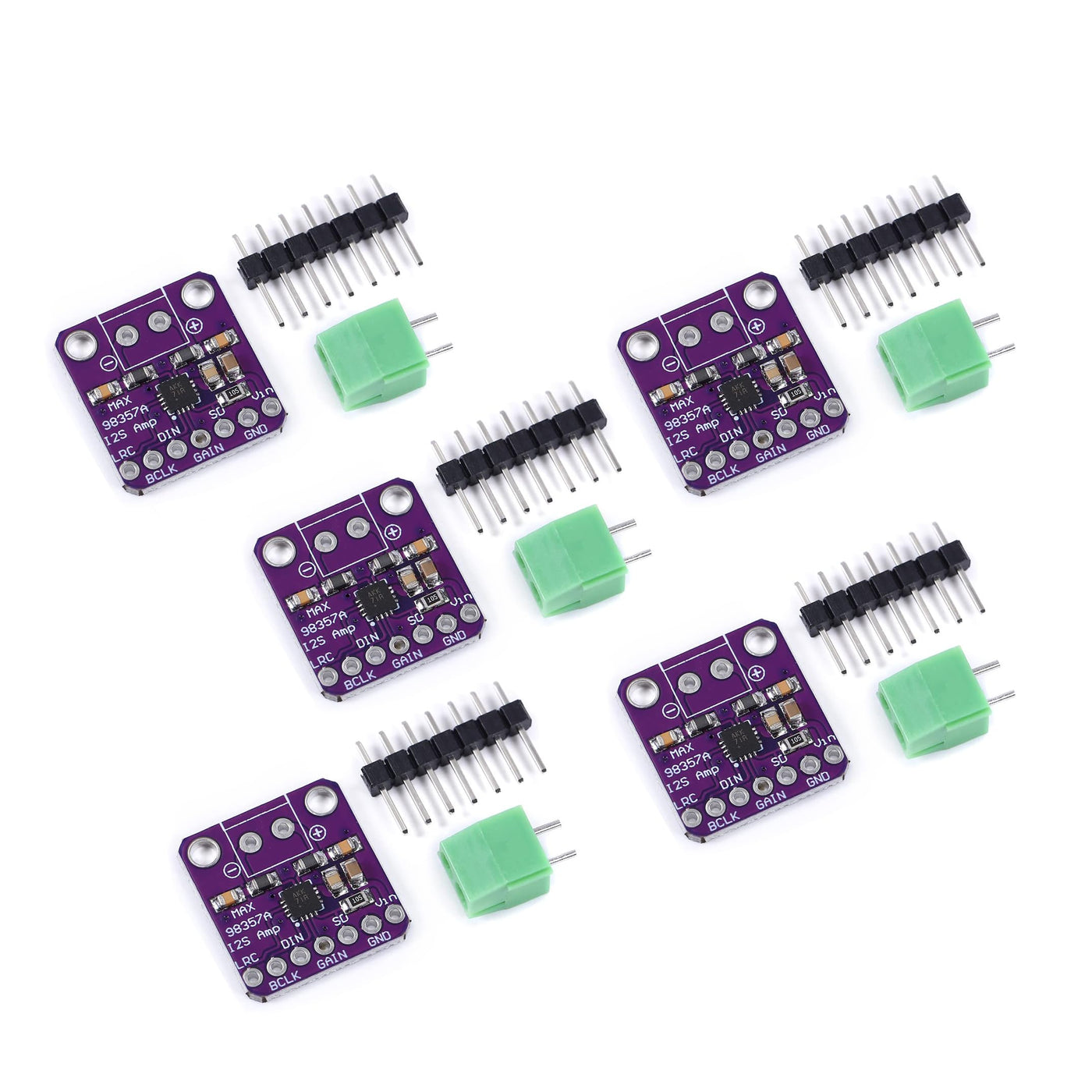

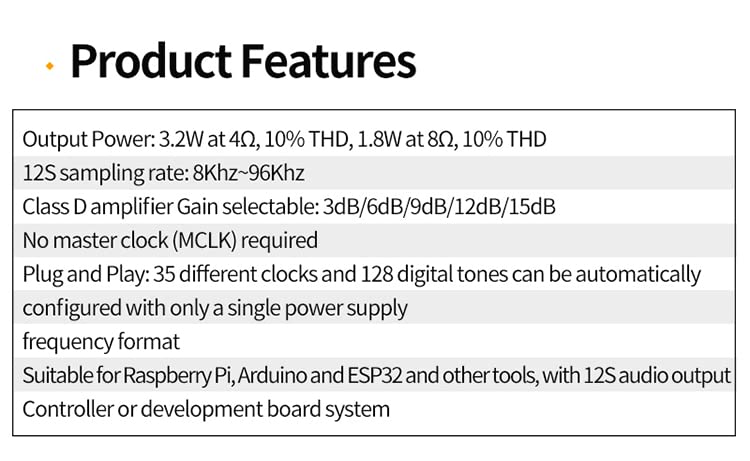

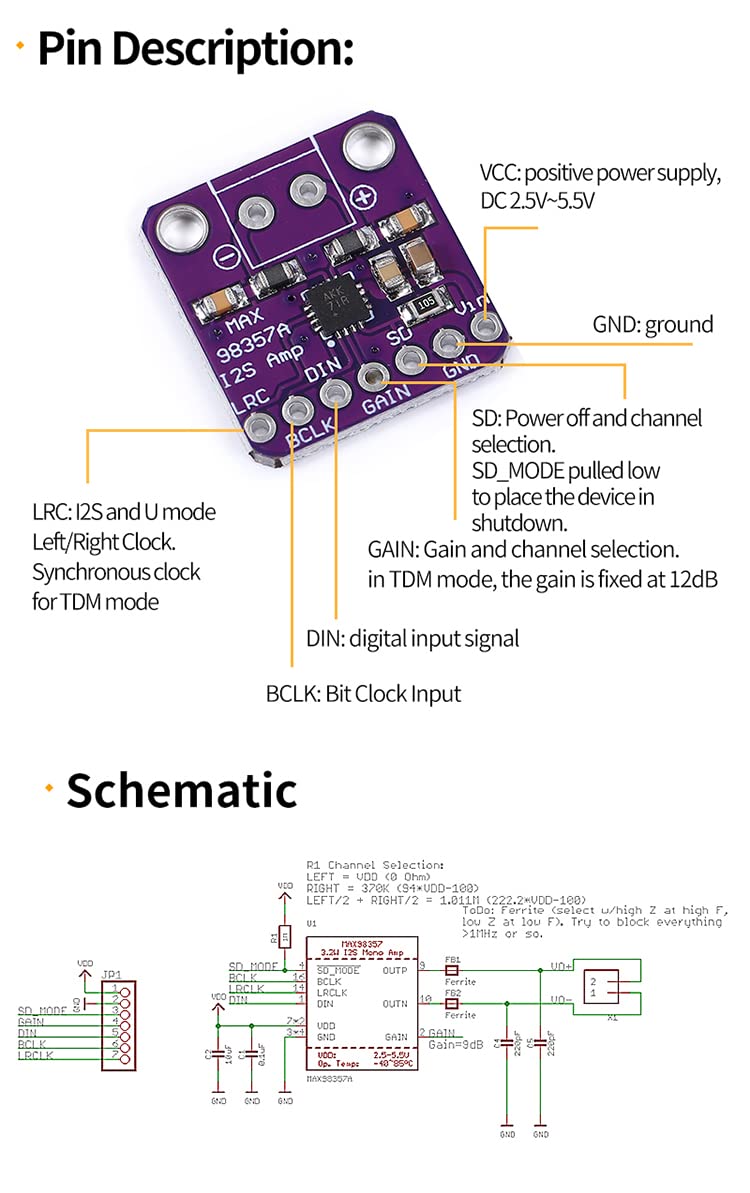

{"id":9115805581463,"title":"Teyleten Robot Max98357 I2S 3W Class D Amplifier Breakout Interface Dac Decoder Module Filterless Audio Board for Raspberry Pi 5pcs","handle":"teyleten-robot-max98357-i2s-3w-class-d-amplifier-breakout-interface-dac-decoder-module-filterless-audio-board-for-raspberry-pi-5pcs","description":"\u003ch3\u003eTeyleten Robot Max98357 I2S 3W Class D Amplifier Breakout Interface Dac Decoder Module Filterless Audio Board for Raspberry Pi 5pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eVCC: Positive power supply, DC 2.5V~5.5V GND: ground SD: Power off and channel\nselection. SD MODE is pulled low to place the device in shutdown. GAIN: Gain\nand channel selection. In TDM mode, the gain is fixed at 12dB DIN: digital\ninput signal BCLK: Bit Clock Input LRC: Left\/Right clock for 12S and LJ modes.\nSynchronous clock for TDM mode\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1: Output power: 3.2W at 4, THD is 10%; 8 is 1.8W, THD is 10%\u003c\/li\u003e\n \u003cli\u003e2: 12S sampling rate: 8Khz~96Khz\u003c\/li\u003e\n \u003cli\u003e3: Class D amplifier with optional gain: 3dB\/6dB\/9dB\/12dB\/15dB\u003c\/li\u003e\n \u003cli\u003e4: No master clock (MCLK) required\u003c\/li\u003e\n \u003cli\u003e5: Plug and Play: 35 different clocks and 128 digital audio formats can be automatically configured with only a single power supply\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-09T18:36:26+10:00","created_at":"2025-07-09T18:36:21+10:00","vendor":"Teyleten Robot","type":"Audio","tags":["industrial_best_sellers_Jun2025"],"price":10600,"price_min":10600,"price_max":10600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45650270158999,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B4GK5R1R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teyleten Robot Max98357 I2S 3W Class D Amplifier Breakout Interface Dac Decoder Module Filterless Audio Board for Raspberry Pi 5pcs","public_title":null,"options":["Default Title"],"price":10600,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":"Max98357","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0B4GK5R1R.jpg?v=1775808921","\/\/newnestshop.com\/cdn\/shop\/files\/71CuugS3w4L.jpg?v=1752050184","\/\/newnestshop.com\/cdn\/shop\/files\/615mXQhfz6L.jpg?v=1752050184","\/\/newnestshop.com\/cdn\/shop\/files\/61XBlQjhJJL.jpg?v=1752050184","\/\/newnestshop.com\/cdn\/shop\/files\/51QllgxTN7L.jpg?v=1752050183","\/\/newnestshop.com\/cdn\/shop\/files\/61qoogOxHVL.jpg?v=1752050184"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B4GK5R1R.jpg?v=1775808921","options":["Title"],"media":[{"alt":null,"id":38372985045143,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2150,"width":2150,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B4GK5R1R.jpg?v=1775808921"},"aspect_ratio":1.0,"height":2150,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0B4GK5R1R.jpg?v=1775808921","width":2150},{"alt":null,"id":38372985077911,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1942,"width":1942,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71CuugS3w4L.jpg?v=1752050184"},"aspect_ratio":1.0,"height":1942,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71CuugS3w4L.jpg?v=1752050184","width":1942},{"alt":null,"id":38372985110679,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1908,"width":1908,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/615mXQhfz6L.jpg?v=1752050184"},"aspect_ratio":1.0,"height":1908,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/615mXQhfz6L.jpg?v=1752050184","width":1908},{"alt":null,"id":38372985143447,"position":4,"preview_image":{"aspect_ratio":0.725,"height":1035,"width":750,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61XBlQjhJJL.jpg?v=1752050184"},"aspect_ratio":0.725,"height":1035,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61XBlQjhJJL.jpg?v=1752050184","width":750},{"alt":null,"id":38372985176215,"position":5,"preview_image":{"aspect_ratio":1.627,"height":461,"width":750,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51QllgxTN7L.jpg?v=1752050183"},"aspect_ratio":1.627,"height":461,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51QllgxTN7L.jpg?v=1752050183","width":750},{"alt":null,"id":38372985208983,"position":6,"preview_image":{"aspect_ratio":0.629,"height":1193,"width":750,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61qoogOxHVL.jpg?v=1752050184"},"aspect_ratio":0.629,"height":1193,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61qoogOxHVL.jpg?v=1752050184","width":750}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTeyleten Robot Max98357 I2S 3W Class D Amplifier Breakout Interface Dac Decoder Module Filterless Audio Board for Raspberry Pi 5pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eVCC: Positive power supply, DC 2.5V~5.5V GND: ground SD: Power off and channel\nselection. SD MODE is pulled low to place the device in shutdown. GAIN: Gain\nand channel selection. In TDM mode, the gain is fixed at 12dB DIN: digital\ninput signal BCLK: Bit Clock Input LRC: Left\/Right clock for 12S and LJ modes.\nSynchronous clock for TDM mode\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1: Output power: 3.2W at 4, THD is 10%; 8 is 1.8W, THD is 10%\u003c\/li\u003e\n \u003cli\u003e2: 12S sampling rate: 8Khz~96Khz\u003c\/li\u003e\n \u003cli\u003e3: Class D amplifier with optional gain: 3dB\/6dB\/9dB\/12dB\/15dB\u003c\/li\u003e\n \u003cli\u003e4: No master clock (MCLK) required\u003c\/li\u003e\n \u003cli\u003e5: Plug and Play: 35 different clocks and 128 digital audio formats can be automatically configured with only a single power supply\u003c\/li\u003e\n \u003c\/ul\u003e"}
