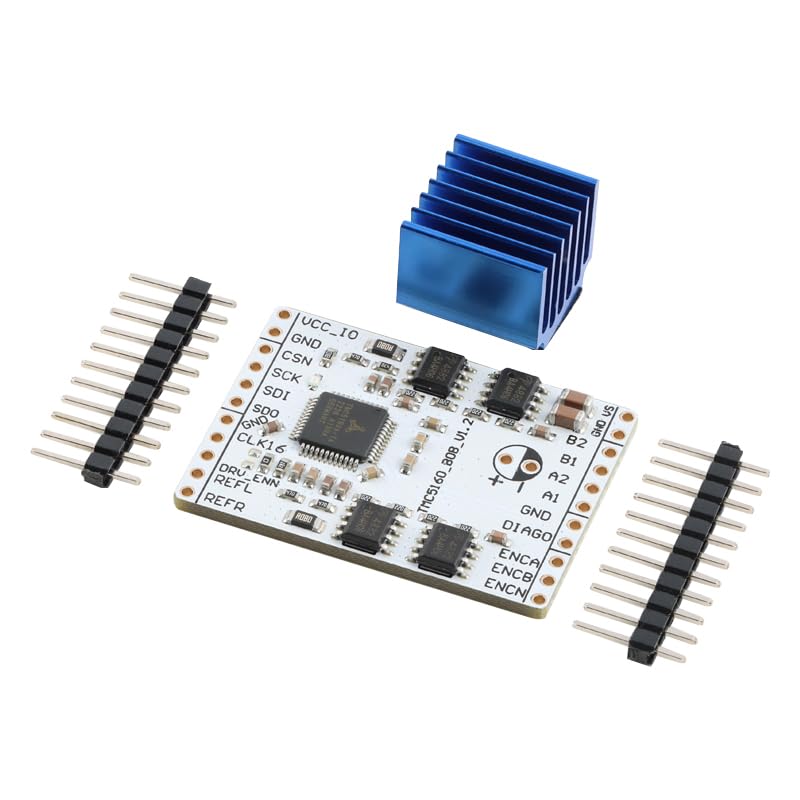

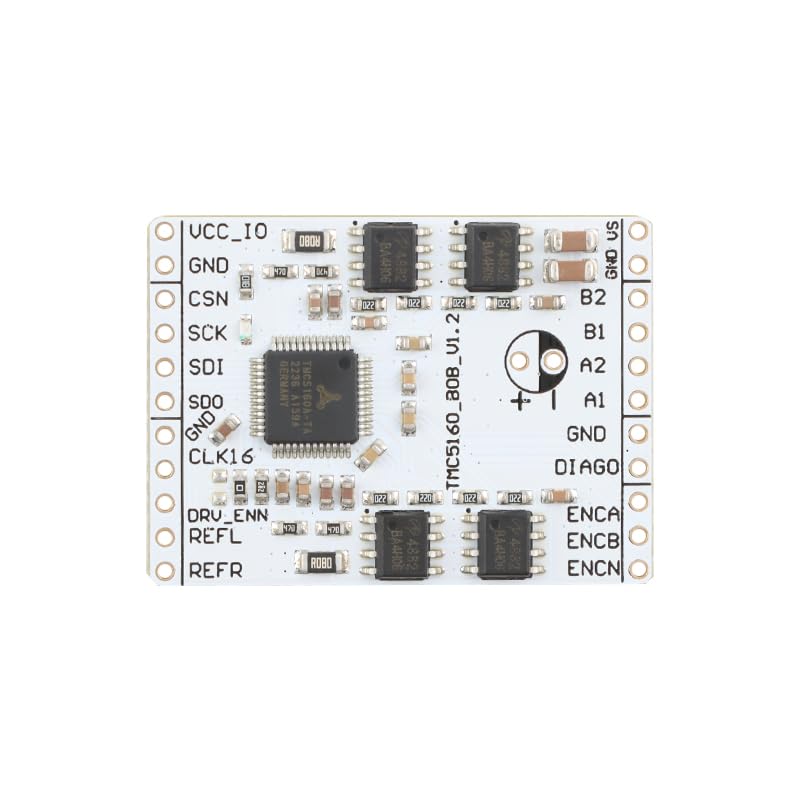

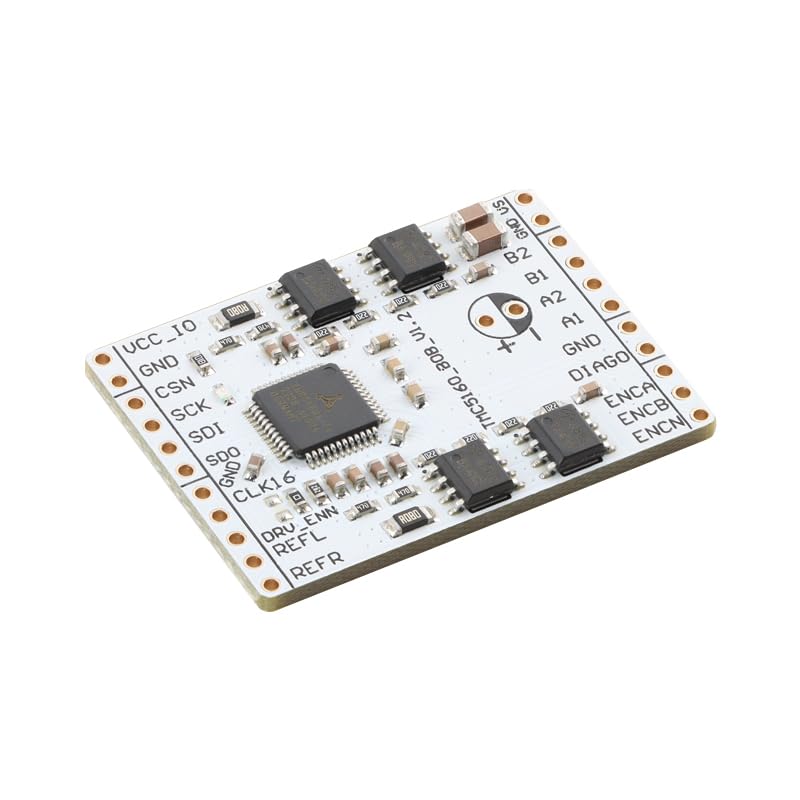

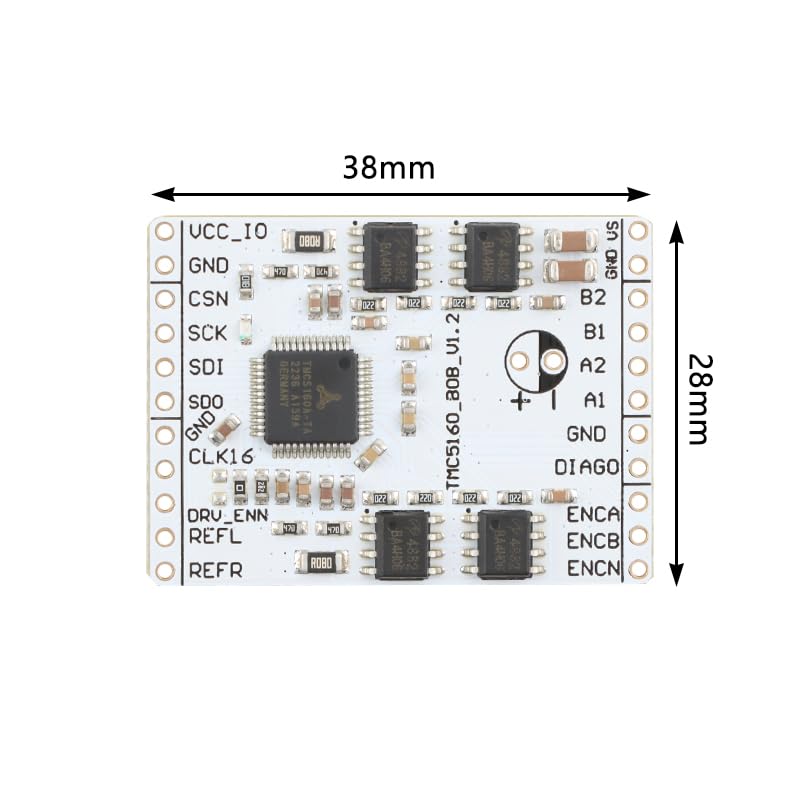

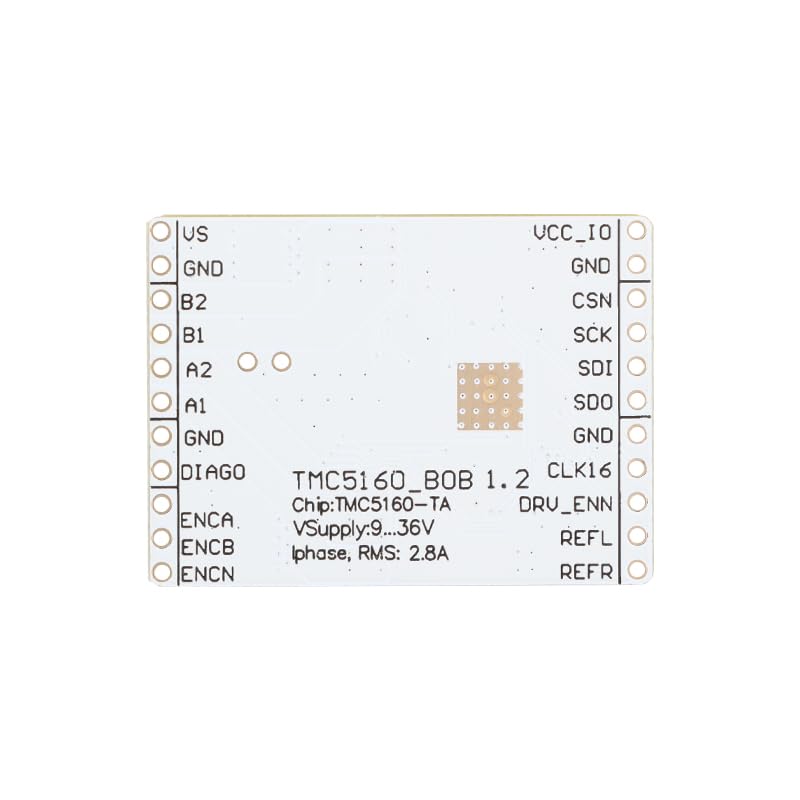

{"id":9680853860503,"title":"TMC5160-BOB Stepper Motor Driver Board with Integrated Motion Control Module","handle":"tmc5160-bob-stepper-motor-driver-board-with-integrated-motion-control-module","description":"\u003ch3\u003eTMC5160-BOB Stepper Motor Driver Board with Integrated Motion Control Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameter the core chip: TMC5160(Trinamic drive control integrated\nchip, QFN-48 package) input voltage: 8V -36V DC (wide voltage compatible,\nrecommend 24V operation) output current of: 0.5A-4.5A RMS (programmable\nadjustment, resolution 0.1A) control characteristics of: microstep resolution\nof :1\/256 microstep (supports full step to 1\/256 subdivision) motion mode:\nposition\/speed\/torque 3 closed-loop control mute technology\n:StealthChop2(Noise \u0026lt;12dB) communication interface : SPI :50MHz high-speed\nconfiguration interface UART :115200bps default baud rate protection function\n: Over-current\/short-circuit\/over-temperature protection (\u0026gt;150 ℃ shutdown)\nUndervoltage lockout (UVLO\u0026lt;5.5V) product main pin function VM of: motor power\ninput positive pole (8V -36V DC ), 470μF electrolytic capacitor + 100nF\nceramic capacitor filter (distance from pin ≤ 2cm) of GND: power ground (must\nbe with logic ground single point common ground) VCC: logic power input\n(3.3V-5V DC), external 10μF tantalum capacitor filter required STEP\/DIR\/EN :\ntraditional control interface (compatible with A4988 driver board wiring):\nSTEP: step pulse input (5V TTL, rising edge trigger) DIR: direction control\n(high level forward rotation) EN : Enable terminal (low level activation) SPI\ninterface : SCK: clock line (master control → module) SDI: data input (master\ncontrol → module) SDO: data output (module → main control) CS: chip select\n(active low) DIAG: fault indication (low level alarm, can be connected to MCU\ninterrupt)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-Precision Motion Control for 3D Printers \u0026amp; Robotics The TMC5160-BOB module delivers ultra-accurate position, speed, and torque control for 3D printers, robotic arms, and automation systems. With 1\/256 microstep resolution and closed-loop , it ensures 0.1 positioning accuracy, making it Suitable for high-dynamic applications that demand precision and reliability.\u003c\/li\u003e\n \u003cli\u003eUltra-Quiet Operation Experience whisper-quiet performance, which reduces noise to under 12dB. Suitable for s where sound is a concern, this driver keeps your 3D printer or robotic system running smoothly without disturbing your workspace or workflow.\u003c\/li\u003e\n \u003cli\u003eEnergy-Efficient Design Adaptive Current Control The TMC5160-BOB features that dynamically adjusts current based on load, significantly reducing power consumption. With standby power under 100A, its an energy-efficient solution for long-term use in industrial and hobbyist applications alike.\u003c\/li\u003e\n \u003cli\u003eWide Voltage Compatibility \u0026amp; Robust Protection Features Supporting 8V36V DC input, this driver is compatible with a wide range of power supplies. It includes over-current, short-circuit, and over-temperature protection, ensuring safe and stable operation even under demanding conditions. The Reliable design operates reliably from -40C to +125C.\u003c\/li\u003e\n \u003cli\u003eEasy Integration with SPI\/UART Interfaces \u0026amp; Sensorless Stall Detection Designed for seamless integration, the TMC5160-BOB supports SPI (up to 50MHz) and UART (115200bps) communication. It also includes sensorless stall detection and encoder support for enhanced control. Whether you're building a 3D printer or a custom automation system, this driver offers flexibility and performance.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-30T19:30:12+10:00","created_at":"2026-07-26T19:52:05+10:00","vendor":"MusRock","type":"3D Printer Interface \u0026 Driver Modules","tags":["home_improvement_Aug2026"],"price":15700,"price_min":15700,"price_max":15700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48068058415255,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FKG63XDL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TMC5160-BOB Stepper Motor Driver Board with Integrated Motion Control Module","public_title":null,"options":["Default Title"],"price":15700,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"TMC5160-BOB","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0FKG63XDL.jpg?v=1785059527","\/\/newnestshop.com\/cdn\/shop\/files\/516MmJoSJfL.jpg?v=1785059528","\/\/newnestshop.com\/cdn\/shop\/files\/51wCZWFDPWL.jpg?v=1785059528","\/\/newnestshop.com\/cdn\/shop\/files\/41xziXVyJKL.jpg?v=1785059527","\/\/newnestshop.com\/cdn\/shop\/files\/51Kh3DSoLdL.jpg?v=1785059527"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0FKG63XDL.jpg?v=1785059527","options":["Title"],"media":[{"alt":null,"id":42455753228439,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0FKG63XDL.jpg?v=1785059527"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0FKG63XDL.jpg?v=1785059527","width":800},{"alt":null,"id":42455753261207,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/516MmJoSJfL.jpg?v=1785059528"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/516MmJoSJfL.jpg?v=1785059528","width":800},{"alt":null,"id":42455753293975,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51wCZWFDPWL.jpg?v=1785059528"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51wCZWFDPWL.jpg?v=1785059528","width":800},{"alt":null,"id":42455753326743,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41xziXVyJKL.jpg?v=1785059527"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41xziXVyJKL.jpg?v=1785059527","width":800},{"alt":null,"id":42455753359511,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51Kh3DSoLdL.jpg?v=1785059527"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51Kh3DSoLdL.jpg?v=1785059527","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTMC5160-BOB Stepper Motor Driver Board with Integrated Motion Control Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eProduct parameter the core chip: TMC5160(Trinamic drive control integrated\nchip, QFN-48 package) input voltage: 8V -36V DC (wide voltage compatible,\nrecommend 24V operation) output current of: 0.5A-4.5A RMS (programmable\nadjustment, resolution 0.1A) control characteristics of: microstep resolution\nof :1\/256 microstep (supports full step to 1\/256 subdivision) motion mode:\nposition\/speed\/torque 3 closed-loop control mute technology\n:StealthChop2(Noise \u0026lt;12dB) communication interface : SPI :50MHz high-speed\nconfiguration interface UART :115200bps default baud rate protection function\n: Over-current\/short-circuit\/over-temperature protection (\u0026gt;150 ℃ shutdown)\nUndervoltage lockout (UVLO\u0026lt;5.5V) product main pin function VM of: motor power\ninput positive pole (8V -36V DC ), 470μF electrolytic capacitor + 100nF\nceramic capacitor filter (distance from pin ≤ 2cm) of GND: power ground (must\nbe with logic ground single point common ground) VCC: logic power input\n(3.3V-5V DC), external 10μF tantalum capacitor filter required STEP\/DIR\/EN :\ntraditional control interface (compatible with A4988 driver board wiring):\nSTEP: step pulse input (5V TTL, rising edge trigger) DIR: direction control\n(high level forward rotation) EN : Enable terminal (low level activation) SPI\ninterface : SCK: clock line (master control → module) SDI: data input (master\ncontrol → module) SDO: data output (module → main control) CS: chip select\n(active low) DIAG: fault indication (low level alarm, can be connected to MCU\ninterrupt)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-Precision Motion Control for 3D Printers \u0026amp; Robotics The TMC5160-BOB module delivers ultra-accurate position, speed, and torque control for 3D printers, robotic arms, and automation systems. With 1\/256 microstep resolution and closed-loop , it ensures 0.1 positioning accuracy, making it Suitable for high-dynamic applications that demand precision and reliability.\u003c\/li\u003e\n \u003cli\u003eUltra-Quiet Operation Experience whisper-quiet performance, which reduces noise to under 12dB. Suitable for s where sound is a concern, this driver keeps your 3D printer or robotic system running smoothly without disturbing your workspace or workflow.\u003c\/li\u003e\n \u003cli\u003eEnergy-Efficient Design Adaptive Current Control The TMC5160-BOB features that dynamically adjusts current based on load, significantly reducing power consumption. With standby power under 100A, its an energy-efficient solution for long-term use in industrial and hobbyist applications alike.\u003c\/li\u003e\n \u003cli\u003eWide Voltage Compatibility \u0026amp; Robust Protection Features Supporting 8V36V DC input, this driver is compatible with a wide range of power supplies. It includes over-current, short-circuit, and over-temperature protection, ensuring safe and stable operation even under demanding conditions. The Reliable design operates reliably from -40C to +125C.\u003c\/li\u003e\n \u003cli\u003eEasy Integration with SPI\/UART Interfaces \u0026amp; Sensorless Stall Detection Designed for seamless integration, the TMC5160-BOB supports SPI (up to 50MHz) and UART (115200bps) communication. It also includes sensorless stall detection and encoder support for enhanced control. Whether you're building a 3D printer or a custom automation system, this driver offers flexibility and performance.\u003c\/li\u003e\n \u003c\/ul\u003e"}
