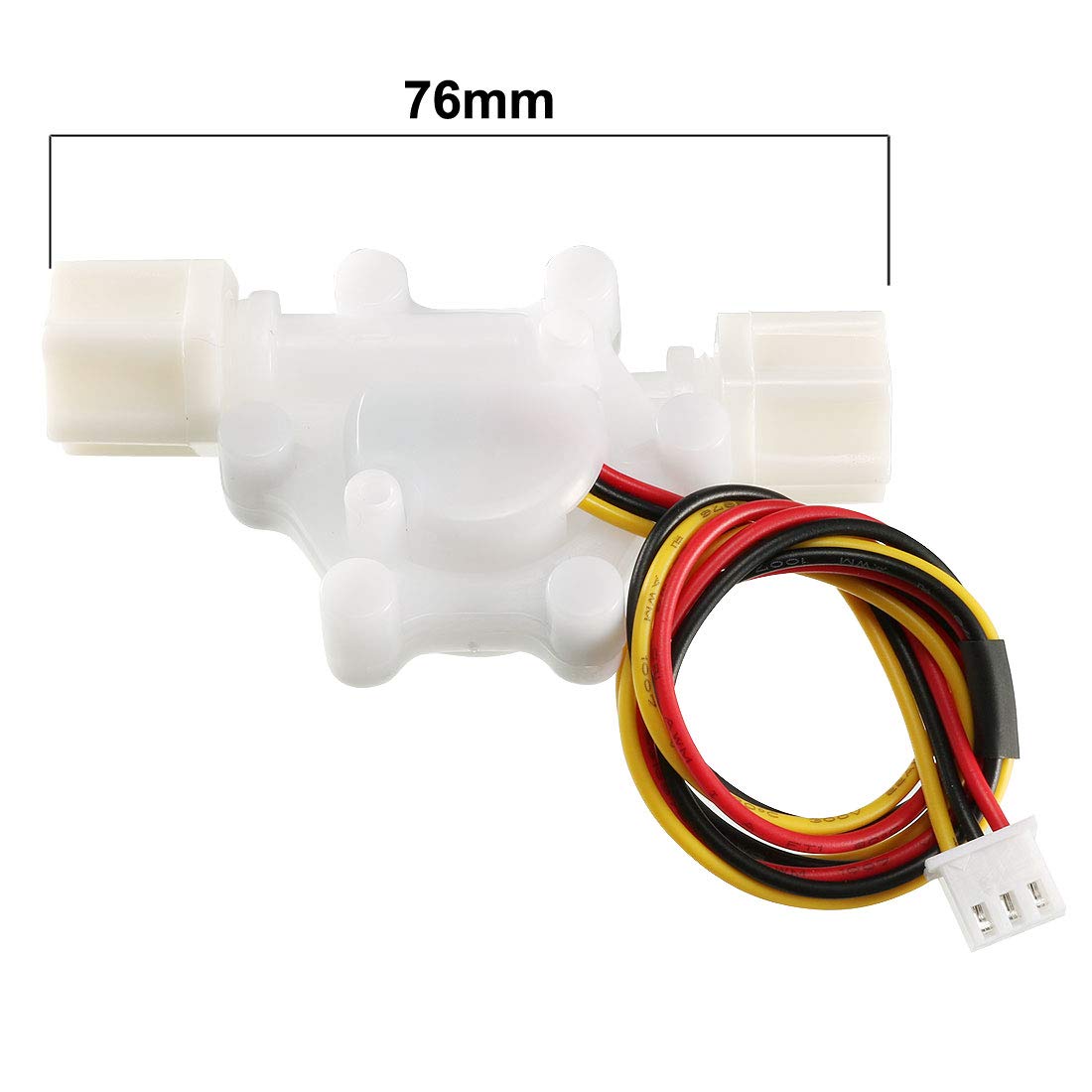

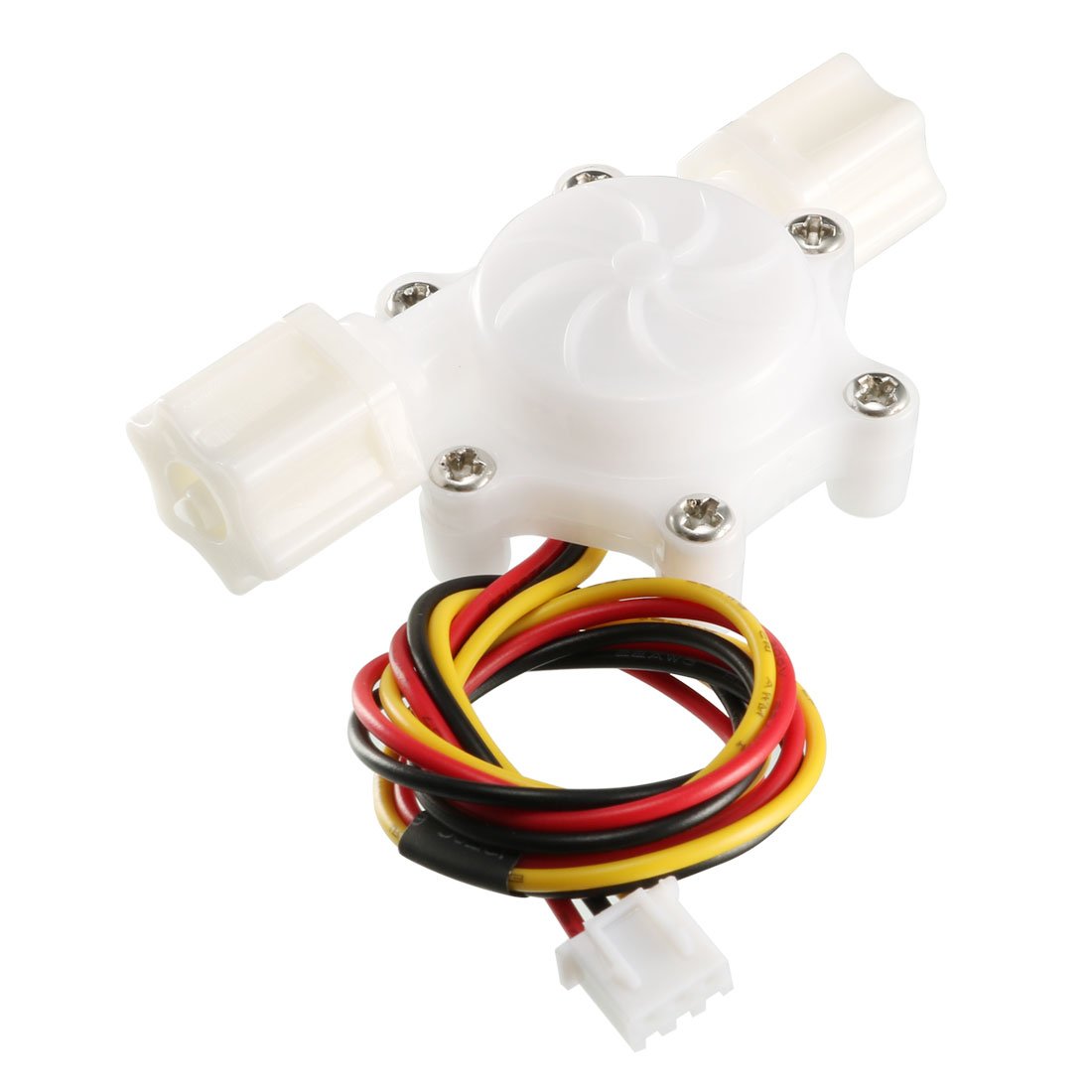

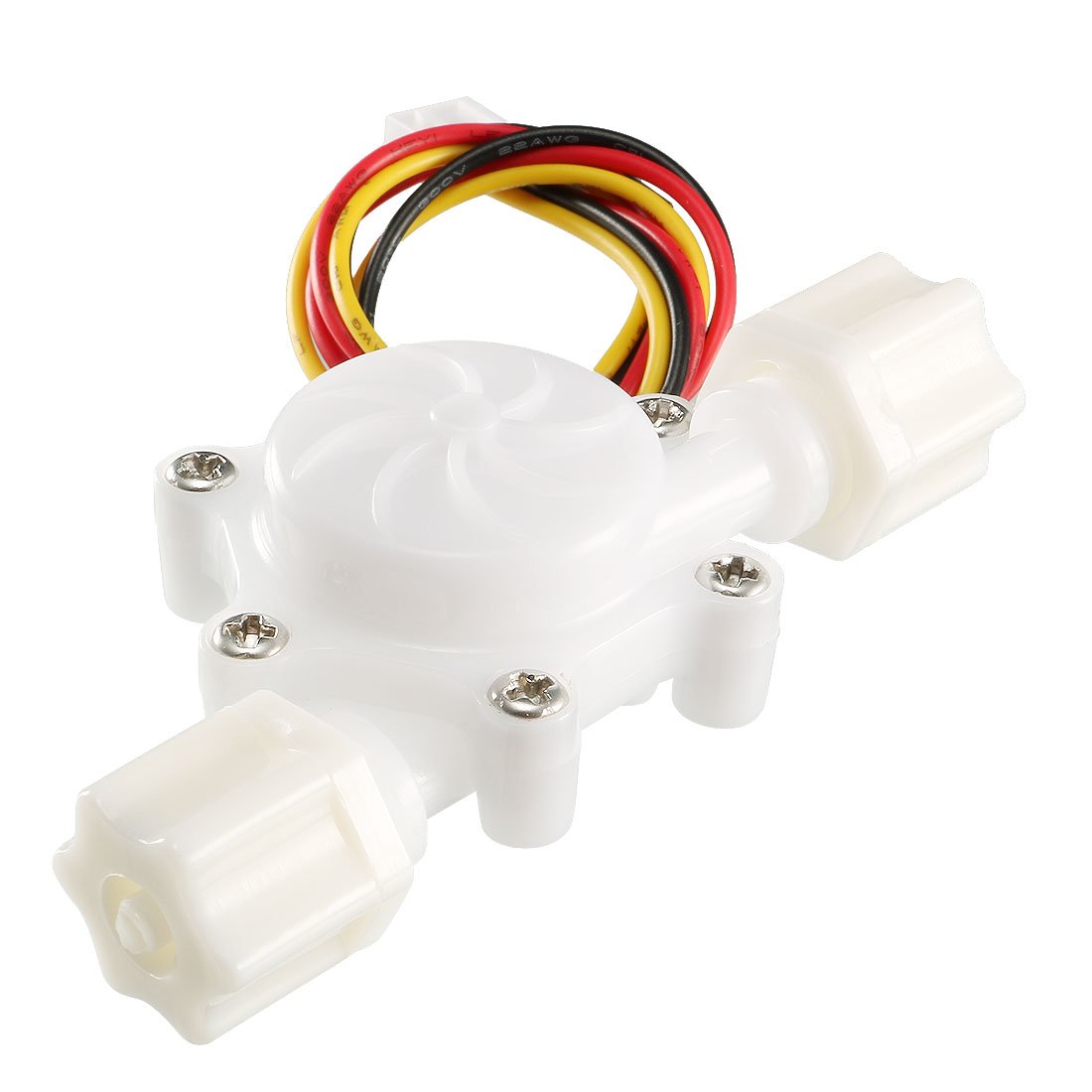

{"id":8773081923735,"title":"uxcell 1\/4\" Hall Effect Water Flow Sensor Switch Flowmeter Fluid Counter DC5V 0.15-1.5L\/Min SEN-HZ06W","handle":"uxcell-1-4-hall-effect-water-flow-sensor-switch-flowmeter-fluid-counter-dc5v-0-15-1-5l-min-sen-hz06w","description":"\u003ch3\u003euxcell 1\/4\" Hall Effect Water Flow Sensor Switch Flowmeter Fluid Counter DC5V 0.15-1.5L\/Min SEN-HZ06W\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\ninstall. The bearings used in the rotating part. All materials are in line\nwith SGS testing standards. 2. There is an integrated magnetic hall effect\nsensor that outputs an electrical pulse with every revolution. The hall effect\nsensor is sealed from the water pipe and allows the sensor to stay safe and\ndry. 3. Three wire connection: Red for positive, black for negative, yellow\nfor pulse signal. Specifications: Product Name: Water Flow Sensor Material:\nPOM(Shell) Liquid Temperature: Not More Than 60C Rated Voltage: DC 5V Max\nCurrent: 10mA(DC 5V) Maximum water pressure: 1.2 MPa Flow Range: 0.15-1.5L\/min\nConnector Size: 1\/4 External Thread Diameter: 11mm Connector: Male XH-3P Cable\nLength: 34cm Size: 76mm x 40mm x 24mm(LWH) Ingress Protection Rating: IP65\nColor: White Net Weight: 31g Package Included: 1 x Water Flow Sensor Note: 1.\nInstalled in accordance with flow direction in the back of product, otherwise\nthere is no signal output. 2. A filter screen must be installed at the inlet\nof the sensor, in order to avoid particles and debris entering the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLight weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\n \u003cli\u003eAll materials are in line with SGS testing standards.\u003c\/li\u003e\n \u003cli\u003eThree wire connection: Red for positive, black for negative, yellow for pulse signal.\u003c\/li\u003e\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\n \u003cli\u003eMaximum water pressure: 1.2 MPa, flow range: 0.15-1.5L\/min.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-04T17:04:32+11:00","created_at":"2025-02-04T03:22:21+11:00","vendor":"uxcell","type":"Flow Sensors","tags":["industrial_best_sellers_Jan2025"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45104216670359,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DLZYSHT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell 1\/4\" Hall Effect Water Flow Sensor Switch Flowmeter Fluid Counter DC5V 0.15-1.5L\/Min SEN-HZ06W","public_title":null,"options":["Default Title"],"price":10900,"weight":54,"compare_at_price":null,"inventory_management":"shopify","barcode":"a18041200ux0168","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B07DLZYSHT.jpg?v=1775763725","\/\/newnestshop.com\/cdn\/shop\/files\/51_rXj-JJZL.jpg?v=1738599744","\/\/newnestshop.com\/cdn\/shop\/files\/515SG5_EI8L.jpg?v=1738599744","\/\/newnestshop.com\/cdn\/shop\/files\/51bdWT9whuL.jpg?v=1738599744","\/\/newnestshop.com\/cdn\/shop\/files\/51XrJU-nSLL.jpg?v=1738599744"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DLZYSHT.jpg?v=1775763725","options":["Title"],"media":[{"alt":null,"id":36883204210839,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DLZYSHT.jpg?v=1775763725"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B07DLZYSHT.jpg?v=1775763725","width":1100},{"alt":null,"id":36883204243607,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_rXj-JJZL.jpg?v=1738599744"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51_rXj-JJZL.jpg?v=1738599744","width":1100},{"alt":null,"id":36883204276375,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/515SG5_EI8L.jpg?v=1738599744"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/515SG5_EI8L.jpg?v=1738599744","width":1100},{"alt":null,"id":36883204309143,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51bdWT9whuL.jpg?v=1738599744"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51bdWT9whuL.jpg?v=1738599744","width":1100},{"alt":null,"id":36883204341911,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51XrJU-nSLL.jpg?v=1738599744"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51XrJU-nSLL.jpg?v=1738599744","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell 1\/4\" Hall Effect Water Flow Sensor Switch Flowmeter Fluid Counter DC5V 0.15-1.5L\/Min SEN-HZ06W\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\ninstall. The bearings used in the rotating part. All materials are in line\nwith SGS testing standards. 2. There is an integrated magnetic hall effect\nsensor that outputs an electrical pulse with every revolution. The hall effect\nsensor is sealed from the water pipe and allows the sensor to stay safe and\ndry. 3. Three wire connection: Red for positive, black for negative, yellow\nfor pulse signal. Specifications: Product Name: Water Flow Sensor Material:\nPOM(Shell) Liquid Temperature: Not More Than 60C Rated Voltage: DC 5V Max\nCurrent: 10mA(DC 5V) Maximum water pressure: 1.2 MPa Flow Range: 0.15-1.5L\/min\nConnector Size: 1\/4 External Thread Diameter: 11mm Connector: Male XH-3P Cable\nLength: 34cm Size: 76mm x 40mm x 24mm(LWH) Ingress Protection Rating: IP65\nColor: White Net Weight: 31g Package Included: 1 x Water Flow Sensor Note: 1.\nInstalled in accordance with flow direction in the back of product, otherwise\nthere is no signal output. 2. A filter screen must be installed at the inlet\nof the sensor, in order to avoid particles and debris entering the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLight weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\n \u003cli\u003eAll materials are in line with SGS testing standards.\u003c\/li\u003e\n \u003cli\u003eThree wire connection: Red for positive, black for negative, yellow for pulse signal.\u003c\/li\u003e\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\n \u003cli\u003eMaximum water pressure: 1.2 MPa, flow range: 0.15-1.5L\/min.\u003c\/li\u003e\n \u003c\/ul\u003e"}
