waveshare 2inch LCD Module Mini LCD Screen Compatible with Raspberry Pi/Ardu-ino/STM32, 240x320 Resolution IPS LCD Display, 262K RGB Color, Embedded ST7789VW Driver, SPI Interface 2inch IPS LCD Display Module
waveshare 2inch LCD Module Mini LCD Screen Compatible with Raspberry Pi/Ardu-ino/STM32, 240x320 Resolution IPS LCD Display, 262K RGB Color, Embedded ST7789VW Driver, SPI Interface

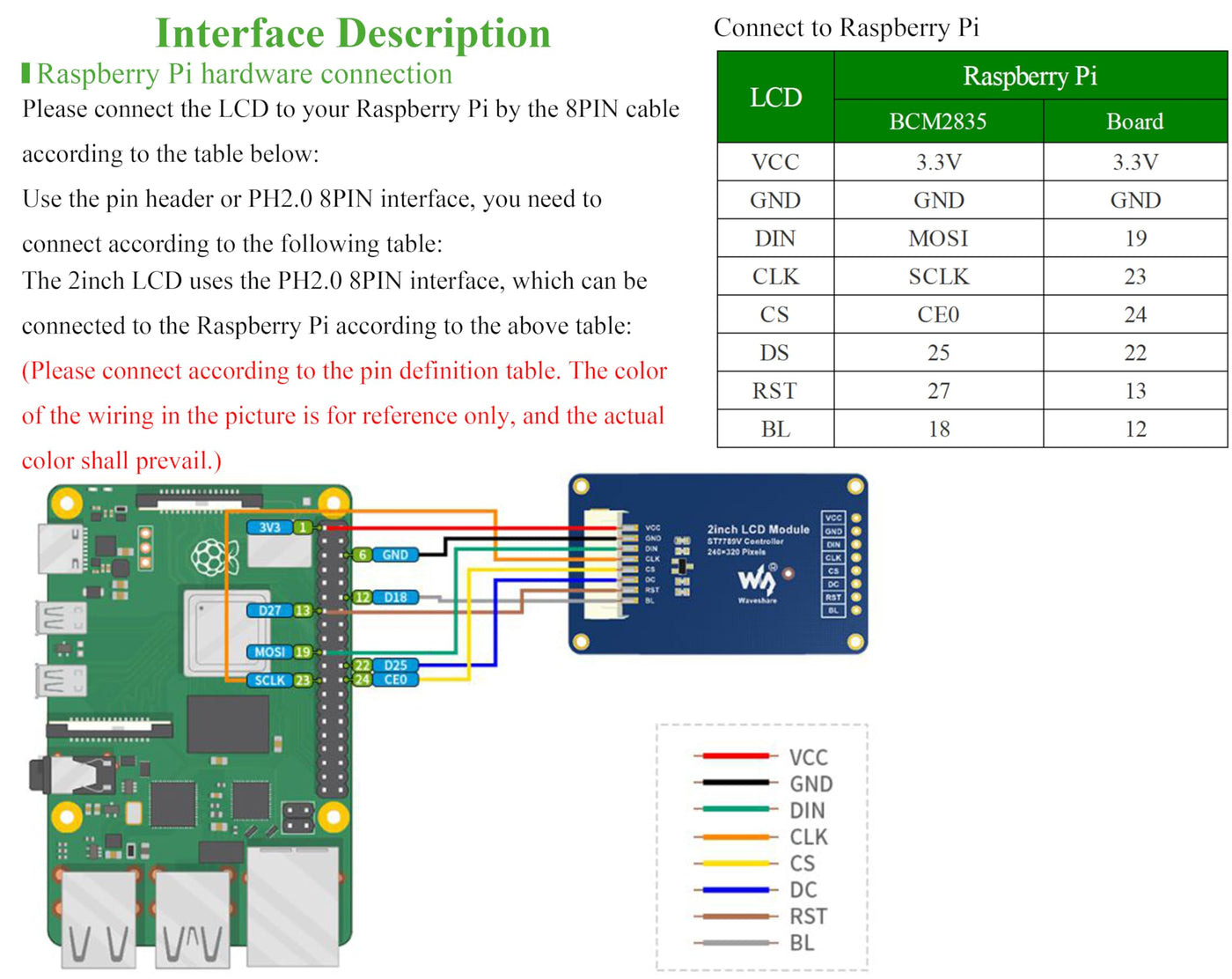

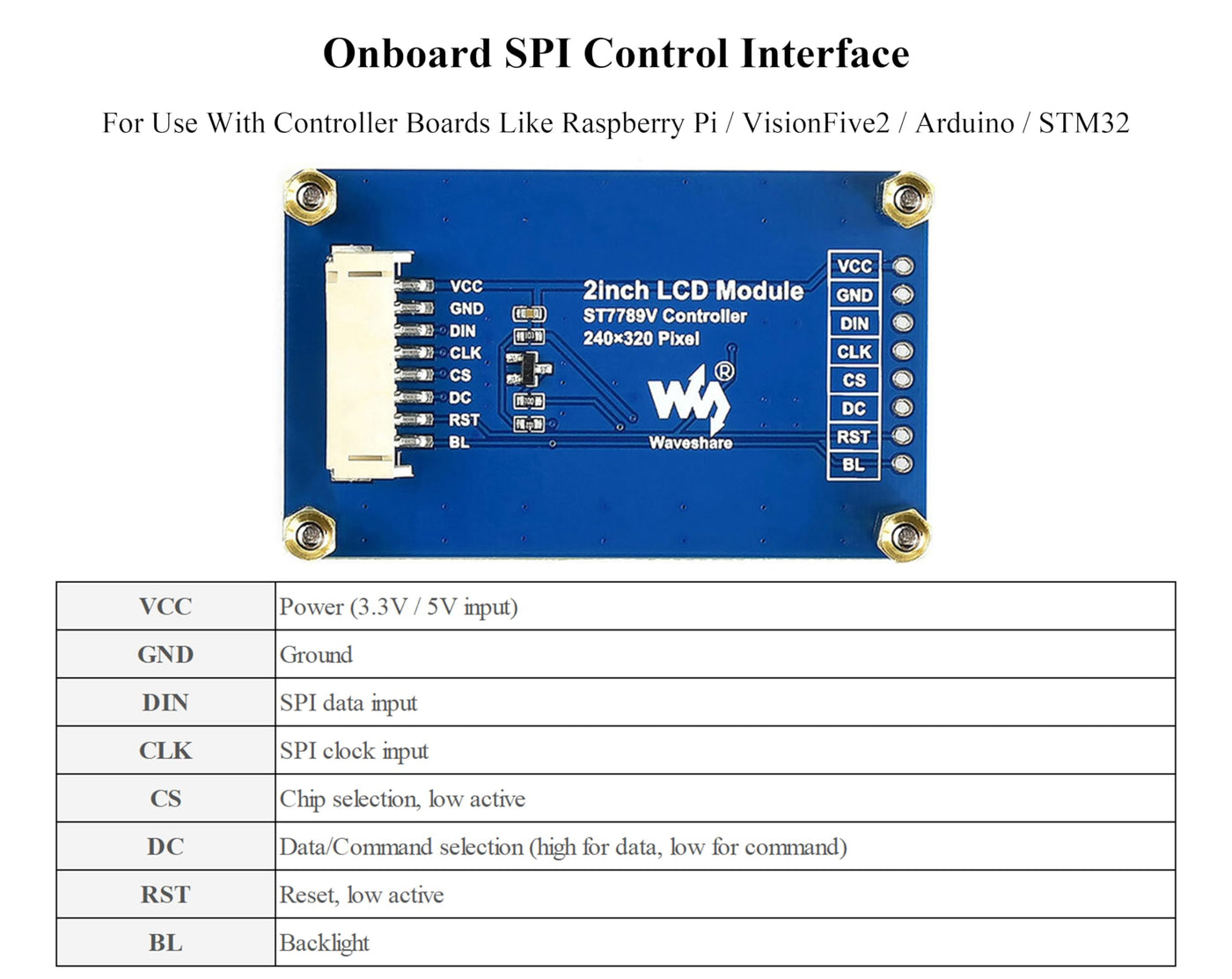

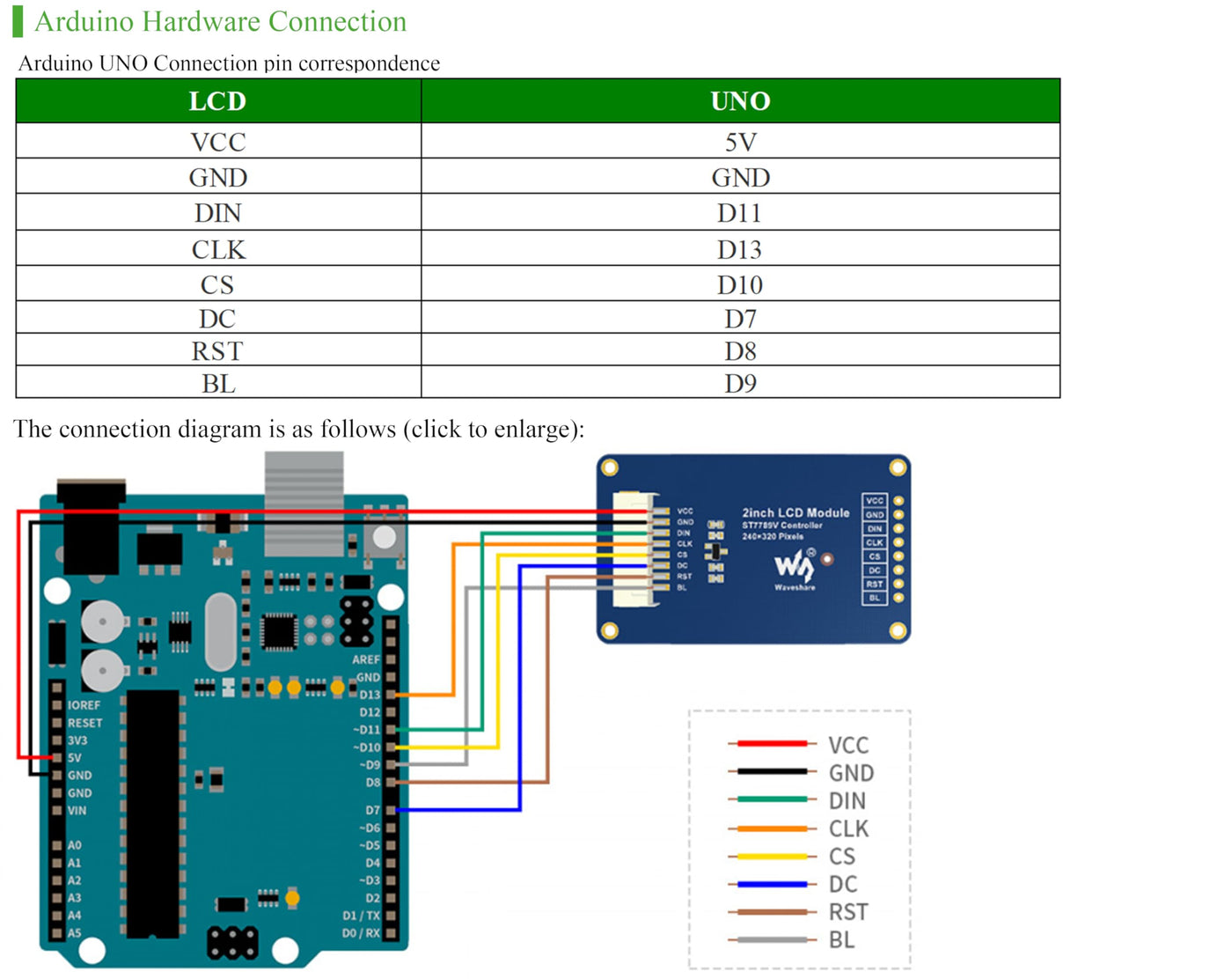

Overview This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface. As a 2inch IPS display module with a resolution of 240 320, it uses an SPI interface for communication. The LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and display English, Chinese as well as pictures. We provide complete supporting Raspberry Pi demos (BCM2835 library, WiringPi library, and python demos), STM32 demos, and Arduino demos. Specifications Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) Interface: SPI LCD type: IPS Driver: ST7789V Resolution: 240(V) x 320 (H) RGB Display size: 30.60（H）x 40.80（V）mm Pixel size: 0.0975（H）x 0.0975（V）mm Dimension: 58 x 35 (mm) Interface VCC---Power (3.3V/5V input) GND---Ground DIN---SPI data input CLK--- SPI clock input CS---Chip selection, low active DC---Data/Command selection (high for data, low for command) RST---Reset, low active BL---Backlight LCD / Controller The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, and RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format. For most LCD controllers, the communication mode of the controller can be configured, usually with an 8080 parallel interface, three-wire SPI, four-wire SPI, and other communication methods. This LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster. Online Document/User Manual: //bit.ly/3TiYx7e Package Content 2inch LCD Module x1 PH2.0 20cm x1
Product Features

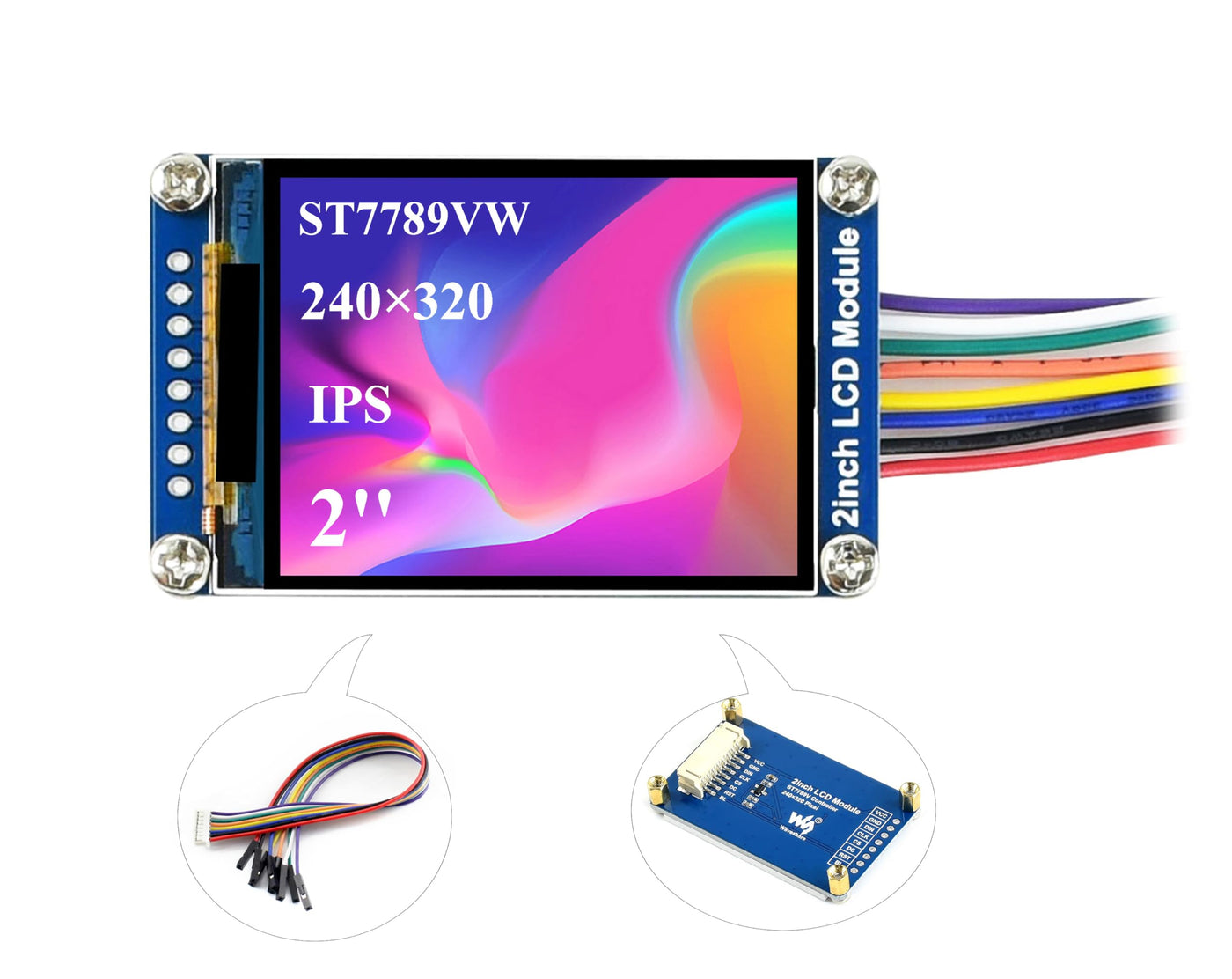

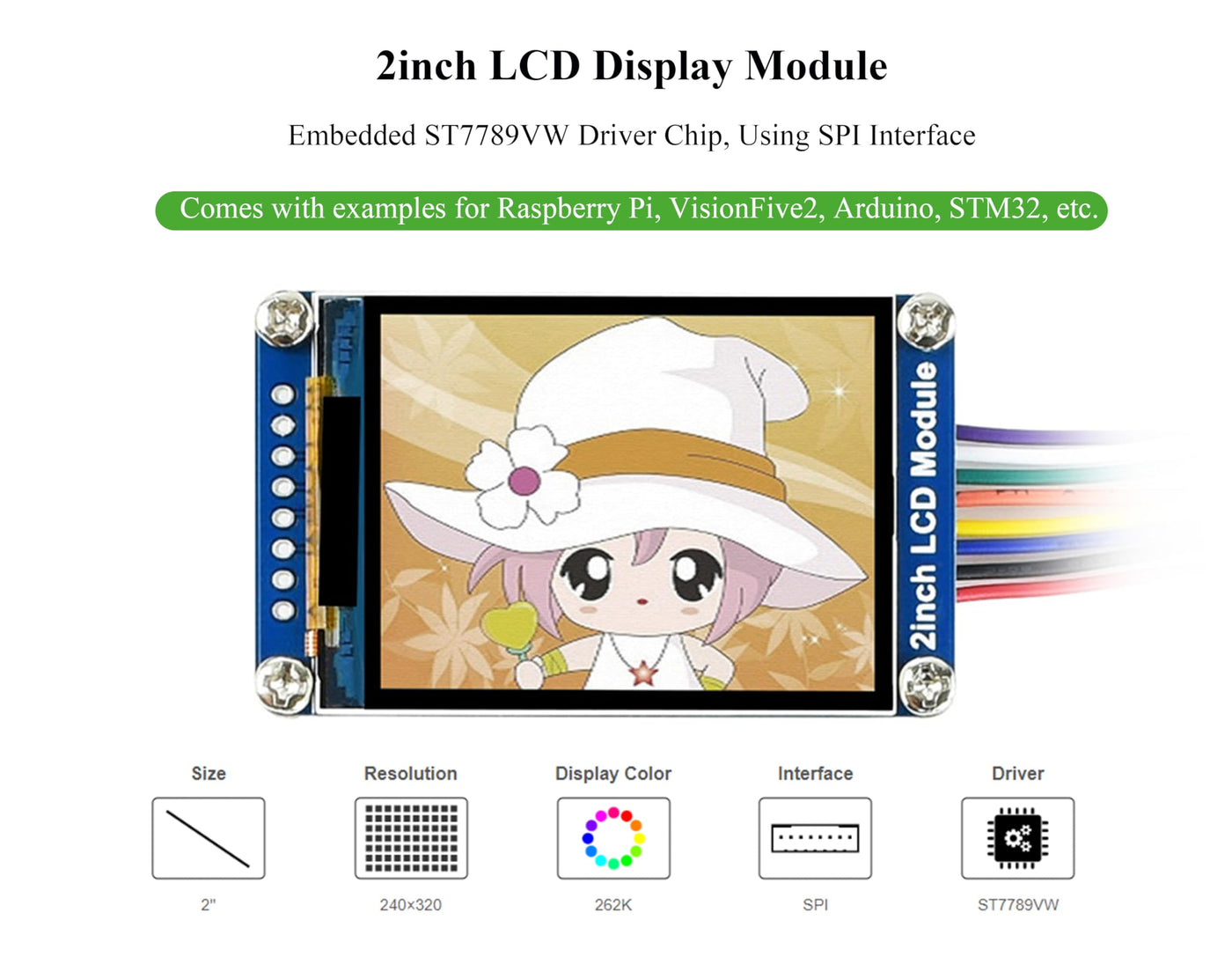

- 2inch LCD Display Module, IPS Screen, 240320 Resolution, SPI Interface,requires minimum GPIO for controlling.
- Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly).
- Display color: RGB, 262K color.Backlight: LED

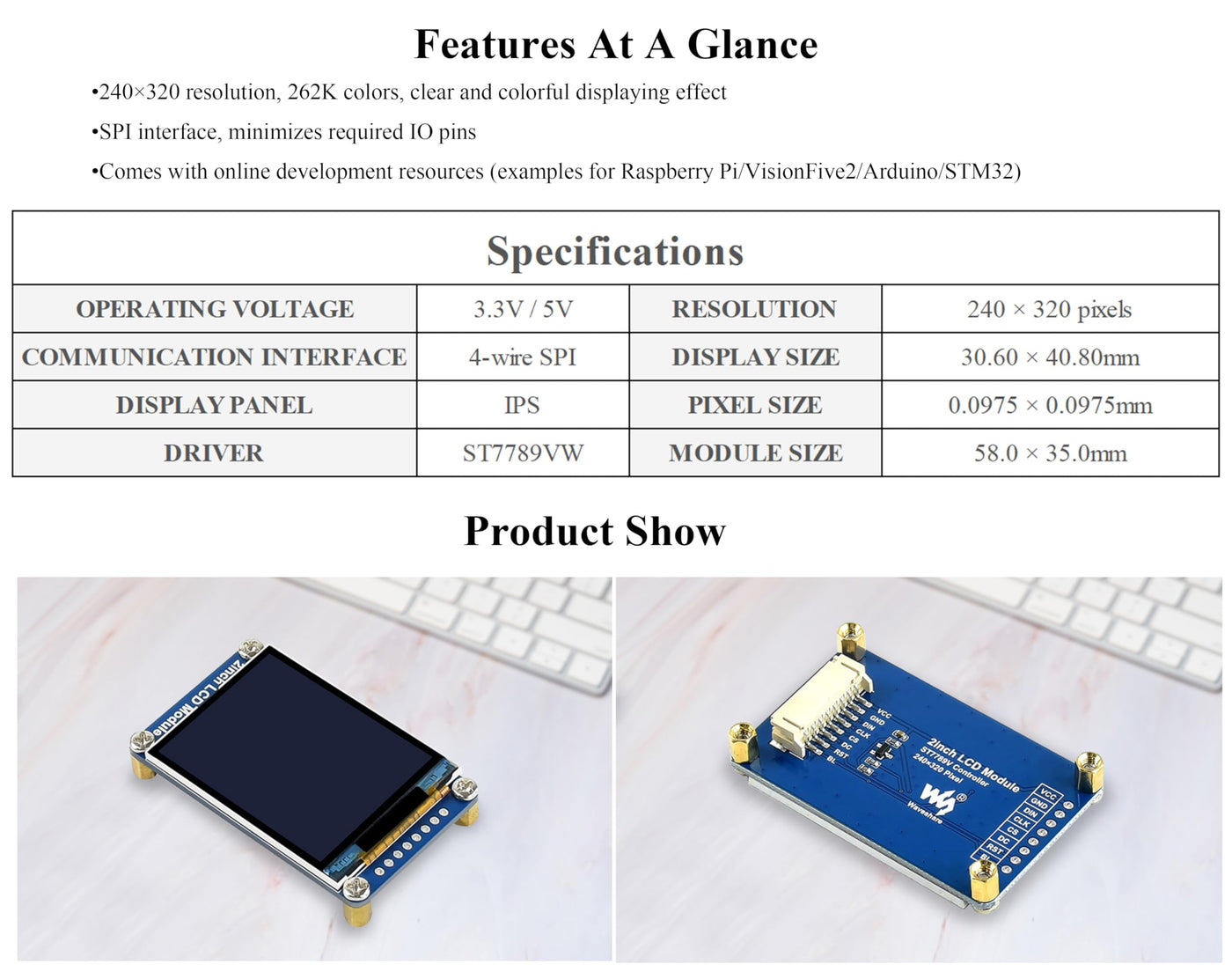

- Interface: SPI. LCD type: IPS. Driver: ST7789V. Resolution: 240(V) x 320 (H) RGB.

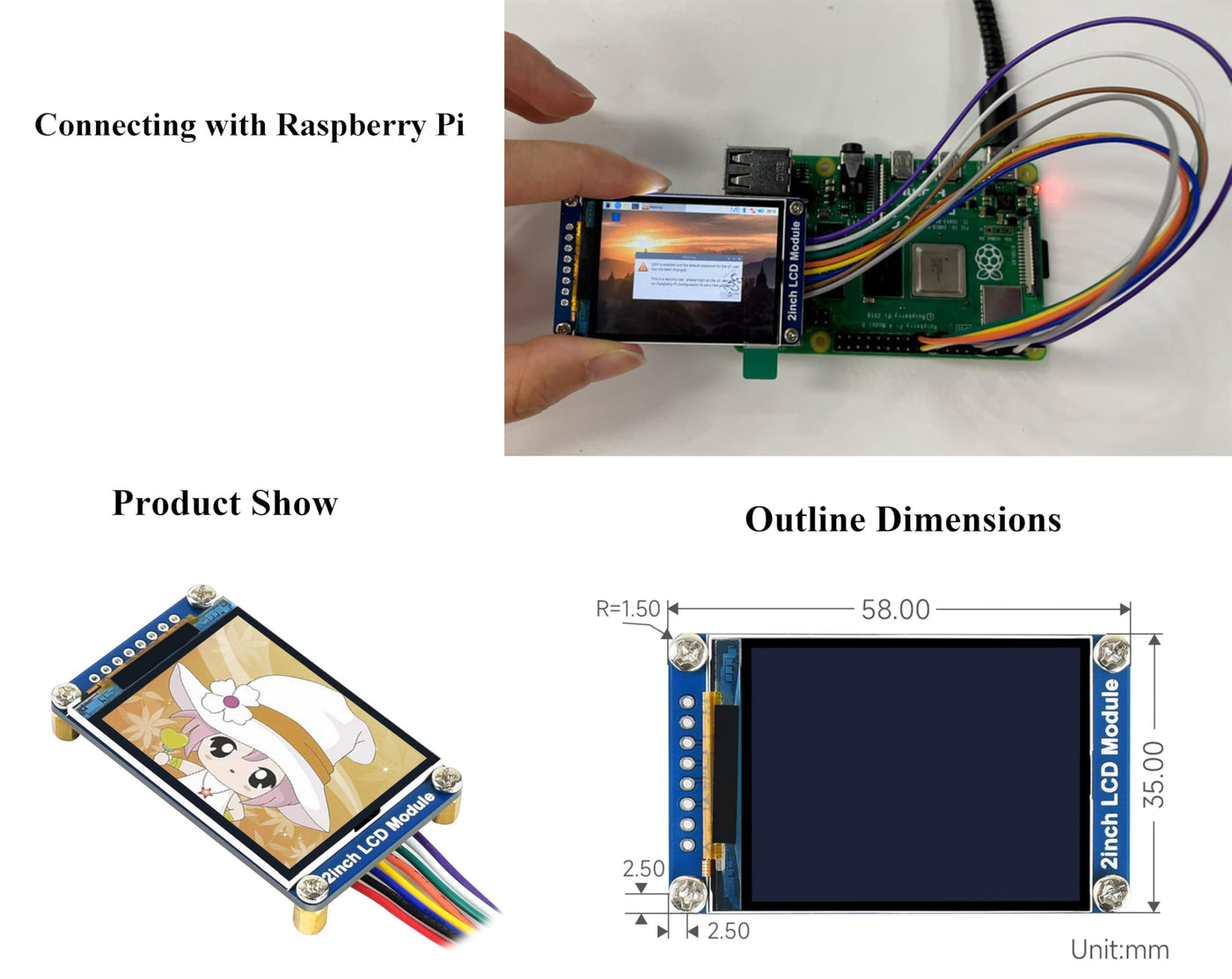

- Display size: 30.60(H)x 40.80(V)mm. Pixel size: 0.0975(H)x 0.0975(V)mm. Dimension: 58 x 35 (mm).
- Comes with Online Development Resources /User Manual: bit.ly/3TiYx7e
Buy with confidence as this product comes with 18 months full local warranty in Australia & New Zealand (unless otherwise stated in the overview).
This product also comes with the benefits of the CocoonPower Warranty. For further details please read our Warranty Guidelines.
You can also purchase 3 Year Extended Care. If you are interested please see our Extended Care Information.
