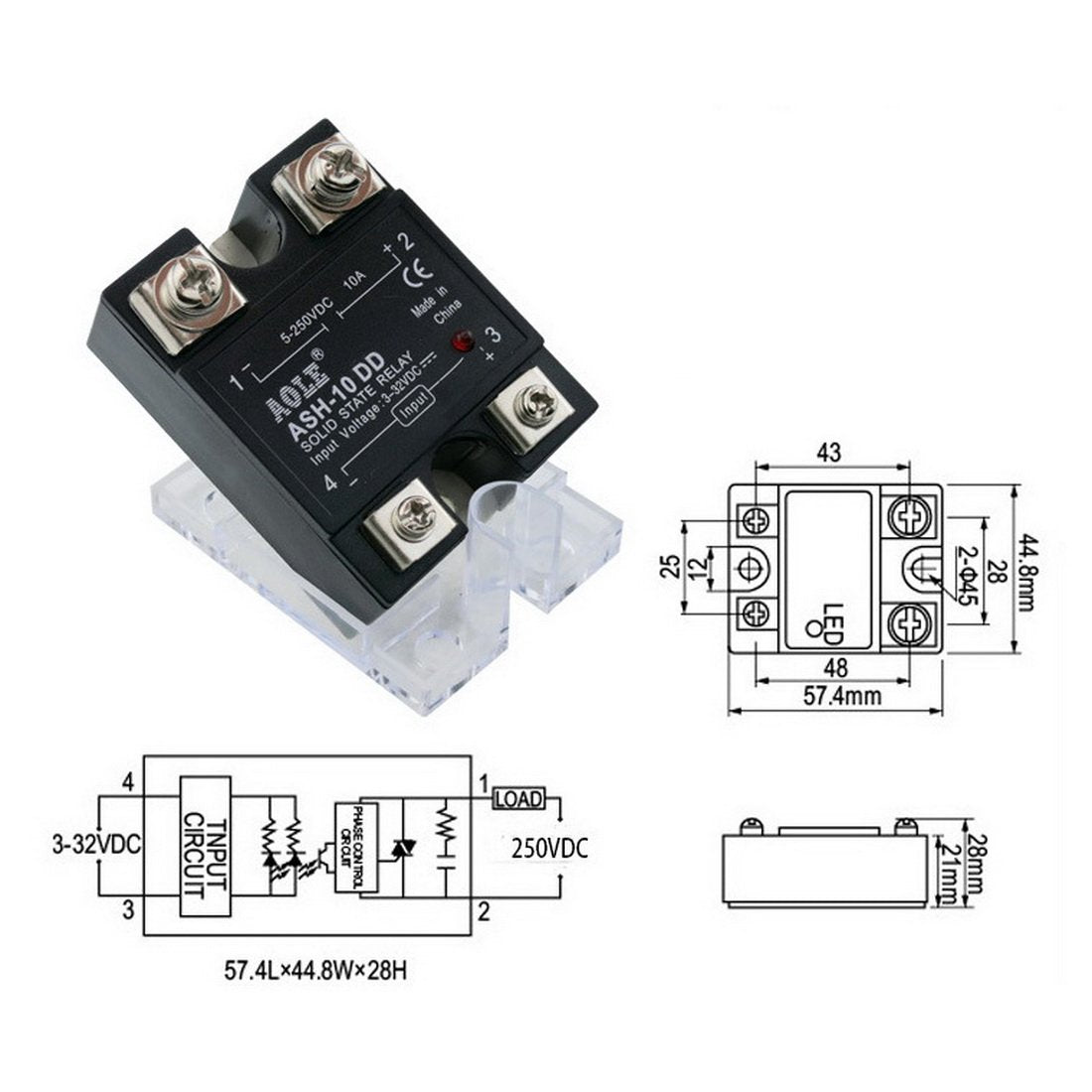

{"id":9559831871639,"title":"WerFamily SSR Solid State Relay SSR-10DD DC-DC 3-32V DC \/ 5-250V DC \/ 10A DC to DC","handle":"werfamily-ssr-solid-state-relay-ssr-10dd-dc-dc-3-32v-dc-5-250v-dc-10a-dc-to-dc","description":"\u003ch3\u003eWerFamily SSR Solid State Relay SSR-10DD DC-DC 3-32V DC \/ 5-250V DC \/ 10A\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eIntroduction: This single phrase Solid State Relay is ideal for automatic\r\nprocess control application, a must component for temperature controller and\r\nother machinery control system. High reliability, compact size, a great part\r\nfor temperature controller and other machinery control system. Specifications:\r\n- Model: ASH-A-10DD - Control Mode: DC to DC - Control Voltage: 3 - 32VDC -\r\nControl Current: DC4 - 12mA - Load Voltage: 5 - 250VDC - Load Current: 10A -\r\nOn-state Voltagedrop: ≤ 1.5V - Off Leakage Current: ≤ 2mA - On-off Time: ≤\r\n10ms - Dielectric Strength: 2500VAC - Insulation Resistance: 1000MΩ\/500VDC -\r\nAmbient Temperature: -30℃ - +70℃ - Protection Character: Resin Soldering -\r\nMounting Methods: Bolts Fixed - Size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x\r\n1.1inch(LWH) - Weight: 120g Features: - High reliability, high efficiency\r\nand long lifespan. - No electric spark, no noise and no contact. - Fine\r\nelectro magnetic interference, high sensitivity and fast switching speed. -\r\nLow drive voltage and current. - Unique shape and novel structure. -\r\nEspecially suitable for corrosion, moisture, dust resistant and other harsh\r\nenvironments. - Widely used in many automatic control systems. Packing\r\nInclude: 1 x ASH-A-10DD Solid State Relay. Note: - 10 to 25A radiator cooling,\r\nmore than 25A must on the radiator and fan cooling. - When Installation, solid\r\nstate plater and radiator with smeared thermal conductivity silicone grease. -\r\nAfter installation, check the insulation resistance between output and\r\nradiator radiator grounding is not recommended. - Output requirements\r\nconcatenated fuse or and the varistor. - If you have any questions, please\r\nfeel free to contact us by E-mail any time.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eProduct name: Single Phrase Solid State Relay; Model: WF-ASH-A-DD-10DD\u003c\/li\u003e\r\n \u003cli\u003eControl Mode: DC to DC; Control Voltage: 3 - 32VDC; Output Voltage: 5 - 250VDC\u003c\/li\u003e\r\n \u003cli\u003eRelay size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x 1.1inch (L*W*H)\u003c\/li\u003e\r\n \u003cli\u003eSealed high temperature resistance housing. Transparent resin protective cap is included.\u003c\/li\u003e\r\n \u003cli\u003eOutput requirements concatenated fuse or and the varistor. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-04-04T13:53:57+11:00","created_at":"2026-04-04T13:53:54+11:00","vendor":"WerFamily","type":"Solid State Relays","tags":["home_improvement_Apr2026"],"price":9500,"price_min":9500,"price_max":9500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47619810951319,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B06XPLQ9JQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WerFamily SSR Solid State Relay SSR-10DD DC-DC 3-32V DC \/ 5-250V DC \/ 10A DC to DC","public_title":null,"options":["Default Title"],"price":9500,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"710185898872","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B06XPLQ9JQ.jpg?v=1775830285","\/\/newnestshop.com\/cdn\/shop\/files\/613tzaQ7RfL.jpg?v=1775271236","\/\/newnestshop.com\/cdn\/shop\/files\/61elgu7c8GL.jpg?v=1775271236","\/\/newnestshop.com\/cdn\/shop\/files\/610y2cofDnL.jpg?v=1775271236","\/\/newnestshop.com\/cdn\/shop\/files\/614EVS783XL.jpg?v=1775271236","\/\/newnestshop.com\/cdn\/shop\/files\/61RRqcbcPHL.jpg?v=1775271236","\/\/newnestshop.com\/cdn\/shop\/files\/71cbciz7kcL.jpg?v=1775271236"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B06XPLQ9JQ.jpg?v=1775830285","options":["Title"],"media":[{"alt":null,"id":41389292486807,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B06XPLQ9JQ.jpg?v=1775830285"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B06XPLQ9JQ.jpg?v=1775830285","width":1100},{"alt":null,"id":41389292519575,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/613tzaQ7RfL.jpg?v=1775271236"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/613tzaQ7RfL.jpg?v=1775271236","width":1100},{"alt":null,"id":41389292552343,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61elgu7c8GL.jpg?v=1775271236"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61elgu7c8GL.jpg?v=1775271236","width":1100},{"alt":null,"id":41389292585111,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/610y2cofDnL.jpg?v=1775271236"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/610y2cofDnL.jpg?v=1775271236","width":1100},{"alt":null,"id":41389292617879,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/614EVS783XL.jpg?v=1775271236"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/614EVS783XL.jpg?v=1775271236","width":1100},{"alt":null,"id":41389292650647,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61RRqcbcPHL.jpg?v=1775271236"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61RRqcbcPHL.jpg?v=1775271236","width":1100},{"alt":null,"id":41389292683415,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71cbciz7kcL.jpg?v=1775271236"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71cbciz7kcL.jpg?v=1775271236","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWerFamily SSR Solid State Relay SSR-10DD DC-DC 3-32V DC \/ 5-250V DC \/ 10A\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eIntroduction: This single phrase Solid State Relay is ideal for automatic\r\nprocess control application, a must component for temperature controller and\r\nother machinery control system. High reliability, compact size, a great part\r\nfor temperature controller and other machinery control system. Specifications:\r\n- Model: ASH-A-10DD - Control Mode: DC to DC - Control Voltage: 3 - 32VDC -\r\nControl Current: DC4 - 12mA - Load Voltage: 5 - 250VDC - Load Current: 10A -\r\nOn-state Voltagedrop: ≤ 1.5V - Off Leakage Current: ≤ 2mA - On-off Time: ≤\r\n10ms - Dielectric Strength: 2500VAC - Insulation Resistance: 1000MΩ\/500VDC -\r\nAmbient Temperature: -30℃ - +70℃ - Protection Character: Resin Soldering -\r\nMounting Methods: Bolts Fixed - Size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x\r\n1.1inch(LWH) - Weight: 120g Features: - High reliability, high efficiency\r\nand long lifespan. - No electric spark, no noise and no contact. - Fine\r\nelectro magnetic interference, high sensitivity and fast switching speed. -\r\nLow drive voltage and current. - Unique shape and novel structure. -\r\nEspecially suitable for corrosion, moisture, dust resistant and other harsh\r\nenvironments. - Widely used in many automatic control systems. Packing\r\nInclude: 1 x ASH-A-10DD Solid State Relay. Note: - 10 to 25A radiator cooling,\r\nmore than 25A must on the radiator and fan cooling. - When Installation, solid\r\nstate plater and radiator with smeared thermal conductivity silicone grease. -\r\nAfter installation, check the insulation resistance between output and\r\nradiator radiator grounding is not recommended. - Output requirements\r\nconcatenated fuse or and the varistor. - If you have any questions, please\r\nfeel free to contact us by E-mail any time.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eProduct name: Single Phrase Solid State Relay; Model: WF-ASH-A-DD-10DD\u003c\/li\u003e\r\n \u003cli\u003eControl Mode: DC to DC; Control Voltage: 3 - 32VDC; Output Voltage: 5 - 250VDC\u003c\/li\u003e\r\n \u003cli\u003eRelay size: 57.4 x 44.8 x 28mm\/2.26 x 1.76 x 1.1inch (L*W*H)\u003c\/li\u003e\r\n \u003cli\u003eSealed high temperature resistance housing. Transparent resin protective cap is included.\u003c\/li\u003e\r\n \u003cli\u003eOutput requirements concatenated fuse or and the varistor. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
