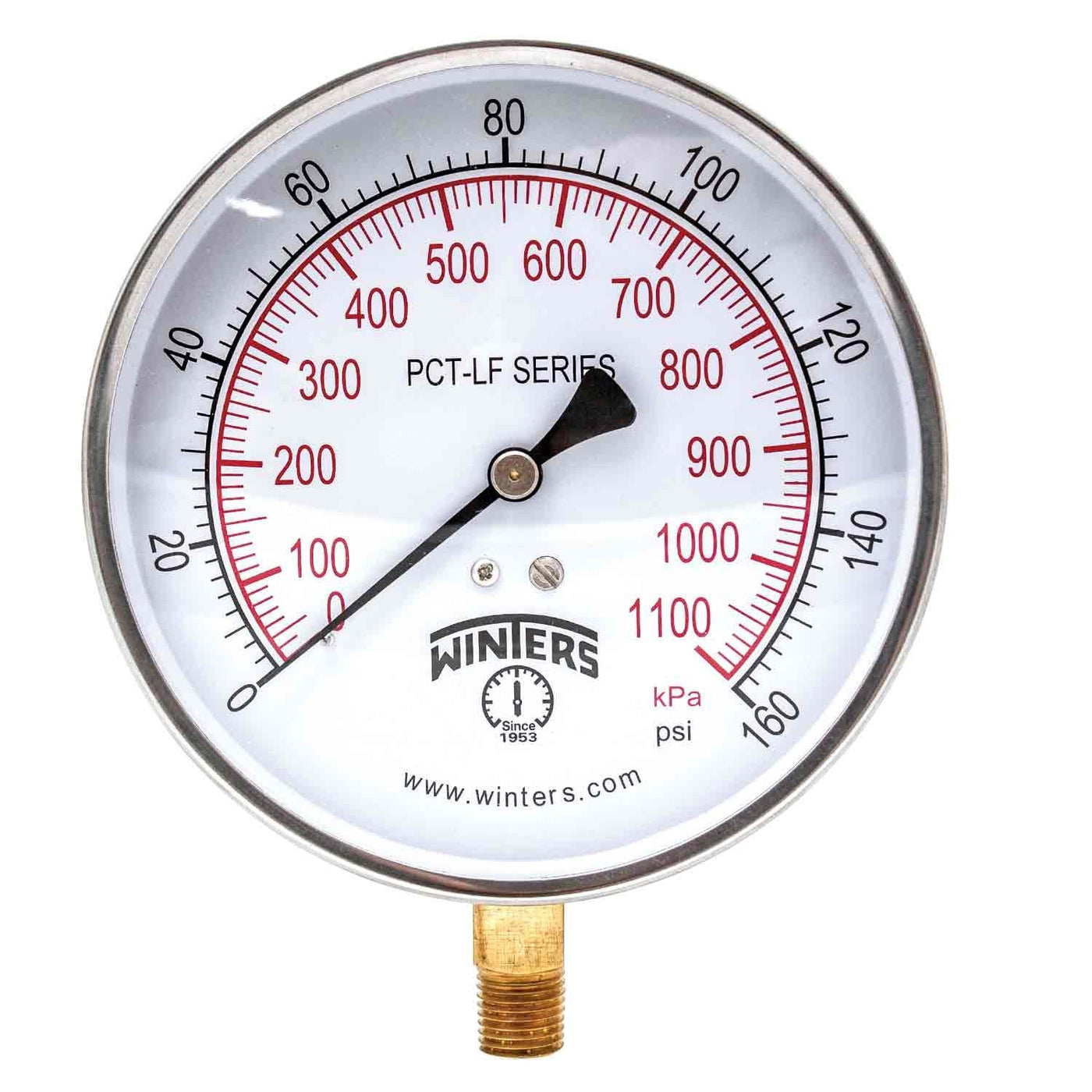

Winters PCT324LF PCT-LF Series Pressure Gauge, 4.5" Dial size, 1/4" NPT, 0/160 psi/kpa, ±1% accuracy
Winters PCT324LF PCT-LF Series Pressure Gauge, 4.5" Dial size, 1/4" NPT, 0/160 psi/kpa, ±1% accuracy
Applications: Most commercial air, water and steam services that require a +/-1 percent full-scale accuracy. Economical 4.5" stainless steel case gauge. Dial: White aluminum dial with black and red markings. Case: stainless steel 304. Lens: acrylic. Ring: stainless steel 304. Socket: Lead Free Brass. Connection: 1/4" NPT Bottom Connect. Bourdon tube: Lead Free phosphor bronze. Movement: brass. Pointer: aluminum, anodized black, recalibrator screw. Welding: silver solder. Over-pressure limit: 25%. Working pressure: maximum 75 percent of full scale value. Ambient/Process temperature: -40F to 200F (-40C to 93C). Accuracy: +/-1% ANSI/ASME grade 1A. Enclosure rating: IP52. CRN registered. Dial Size: 4.5" (115mm). Range: 0 - 160 psi/kPa.
Product Features
- Economical 4.5" (115mm) stainless steel case gauge
- Lead free wetted parts
- Zero adjustment screw
- 1% accuracy
- 1/4" NPT Bottom Connection
