Worm Speed Reducer, Worm Gear Set 6mm Bore Gear Shaft 28:1 Reduction Ratio 24 Teeth Worm Wheel High Torsion for Motor Internal Drive Accessories
Worm Speed Reducer, Worm Gear Set 6mm Bore Gear Shaft 28:1 Reduction Ratio 24 Teeth Worm Wheel High Torsion for Motor Internal Drive Accessories

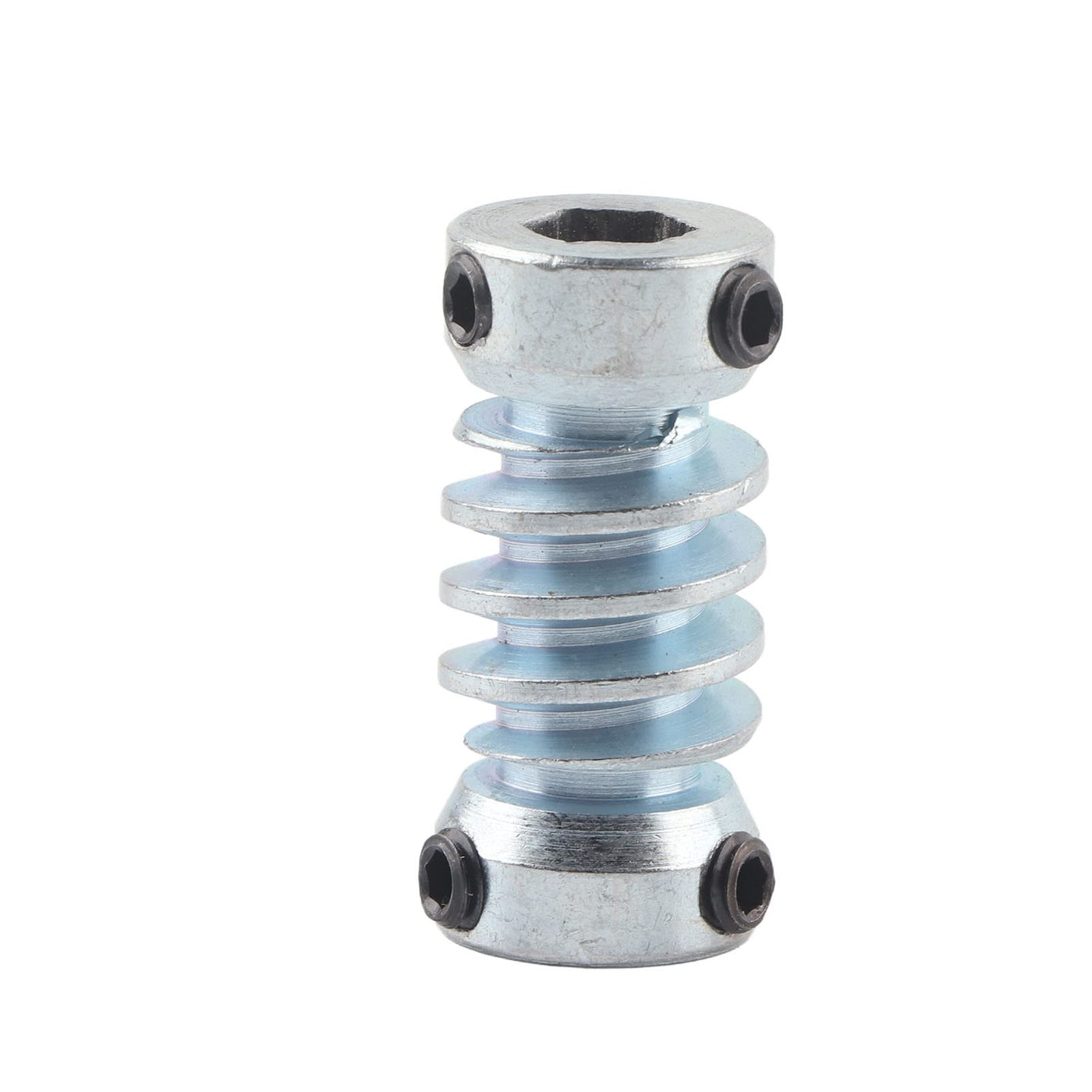

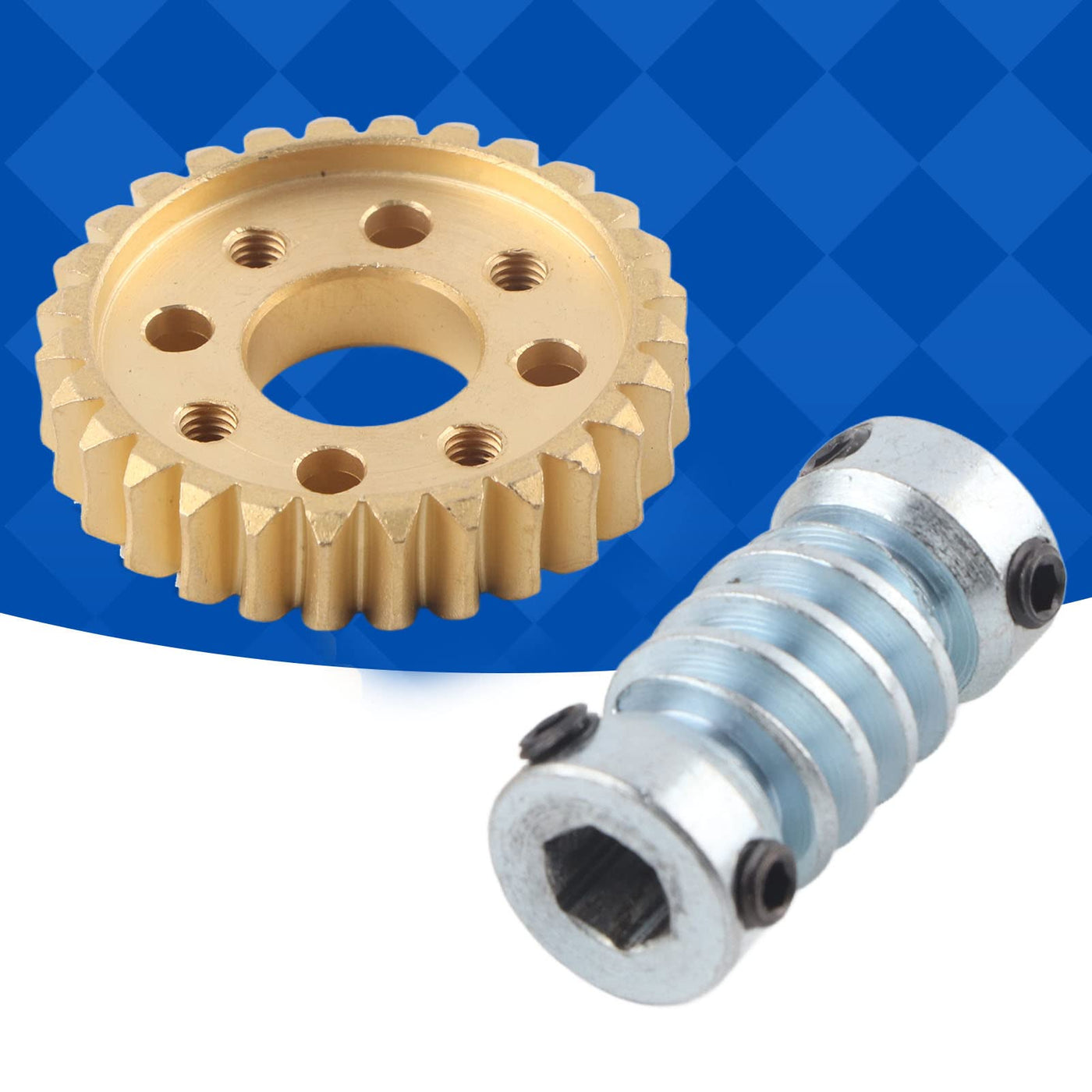

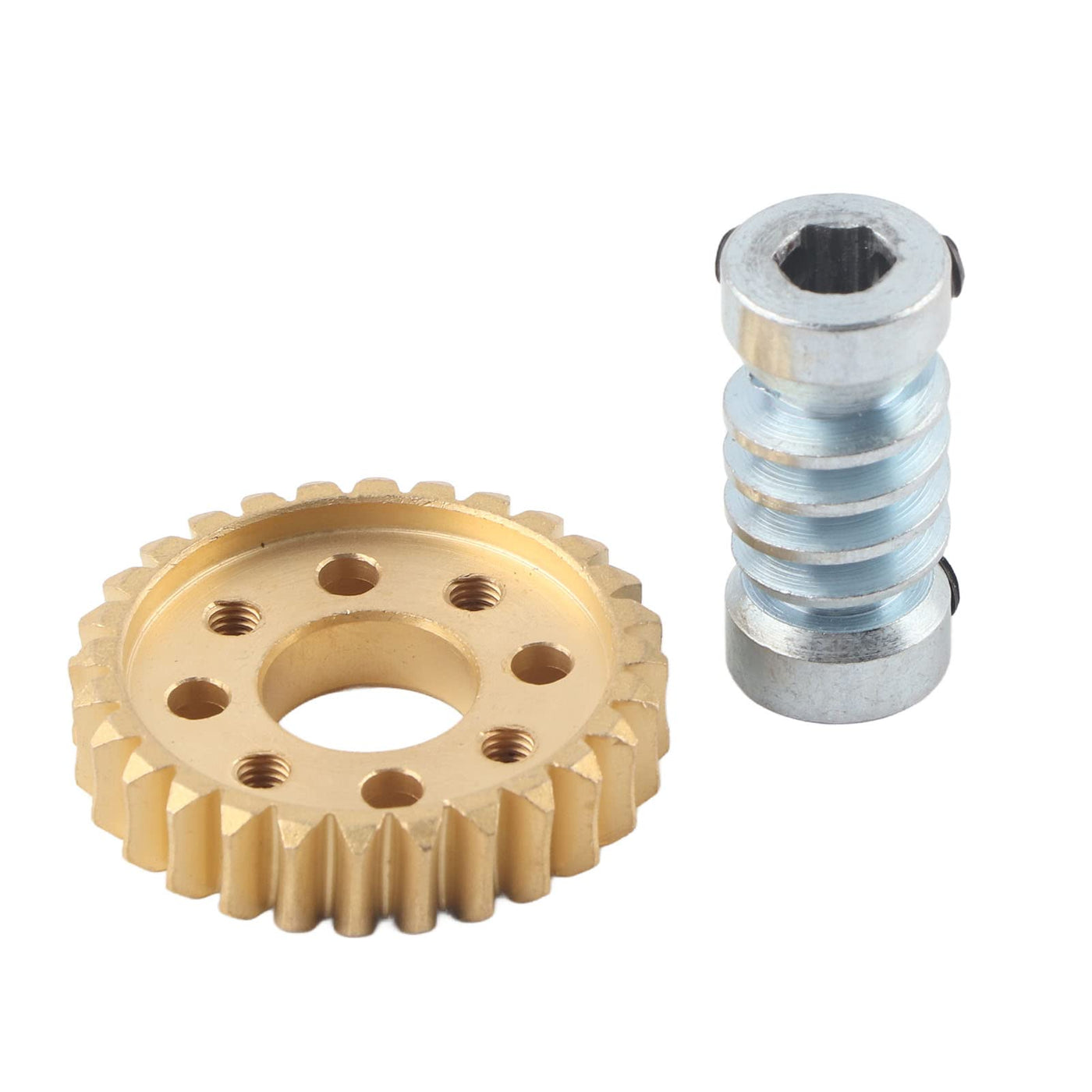

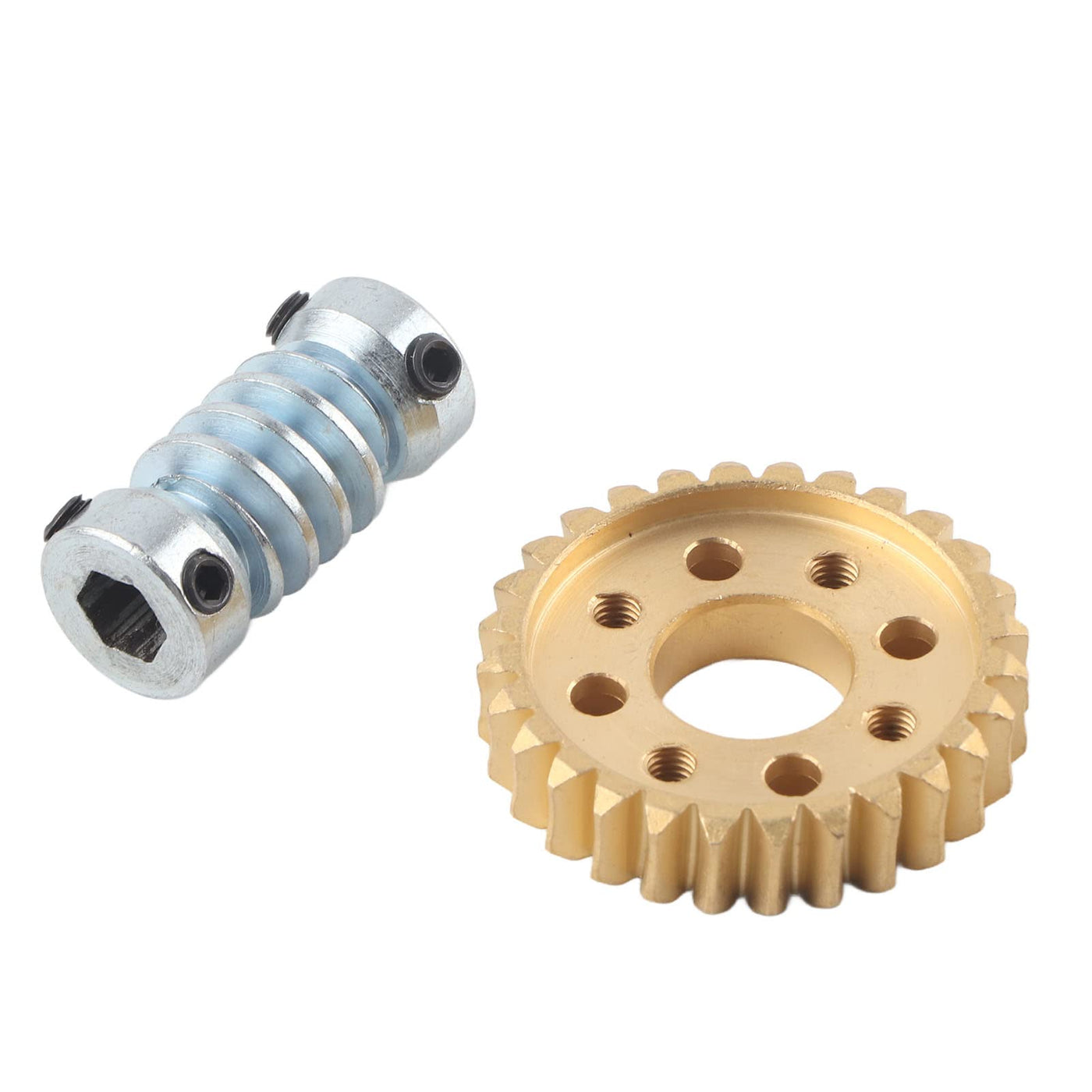

1. Adopts sophisticated production technology, which is compact, sturdy, has high torsion, and has 28:1 gear reduction ratio. 2. With self locking, can realize reverse self locking, so that the motor does not need to continue to apply torsion to maintain the load. 3. Can cope with heavy torsion loads without worrying about rounding or slipping of shafts and holes, providing powerful and stable power for the robot. 4. One side of the gear is a circular slot, and the other side is flat, which is convenient to install and fix the worm gear. 5. Can stably transmit the torsion generated by the gear motor to the output shaft, and increase the use range of the worm gear. Spec: Item Type: Worm Speed Reducer Material: Brass, Stainless Steel Model: For 5204 0001 0002 Gear Shaft: 6mm Hex Hole Worm Wheel: 28 Teeth Use: Motor Internal Drive Accessories And there are clamping bolts on each side. The balanced double bolts setting will produce a balanced and firm clamping force on the shaft. To ensure that the rotating components fixed on the shaft will not move, slip or loosen. The 24mm center distance between the worm and the mating worm gear makes the 3120 series U shape beam an ideal structure for accommodating the gear set. How to Use: The worm wheel has a modulus of 1.25 and a center hole diameter of 14mm. It has a 16mm robot common hole grid pattern. One end face of the gear has a circular slot with a diameter of 32mm and a depth of 2.5mm, and the other end face There are four counterbores with a diameter of 8mm. This design is beneficial to reduce the weight of the gear without changing the strength of the gear, and to better cooperate with the 3311, 3312 series high speed shaft clamps, and can also avoid the installation of fixed gears. The protrusion of the screw head interferes to ensure the flat of the installation plane. If the circular slot affects the assembly, then we can flip the gear and use the other side of the
Product Features

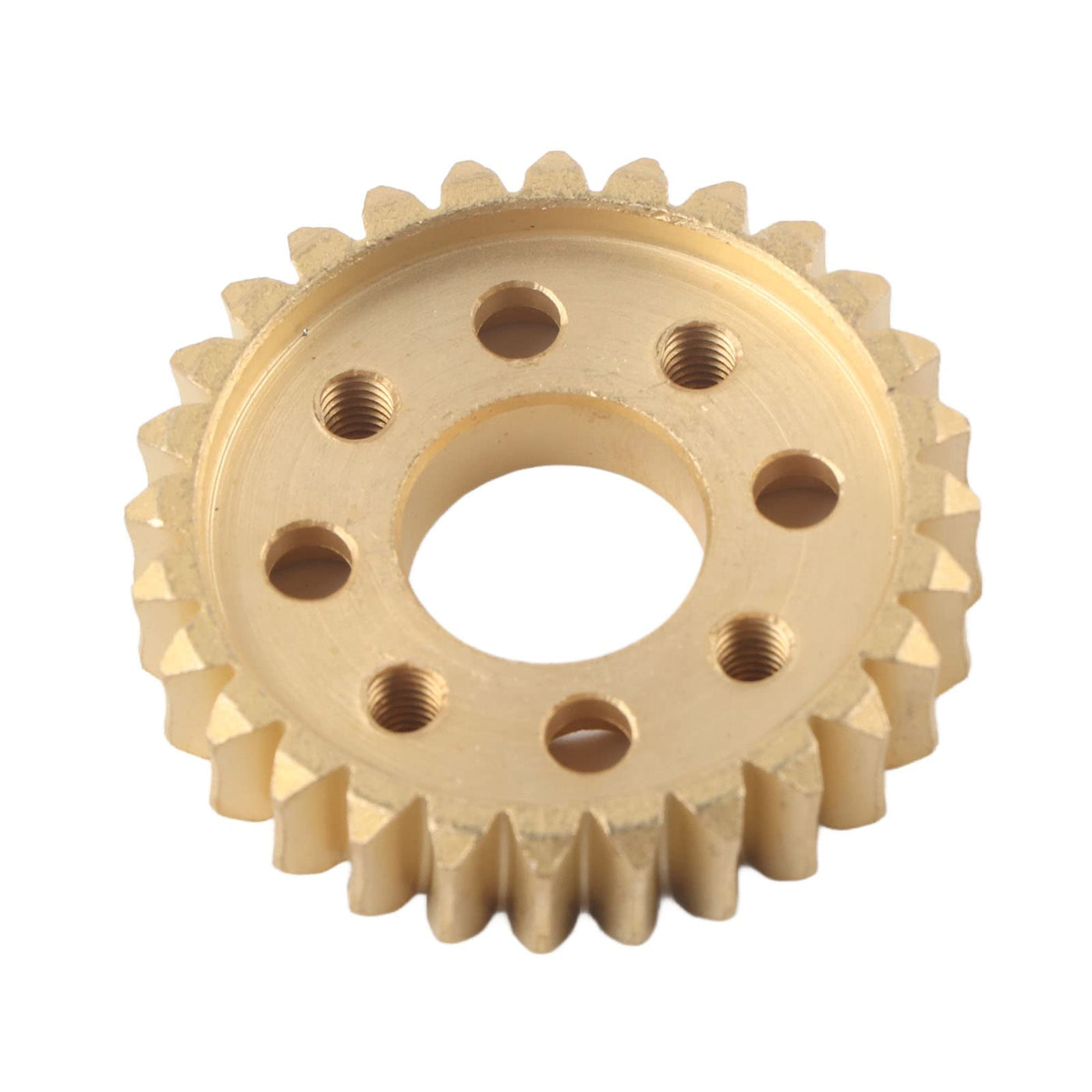

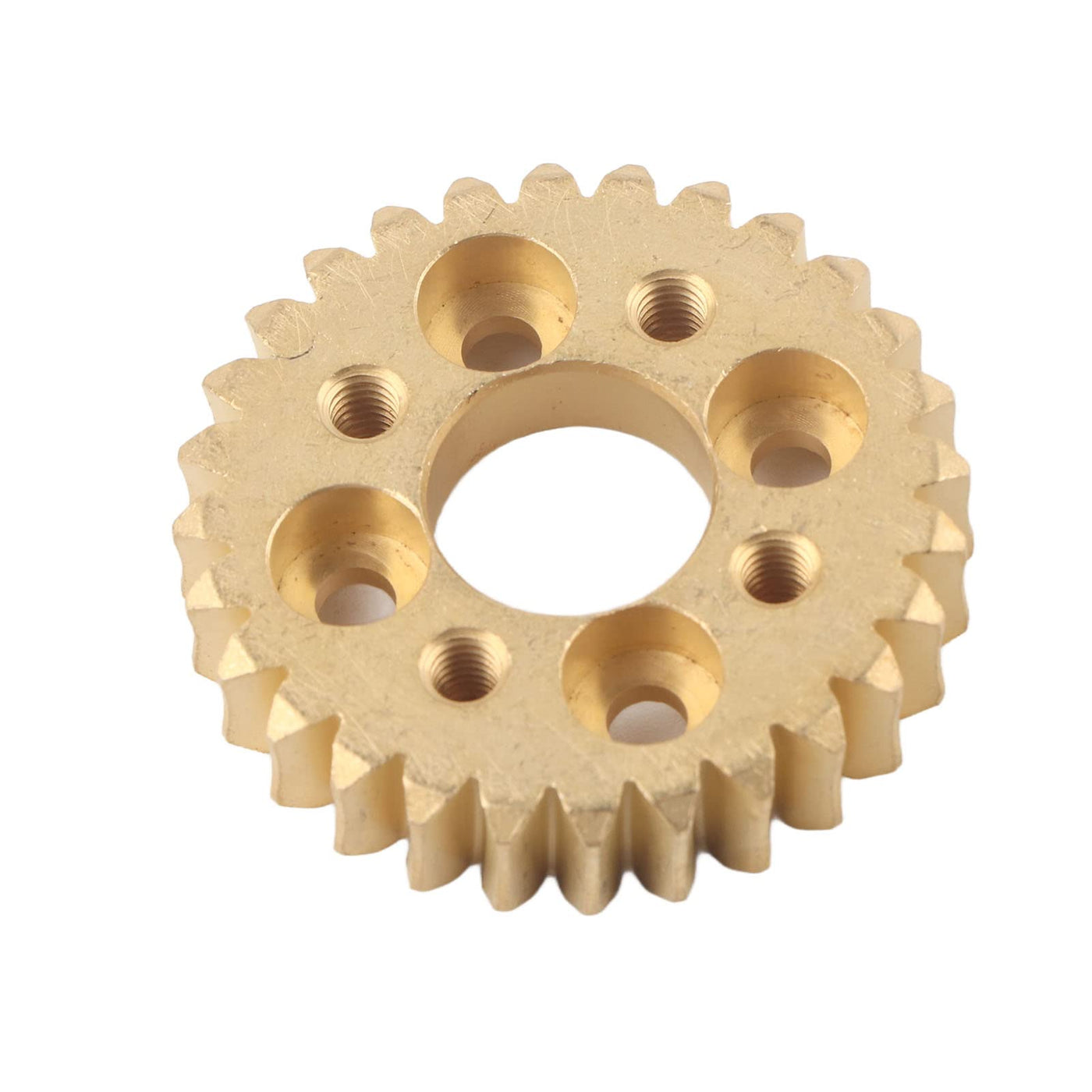

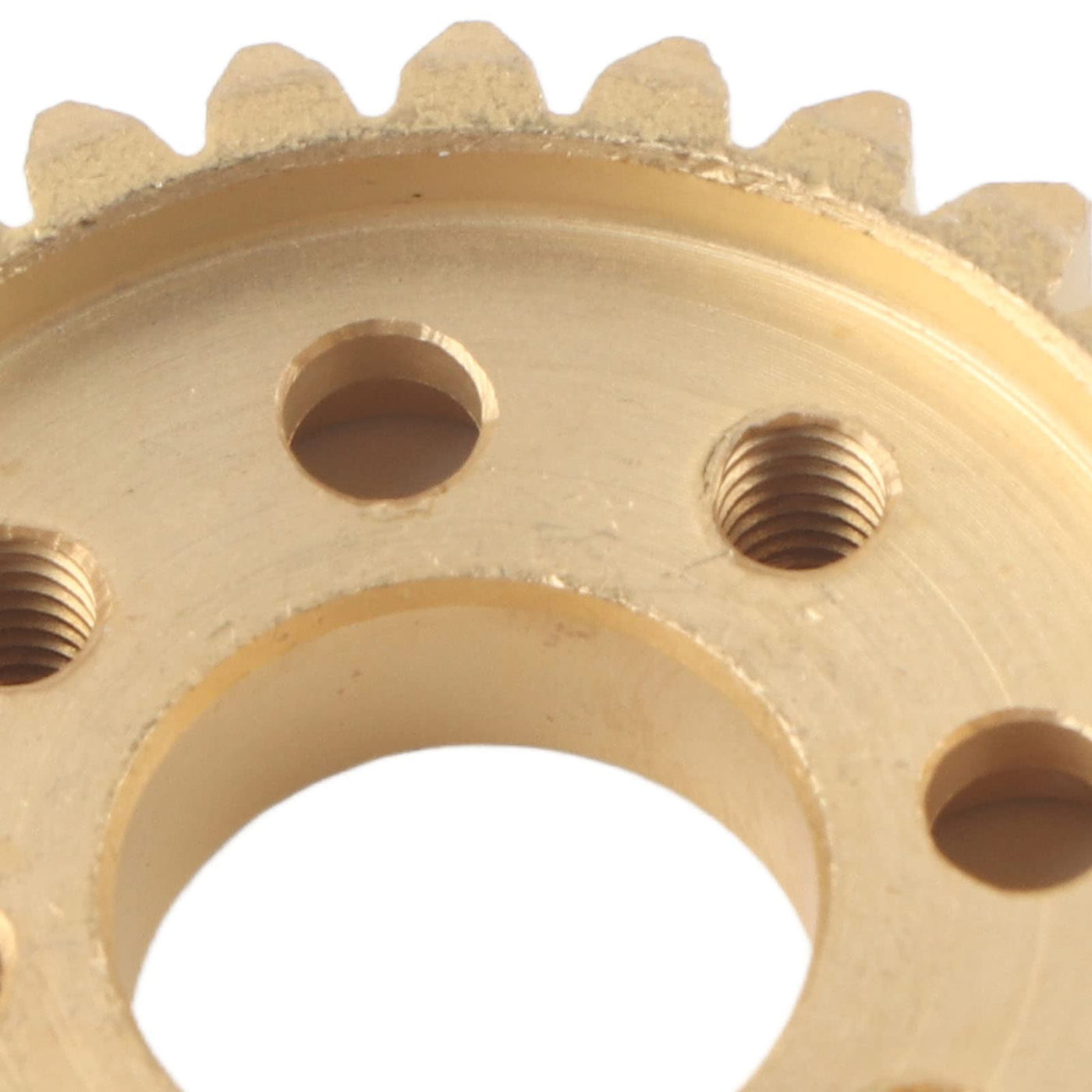

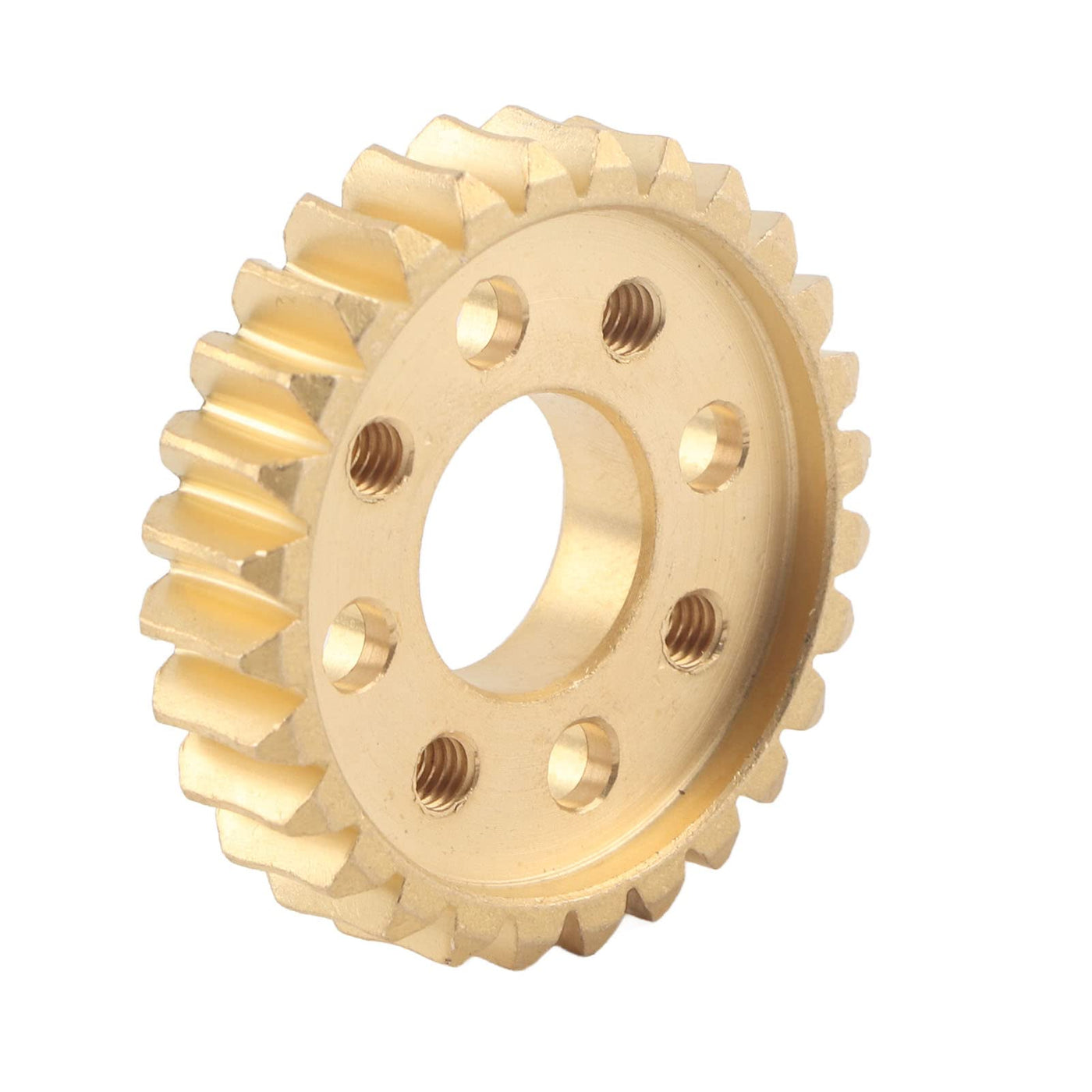

- One side of the gear is a circular slot, and the other side is flat, which is convenient to install and fix the worm gear.
- With self locking, can realize reverse self locking, so that the motor does not need to continue to apply torsion to maintain the load.

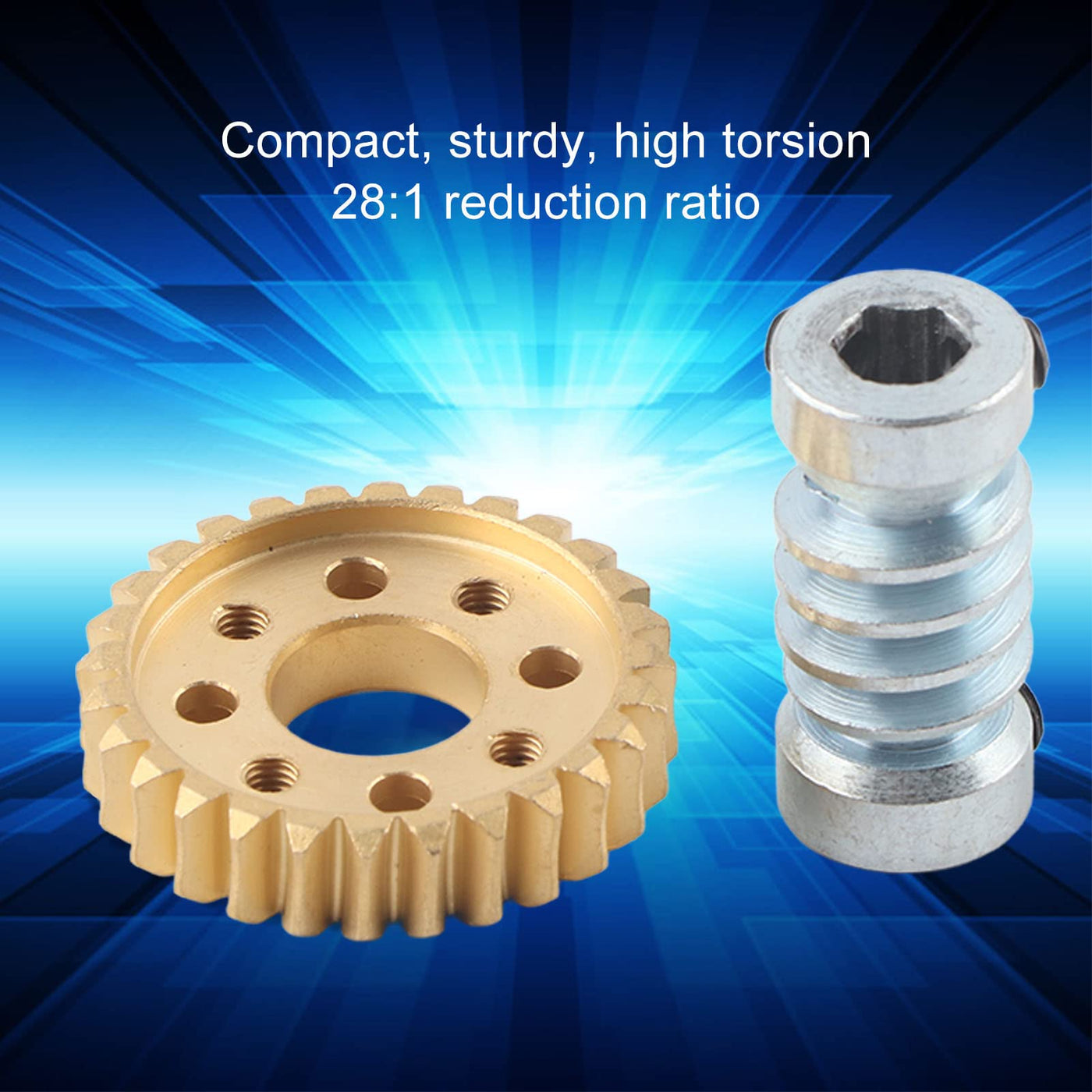

- Adopts sophisticated production technology, which is compact, sturdy, has high torsion, and has 28:1 gear reduction ratio.
- Can stably transmit the torsion generated by the gear motor to the output shaft, and increase the use range of the worm gear.
- Can cope with heavy torsion loads without worrying about rounding or slipping of shafts and holes, providing powerful and stable power for the robot.
