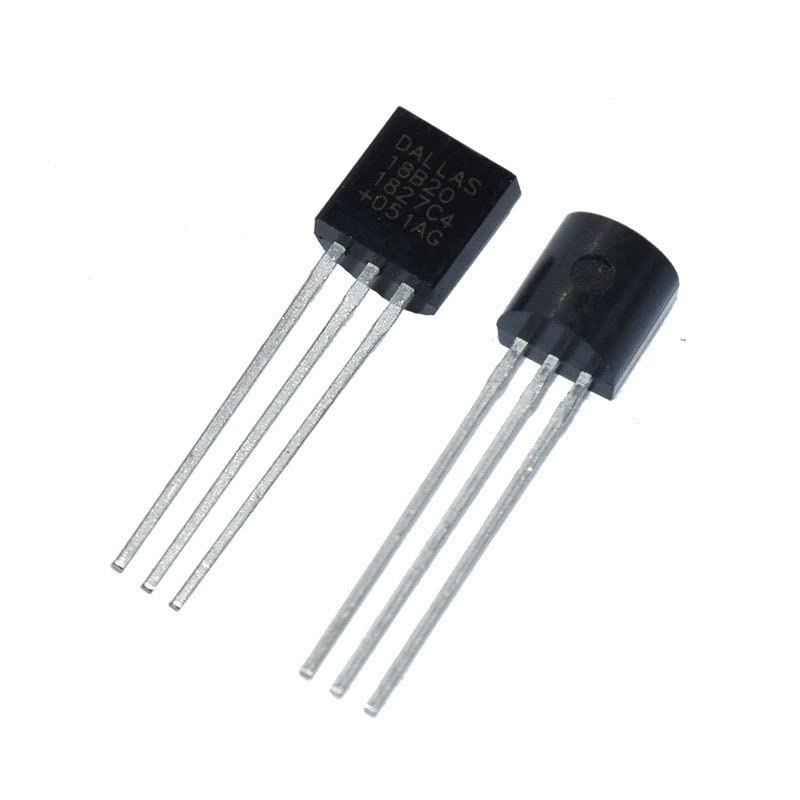

{"id":8907794677911,"title":"WWZMDiB 8PCS Direct Plug 3 Pins DS18B20 chip programmable Digital Thermometer\/Temperature Sensor Temperature Acquisition TO-92","handle":"wwzmdib-8pcs-direct-plug-3-pins-ds18b20-chip-programmable-digital-thermometer-temperature-sensor-temperature-acquisition-to-92","description":"\u003ch3\u003eWWZMDiB 8PCS Direct Plug 3 Pins DS18B20 chip programmable Digital Thermometer\/Temperature Sensor Temperature Acquisition TO-92\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e💎【Descriptions】 Part Number : DS18B20 Part Type : Temperature Sensor Supply\nVoltage : 3 - 5.5v Supply Current : 1 - 1.5mA Accuracy : +\/-0.5 Resolution :\n12 bit Temperature Range : -55 to 125 degC Case Style : TO-92 Quantity : 8\nLength size: 15mm Package Included: 8pcs X Temperature Sensor 💎 ·Single bus\ninterface requires only one port pin for communication ·Each chip has a\nglobally unique 64-bit serial number ·With multi-point distributed temperature\nmeasurement function ·No peripheral components required ·Can be powered by\ndata line; power supply voltage range is 2.5V~5.5V ·Measurement range of -55°C\nto +125°C (-67°F to +25°F) ·Accuracy ±0.4°C over the -10°C to 70°C range\n·Temperature resolution from 9 to 12 bits selectable ·Temperature conversion\nspeed of less than 400ms at up to 12-bit accuracy ·User-defined, non-volatile\ntemperature alarm settings ·Alarm search command identifies and identifies\ndevices that exceed programmed temperature Super static protection: HBM 8000V\nMM 800V\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDS18B20 one-line digital temperature sensor\u003c\/li\u003e\n \u003cli\u003eVoltage supply: 3V~5.5V\u003c\/li\u003e\n \u003cli\u003eMeasure The measurement range is -55C to +125C (-67F to +25)\u003c\/li\u003e\n \u003cli\u003e's unique single-wire interface requires only one port pin for communication\u003c\/li\u003e\n \u003cli\u003eThis networking mode is particularly suitable for HVAC environmental control, construction, equipment, grain temperature measurement, industrial temperature measurement and process monitoring and control applications.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-03-19T00:57:34+11:00","created_at":"2025-03-18T02:02:15+11:00","vendor":"WWZMDiB","type":"Temperature Probes \u0026 Sensors","tags":["home_improvement_Feb2025"],"price":8100,"price_min":8100,"price_max":8100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45308607168663,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BTYFDGRJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WWZMDiB 8PCS Direct Plug 3 Pins DS18B20 chip programmable Digital Thermometer\/Temperature Sensor Temperature Acquisition TO-92","public_title":null,"options":["Default Title"],"price":8100,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"744603649937","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/61vcT-vymTL.jpg?v=1742223738","\/\/newnestshop.com\/cdn\/shop\/files\/41le1B4v9aL.jpg?v=1742223738","\/\/newnestshop.com\/cdn\/shop\/files\/416E0sdVcML.jpg?v=1742223738","\/\/newnestshop.com\/cdn\/shop\/files\/41iF5R6UYFL.jpg?v=1742223738","\/\/newnestshop.com\/cdn\/shop\/files\/41UO_SBfneL.jpg?v=1742223738","\/\/newnestshop.com\/cdn\/shop\/files\/71aDitht8oL.jpg?v=1742223738"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/61vcT-vymTL.jpg?v=1742223738","options":["Title"],"media":[{"alt":null,"id":37351053066391,"position":1,"preview_image":{"aspect_ratio":1.057,"height":1740,"width":1840,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61vcT-vymTL.jpg?v=1742223738"},"aspect_ratio":1.057,"height":1740,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61vcT-vymTL.jpg?v=1742223738","width":1840},{"alt":null,"id":37351053099159,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41le1B4v9aL.jpg?v=1742223738"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41le1B4v9aL.jpg?v=1742223738","width":800},{"alt":null,"id":37351053131927,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/416E0sdVcML.jpg?v=1742223738"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/416E0sdVcML.jpg?v=1742223738","width":1001},{"alt":null,"id":37351053164695,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41iF5R6UYFL.jpg?v=1742223738"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41iF5R6UYFL.jpg?v=1742223738","width":1000},{"alt":null,"id":37351053197463,"position":5,"preview_image":{"aspect_ratio":1.039,"height":415,"width":431,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/41UO_SBfneL.jpg?v=1742223738"},"aspect_ratio":1.039,"height":415,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/41UO_SBfneL.jpg?v=1742223738","width":431},{"alt":null,"id":37351053230231,"position":6,"preview_image":{"aspect_ratio":1.14,"height":2245,"width":2560,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71aDitht8oL.jpg?v=1742223738"},"aspect_ratio":1.14,"height":2245,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71aDitht8oL.jpg?v=1742223738","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWWZMDiB 8PCS Direct Plug 3 Pins DS18B20 chip programmable Digital Thermometer\/Temperature Sensor Temperature Acquisition TO-92\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e💎【Descriptions】 Part Number : DS18B20 Part Type : Temperature Sensor Supply\nVoltage : 3 - 5.5v Supply Current : 1 - 1.5mA Accuracy : +\/-0.5 Resolution :\n12 bit Temperature Range : -55 to 125 degC Case Style : TO-92 Quantity : 8\nLength size: 15mm Package Included: 8pcs X Temperature Sensor 💎 ·Single bus\ninterface requires only one port pin for communication ·Each chip has a\nglobally unique 64-bit serial number ·With multi-point distributed temperature\nmeasurement function ·No peripheral components required ·Can be powered by\ndata line; power supply voltage range is 2.5V~5.5V ·Measurement range of -55°C\nto +125°C (-67°F to +25°F) ·Accuracy ±0.4°C over the -10°C to 70°C range\n·Temperature resolution from 9 to 12 bits selectable ·Temperature conversion\nspeed of less than 400ms at up to 12-bit accuracy ·User-defined, non-volatile\ntemperature alarm settings ·Alarm search command identifies and identifies\ndevices that exceed programmed temperature Super static protection: HBM 8000V\nMM 800V\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDS18B20 one-line digital temperature sensor\u003c\/li\u003e\n \u003cli\u003eVoltage supply: 3V~5.5V\u003c\/li\u003e\n \u003cli\u003eMeasure The measurement range is -55C to +125C (-67F to +25)\u003c\/li\u003e\n \u003cli\u003e's unique single-wire interface requires only one port pin for communication\u003c\/li\u003e\n \u003cli\u003eThis networking mode is particularly suitable for HVAC environmental control, construction, equipment, grain temperature measurement, industrial temperature measurement and process monitoring and control applications.\u003c\/li\u003e\n \u003c\/ul\u003e"}
