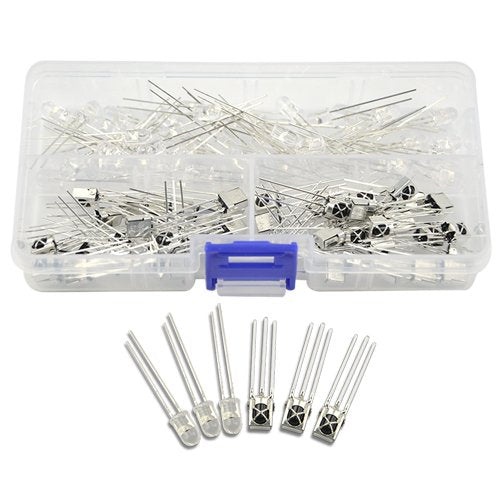

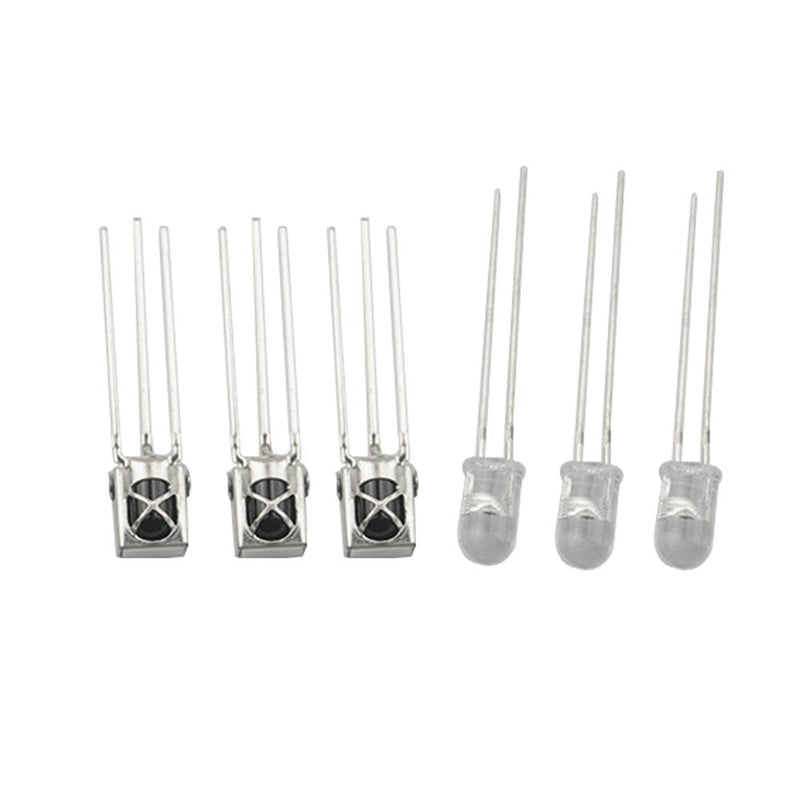

{"id":8799346393239,"title":"XINGYHENG 100Pcs 50 Pairs 5mm Infrared Diode 940nm IR Emission and Receiver (Three Legs)","handle":"xingyheng-100pcs-50-pairs-5mm-infrared-diode-940nm-ir-emission-and-receiver-three-legs","description":"\u003ch3\u003eXINGYHENG 100Pcs 50 Pairs 5mm Infrared Diode 940nm IR Emission and Receiver (Three Legs)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature : 940nm IR Emission :50pcs (01) Bulb Size diameter : 5mm (01) Pin\nlength: Approx. 25mm \/ 0.98\" (02) Operate Distance : 18~20m (03) Forward\nVoltage (V) : 1.2-1.5V (04) Peak wavelength (nm): 940nm (05) Lens Color :\nWater Clear (06) Material: Semiconductor (07) Forward Current: 100mA (08)\nPower: 100mW (09) Operating temperature : -25~ +70 ℃ (10) Storage temperature\n: -30 ~ +80 ℃ Three Legs IR Receiver :50pcs (01) Model : VS1838B (02) Working\nVoltage : 2.7~5.5V (03) Low Level Voltage : 0.4V (04) High Level Voltage :\n4.5V (05) Reception Distance : 18M (06) Frequence : 38KHz (07) Receiver Angle\n: ±45° (08) Bulb Size diameter : 5mm \/ 0.2\" (09) Pin Length : 22.5mm \/ 0.88\"\n(10) Epoxy resin package plus external shielding anti-dry design (11) Anti-dry\nability, able to withstand the environment dry scratch (12) Output match TTL,\nCMOS level, active low (13) Application:audio-visual equipment (speakers, TV,\nDVD, satellite receivers, etc.); household appliances (air conditioning,\nelectric fans, lighting, etc.); and other infrared remote control products.\nPacking Quantity:50pairs \/ 100pcs with a plastic box\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1. Voltage : 2.7~5.5V\u003c\/li\u003e\n \u003cli\u003e2. Frequence : 38KHz\u003c\/li\u003e\n \u003cli\u003e3. Receiver Angle : 45\u003c\/li\u003e\n \u003cli\u003e4. Bulb Size diameter : 5mm\u003c\/li\u003e\n \u003cli\u003e5. Operate Distance : 18~20m\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-08T17:17:03+11:00","created_at":"2025-02-07T13:20:37+11:00","vendor":"XINGYHENG","type":"Infrared Emitters","tags":["industrial_best_sellers_Jan2025"],"price":9800,"price_min":9800,"price_max":9800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45138094030999,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01MCYI5AC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"XINGYHENG 100Pcs 50 Pairs 5mm Infrared Diode 940nm IR Emission and Receiver (Three Legs)","public_title":null,"options":["Default Title"],"price":9800,"weight":68,"compare_at_price":null,"inventory_management":"shopify","barcode":"605749399103","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B01MCYI5AC.jpg?v=1775767438","\/\/newnestshop.com\/cdn\/shop\/files\/51U9pyQM2UL.jpg?v=1738894839","\/\/newnestshop.com\/cdn\/shop\/files\/71ad5z18YPL.jpg?v=1738894839","\/\/newnestshop.com\/cdn\/shop\/files\/71efblz7mOL.jpg?v=1738894840","\/\/newnestshop.com\/cdn\/shop\/files\/61TyDiipofL.jpg?v=1738894840"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B01MCYI5AC.jpg?v=1775767438","options":["Title"],"media":[{"alt":null,"id":36933007671447,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B01MCYI5AC.jpg?v=1775767438"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B01MCYI5AC.jpg?v=1775767438","width":500},{"alt":null,"id":36933007736983,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51U9pyQM2UL.jpg?v=1738894839"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51U9pyQM2UL.jpg?v=1738894839","width":1000},{"alt":null,"id":36933007769751,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71ad5z18YPL.jpg?v=1738894839"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71ad5z18YPL.jpg?v=1738894839","width":1000},{"alt":null,"id":36933007802519,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71efblz7mOL.jpg?v=1738894840"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71efblz7mOL.jpg?v=1738894840","width":1000},{"alt":null,"id":36933007868055,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61TyDiipofL.jpg?v=1738894840"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61TyDiipofL.jpg?v=1738894840","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eXINGYHENG 100Pcs 50 Pairs 5mm Infrared Diode 940nm IR Emission and Receiver (Three Legs)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature : 940nm IR Emission :50pcs (01) Bulb Size diameter : 5mm (01) Pin\nlength: Approx. 25mm \/ 0.98\" (02) Operate Distance : 18~20m (03) Forward\nVoltage (V) : 1.2-1.5V (04) Peak wavelength (nm): 940nm (05) Lens Color :\nWater Clear (06) Material: Semiconductor (07) Forward Current: 100mA (08)\nPower: 100mW (09) Operating temperature : -25~ +70 ℃ (10) Storage temperature\n: -30 ~ +80 ℃ Three Legs IR Receiver :50pcs (01) Model : VS1838B (02) Working\nVoltage : 2.7~5.5V (03) Low Level Voltage : 0.4V (04) High Level Voltage :\n4.5V (05) Reception Distance : 18M (06) Frequence : 38KHz (07) Receiver Angle\n: ±45° (08) Bulb Size diameter : 5mm \/ 0.2\" (09) Pin Length : 22.5mm \/ 0.88\"\n(10) Epoxy resin package plus external shielding anti-dry design (11) Anti-dry\nability, able to withstand the environment dry scratch (12) Output match TTL,\nCMOS level, active low (13) Application:audio-visual equipment (speakers, TV,\nDVD, satellite receivers, etc.); household appliances (air conditioning,\nelectric fans, lighting, etc.); and other infrared remote control products.\nPacking Quantity:50pairs \/ 100pcs with a plastic box\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1. Voltage : 2.7~5.5V\u003c\/li\u003e\n \u003cli\u003e2. Frequence : 38KHz\u003c\/li\u003e\n \u003cli\u003e3. Receiver Angle : 45\u003c\/li\u003e\n \u003cli\u003e4. Bulb Size diameter : 5mm\u003c\/li\u003e\n \u003cli\u003e5. Operate Distance : 18~20m\u003c\/li\u003e\n \u003c\/ul\u003e"}
