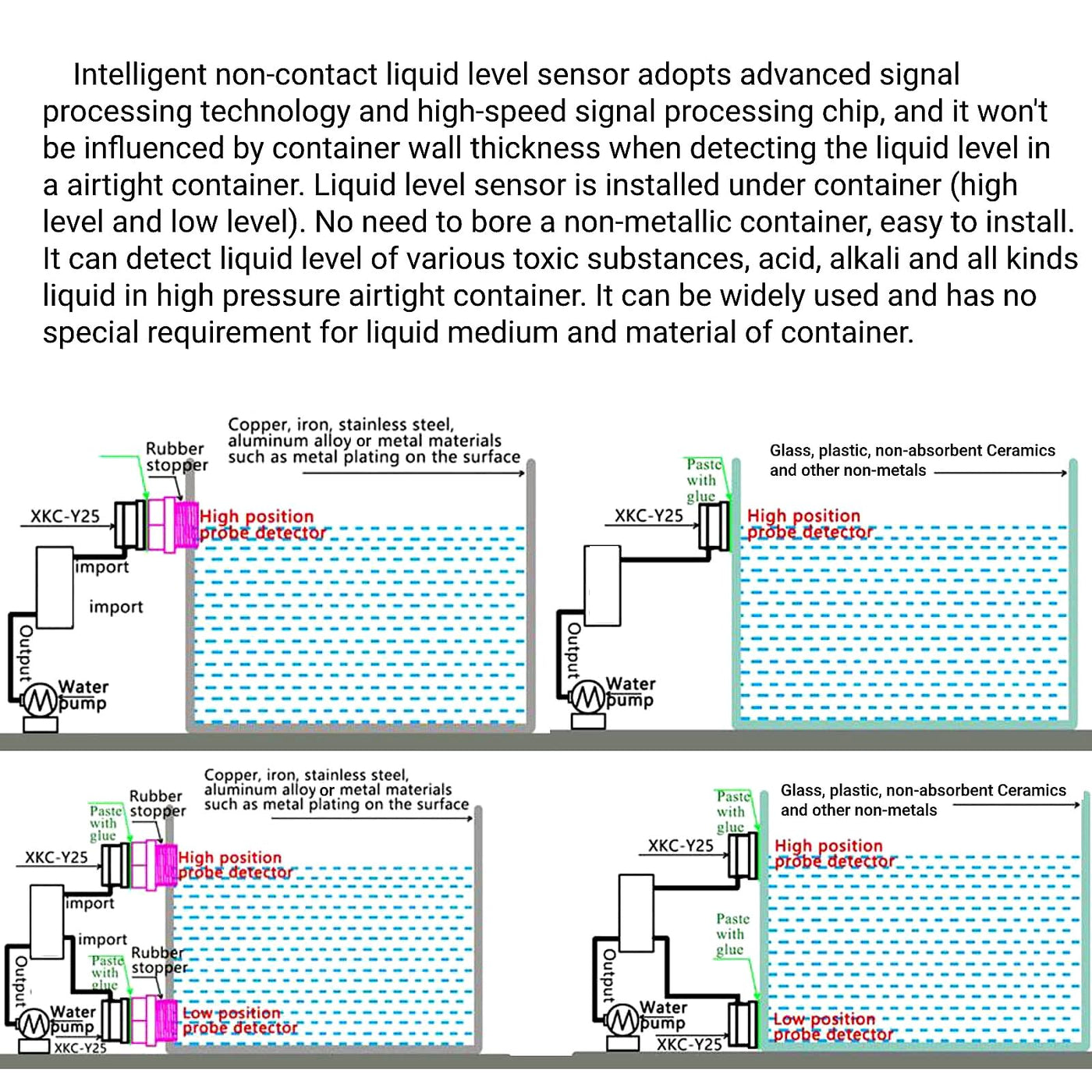

{"id":8799250972823,"title":"XKC-Y25-NPN Waterproof Non-Contact Liquid Level External Sensor Sensor Switch Output DC 5-12V","handle":"xkc-y25-npn-waterproof-non-contact-liquid-level-external-sensor-sensor-switch-output-dc-5-12v","description":"\u003ch3\u003eXKC-Y25-NPN Waterproof Non-Contact Liquid Level External Sensor Sensor Switch Output DC 5-12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe intelligent non-contact liquid level sensor\n(hereinafter referred to as the liquid level sensor) adopts advanced signal\nprocessing technology and high-speed signal processing chips, breaking through\nthe influence of container wall thickness and realizing true non-contact\ndetection of liquid level height in a closed container. The liquid level\nsensor (probe) is installed above and below the outer wall of the measured\ncontainer (high and low liquid levels). Non-metallic containers do not need to\nbe opened, and the installation is simple and does not affect production.\nProduct Specification: 1. Item Type: XKC-Y25-NPN Sensor 2. Working Voltage:\n5-12V 3. Induction Principle: Capacitive Liquid Level Sensing 4. Output Form :\nNPN 5. Model: XKC-Y25-NPN 6. Response Time: 500ms 7. Output Current: 1~100mA\n8. Working Environment Temperature: -10~100°C 9. Induction Thickness\n(Sensitivity) Range: 20mm 10. Level Error: ±1.5mm 11. Humidity: 5%~100% 12.\nMaterial: ABS 13. Waterproof Performance: IP67\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWiring HarnessBrown wire : VCC(DC 5-12V connects power positive), Yellow wire:OUT( signal output), Blue wire: GND(connects power negative), Black wire:M(mode of NO\/NC)\u003c\/li\u003e\n \u003cli\u003eIntelligent AdjustmentIntelligent liquid level reference adjustment, liquid level storage function, liquid level status display mode, can realize multi-point series connection.Pure electronic circuit structure, non-mechanical working mode, stable and performance.\u003c\/li\u003e\n \u003cli\u003eAnti-InterferenceHigh stability, high sensitivity, strong anti-interference ability, from external electromagnetic interference, special treatment for power frequency interference and common mode interference, so as to be compatible with all 5 ~ 12V power.\u003c\/li\u003e\n \u003cli\u003eWidely UsedIt can detect the liquid level of various toxic substances, strong acids, strong alkalis and various liquids in high-pressure sealed containers. The liquid level sensor has no special requirements for the material of the liquid medium and the container.\u003c\/li\u003e\n \u003cli\u003eNon-contact TypeThe sensor is suitable for the outer wall of non-metallic pipes that are not in direct contact with the liquid, and will not be corroded by corrosive liquids such as strong acids, and will not be affected by scale or other debris.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-02-08T17:18:25+11:00","created_at":"2025-02-07T13:11:02+11:00","vendor":"Podazz","type":"Liquid Level Sensors","tags":["industrial_best_sellers_Jan2025"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45137988157591,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0D7Q6T225","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"XKC-Y25-NPN Waterproof Non-Contact Liquid Level External Sensor Sensor Switch Output DC 5-12V","public_title":null,"options":["Default Title"],"price":9900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"XKC-Y25-NPN","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0D7Q6T225.jpg?v=1775767232","\/\/newnestshop.com\/cdn\/shop\/files\/51-6zTLUH-L.jpg?v=1738894265","\/\/newnestshop.com\/cdn\/shop\/files\/819ggOiW8mL.jpg?v=1738894265","\/\/newnestshop.com\/cdn\/shop\/files\/61h73r4-3qL.jpg?v=1738894265","\/\/newnestshop.com\/cdn\/shop\/files\/71GlgLGXPoL.jpg?v=1738894265","\/\/newnestshop.com\/cdn\/shop\/files\/51VIZ-rcbiL.jpg?v=1738894265"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0D7Q6T225.jpg?v=1775767232","options":["Title"],"media":[{"alt":null,"id":36932871323799,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0D7Q6T225.jpg?v=1775767232"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0D7Q6T225.jpg?v=1775767232","width":1600},{"alt":null,"id":36932871389335,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51-6zTLUH-L.jpg?v=1738894265"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51-6zTLUH-L.jpg?v=1738894265","width":1600},{"alt":null,"id":36932871422103,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/819ggOiW8mL.jpg?v=1738894265"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/819ggOiW8mL.jpg?v=1738894265","width":1600},{"alt":null,"id":36932871454871,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61h73r4-3qL.jpg?v=1738894265"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61h73r4-3qL.jpg?v=1738894265","width":1600},{"alt":null,"id":36932871487639,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/71GlgLGXPoL.jpg?v=1738894265"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/71GlgLGXPoL.jpg?v=1738894265","width":1600},{"alt":null,"id":36932871520407,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51VIZ-rcbiL.jpg?v=1738894265"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51VIZ-rcbiL.jpg?v=1738894265","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eXKC-Y25-NPN Waterproof Non-Contact Liquid Level External Sensor Sensor Switch Output DC 5-12V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe intelligent non-contact liquid level sensor\n(hereinafter referred to as the liquid level sensor) adopts advanced signal\nprocessing technology and high-speed signal processing chips, breaking through\nthe influence of container wall thickness and realizing true non-contact\ndetection of liquid level height in a closed container. The liquid level\nsensor (probe) is installed above and below the outer wall of the measured\ncontainer (high and low liquid levels). Non-metallic containers do not need to\nbe opened, and the installation is simple and does not affect production.\nProduct Specification: 1. Item Type: XKC-Y25-NPN Sensor 2. Working Voltage:\n5-12V 3. Induction Principle: Capacitive Liquid Level Sensing 4. Output Form :\nNPN 5. Model: XKC-Y25-NPN 6. Response Time: 500ms 7. Output Current: 1~100mA\n8. Working Environment Temperature: -10~100°C 9. Induction Thickness\n(Sensitivity) Range: 20mm 10. Level Error: ±1.5mm 11. Humidity: 5%~100% 12.\nMaterial: ABS 13. Waterproof Performance: IP67\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWiring HarnessBrown wire : VCC(DC 5-12V connects power positive), Yellow wire:OUT( signal output), Blue wire: GND(connects power negative), Black wire:M(mode of NO\/NC)\u003c\/li\u003e\n \u003cli\u003eIntelligent AdjustmentIntelligent liquid level reference adjustment, liquid level storage function, liquid level status display mode, can realize multi-point series connection.Pure electronic circuit structure, non-mechanical working mode, stable and performance.\u003c\/li\u003e\n \u003cli\u003eAnti-InterferenceHigh stability, high sensitivity, strong anti-interference ability, from external electromagnetic interference, special treatment for power frequency interference and common mode interference, so as to be compatible with all 5 ~ 12V power.\u003c\/li\u003e\n \u003cli\u003eWidely UsedIt can detect the liquid level of various toxic substances, strong acids, strong alkalis and various liquids in high-pressure sealed containers. The liquid level sensor has no special requirements for the material of the liquid medium and the container.\u003c\/li\u003e\n \u003cli\u003eNon-contact TypeThe sensor is suitable for the outer wall of non-metallic pipes that are not in direct contact with the liquid, and will not be corroded by corrosive liquids such as strong acids, and will not be affected by scale or other debris.\u003c\/li\u003e\n \u003c\/ul\u003e"}
