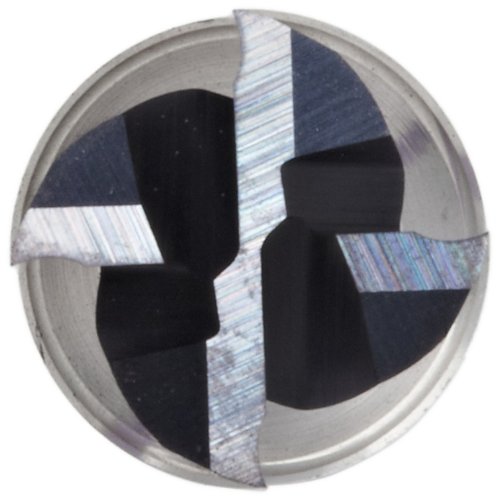

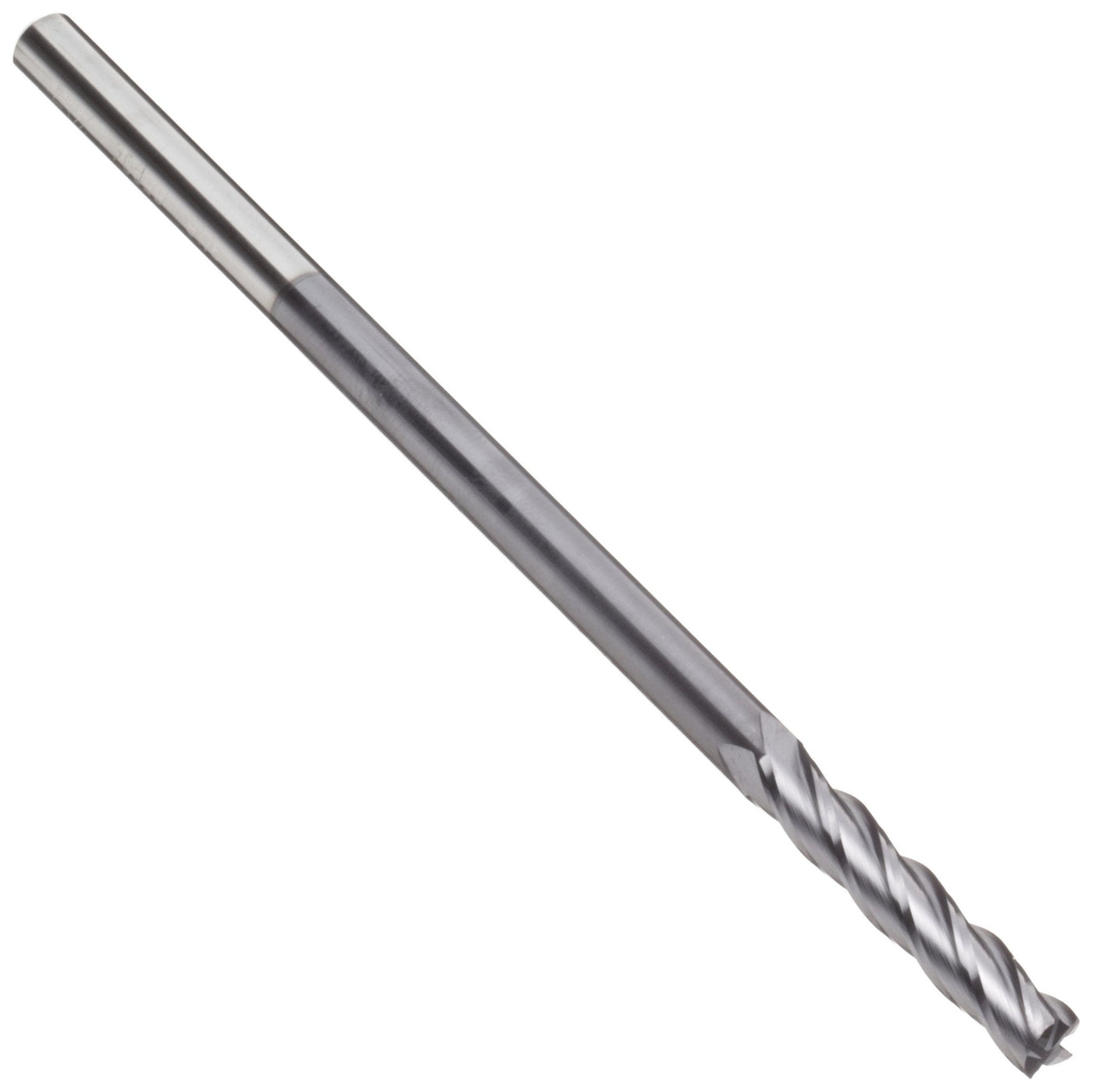

YG-1 E5065 Carbide Square Nose End Mill, Extra Long Reach, TIALN Multilayer Finish, 30 Deg Helix, 4 Flutes, 4" Overall Length, 0.25" Cutting Diameter, 0.25" Shank Diameter 1 Count (Pack of 1)
YG-1 E5065 Carbide Square Nose End Mill, Extra Long Reach, TIALN Multilayer Finish, 30 Deg Helix, 4 Flutes, 4" Overall Length, 0.25" Cutting Diameter, 0.25" Shank Diameter
The YG-1 E5065TF TiAlN-coated carbide extra-long-length square nose end mill has four flutes, a center-cutting design, and a 30-degree helix angle for general-purpose machining on steel, chromium-nickel steel, and cast iron. Extra-long-length end mills have longer cutting edges than long-length end mills for applications with a high depth of cut. (Feed should be reduced by around 50%.) Four flutes produce a better finish than fewer flutes. The tool’s square end creates sharp, unrounded cuts. The center-cutting design has cutting teeth at the end of the tool, so it can be fed into the workpiece like a drill bit. The 30-degree helix angle supports general-purpose applications. It balances lower angles’ strong cutting edge for difficult-to-machine materials with higher angles’ increased cutting action.The TiAlN coating resists heat better than the uncoated finish, TiN coating, and TiCN coating, increasing tool life and performance. It also offers increased hardness compared to TiN and may reduce the need for lubricants based on the application. The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. Cutting diameter tolerance is + 0.0000 to - 0.0012". The round shank accommodates a range of tool holders.End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tool’s cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. Two-flute designs offer the most efficient chip removal, but more flutes provide a smoother finish. The shank is the end of the tool held in place by a tool holder or machine. Center- cutting end mills can create three-dimensional shapes and profiles, and make plunge cuts similar to a drill bit. Non-center-cutting end mills are for applications such as peripheral milling and finishing, but cannot make plunge cuts. YG-1 manufactures drills, taps, end mills, and rotary tooling. The company, founded in 1981, is headquartered in South Korea and has a U.S. office in Vernon Hills, IL.
Product Features
- Suitable for machining on steel, chromium-nickel steel, and cast iron
- Extra-long-length end mills have longer cutting edges and can make deeper cuts than long-length end mills
- Four flutes produce a better finish than fewer flutes
- Titanium aluminum nitride (TiAlN) coating lubricates the end mill for high-temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than uncoated finish, TiN coating, and TiCN coating
- Carbide can run at higher speeds than high-speed or cobalt steel, resisting wear and high cutting temperatures
