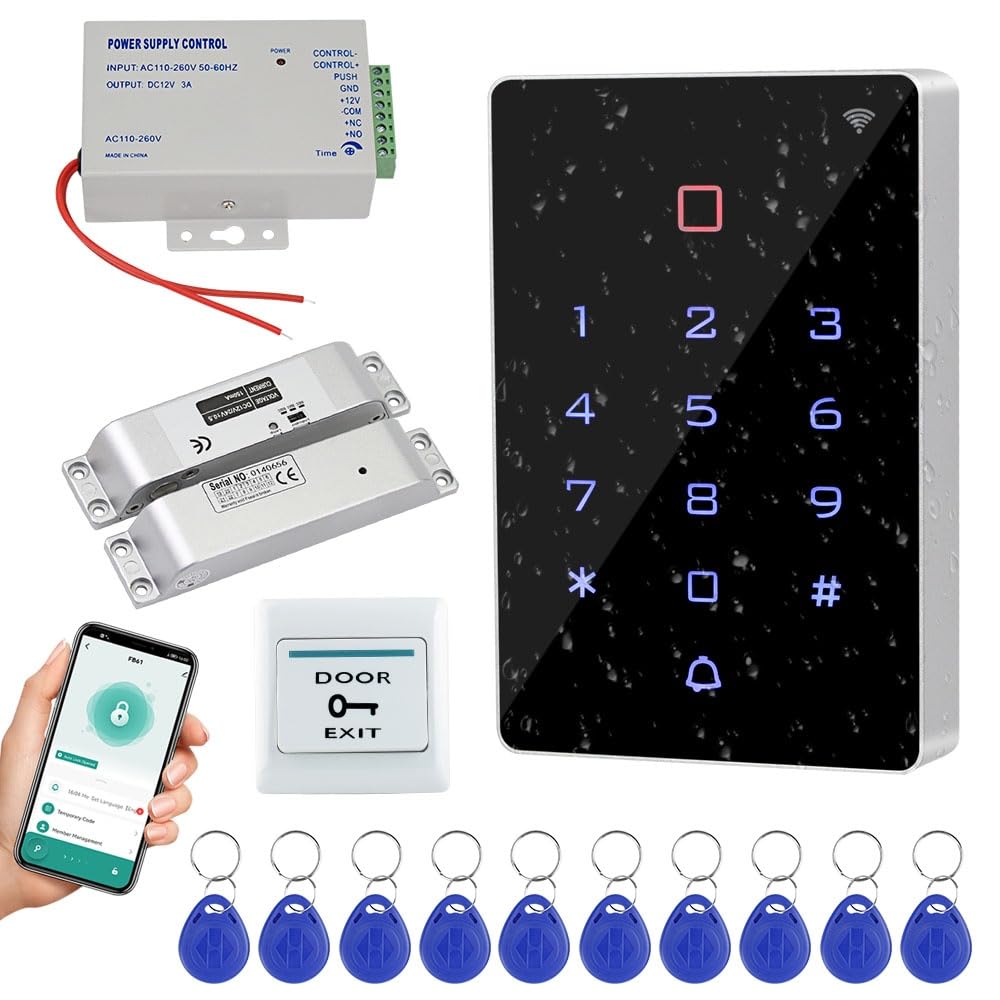

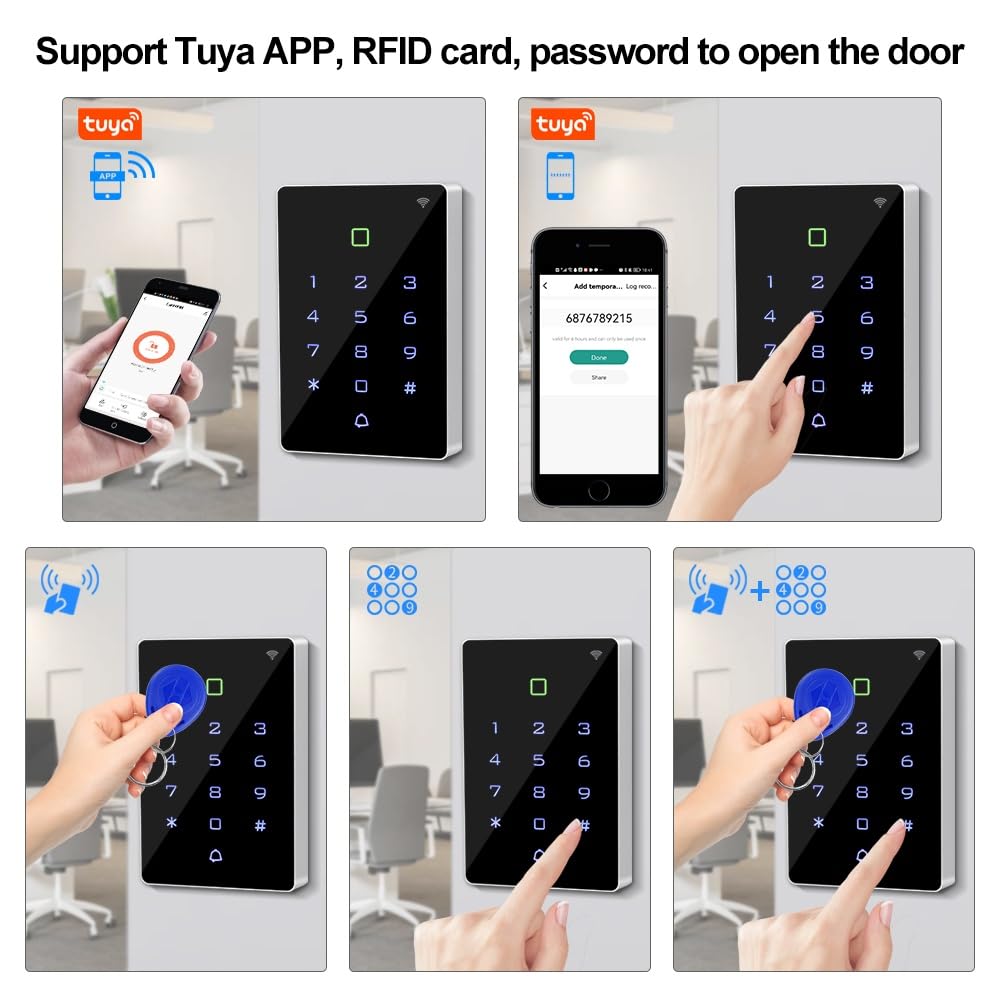

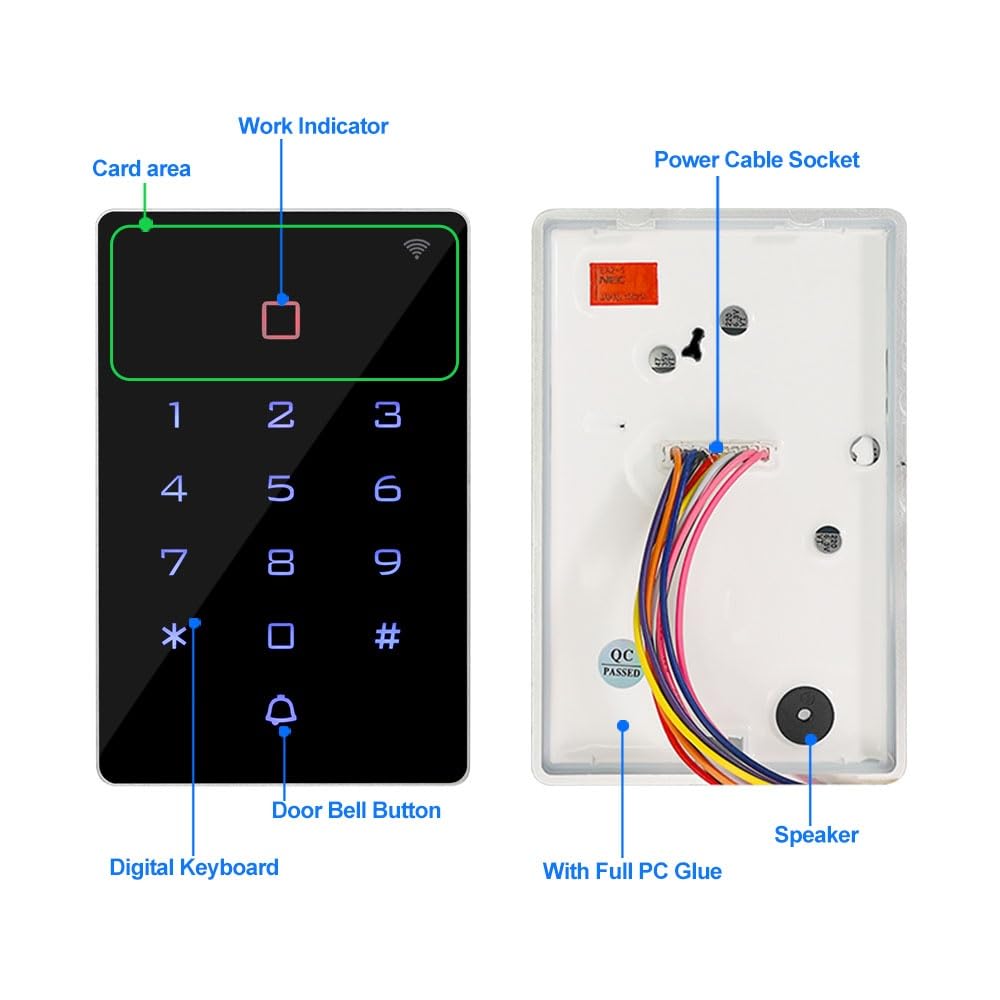

{"id":9510076186775,"title":"YiToo Full Kit of RFID 125KHz Access Control System WiFi Tuya Smart APP Control with 12V Electric Bolt Lock Power Supply Exit Button","handle":"yitoo-full-kit-of-rfid-125khz-access-control-system-wifi-tuya-smart-app-control-with-12v-electric-bolt-lock-power-supply-exit-button","description":"\u003ch3\u003eYiToo Full Kit of RFID 125KHz Access Control System WiFi Tuya Smart APP Control with 12V Electric Bolt Lock Power Supply Exit Button\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAccess Controller Keypad: Capacity: 2000 user Material: ABS plastic Working\nFrequency: 125KHz Card reading type: support EM compatible card Card reading\ndistance: 0-5CM Open Door Method: Card, 4 digits PIN, Card + PIN, Tuya APP\nremote unlock Can set master card: Yes Waterproof Level: IP68, suitable for\noutdoor use Doorbell Interface: supports external wired doorbell Wiegand\nSignal: Wiegand 26\/34 bits input\/output, supports external card reader\nBacklight: with blue backlight, can work normally even at night or in dark\nenvoriment. Built-in Buzzer: Yes (Warm Tip: The backlight and buzzer can't be\nturned off.) Working Indicator: Red \/ Green LED light Working Voltage: DC 12V\nWorking Current: ≤3A Autolock Time Delay: 1~99 seconds adjustable Temperature:\n-40℃ ~ 60℃ Humidity: 10% ~ 90% Dimension: 1147416 mm Electric Drop Bolt\nLock: Size: 150x34x28mm\/5.91x1.34x1.10inch Lock Core: The diameter is 12.5MM,\nextending the length of 15MM Fail safe, NC mode. Unlocked when power is\nremoved. Working Voltage: 12VDC Current: Start-up 1.2A,Persistent state 120mA\nTime delay: 0\/3\/6 seconds (Factory setting: 0) Tips: Yellow wire and white\nwire are useless, don't need to be connected. Suitable For: Wooden Door, Metal\nDoor, Fireproof Door, Glass Door,etc. Power Supply: Size: 105x68x34 mm Input\nVoltage: AC 110-260V \/ 50~60HZ Output Voltage: DC12V \/ 3A Autolock Time Delay:\n0~15 seconds adjustable Overload Protection: all outputs in a short circuit,\noverload are protected. Exit Button: Size: 86 86 mm Maximum Working Voltage:\n36V DC\/ 3A ~ 5A Contact Output：NC\/COM\/NO RFID Badge: Working Frequency:\n125KHz, standard EM card Quantity: 10 pieces, each keyfob has an unique ID\nnumber.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a full set of access control system kit, including a access controller, 12VDC power supply, electric magnetic lock and a switch button, suitable for door entry systems of appartment, offices, factories, hotel, family house, school, etc.\u003c\/li\u003e\n \u003cli\u003eThis access controller supports to pair with Tuya APP by WIFI, which enables you to remotely lock and unlock your door from anywhere in the world. Also, you can share control with your families and friends, and click reminder information to view logs.\u003c\/li\u003e\n \u003cli\u003eFull programming from the keypad, support add\/delete cards, set password, etc. Doesn't need to connect on the computer, can work alone. Support to open door by password, RFID card, password+RFID cards, 2000 user capacity.\u003c\/li\u003e\n \u003cli\u003eOperating mode of Electric Brop Bolt Lock: Fail-safe mode, normal close type. Unlocked when power is removed.\u003c\/li\u003e\n \u003cli\u003eAn exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-03-24T06:37:28+11:00","created_at":"2026-03-24T06:37:23+11:00","vendor":"YiToo","type":"Home Security Systems","tags":["home_improvement_Apr2026"],"price":33200,"price_min":33200,"price_max":33200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47545236193431,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CGRHSG6T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YiToo Full Kit of RFID 125KHz Access Control System WiFi Tuya Smart APP Control with 12V Electric Bolt Lock Power Supply Exit Button","public_title":null,"options":["Default Title"],"price":33200,"weight":1180,"compare_at_price":null,"inventory_management":"shopify","barcode":"K9 Tuya Kit4","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRHSG6T.jpg?v=1775815687","\/\/newnestshop.com\/cdn\/shop\/files\/61p-hG0HzmL.jpg?v=1774294646","\/\/newnestshop.com\/cdn\/shop\/files\/61ztV4jS5tL_cec52e10-cfda-465b-b11e-8e45102c2eb1.jpg?v=1774294646","\/\/newnestshop.com\/cdn\/shop\/files\/51dIoNTLoOL_f292e00d-eda6-47e2-93e5-a63ddb44a5ef.jpg?v=1774294648","\/\/newnestshop.com\/cdn\/shop\/files\/61fn0vkwXNL_82e5377a-f3dd-4b0d-9969-3d427398ee61.jpg?v=1774294646","\/\/newnestshop.com\/cdn\/shop\/files\/61VdtJjg2GL.jpg?v=1774294646","\/\/newnestshop.com\/cdn\/shop\/files\/51840V9LS8L.jpg?v=1774294646","\/\/newnestshop.com\/cdn\/shop\/files\/51fxIrp4EcL_1fdb868c-5243-4eea-824b-b484cccfb941.jpg?v=1774294646","\/\/newnestshop.com\/cdn\/shop\/files\/51SQYvDS1JL_95c1fa42-3700-4cb8-8aa8-6176e49beea2.jpg?v=1774294647"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRHSG6T.jpg?v=1775815687","options":["Title"],"media":[{"alt":null,"id":41205144649879,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRHSG6T.jpg?v=1775815687"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRHSG6T.jpg?v=1775815687","width":1000},{"alt":null,"id":41205144682647,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61p-hG0HzmL.jpg?v=1774294646"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61p-hG0HzmL.jpg?v=1774294646","width":1000},{"alt":null,"id":41205144715415,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ztV4jS5tL_cec52e10-cfda-465b-b11e-8e45102c2eb1.jpg?v=1774294646"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ztV4jS5tL_cec52e10-cfda-465b-b11e-8e45102c2eb1.jpg?v=1774294646","width":1000},{"alt":null,"id":41205144748183,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51dIoNTLoOL_f292e00d-eda6-47e2-93e5-a63ddb44a5ef.jpg?v=1774294648"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51dIoNTLoOL_f292e00d-eda6-47e2-93e5-a63ddb44a5ef.jpg?v=1774294648","width":1000},{"alt":null,"id":41205144780951,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61fn0vkwXNL_82e5377a-f3dd-4b0d-9969-3d427398ee61.jpg?v=1774294646"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61fn0vkwXNL_82e5377a-f3dd-4b0d-9969-3d427398ee61.jpg?v=1774294646","width":1000},{"alt":null,"id":41205144813719,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VdtJjg2GL.jpg?v=1774294646"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61VdtJjg2GL.jpg?v=1774294646","width":1000},{"alt":null,"id":41205144846487,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51840V9LS8L.jpg?v=1774294646"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51840V9LS8L.jpg?v=1774294646","width":800},{"alt":null,"id":41205144879255,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51fxIrp4EcL_1fdb868c-5243-4eea-824b-b484cccfb941.jpg?v=1774294646"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51fxIrp4EcL_1fdb868c-5243-4eea-824b-b484cccfb941.jpg?v=1774294646","width":1000},{"alt":null,"id":41205144912023,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SQYvDS1JL_95c1fa42-3700-4cb8-8aa8-6176e49beea2.jpg?v=1774294647"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SQYvDS1JL_95c1fa42-3700-4cb8-8aa8-6176e49beea2.jpg?v=1774294647","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYiToo Full Kit of RFID 125KHz Access Control System WiFi Tuya Smart APP Control with 12V Electric Bolt Lock Power Supply Exit Button\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAccess Controller Keypad: Capacity: 2000 user Material: ABS plastic Working\nFrequency: 125KHz Card reading type: support EM compatible card Card reading\ndistance: 0-5CM Open Door Method: Card, 4 digits PIN, Card + PIN, Tuya APP\nremote unlock Can set master card: Yes Waterproof Level: IP68, suitable for\noutdoor use Doorbell Interface: supports external wired doorbell Wiegand\nSignal: Wiegand 26\/34 bits input\/output, supports external card reader\nBacklight: with blue backlight, can work normally even at night or in dark\nenvoriment. Built-in Buzzer: Yes (Warm Tip: The backlight and buzzer can't be\nturned off.) Working Indicator: Red \/ Green LED light Working Voltage: DC 12V\nWorking Current: ≤3A Autolock Time Delay: 1~99 seconds adjustable Temperature:\n-40℃ ~ 60℃ Humidity: 10% ~ 90% Dimension: 1147416 mm Electric Drop Bolt\nLock: Size: 150x34x28mm\/5.91x1.34x1.10inch Lock Core: The diameter is 12.5MM,\nextending the length of 15MM Fail safe, NC mode. Unlocked when power is\nremoved. Working Voltage: 12VDC Current: Start-up 1.2A,Persistent state 120mA\nTime delay: 0\/3\/6 seconds (Factory setting: 0) Tips: Yellow wire and white\nwire are useless, don't need to be connected. Suitable For: Wooden Door, Metal\nDoor, Fireproof Door, Glass Door,etc. Power Supply: Size: 105x68x34 mm Input\nVoltage: AC 110-260V \/ 50~60HZ Output Voltage: DC12V \/ 3A Autolock Time Delay:\n0~15 seconds adjustable Overload Protection: all outputs in a short circuit,\noverload are protected. Exit Button: Size: 86 86 mm Maximum Working Voltage:\n36V DC\/ 3A ~ 5A Contact Output：NC\/COM\/NO RFID Badge: Working Frequency:\n125KHz, standard EM card Quantity: 10 pieces, each keyfob has an unique ID\nnumber.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a full set of access control system kit, including a access controller, 12VDC power supply, electric magnetic lock and a switch button, suitable for door entry systems of appartment, offices, factories, hotel, family house, school, etc.\u003c\/li\u003e\n \u003cli\u003eThis access controller supports to pair with Tuya APP by WIFI, which enables you to remotely lock and unlock your door from anywhere in the world. Also, you can share control with your families and friends, and click reminder information to view logs.\u003c\/li\u003e\n \u003cli\u003eFull programming from the keypad, support add\/delete cards, set password, etc. Doesn't need to connect on the computer, can work alone. Support to open door by password, RFID card, password+RFID cards, 2000 user capacity.\u003c\/li\u003e\n \u003cli\u003eOperating mode of Electric Brop Bolt Lock: Fail-safe mode, normal close type. Unlocked when power is removed.\u003c\/li\u003e\n \u003cli\u003eAn exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.\u003c\/li\u003e\n \u003c\/ul\u003e"}
