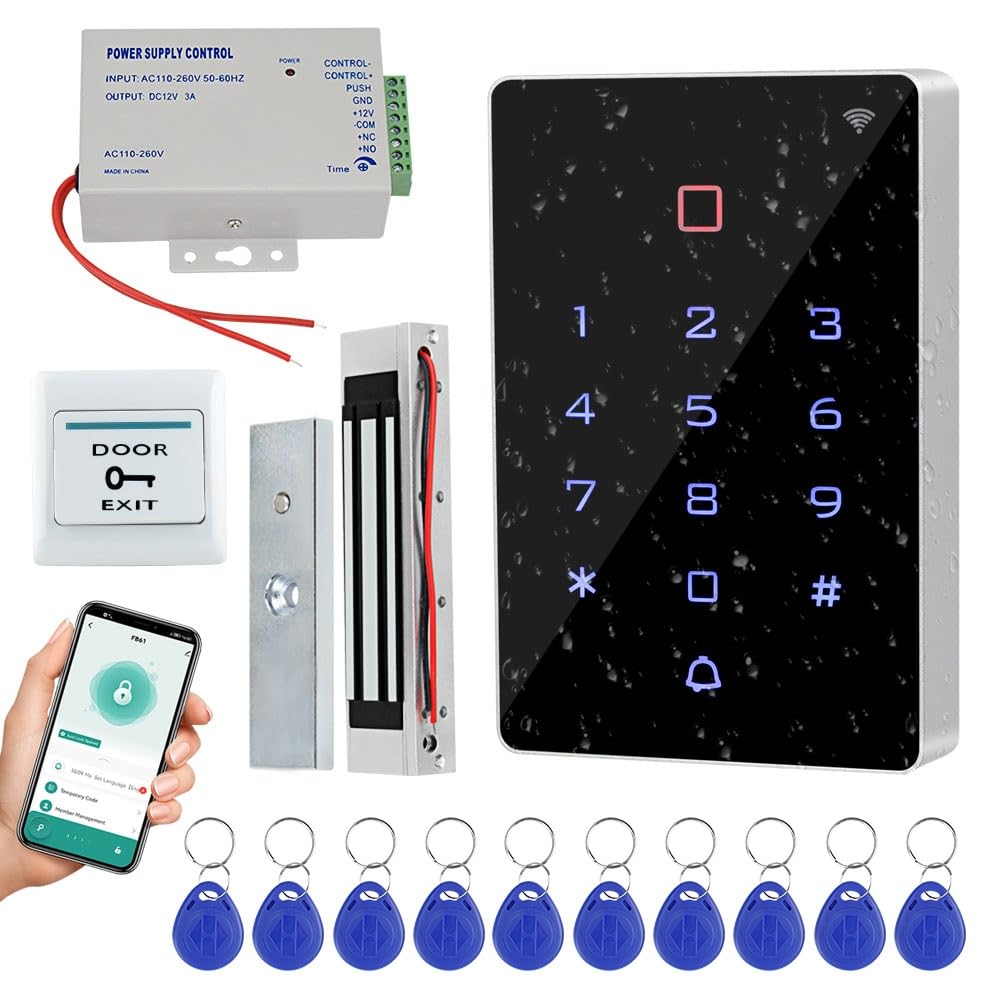

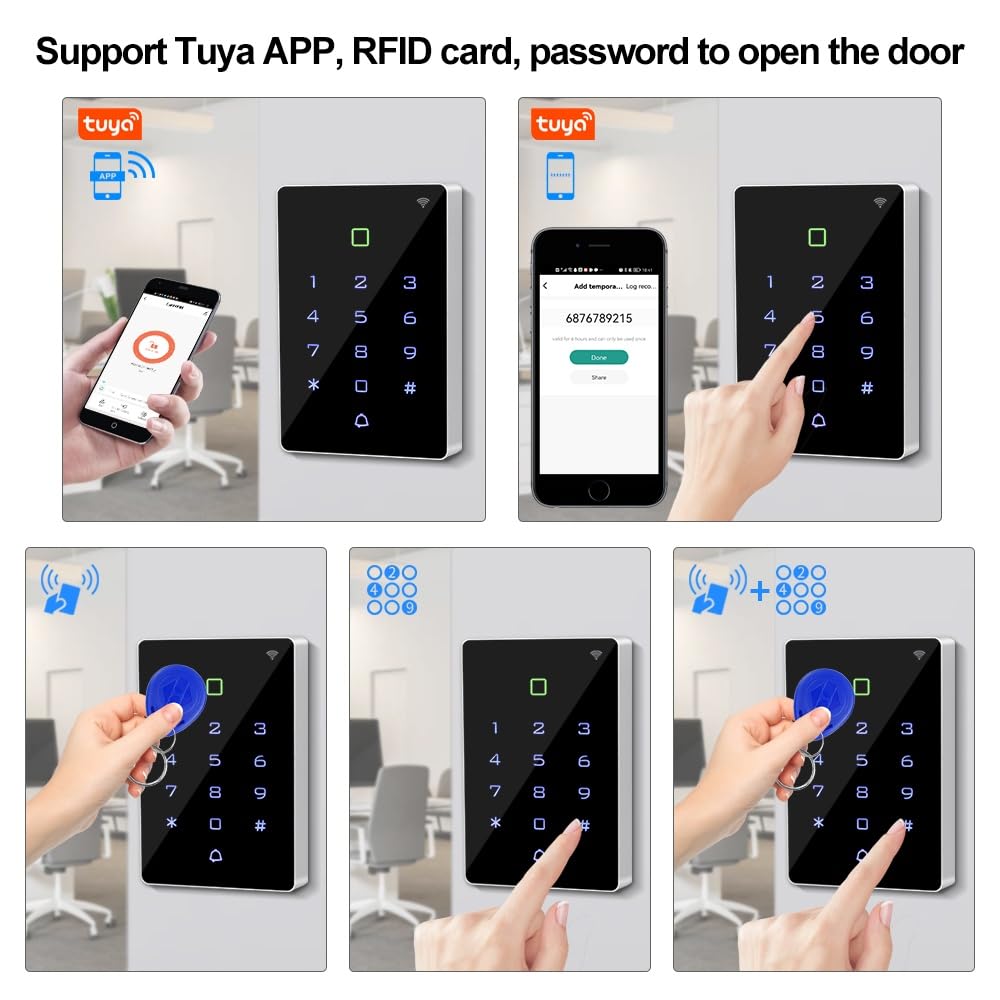

{"id":9506169290903,"title":"YiToo Waterproof RFID Access Control System Kit WiFi Tuya Access Controller with 350Lbs Force Electric Manetic Door Lock Full Set","handle":"yitoo-waterproof-rfid-access-control-system-kit-wifi-tuya-access-controller-with-350lbs-force-electric-manetic-door-lock-full-set","description":"\u003ch3\u003eYiToo Waterproof RFID Access Control System Kit WiFi Tuya Access Controller with 350Lbs Force Electric Manetic Door Lock Full Set\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAccess Controller Keypad: Capacity: 2000 user Material: ABS plastic Working\nFrequency: 125KHz Card reading type: support EM compatible card Card reading\ndistance: 0-5CM Open Door Method: Card, 4 digits PIN, Card + PIN, Tuya APP\nremote unlock Can set master card: Yes Waterproof Level: IP68, suitable for\noutdoor use Doorbell Interface: supports external wired doorbell Wiegand\nSignal: Wiegand 26\/34 bits input\/output, supports external card reader\nBacklight: with blue backlight, can work normally even at night or in dark\nenvoriment. Built-in Buzzer: Yes (Warm Tip: The backlight and buzzer can't be\nturned off.) Working Indicator: Red \/ Green LED light Working Voltage: DC 12V\nWorking Current: ≤3A Autolock Time Delay: 1~99 seconds adjustable Temperature:\n-40℃ ~ 60℃ Humidity: 10% ~ 90% Dimension: 1147416 mm Electric Magnetic Lock:\nMaterial: Aluminum alloy Working Voltage: 12VDC Current: 380~500mA Holding\nForce: 180kg\/350Lbs Lock Body: 172x40x21 mm \/ 6.77x1.57x0.83 inch Armature\nPlate: 130x32x11 mm \/ 5.12x1.26x0.43 inch Built-in reverse current protection\ndevice (MOV). Waterproof, can be install outside. Suitable for wooden, glass,\nmetal, security door. Installation: surface installed Power Supply: Size:\n105x68x34 mm Input Voltage: AC 110-260V \/ 50~60HZ Output Voltage: DC12V \/ 3A\nAutolock Time Delay: 0~15 seconds adjustable Overload Protection: all outputs\nin a short circuit, overload are protected. Exit Button: Size: 86 86 mm\nMaximum Working Voltage: 36V DC\/ 3A ~ 5A Contact Output：NC\/COM\/NO RFID Badge:\nWorking Frequency: 125KHz, standard EM card Quantity: 10 pieces, each keyfob\nhas an unique ID number Warm Tips: Armature plate of the magnetic lock\ninstalled too tight will lead to result the lock weak force, recommend loosen\nthe armature plate screws a little in this case.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a full set of access control system kit, including a access controller, 12VDC power supply, electric magnetic lock and a switch button, suitable for door entry systems of appartment, offices, factories, hotel, family house, school, etc.\u003c\/li\u003e\n \u003cli\u003eThis access controller supports to pair with Tuya APP by WIFI, which enables you to remotely lock and unlock your door from anywhere in the world. Also, you can share control with your families and friends, and click reminder information to view logs.\u003c\/li\u003e\n \u003cli\u003eFull programming from the keypad, support add\/delete cards, set password, etc. Doesn't need to connect on the computer, can work alone. Support to open door by password, RFID card, password+RFID cards, 2000 user capacity.\u003c\/li\u003e\n \u003cli\u003e180kg\/350lbs holding force electromagnetic lock offers reliable performance. Fail-Safe mode, unlocked when power is removed. Suitable for wooden, glass, metal, security door.\u003c\/li\u003e\n \u003cli\u003eAn exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-03-23T00:58:29+11:00","created_at":"2026-03-23T00:58:25+11:00","vendor":"YiToo","type":"Home Security Systems","tags":["home_improvement_Apr2026"],"price":39400,"price_min":39400,"price_max":39400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":47489252851863,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CGRZ4DVN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YiToo Waterproof RFID Access Control System Kit WiFi Tuya Access Controller with 350Lbs Force Electric Manetic Door Lock Full Set","public_title":null,"options":["Default Title"],"price":39400,"weight":1620,"compare_at_price":null,"inventory_management":"shopify","barcode":"K9 Tuya Kit1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRZ4DVN.jpg?v=1775815232","\/\/newnestshop.com\/cdn\/shop\/files\/61fn0vkwXNL.jpg?v=1774187908","\/\/newnestshop.com\/cdn\/shop\/files\/61ztV4jS5tL.jpg?v=1774187907","\/\/newnestshop.com\/cdn\/shop\/files\/51fxIrp4EcL_3a46d233-5bd6-45c6-955a-3bbcc407af0b.jpg?v=1774187907","\/\/newnestshop.com\/cdn\/shop\/files\/616TDy8FYPL.jpg?v=1774187907","\/\/newnestshop.com\/cdn\/shop\/files\/61kZCgg652L.jpg?v=1774187908","\/\/newnestshop.com\/cdn\/shop\/files\/51nDIhn1W-L.jpg?v=1774187908","\/\/newnestshop.com\/cdn\/shop\/files\/51SQYvDS1JL_e97b451e-7a6d-4527-8c60-b46c34ef0187.jpg?v=1774187908"],"featured_image":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRZ4DVN.jpg?v=1775815232","options":["Title"],"media":[{"alt":null,"id":41184450609303,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRZ4DVN.jpg?v=1775815232"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/B0CGRZ4DVN.jpg?v=1775815232","width":1000},{"alt":null,"id":41184450642071,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61fn0vkwXNL.jpg?v=1774187908"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61fn0vkwXNL.jpg?v=1774187908","width":1000},{"alt":null,"id":41184450674839,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ztV4jS5tL.jpg?v=1774187907"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61ztV4jS5tL.jpg?v=1774187907","width":1000},{"alt":null,"id":41184450707607,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51fxIrp4EcL_3a46d233-5bd6-45c6-955a-3bbcc407af0b.jpg?v=1774187907"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51fxIrp4EcL_3a46d233-5bd6-45c6-955a-3bbcc407af0b.jpg?v=1774187907","width":1000},{"alt":null,"id":41184450740375,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/616TDy8FYPL.jpg?v=1774187907"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/616TDy8FYPL.jpg?v=1774187907","width":1000},{"alt":null,"id":41184450773143,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kZCgg652L.jpg?v=1774187908"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/61kZCgg652L.jpg?v=1774187908","width":1000},{"alt":null,"id":41184450805911,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51nDIhn1W-L.jpg?v=1774187908"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51nDIhn1W-L.jpg?v=1774187908","width":800},{"alt":null,"id":41184450838679,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SQYvDS1JL_e97b451e-7a6d-4527-8c60-b46c34ef0187.jpg?v=1774187908"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/newnestshop.com\/cdn\/shop\/files\/51SQYvDS1JL_e97b451e-7a6d-4527-8c60-b46c34ef0187.jpg?v=1774187908","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYiToo Waterproof RFID Access Control System Kit WiFi Tuya Access Controller with 350Lbs Force Electric Manetic Door Lock Full Set\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAccess Controller Keypad: Capacity: 2000 user Material: ABS plastic Working\nFrequency: 125KHz Card reading type: support EM compatible card Card reading\ndistance: 0-5CM Open Door Method: Card, 4 digits PIN, Card + PIN, Tuya APP\nremote unlock Can set master card: Yes Waterproof Level: IP68, suitable for\noutdoor use Doorbell Interface: supports external wired doorbell Wiegand\nSignal: Wiegand 26\/34 bits input\/output, supports external card reader\nBacklight: with blue backlight, can work normally even at night or in dark\nenvoriment. Built-in Buzzer: Yes (Warm Tip: The backlight and buzzer can't be\nturned off.) Working Indicator: Red \/ Green LED light Working Voltage: DC 12V\nWorking Current: ≤3A Autolock Time Delay: 1~99 seconds adjustable Temperature:\n-40℃ ~ 60℃ Humidity: 10% ~ 90% Dimension: 1147416 mm Electric Magnetic Lock:\nMaterial: Aluminum alloy Working Voltage: 12VDC Current: 380~500mA Holding\nForce: 180kg\/350Lbs Lock Body: 172x40x21 mm \/ 6.77x1.57x0.83 inch Armature\nPlate: 130x32x11 mm \/ 5.12x1.26x0.43 inch Built-in reverse current protection\ndevice (MOV). Waterproof, can be install outside. Suitable for wooden, glass,\nmetal, security door. Installation: surface installed Power Supply: Size:\n105x68x34 mm Input Voltage: AC 110-260V \/ 50~60HZ Output Voltage: DC12V \/ 3A\nAutolock Time Delay: 0~15 seconds adjustable Overload Protection: all outputs\nin a short circuit, overload are protected. Exit Button: Size: 86 86 mm\nMaximum Working Voltage: 36V DC\/ 3A ~ 5A Contact Output：NC\/COM\/NO RFID Badge:\nWorking Frequency: 125KHz, standard EM card Quantity: 10 pieces, each keyfob\nhas an unique ID number Warm Tips: Armature plate of the magnetic lock\ninstalled too tight will lead to result the lock weak force, recommend loosen\nthe armature plate screws a little in this case.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis is a full set of access control system kit, including a access controller, 12VDC power supply, electric magnetic lock and a switch button, suitable for door entry systems of appartment, offices, factories, hotel, family house, school, etc.\u003c\/li\u003e\n \u003cli\u003eThis access controller supports to pair with Tuya APP by WIFI, which enables you to remotely lock and unlock your door from anywhere in the world. Also, you can share control with your families and friends, and click reminder information to view logs.\u003c\/li\u003e\n \u003cli\u003eFull programming from the keypad, support add\/delete cards, set password, etc. Doesn't need to connect on the computer, can work alone. Support to open door by password, RFID card, password+RFID cards, 2000 user capacity.\u003c\/li\u003e\n \u003cli\u003e180kg\/350lbs holding force electromagnetic lock offers reliable performance. Fail-Safe mode, unlocked when power is removed. Suitable for wooden, glass, metal, security door.\u003c\/li\u003e\n \u003cli\u003eAn exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.\u003c\/li\u003e\n \u003c\/ul\u003e"}
